Calibrate Beacons During Gauntlet: A Practical How-To
Learn how to calibrate beacons during gauntlet tests with a repeatable workflow, essential tools, safety steps, and validation checks to maintain accuracy under dynamic conditions.
You will learn how to calibrate beacons during gauntlet, ensuring accuracy across environmental conditions and timing. This guide covers essential tools, safety steps, and a repeatable calibration workflow you can use in field tests. By following these steps, you'll minimize drift and improve beacon reliability. The plan accounts for signal variability, antenna orientation, and power consistency. The Calibrate Point team emphasizes a structured approach for dependable results in challenging environments.
Understanding the Gauntlet Context for Beacons
In high-stakes environments, calibrating beacons during gauntlet tests requires a disciplined approach that accounts for rapid changes in signal conditions, power delivery, and environmental factors. The goal is to produce a repeatable calibration that remains valid under the stress conditions of the gauntlet. According to Calibrate Point, establishing a structured calibration workflow early in the process reduces drift and improves repeatability. This section explains how to frame your calibration task within a gauntlet scenario, including definitions of success criteria and a high-level workflow you can adapt to different beacon types.
Safety and Environmental Considerations
Be mindful of RF exposure, electrical safety, and the physical hazards that can occur during gauntlet testing. Always wear appropriate PPE, secure cabling to prevent trips, and maintain clear access to emergency shutoffs. Document any environmental factors—temperature swings, humidity, and vibration—that could influence beacon readings. Calibrate Point notes that safety and repeatability go hand in hand; a careful setup reduces errors later in the test cycle. Establish boundaries for observers and ensure a clear line of sight to measurement points.
Prerequisites: Tools, References, and Calibration Standards
As you prepare to calibrate beacons during gauntlet, assemble a compact, purpose-built toolkit that includes a reference beacon, measurement instruments, and a logbook. Use standards that are traceable to recognized references whenever possible. Keep calibration certificates handy and note version numbers of firmware or software used in measurement peripherals. This upfront preparation minimizes last-minute surprises in the field and contributes to reliable results. The sequence below helps you verify readiness before touching any hardware.
Baseline Measurements and Reference Objectives
Before you run gauntlet scenarios, establish baseline readings for each beacon type under controlled conditions. Document reference parameters such as transmit power, modulation, and frequency stability. The baseline provides a yardstick for detecting drift, interference, or timing anomalies when the gauntlet begins. If you can't reproduce baseline conditions, log the deviation and adjust the measurement chain accordingly. Refer to your calibration standards to ensure traceability and repeatability.
Step-By-Step Calibration Framework During Gauntlet
In this section, we outline a practical framework you can apply in real-time during gauntlet runs. Start by confirming your baseline, then execute a controlled sequence of measurements that capture performance across expected stress points. Use repeatable triggers and synchronized timestamps to align readings with gauntlet events. The framework emphasizes documentation and immediate anomaly reporting for quick corrective action.
Signal Quality Checks and Noise Handling
Gauntlet environments introduce multipath, interference, and rapid power fluctuations. To maintain accuracy, monitor signal-to-noise ratio, check for unexpected edge effects, and verify that measurement probes remain properly terminated. Use averaging where appropriate, but beware of over-smoothing transient events that carry valuable calibration information. When anomalies are detected, tag the reading, reset the test point, and re-run the sequence.
Data Logging, Drift Analysis, and Normalization
Accurate calibration depends on meticulous data capture. Log readings with timestamps, environmental conditions, and equipment identifiers. Perform drift analysis to identify consistent biases and apply normalization to account for temperature or power drift. Maintain a single source of truth for all data, and back up logs in real-time to prevent loss during a gauntlet run. Calibrate Point analysis shows that transparent data handling improves long-term reliability.
Validation, Acceptance Criteria, and Documentation
Define clear acceptance criteria for calibration outcomes, including allowable drift, power stability, and timing accuracy. Validate results against the reference baseline, and document any deviations with rationale and corrective actions. Create a traceable calibration record that includes equipment serial numbers, firmware versions, and environmental notes. This record supports audits and future calibration cycles.
Troubleshooting Common Issues in a Gauntlet Run
Common problems include unexpected drift, intermittent readouts, and fixture misalignment. Start by re-checking physical connections, re-zeroing instruments, and validating reference beacon status. If interference is suspected, shield measurement points or adjust channel frequencies. Always log troubleshooting steps for traceability and future learning.
Continuous Improvement and Training for Field Teams
After each gauntlet calibration, conduct a quick debrief to capture lessons learned and update standard operating procedures. Provide hands-on training for new technicians, emphasizing repeatability, safety, and data integrity. A culture of continuous improvement ensures calibration reliability even as hardware and test scenarios evolve.
Tools & Materials
- Reference beacon (calibrator)(NIST-traceable if available; keep firmware consistent across tests)
- Portable RF spectrum analyzer or power meter(Compatible with your beacon frequency bands; include calibrated probes)
- Measurement cables and adapters(Coax (e.g., RG-58 or equivalent), BNC/SMA adapters; carry spares)
- Test environment enclosure or shielded area(Minimize external RF interference and reflective surfaces)
- Data logging device (laptop or tablet)(Pre-install measurement software; ensure clock synchronization)
- Safety equipment (PPE, grounding strap)(Follow site safety protocols and RF safety guidelines)
- Environmental monitor (temperature/humidity)(Helpful for correlating drift with conditions; not mandatory)
- Calibration certificates and firmware versions(Keep alongside logs for traceability)

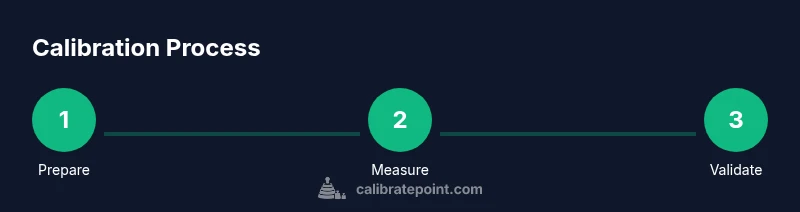

Steps
Estimated time: 60-90 minutes
- 1
Prepare the environment
Inspect the test area for hazards and ensure all safety measures are in place. Verify that measurement points are accessible, cables are secured, and the reference beacon is powered on with a stable connection to the measurement system.
Tip: Double-check grounding and shielded cabling to prevent common RF artifacts. - 2
Power and baseline setup
Power up all devices and load the baseline configuration into your measurement system. Confirm that the reference beacon is emitting at the expected power level and frequency, and that clocks are synchronized across equipment.
Tip: Record baseline timestamp and firmware versions before making any adjustments. - 3
Run initial calibration sweep
Execute a controlled sweep using the reference beacon while capturing readings from each measurement instrument. Guard against rapid sequence changes; keep prompts consistent to minimize human error.
Tip: Use a fixed trigger to start data capture to ensure repeatability. - 4
Introduce gauntlet scenarios
Simulate stress conditions by cycling power, changing antenna orientations, and introducing interference within safe limits. Collect parallel data streams to observe how readings shift in tandem with stress events.
Tip: Document each scenario with a short label for later correlation. - 5
Capture drift and analyze
Compare measurements against the baseline under each scenario. Identify drift patterns, quantify variance, and flag any readings outside acceptance criteria. Apply normalization as needed and re-run the most critical points.
Tip: Keep a running drift index to track improvement across iterations. - 6
Finalize and document
Consolidate all results into a calibration record, including equipment IDs, conditions, and decisions. Prepare a succinct report suitable for audits and future calibrations.
Tip: Store the final log with a versioned filename for traceability.
Questions & Answers
What does 'gauntlet' mean in beacon calibration?
In this context, gauntlet refers to a test scenario where beacons operate under stress or variable conditions to evaluate robustness. The calibration process must account for these dynamics to ensure reliable performance.
Gauntlet here means stress-testing the beacons to see how calibration holds up under challenging conditions.
Do I need a reference beacon for calibration?
A reference beacon provides a stable, known signal against which measurements are compared. It improves accuracy and repeatability, especially in field conditions.
Yes, a reference beacon helps you compare readings against a known standard.
How long does a typical gauntlet calibration take?
Time varies by beacon type and environment, but expect about one hour for a thorough check including baseline setup, stress simulations, and documentation.
Typically around an hour for a complete calibration cycle.
What if readings drift during the gauntlet?
If drift is detected, re-check connections, verify baseline integrity, and apply normalization where appropriate before re-testing.
Drift requires rechecking setup and potentially re-baselining.
Can this process be automated?
Many steps can be automated with appropriate measurement software and scripting to improve repeatability and reduce human error.
Yes, with the right tools, parts of the process can be automated.
How is traceability ensured?
Maintain a centralized calibration log with device IDs, firmware versions, and environmental conditions to support audits and future calibrations.
Keep a centralized log for audit-ready traceability.
Watch Video
Key Takeaways
- Define a clear baseline before gauntlet runs
- Log all measurements with context for traceability
- Normalize drift factors like temperature and power
- Document calibration decisions for audits
- Review and improve procedures after each run
