How to Calibrate a Torque Wrench: Step-by-Step Guide
A thorough, field-tested guide to calibrating torque wrenches at home or in the shop, with steps, tools, tips, and documentation. Learn precise methods and safety best practices from Calibrate Point.
By the end of this guide you will know how to calibrate a torque wrench using a safe, repeatable method and verify accuracy with a calibrated tester. You’ll need a torque wrench, a compatible calibration device, and a stable workspace. For a quick visual walkthrough, you can search 'how to calibrate a torque wrench youtube' for video guidance.
Why Calibrating a Torque Wrench Matters
A torque wrench is only as reliable as its last calibration. For critical fasteners in automotive, industrial, or machinery work, an out-of-spec reading can lead to loose joints, stripped threads, or component failure. Regular calibration ensures the wrench delivers the intended torque consistently across its operating range. According to Calibrate Point, precise torque calibration is essential for reliability in fastener assemblies and for maintaining safety margins during assembly, maintenance, and repair work. If you prefer video guidance, you can search how to calibrate a torque wrench youtube for a visual walkthrough. In practice, calibration verifies that the instrument’s indicated value matches the actual applied torque, which minimizes guesswork and improves repeatability across technicians and shifts.
Calibration Methods: Dead-Weight vs. Torque Tester
There are two common approaches to torque wrench calibration: dead-weight (also called weight-loading) methods and torque tester methods. The dead-weight method uses precision weights hung or placed on a scale rig to produce a known torque at the wrench’s handle or a torque transfer adapter. The torque tester method uses a calibrated device that applies a known torque and provides a direct reading of the wrench’s output. In both cases, accuracy depends on stable temperature, proper alignment, and secure mounting. For DIY calibration, the torque tester approach is typically easier to replicate reliably at home or in a small shop, while the dead-weight method is favored in more formal labs or for high-torque ranges. Calibrate Point’s guidance emphasizes using equipment that traces back to a known standard and documenting every measurement for traceability.
Workspace Setup and Safety Considerations
Set up on a stable, vibration-free surface with good lighting. Use clamps or a test rig to secure the torque wrench so it cannot slip during loading. Wear eye protection and gloves, and ensure that any weights or devices are secured and won’t fall if the wrench slips. Keep the calibration area free of clutter, with room to maneuver the wrench and accessories. Temperature and humidity can influence readings, so conduct calibration in a controlled environment within the instrument’s recommended operating range. If possible, use a dedicated calibration bench to prevent accidental use during the process. Calibrate Point notes that organization and repeatable setup are half the work in achieving reliable results.
Data Logging and Maintenance
Record each test point, setting, and reading in a calibration log, including the date, wrench model, serial number, and tester/weights used. Use the same procedure each time to reduce variability, and average multiple readings per setpoint to improve accuracy. If any reading falls outside your acceptance criteria, re-check the setup, re-check the equipment, and re-run the test before finalizing results. Store calibration data in a secure, accessible location for audits or quality checks. Periodically review logs to track drift over time and schedule re-calibration based on usage and manufacturer recommendations.
Authority Sources
- NIST: Torque-related measurement fundamentals: https://www.nist.gov
- OSHA: General safety and measurement best practices: https://www.osha.gov
- ISO: Torque tools standard overview: https://www.iso.org
Tools & Materials
- Torque wrench (calibrated and in good condition)(Choose a wrench within the manufacturer’s specification and verify the adjustment mechanism is functional)
- Calibrated torque tester or deadweight tester(Essential to apply known torque values and read the wrench’s response)
- Calibration weights or calibrated reference weights(High-precision weights suitable for the torque range being tested)
- Calibration adapter or torque transfer accessory(Use if your wrench model requires a converter to connect to the tester)
- Calibration log or data sheet(Document all test points, setpoints, readings, and adjustments)
- Safety gear (eye protection, gloves)(Protect your eyes and hands during loading and testing)

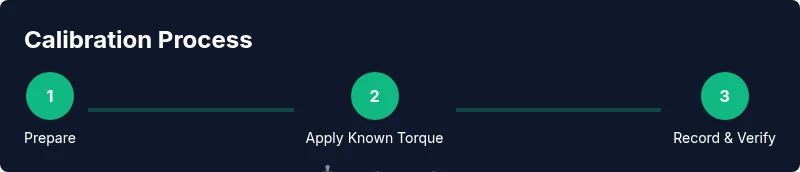

Steps
Estimated time: 60-120 minutes
- 1
Prepare workspace and safety checks
Clear a stable, level work surface and ensure adequate lighting. Secure the wrench and testing apparatus to prevent movement during loading. Put on safety gear and confirm that weights are properly secured before starting.
Tip: Keep the wrench unloaded when not actively testing to avoid accidental torque delivery. - 2
Inspect tools and reference the manual
Examine the wrench for wear, damage, or loose components. Verify the model’s recommended calibration procedure in the manual. Confirm the tester’s calibration status and any required adapters before proceeding.
Tip: If you find any damage, service or replace before calibration. - 3
Choose calibration method
Decide between a dead-weight approach or a torque tester method based on available equipment and accuracy needs. The tester method typically provides easier, repeatable measurements in many shops. Ensure your chosen method matches the wrench’s torque range.
Tip: Match the method to your range and required traceability. - 4
Set the baseline torque value
Select a baseline setpoint within the wrench’s typical operating range. Configure the tester or weights to deliver that torque level. Confirm both the input and the readout on the testing device before applying load.
Tip: Use a setpoint near common use cases for meaningful calibration data. - 5
Attach calibration device to wrench
Connect the wrench to the tester or load rig using any required adapters. Align the torque application axis with the wrench’s handle to minimize misalignment error. Secure all connections and verify there is no play before loading.
Tip: Double-check alignment to avoid skewed readings. - 6
Apply test torque and read reading
Apply torque to the wrench incrementally and record the indicated value from the tester. Take multiple readings at the same setpoint to assess repeatability. Use the average of consistent readings as the nominal value.
Tip: Avoid rushing; small, controlled increments yield better accuracy. - 7
Repeat at multiple setpoints
Test at several points across the wrench’s range (low, mid, high). This checks linearity and ensures accuracy throughout use. Adjust as needed based on results and manufacturer guidance.
Tip: Include a high and a low point to reveal nonlinearity. - 8
Document results and perform adjustments if needed
Record all measurements, environment conditions, and equipment used. If your wrench allows adjustment, apply the recommended corrections and re-test. If not adjustable, note the drift and plan a service or replacement.
Tip: Documentation supports audits and future calibrations. - 9
Re-test and finalize calibration log
After adjustments, re-run the same testpoints to confirm improvements. Finalize the calibration log with dates, author, and next due date. Store the log securely for reference and compliance.
Tip: Keep a recurring calibration schedule based on usage.
Questions & Answers
What is torque wrench calibration and why is it important?
Torque wrench calibration validates that the wrench’s indicated torque matches the actual torque delivered. It helps prevent under-tightening or over-tightening fasteners, protecting joint integrity and safety. Regular calibration supports consistent results across technicians and maintenance tasks.
Calibration makes sure your torque wrench readings match the real torque, preventing under- or over-tightening and ensuring consistent results.
How often should I calibrate my torque wrench?
Calibration frequency depends on usage, environment, and manufacturer guidance. In many settings, annual calibration or calibration after a defined number of uses is common, with more frequent checks for heavy or critical use.
Most shops calibrate at least once a year, or after heavy use, to maintain accuracy.
Can I calibrate a torque wrench at home?
Yes, you can calibrate at home if you have proper equipment like a calibrated tester and safe setup. Ensure you follow a documented method, maintain logs, and observe all safety precautions. For many users, a basic tester-based kit provides reliable results.
You can calibrate at home with the right tools and a documented method plus safety precautions.
What equipment do I need for home calibration?
Essential equipment includes a calibrated torque wrench, a calibrated torque tester or deadweight setup, precision weights, adapters if needed, and a calibration log. Temperature control and a secure work area improve accuracy.
You’ll need a calibrated wrench, a tester or weights, adapters, and a logging sheet.
Can calibration adjust the torque setting on a wrench?
Some wrenches allow mechanical adjustment, which then requires re-testing to confirm accuracy. Others may need professional servicing. Always follow the manufacturer’s guidance before attempting any internal adjustments.
Some wrenches can be adjusted, but you must re-test to confirm accuracy or seek professional service.
What should I do if readings are inconsistent?
Verify setup alignment, recheck connections, and repeat measurements. If inconsistency persists, recalibrate with fresh reference equipment or contact a calibration service for verification.
If readings are inconsistent, recheck alignment and repeat measurements; seek professional validation if needed.
Watch Video
Key Takeaways
- Follow a repeatable calibration procedure.
- Document all readings and settings for traceability.
- Calibrate across the wrench’s range to assess linearity.
- Re-test after any adjustment and maintain a calibration log.
