Calibration List Format: Templates, Fields & Step-by-Step Guidance

What is calibration list format and why it matters

Calibration list format is a structured way to record calibration events for instruments, sensors, and tools. By standardizing the fields, organizations can reliably capture what was calibrated, against which reference standard, when, by whom, and with what tolerance. A well-designed format supports traceability from the instrument through the reference standard to the certificate, and it helps teams generate consistent reports, schedules, and audit trails. According to Calibrate Point, a common pitfall is treating calibration records as informal notes; switching to a formal list increases data integrity, reduces missing information, and improves cross-team collaboration. When you implement a calibration list format, you get predictable data layouts, easier validation, and the ability to automate checks. This is true for shop floors, lab benches, and field maintenance alike. In practice, you should plan the scope first, decide on a base format, and define the core fields up front. The investment pays off as soon as you start collecting data in a repeatable way, especially when audits occur or certifications expire.

Core components of a calibration list

A calibration list is not a random collection of numbers; it is a designed record with core components that enable traceability and accountability. Start with instrument identity: Instrument ID or serial number, asset tag, model, and location. Add calibration metadata: CalDate, DueDate, and the calibration method used. Include the reference standard information: Standard name, lot or certificate number, and the tolerance or acceptance criteria. Capture measurement details: measured value, units, uncertainty, and acceptance status. Document the human element: Technician or operator, company or department, and supervisor approval if required. Finally, ensure there is version control: document version, revision date, and a link to the master template. Optional fields can cover environmental conditions, calibration interval policies, and any corrective action notes. When designing these fields, choose clear labels, consistent data types, and validation rules (e.g., dates in ISO format, numeric tolerances with a single unit). A robust component set makes the calibration list a usable asset rather than a collection of ad hoc notes.

Common templates and file formats

Templates come in a few popular shapes, and each has trade-offs for readability, validation, and automation. Spreadsheets (CSV or Excel) work well for human review and quick handoffs; they are accessible and easy to version with simple checks. JSON and YAML templates excel in machine readability and integration with calibration software, databases, and APIs. XML remains common in legacy systems where strict schema validation is needed. Regardless of format, your template should define a stable header or field schema, a date format standard (preferably ISO 8601), and a consistent unit system. When you choose a file format, consider your team's workflows: CSV is great for quick import/export; JSON is ideal for API-based pipelines; YAML supports human-friendly configuration; XML works where data contracts are strict. You can also build hybrid templates, such as a CSV index with a JSON sidecar for metadata. The calibration list format you adopt should be adaptable, but it should never sacrifice data quality or traceability for convenience.

Structuring fields for traceability

Traceability is the backbone of calibration records. Use a unique identifier for each instrument and for each calibration event. Include versioning so changes to the template or the tolerances don’t break historical data. Record the exact date and time of calibration, the advisor or technician’s name, and the facility where the work was performed. Capture the reference standard details: the standard's identity, the calibration certificate number, and its validity window. Store measured values with units and the tolerance used to determine acceptability, along with any uncertainty estimates. If a certificate or calibration report is issued, include its ID and a link or file path. A robust calibration list format also accounts for calibration interval rules, recheck frequency, and escalation procedures if a result fails. When data is entered, validation rules should enforce required fields, correct data types, and permissible ranges. With traceability in place, audits become straightforward and accountability is clear.

Domain-specific considerations: shop, lab, and field calibrations

The format you choose should adapt to the domain you operate in. In a workshop, you may emphasize rugged data entry, offline capability, and quick job-level summaries. In a laboratory, you may need richer metadata like environmental conditions, reference standard traceability, and chain-of-custody information. In the field, devices may operate with intermittent connectivity, so your templates should support offline entry and later synchronization. For all domains, you should keep the core fields consistent, but you can add domain-tailored sections such as environmental temperature, humidity, or instrument calibration method notes. In every case, align the template with any applicable standards or procedures, and maintain a single source of truth for the master calibration list format. The goal is to minimize misinterpretation while maximizing data quality and audit readiness.

Step-by-step example: building a simple CSV template

This practical example shows how to assemble a basic calibration CSV template you can deploy immediately. Start with a header row that names each field: InstrumentID, InstrumentName, CalDate, DueDate, ReferenceStandard, Tolerance, Unit, Technician, Location, Result, CertificateID, Status. Follow with one or more data rows to illustrate typical entries. For the first row, you might use: INST-001, Thermometer-A, 2026-03-15, 2027-03-15, NIST-traceable standard, 0.5, C, Alex Miller, Lab A, Pass, CERT-001, Complete. This example keeps values simple and illustrative, avoiding proprietary SKUs while showing the template’s structure. As you implement, validate that dates use ISO format (YYYY-MM-DD), tolerances include units, and results are clearly labeled (Pass/Fail). You can export this data as CSV for legacy systems or convert it to JSON for API integrations. Remember to document any deviations, the method, and the operator notes. Finally, establish a versioned master file and a simple change log to track edits over time.

Best practices for data validation and version control

Validation is essential to avoid inconsistent or incomplete data. Enforce required fields and proper data types at the point of entry, using form controls or schema validation. Standardize date formats, units, and measurement scales across your organization, so a record from last year remains compatible with today’s tooling. Maintain a master template that governs new records and requires that any edits go through a reviewed change log. Use version control to preserve historical configurations—never overwrite templates without archiving the previous version. Consider writing validation scripts that catch common issues, such as missing certificates, expired references, or future-dated calibrations. Regularly audit a sample of records to ensure the template remains fit for purpose and is being applied consistently across teams. By combining validation with controlled versioning, you protect data integrity and facilitate efficient audits.

Adoption, rollout, and governance

Rolling out a calibration list format across an organization requires clear governance and practical change management. Start with a pilot group that tests the template, collects feedback, and reports issues. Create training materials that explain the fields, definitions, and validation rules, plus a handful of worked examples. Establish a central repository for templates and a link to the master calibration list. Mandate periodic reviews and a simple escalation path for missing data or inconsistent entries. Encourage teams to adopt automation where possible, such as data import from instruments, API-based validation, and automatic certificate linking. Track adoption metrics—how many records are created per week, data completeness rates, and audit findings. With strong governance, the calibration list format becomes a durable asset rather than a temporary workaround.

Authority sources

To support the guidance here, consult established standards and credible organizations. NIST provides foundational calibration principles and measurement science guidance (https://www.nist.gov/pml/calibration). ISO/IEC 17025 standards address laboratory competence and calibration activities (https://www.iso.org/standard/66912.html). For practical process and data-management considerations, you can reference additional public resources from credible institutions and standards bodies (https://www.nist.gov).

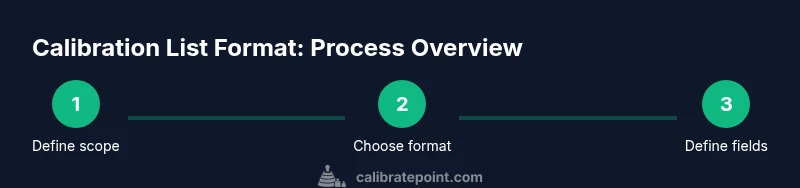

Implementation checklist

• Define scope and required fields for your calibration list format
• Choose a base file format and a validation strategy
• Draft a master template and establish version control
• Build a small pilot, collect feedback, and refine
• Set up data quality checks and automated validations
• Train users and publish governance policies
