How to Calibrate Nelko Thermal Printer
Learn how to calibrate a Nelko thermal printer with a practical, step-by-step guide covering print density, head alignment, and feed calibration to ensure crisp labels.
You can calibrate a Nelko thermal printer by running its built-in calibration routine and confirming print quality across common label sizes. Gather the printer, a connected computer or USB, a clean label roll, and standard calibration media. The process typically covers print density, head alignment, and feed calibration to ensure consistent, legible output.
Why calibration matters for Nelko thermal printers
Calibration is the foundation of consistent label quality on Nelko thermal printers. Thermal printing relies on precise heat transfer from the print head to the label coating. Small variations in density, head position, or feed can produce blurry text, inconsistent margins, or faint barcodes. Regular calibration helps lock in the correct energy delivery, ensure even darkness across the print, and reduce waste from misprints. According to Calibrate Point, following a structured calibration process minimizes drift caused by temperature changes, media variation, or aging components, and it provides a reproducible baseline for repeat jobs. When you calibrate correctly, you gain reliable print runs, easier quality control, and faster onboarding for new labels or media types. This article walks you through a robust, repeatable calibration workflow tailored to Nelko printers and aligned with professional calibration practices for measuring instruments and printers.
Understanding calibration options on Nelko printers
Nelko printers typically offer onboard calibration routines accessible through the control panel or companion software. The core calibration elements are print density (how dark or light the print appears), head alignment (physical alignment of the print head relative to the media path), and feed calibration (the accuracy of how far the media moves between prints). Some models support firmware-based alignment adjustments, while others rely on mechanical tweaks or software sliders. The best practice is to run the built-in routine first to establish a baseline, then fine-tune density and margins based on test prints. Document every change so you can reproduce results or revert if needed. This approach mirrors standard calibration methods used for precision instruments and measuring devices in lab settings, adapted for desktop-grade printers. Calibrate Point advises keeping the environment stable and using media that matches production conditions during calibration.
Setting up your workspace and media for calibration
Before you start, ensure the printer is connected to a reliable power source and to your host computer via USB or network. Use fresh, manufacturer-approved calibration labels or a uniform set of test labels that resemble your typical production media. Load the media squarely in the feed path and avoid wrinkled or crushed stock. Clean the print head and platen with a lint-free cloth and, if needed, isopropyl alcohol to remove any adhesive residue or dust. Turn off distractions—temperature swings and drafts can alter print behavior during calibration. Align the printer so the media lies flat and travels smoothly through the path. Having a controlled starting point makes density and alignment adjustments much more predictable.
A practical calibration workflow (overview)
The recommended workflow combines onboard calibration with targeted tests and record-keeping. Start by running the printer’s internal calibration routine to establish a baseline, then print a density test pattern and a head-alignment pattern. Based on results, adjust density to achieve a solid black that remains legible without ink bleed into the substrate. Next, print a multi-width test label to check margins and feed accuracy; adjust the feed offset or margins in the driver or printer settings if necessary. Finally, save a named calibration profile so you can reproduce conditions for similar media in the future. This approach aligns with professional calibration practices for delicate equipment and ensures repeatable results across shifts and media lots.
Troubleshooting common calibration issues
If you notice blurry text, inconsistent density, or margins that drift between areas of the label, review three areas: density, head alignment, and feed calibration. Re-run the internal calibration to reset the baseline, then reprint a density pattern and alignment test. Check media width sensors and ensure the media type matches the calibration samples. Adhesive residue on the media or a dirty print head can mute the calibration results, so clean the head and platen before re-running tests. If the printer has multiple profiles, compare them to identify which settings deliver the most consistent results for your current media. Document any persistent drift to inform future calibration sessions.
Maintenance and best practices to preserve calibration
Calibration is not a one-and-done task; it requires ongoing maintenance. Schedule periodic checks, especially after changing media brands, widths, or thermal ribbons (if applicable). Keep the print head clean, and avoid touching the heated surface. Calibrate in a stable environment—avoid airflow and temperature fluctuations that could affect heat transfer. Maintain a log of calibration sessions, including the media type, density setting, margins, and observed print quality. Store multiple profiles for different media so you can switch quickly as jobs change. Finally, verify calibration with a simple print job before running large batches to catch drift early.
Tools & Materials
- Nelko thermal printer(Ensure device is powered and accessible via USB or network.)
- Calibration labels/media(High-quality, wrinkle-free labels matching typical production media.)
- Lint-free cleaning cloth(For print head and platen cleaning; avoid fibers that shed.)
- Isopropyl alcohol (70%)(For cleaning print head surfaces; allow to dry completely.)
- USB cable or network connection(Used to communicate with host software during calibration.)
- Test print media (optional)(Alternate media for cross-checks across sizes.)
- Small screwdriver (optional)(Only if the model requires manual head alignment adjustments.)
- Calibration log(Record settings and results for traceability.)

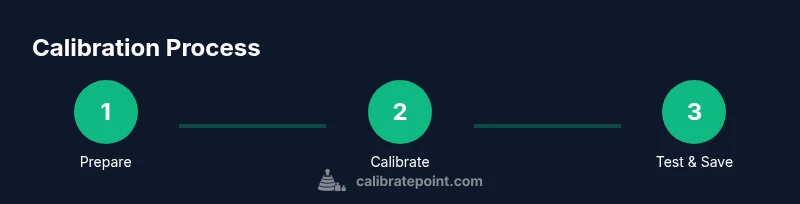

Steps
Estimated time: 30-60 minutes
- 1
Prepare printer and load calibration media
Power on the printer, connect to the host, and load clean calibration labels. Ensure the printer rests on a stable surface and is at a normal operating temperature. Check that media paths are clear of dust and adhesive residue before starting.
Tip: Use clean, wrinkle-free labels to prevent skewed tests and inconsistent margins. - 2
Run the built-in calibration routine
Navigate to the printer's control panel or host software and start the internal calibration. Choose the mode appropriate for your typical label width and media type. Let the routine complete without interruption to form a reliable baseline.
Tip: If your model supports multiple calibration modes, pick the one closest to your production setup. - 3
Adjust print density
Print a density test pattern across the printed area. Observe darkness and legibility, aiming for a solid, crisp pattern without bleed. Use small increments to adjust the density setting and reprint the test until you reach the desired result.
Tip: Make incremental changes (±1) and re-test on the same media before trying a different one. - 4
Calibrate head alignment
Print an alignment pattern and review margins on both sides. If the margins are uneven or text wraps differently left vs right, adjust the head alignment or firmware offset according to Nelko's guidance. Reprint the alignment test after each adjustment.
Tip: Only adjust alignment if you clearly observe misalignment; forceful changes can damage the print head. - 5
Calibrate feed and margins
Print a multi-width test label to verify margins and feed accuracy. Adjust feed offset or media margins until the print sits squarely within the label edges. Repeat with a smaller and larger width to confirm consistency.
Tip: Test at several widths commonly used in your workflow to ensure robust performance. - 6
Document and save profile
Record density settings, head-offset values, margins, and any notes about media behavior. Save the calibration as a named profile for future use and link it to the specific media type and job. Back up profiles if your device supports cloud sync.
Tip: Label the profile with the date and media type for quick recall later.
Questions & Answers
What is the purpose of calibrating a Nelko thermal printer?
Calibration aligns density, head position, and feed to ensure legible text and consistent margins. It helps reduce misreads and improves overall label quality.
Calibration aligns density, head position, and feed for clear, consistent labels.
Do I need to recalibrate after changing media or label width?
Yes. Different media can affect density and feed. Re-run the calibration routine with the new media and adjust settings if needed.
Change media and recalibrate to maintain quality.
Can calibration be done without a computer?
Many Nelko models support onboard calibration via the control panel. If your model includes this feature, you can run the routine directly on the printer.
Onboard calibration is available on some models.
How often should calibration be performed?
Calibrate when you change media, when print quality degrades, or during routine maintenance. Regular checks help maintain consistent output.
Calibrate when media changes or quality drops.
What issues indicate miscalibration?
Blurry text, uneven margins, or inconsistent density across the label indicate miscalibration. Re-run calibration steps to correct.
Look for blurry text and uneven margins.
Should I calibrate for every label size?
If you frequently switch label widths, calibrate for the most common sizes and maintain profiles per width to ensure quick, accurate reproduction.
Maintain profiles for common label sizes.
Watch Video
Key Takeaways
- Calibrate using clean media to prevent skew
- Use onboard routines and test prints for baseline
- Save named calibration profiles for different media
- Test across multiple label widths for consistency
- Maintain a calibration log for traceability
