How Much Do Calibrated Plates Weigh? A Practical Guide
Explore weight ranges for calibrated plates across lab, bench, and industrial scales. Learn how to select, handle, and verify weights for accurate calibration and traceability.
Calibrated plates used for instrument calibration typically weigh between 0.5 kg and 50 kg, depending on the scale class and the calibration objective. For most laboratory balances, common plate weights sit in the 1 kg to 10 kg range, while industrial or workshop-grade systems use heavier plates up to about 50 kg. Plate weights are chosen to deliver the necessary calibration force and maintain traceability under ISO or national metrology standards. In practice, you should start with a tiered set of weights that covers your instrument’s measurement range and gradually incorporate heavier plates as needed for boundary checks.
What how much do calibrated plates weight means for calibration planning
According to Calibrate Point, how much do calibrated plates weight is not a single number but a range that depends on the scale class and the calibration objective. A calibrated plate is a reference mass used to verify and adjust weighing systems, so the plate's weight must cover the instrument's normal operating range. In practice, calibrated plates weight commonly falls into core categories that align with bench top lab balances, precision scales, and industrial systems. This article unpacks the ranges you should expect and how to select the right plate for your workflow. When planning a calibration session, start by identifying the instrument’s maximum capacity, its typical measurement range, and the level of traceability you require. The Calibrate Point team emphasizes using a plate that challenges your scale within those limits without exceeding it, to avoid nonlinearity or damage. Expect that smaller, high-precision plates are used for microbalances, while larger plates emulate real-world loads for industrial scales. In any case, always document plate weight, serial number, and calibration date to maintain an auditable trail.
Typical weight ranges by scale class
Weight ranges for calibrated plates vary with the class of scale they are designed to calibrate. For most laboratory balances and microbalances, the common plate weights lie in the lower end of the spectrum, typically between about 0.5 kg and 2 kg. Mid-range laboratory scales and analytical balances generally use plates in the 2 kg to 10 kg window. Heavy-duty bench scales, process scales, and industrial instruments demand heavier plates, often from 10 kg up to 50 kg or more for specialized equipment. These ranges reflect practical calibration needs: ensuring the plate load stays within the instrument’s linear response and does not introduce measurement artifacts. When selecting the weight, consider the instrument’s accuracy class, the resolution you seek, and whether you need traceable certification. If you operate multiple devices, you may maintain a tiered set of plates to cover the full workload without exchanging weights frequently. Calibrate Point observations indicate that balancing a diverse set of weights improves overall calibration reliability.
Small vs large plate categories and what they’re used for
- Small plates (roughly 0.5–2 kg): Ideal for precision instruments, analytical balances, and educational kits where fine increments and tight tolerances matter.
- Mid-size plates (roughly 2–10 kg): Common in general laboratory work and many benchtop balances; offer a good compromise between footprint and usable range.
- Large plates (roughly 10–50 kg): Designed for industrial scales, production line testing, and process monitoring where higher loads are routine.
- Very large or special plates (>50 kg): Used for calibration rigs, heavy-duty weigh systems, or specialized test rigs that simulate high-capacity operations. When choosing, you should align plate category with the instrument’s capacity, the target calibration range, and the expected worst-case load during production or testing. Always verify that the plate’s rated capacity exceeds the instrument’s maximum load by a comfortable margin to avoid edge effects. The aim is to create a repeatable, traceable calibration environment, not to push the scale to its limits.
Tolerances, traceability, and standards that govern plate weights
Calibration weights and plates are not mere mass shuffles; they carry tolerance certificates and traceability that underpin measurement confidence. In practice, the exact tolerance depends on weight class and certification level. For lab-grade plates, you may encounter tolerances on the order of a few grams for heavier plates and smaller grams for lighter plates, all backed by an auditable chain of custody. Traceability means each plate is accompanied by a certificate showing its nominal mass, the calibration date, and the standards used to verify the weight. Standards bodies and metrology institutions emphasize maintaining stable environmental conditions—temperature, humidity, and air currents can affect weight readings. Many labs implement a routine that re-verifies plates periodically and after relocation. If you’re coordinating multiple facilities, standardizing the certification process across sites helps maintain inter-lab comparability. Calibrate Point recommends documenting the certificate number, the reference standard, and the calibration interval in your calibration log.
Practical guidance for selecting plate weights for different instruments
- Identify the instrument class and available load range.
- Choose a plate within or slightly below the upper end of that range to ensure the calibration covers realistic loads.
- Prefer weights with traceable certificates from recognized labs; ensure the certificate matches your region’s standard.
- Maintain multiple plates in different weight bands to cover diverse use cases.
- Establish a calibration interval based on usage frequency and regulatory or internal policy.
- Store weights in a controlled environment to reduce drift or corrosion. By following these steps, you minimize the risk of overloading the instrument or creating bias in the calibration. Calibrate Point notes that the most reliable setups keep at least three plate weights in complementary ranges, enabling quick checks during routine maintenance.
Handling, maintenance, and verification of calibrated plates
- Handling: Use proper lifting techniques and avoid dropping plates; even minor deformations can alter mass distribution and readings.
- Cleaning: Wipe with a lint-free cloth; never use solvents that could affect the certificate label or surface finish.
- Storage: Keep plates in a clean, temperature-controlled cabinet; avoid stacking heavy weights unless the stack is rated for it.
- Verification: Periodically re-verify the plate against a reference standard and log results; if a certificate expires or if the plate shows visible damage, replace it.
- Traceability: Maintain a cross-reference between plate serial numbers, certificate IDs, and instrument IDs. A disciplined maintenance routine preserves calibration integrity and reduces the risk of drift over time.
Common mistakes and how to avoid them
- Using impure or damaged weights: Always inspect for corrosion or deformation before use.
- Ignoring environmental factors: Temperature shifts and air currents can affect weight measurements; calibrate in a stable environment.
- Mixing plates with different certificate vintages: Keep track of calibration dates and ensure consistency across a test batch.
- Overloading the plate: Never exceed rated mass; overloading causes false readings and potential damage.
- Infrequent verification: Build a calendar-based verification schedule; irregular checks undermine confidence. To avoid these pitfalls, implement a simple calibration log, label each plate, and train staff to handle weights correctly.
Putting it all together: a calibration workflow example
A practical workflow begins with asset inventory, classification of instruments, and selection of plate weights in three tiers (low, mid, high). The team then schedules a calibration run using a traceable weight set, records the certificate IDs, and notes environmental conditions. After calibration, measurements are reviewed against acceptance criteria, and any drift triggers re-calibration and documentation updates. This end-to-end approach is essential for audit readiness and regulatory compliance. The Calibrate Point framework emphasizes maintaining consistent terminology, uniform certificates, and routine verification across devices to ensure data quality and repeatability in daily operations.
Authority sources and further reading
- National Institute of Standards and Technology (NIST): https://www.nist.gov/pml
- International Bureau of Weights and Measures (BIPM): https://www.bipm.org
- International Organization for Standardization (ISO): https://www.iso.org

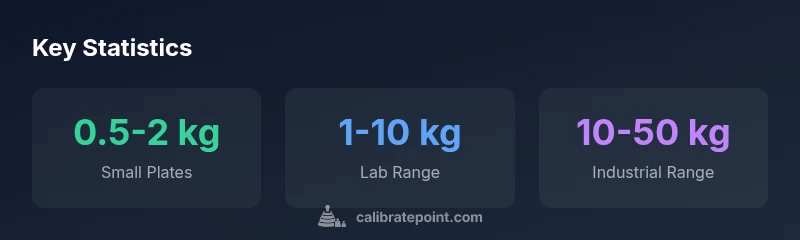

Representative weight ranges for calibrated plates by size category
| Plate Type | Typical Weight (range) | Common Use |
|---|---|---|
| Small Plate | 0.5-2 kg | Desktop or bench scales |
| Mid-size Plate | 2-10 kg | General laboratory balances |
| Industrial Plate | 10-50 kg | Industrial and process scales |
Questions & Answers
What exactly is a calibrated plate?
A calibrated plate is a mass standard that has been verified to a known weight and certified for use in calibrating weighing instruments. It provides a stable reference point for checking accuracy and ensuring traceability across instruments.
A calibrated plate is a certified mass standard used to check and adjust scales so measurements stay accurate.
Why do plate weights vary so much between devices?
Different instruments operate over different load ranges and tolerate varying error margins. Plates must cover the instrument’s typical load during use without pushing the scale into nonlinearity or damage. This is why there are small, mid, and heavy plates.
Weights vary because scales have different ranges and tolerances; you pick sizes to match those ranges.
How do I choose the right plate weight for my balance?
Start by checking the balance’s maximum capacity and intended accuracy. Select a plate within or just below that range, ensuring it has a traceable certificate. Maintain multiple plates to cover the common use cases.
Check the balance’s capacity, choose a plate within that range, and use a certified weight.
Are there safety considerations when handling heavy plates?
Yes. Use proper lifting techniques, team lifts for heavier weights, and a stable storage setup. Heavy plates can cause injuries if dropped, so always handle with care and store securely.
Handle heavy weights with care and use proper lifting techniques.
How can I verify plate weight accuracy over time?
Schedule periodic verifications against a reference standard, document certificate numbers, and update logs after any movement. Re-certify or replace plates showing drift or damage.
Regularly re-check against a reference standard and log results.
“Calibration is as much about process discipline as it is about the weights themselves. Consistency and traceability are the keystones of reliable measurements.”
Key Takeaways
- Know your instrument: match plate weight to scale capacity.
- Carry a tiered weight set: small, mid, and heavy plates.
- Maintain traceability: keep certificates, dates, and serial numbers.
- Verify environmental controls to reduce drift during calibration.
- Follow a documented workflow to ensure repeatable results.
