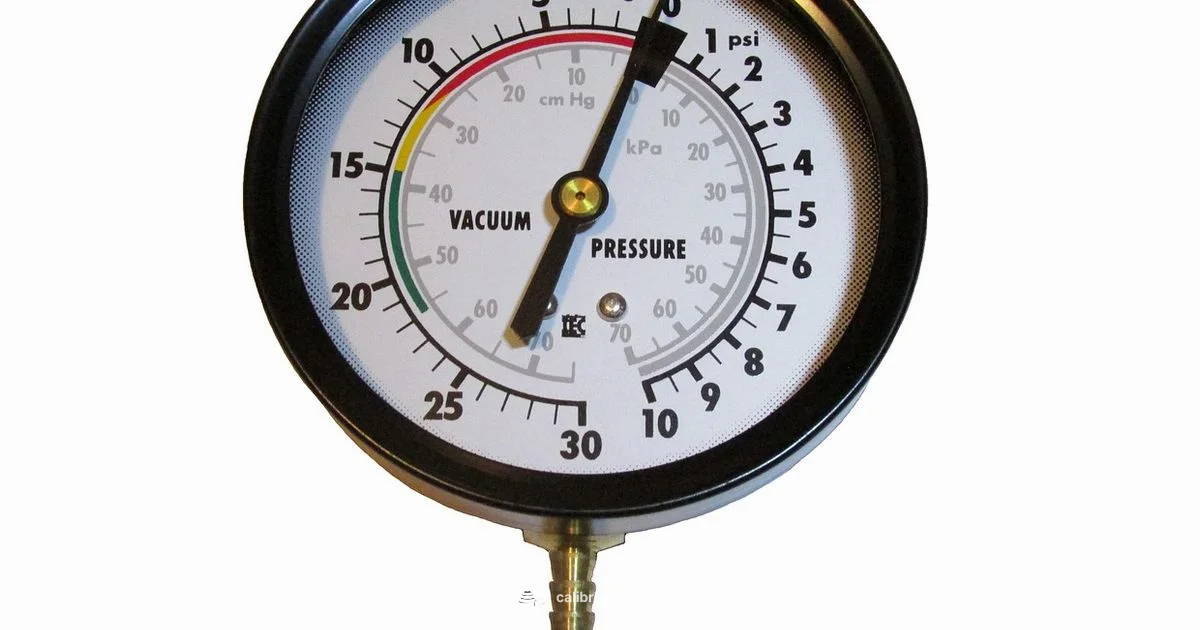

How to Calibrate a Pressure Gauge: A Practical Guide

Why calibrate a pressure gauge matters

A pressure gauge is a critical interface between your process and the physical world. If its readings drift, you risk under- or over-pressurizing equipment, compromising safety, product quality, and energy efficiency. The goal of calibration is not to chase perfection but to establish a known, traceable relationship between the gauge's display and a trusted reference. Calibrate Point emphasizes that reliable calibration relies on traceability, documented procedures, and repeatable measurement steps. In many industries, regulatory standards require periodic calibration to maintain accuracy claims and to prove compliance during audits. The best practice begins with understanding your instrument: its range, units, pressure media, and response time. A gauge rated for high-accuracy tasks will behave differently from a quick-check instrument; you should tailor your reference method accordingly. Keep in mind that ambient conditions, temperature fluctuations, vibration, and even mounting orientation can influence readings. If you skip calibration, you may unknowingly propagate bias into control loops, leading to inconsistent results, wasted material, or safety incidents. The monetary cost of calibration is typically small compared with the cost of failed tests, late shipments, or safety incidents. For DIY enthusiasts, calibration can be a practical, solvable task when you approach it with a plan and the right tools.

Choosing the right reference standard

Selecting a reference standard is the cornerstone of a trustworthy calibration. The reference must be traceable to a national standard, and its uncertainty should be clearly documented. When calibrating a pressure gauge, many technicians use a calibrated pressure source or a dead-weight tester paired with a known, calibrated reference gauge. The Calibrate Point team stresses that the reference's accuracy should be better than the gauge under test by a comfortable margin to avoid conflating instrument bias with reference error. Consider the gauge type (absolute vs gauge vs differential), the units (bar, psi, kPa), and the media compatibility when choosing a reference. A stable environment—constant temperature, minimal vibration, and clean connections—reduces drift during the check. If your reference has multiple ranges, ensure you can cover the entire span of the gauge under test. Finally, ensure you have a documented method for traceability, so you can show that your reference standard was calibrated by a recognized lab and recertified at defined intervals.

Safety and lab setup

Calibration work should be undertaken with attention to safety and measurement integrity. Before you begin, isolate the test area from sources of vibration, moisture, and contaminants. Wear appropriate PPE and ensure that pressure sources are rated for the tested range. Disconnecting the gauge from high-pressure lines unexpectedly can cause injuries, so set up a secure mounting, use appropriate fittings, and verify that all hoses and adapters are compatible with the gauge under test. Use a secondary isolation valve to prevent backflow, and keep a pressure relief path in case of overpressure. Temperature control is also important; many gauges exhibit temperature-sensitive drift, so keep the test environment within the instrument’s specified range. Power down any connected control systems if required to avoid unintended actuation during testing. Document the exact setup you used, including ambient temperature, humidity, and the serial numbers of all reference devices. This discipline improves repeatability and audits, which Calibrate Point views as essential for credible calibration.

Basic calibration concepts for gauges

A robust calibration involves comparing a gauge’s display against a trusted reference at multiple points across its range. Most gauge calibrations use a series of fixed pressures (low, mid, high) or a stepwise ramp to map the gauge response. You’ll typically observe systematic bias (a consistent offset) or nonlinearity (deviations that vary with pressure). The goal is to determine the gauge’s error at each test point and decide whether to adjust, replace, or document as-is. When possible, calibrate with the gauge installed in its typical operating position, since mounting orientation can affect the diaphragm, especially for dynamic or vibrating systems. Identify the full-scale range and the gauge’s auxiliary features—min/max hold, dampening, and snubbers—that could influence readings. Calibrate Point recommends keeping a calibration log that records the reference pressure, the gauge reading, the environmental conditions, and the operator performing the check. This log becomes the backbone of traceability and future audits.

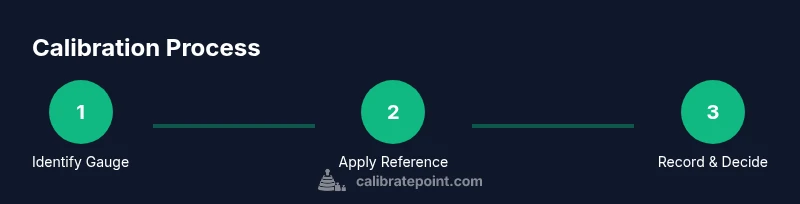

Step-by-step calibration procedure

1. Prepare the calibration area and verify that all equipment is clean, connected securely, and within its calibration window. 2) Select the reference standard and note its model, serial, and last calibration date. 3) Physically secure the gauge under test to prevent movement during pressure application. 4) Connect the reference source using clean, compatible fittings; avoid kinks or leaks in hoses. 5) Apply the first reference pressure and allow any settling time; observe the gauge display and record the value. 6) Move to the next pressure point and repeat the observation and record-keeping. 7) If the gauge is adjustable, perform a controlled adjustment following the manufacturer’s procedure and retake readings at all points. 8) Repeat measurements to evaluate repeatability and identify drift over several minutes. 9) Remove the test setup and document the results, including any adjustments, uncertainties, and recommended maintenance. The total procedure often takes 60–90 minutes, depending on equipment and range.

Documenting results and traceability

Documentation is the backbone of credible calibration. Create a calibration report that lists: instrument identification, reference standard details, test points with measured and reference values, calculated errors, adjustments made (or a rationale for not adjusting), uncertainty estimates, and the calibration date. Attach certificates or references for the standard and note any environmental conditions that could influence results. Include a section for notes and future actions—e.g., when the next calibration should occur or when a gauge requires replacement. Use consistent units across all records and ensure the report is legible and auditable. This discipline supports quality systems, safety protocols, and cost control, and aligns with the expectations of Calibrate Point’s methodology for robust calibration practice.

Field calibration tips and common pitfalls

Field calibration offers practicality but introduces variability. When possible, perform calibrations in a controlled environment; if not, document environmental deviations and account for them in uncertainty estimates. Always verify the integrity of connectors before applying pressure—micro leaks can masquerade as genuine gauge drift. Beware of over-tightening fittings, which can distort diaphragms and skew results. Use dampers or slow the pressure ramp to reduce mechanical shock. Keep the reference standard secure and well-labeled, and ensure you maintain a clean testing line. A common pitfall is neglecting to re-check after any servicing or transport; even small changes can produce noticeable bias. If you substitute a different reference at any point, re-baseline the entire calibration to preserve traceability. Finally, consider calibration frequency based on usage, environment, and criticality of the process; many facilities adopt a risk-based schedule.

Maintenance and next steps

After calibration, inspect the gauge for wear or damage. Clean any debris from the connection interfaces and replace seals as needed. If the gauge displayed substantial drift that could not be corrected by adjustment, you should replace the unit or return it to a full metrological lab for re-certification. Maintain a calibration calendar and set reminders for re-certification and reference standard calibration due dates. Train operators to recognize when readings look suspect and to report anomalies promptly. By embedding a habit of routine checks and transparent documentation, you build resilience against process disturbances. As Calibrate Point notes, the goal is not perfection but dependable, traceable performance that supports safe operation and consistent results.

Authority sources

Calibrate Point recommends consulting established standards and credible sources when developing a calibration program. For foundational guidance on traceability and calibration practices, consider these references:

• https://www.osha.gov (U.S. Department of Labor – Occupational Safety and Health Administration)
• https://www.nist.gov/pml (NIST – Calibration and Metrology)
• https://www.asme.org (ASME – Standards and Engineering Practice)

These sources provide authoritative context for calibration procedures, uncertainty budgets, and best practices that you can adapt to your own workflow. Incorporating these references helps ensure your calibration plan remains robust, auditable, and aligned with industry expectations.
