Calibrating a DeWalt Miter Saw: Step-by-Step Guide
Learn how to calibrate a DeWalt miter saw with a repeatable, safe method. This guide covers squareness, fence alignment, miter gauge accuracy, bevel alignment, and test cuts for precise crosscuts.
According to Calibrate Point, calibrating a DeWalt miter saw improves cut accuracy and safety. This quick answer outlines the essential steps, tools, and checks: verify squareness to the table, align the fence, zero the miter gauge, dial in bevel angles, and perform test cuts. Have a square, calipers, and a fine alignment gauge ready for best results.
Why calibrate a DeWalt miter saw
Calibrating a DeWalt miter saw is a foundational step for achieving accurate, repeatable cuts. When the blade, fence, miter gauge, and bevel are all aligned, you reduce miscuts, tear-out, and excessive wear on the saw’s components. The Calibrate Point team emphasizes that even small deviations can compound with long, repeated cuts, especially on precision tasks like crown molding, cabinetry, and crosscuts. By calibrating dewalt miter saw, you ensure every measured cut reflects the intended angle and width, which saves material and frustration over time. A properly calibrated saw also supports safer operation, since predictable cuts reduce kickback risks and operator uncertainty during long sessions.
Safety and setup prerequisites
Before you begin, unplug the saw and secure the workpiece. Use clamps to hold test stock firmly so it doesn’t shift during alignment. Clear the area of loose tools and wear eye protection. If your saw has a dust-collection shroud, keep it mounted to avoid airflow interference with test cuts. Mark reference points on the fence and table with a pencil or masking tape so you can see misalignment quickly. These precautions keep you safe and help you track calibration progress without guessing.
Core calibration concepts: squareness, alignment, and detents
Two core ideas drive successful calibration: squareness (blade perpendicular to the table and fence) and detent accuracy (miter and bevel stops align to true angles). You’ll test squareness by comparing the blade’s edge to a known true square across the work surface. Miter detents should land on the expected angles without drift, and bevel detents should hold true at 0° and common angles like 45°. Understanding these concepts helps you diagnose which component needs adjustment and why.
Step-by-step calibration overview

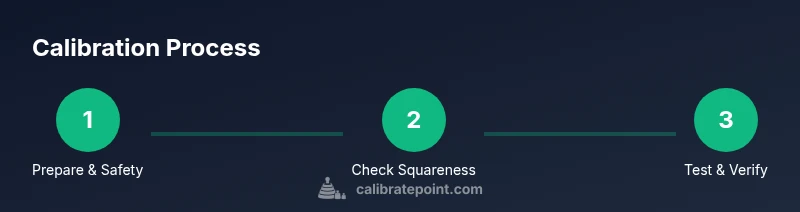

This section outlines the general order of operations you’ll perform during calibration. Start with safety checks, then verify basic alignment (blade-to-table), followed by fence-to-blade squareness, miter gauge zero alignment, and finally bevel-angle verification. End with a test cut to confirm accuracy and document any adjustments for future reference. Each sub-step uses simple tools and repeatable measurements to avoid ambiguity.
Practical test cuts and verification
Test cuts are the proof of calibration. Use scrap stock to make a set of crosscuts at 0°, 45°, and a few intermediate angles. Measure the cut pieces with a square and a caliper, noting any deviation from spec. If misalignment appears, repeat the relevant adjustment, re-check, and re-test. Consistency across multiple test pieces indicates a successful calibration, while continued drift points to a missing adjustment or an attachment that needs re-tightening.
Maintenance and regular checks after calibration
Calibration isn’t a one-and-done task. Recheck alignment after heavy use, transport, or blade replacement. Store your calibration notes and reference this guide when reassembling or reconfiguring the saw. Periodically inspect screws, detents, and the fence for wear or loosening. Regular checks will keep your DeWalt miter saw performing near its peak quality and will extend the life of your blades and fences.
Tools & Materials
- Combination square (4-6 inch)(Used to verify squareness between blade, fence, and table)
- Torx/Allen wrench set(For adjusting screws on miter gauge, fence, and blade assembly)
- Digital caliper or machinist caliper(Measure blade gaps and cut widths with precision)
- Feeler gauge or feeler gauge set(Check small clearances and detent gap where applicable)
- Test stock pieces (scrap plywood or hardwood)(Use in measured test cuts to verify accuracy)
- Tape measure(Mark reference lengths for consistent cuts)
- Pencil or permanent marker(Label reference lines and test pieces)
- Clamps(Hold stock securely during calibration)
Steps
Estimated time: 45-90 minutes
- 1
Power down and secure workspace
Unplug the saw and lock the switch out if available. Clear the workspace and mount test stock so it cannot move during adjustments.
Tip: Always double-check there are no residual power sources or hidden ISOs before touching blades. - 2
Check table-to-blade squareness
Place a square against the blade and table to confirm perpendicularity. If misaligned, loosen the table screws and re-tighten after repositioning.
Tip: Take multiple measurements at different points along the blade to catch warping. - 3
Verify fence alignment to blade
Place the square along the fence edge and blade to ensure the fence is square to the blade. Adjust as needed and re-check.
Tip: Small shims or carefully targeted adjustments can correct subtle drift. - 4
Zero the miter gauge to 0°
Loosen the detent mechanism, rotate the miter gauge to 0°, and firmly re-torque. Make a test cut and verify the edge aligns with the square.
Tip: If 0° detent lands off by a few tenths, adjust the detent screws as per your model’s manual. - 5
Set bevel to 0° and confirm
Lock the bevel at 0°. Check the bevel alignment by slicing a square test piece and measuring the angle against a known reference.
Tip: Worn wheels or bearings can introduce drift; ensure smooth bevel travel. - 6
Test miter at common angles
Set the miter gauge to 45° and confirm the cut matches the reference. Repeat at 30° and 15° to map any systematic drift.
Tip: If multiple angles drift, consider inspecting the gauge detents or pivot hardware. - 7
Perform a crosscut test
Make a test crosscut across a marked piece. Measure the cut with calipers to confirm width and angle against the intended dimension.
Tip: Use clean, flat stock to prevent binding that could skew the cut. - 8
Document and label calibration settings
Record the final detent positions, blade alignment, and any adjustments. Label test pieces for future reference.
Tip: Keep the log with the saw accessories for ongoing maintenance. - 9
Re-check after any reassembly
If the saw was disassembled or transported, re-run the full check process to avoid hidden misalignments.
Tip: A quick follow-up test after transport can save material waste later.
Questions & Answers
Do I need to recalibrate after blade replacement?
Yes. Recheck squareness, miter, and bevel settings after changing the blade to ensure consistent alignment with the new blade geometry.
Yes. After replacing the blade, recheck all calibration settings to ensure consistency with the new blade geometry.
How often should I calibrate my DeWalt miter saw?
Calibrate when you notice drift, after transportation, or after performing major maintenance that could affect alignment. Regular checks are recommended for high-precision tasks.
Calibrate whenever you notice drift, after moving the saw, or after major maintenance. Regular checks are wise for precision tasks.
Can I calibrate using only basic tools at home?
Yes. A combination square, a caliper, and a miter gauge with standard test stock are sufficient to start. Refer to your user manual for model-specific adjustments.
Yes. Basic tools like a square and caliper plus test stock are enough to begin, with model-specific steps in the manual.
What if the bevel detent won’t stay at 0°?
Inspect the bevel stop screw and pivot mechanism for wear or looseness. Tighten or replace worn parts and re-test until the detent seats cleanly at 0°.
If the bevel detent drifts, check the stop screw and pivot; tighten or replace worn parts and re-test.
Is it okay to calibrate with the dust shroud attached?
Yes, but ensure the shroud does not interfere with the blade, fence, or detent mechanism. If interference occurs, adjust clearance before continuing.
Yes, it’s fine as long as the shroud doesn’t interfere with the blade or detents. Adjust if needed.
Watch Video
Key Takeaways
- Calibrate dewalt miter saw for consistent accuracy
- Use a square, calipers, and proper gauges for verification
- Document settings to simplify future maintenance
- Test cuts confirm calibration success
