How to Calibrate a DeWalt Laser Level: Step-by-Step Guide
Learn how to calibrate a dewalt laser level with a complete, step-by-step guide. This educational tutorial covers tools, safety, and practical checks to ensure accurate leveling and alignment in your project workspace.
Learn how to calibrate a dewalt laser level to ensure a true reference plane and accurate measurements. This quick guide outlines the essential steps, required tools, and safety considerations. By following these steps, you can maintain reliable leveling performance and minimize drift over time. According to Calibrate Point, proper calibration reduces measurement drift and extends tool life. Follow the steps exactly, perform a mid-calibration check, and record results for maintenance logs.
Why calibrate a DeWalt laser level
Calibrating your DeWalt laser level is essential for maintaining an accurate reference plane across your workspace. If you're wondering how to calibrate a dewalt laser level, this guide walks you through a practical, maintenance-focused approach while respecting DeWalt's design features. According to Calibrate Point, routine calibration reduces drift and protects your results from environmental variables and transport. A correctly calibrated tool yields true horizontal and vertical references, improving your ability to transfer lines, checks, and plumb points to walls, floors, and miter cuts. Expect steadier lines, fewer re-dos, and more predictable results on job sites and in the shop. The Calibrate Point team emphasizes that calibration should be part of your regular tool maintenance, not a one-off task.
Understanding the reference plane and drift
Modern DeWalt laser levels rely on internal sensors and optics to establish a reference plane. Over time, mechanical wear, temperature shifts, and rough handling can introduce drift. The goal of calibration is to align the tool’s internal reference with a known external standard, so measurements and layout lines remain square and level. In practice, you’ll verify the horizontal plane by projecting a level line at a known height and test its consistency across distances. This foundational step sets the stage for more precise tasks like layout, framing, and tile work. Remember that small deviations compound, so a deliberate calibration routine pays off across projects.
Common sources of error and how to diagnose
Many errors masquerade as “user mistakes” but stem from hardware drift or misalignment. Look for a laser line that seems to slope, jumps between calibration targets, or changes with a slight nudge of the device. Temperature swings, rough transport, and mounting hardware that loosen over time can cause drift. To diagnose, perform a baseline test on a flat reference surface, recheck against a second target, and compare results at multiple distances. Document any anomalies and consider recalibrating if you observe inconsistent readings, especially after impacts or falls. The goal is a reproducible line at multiple measurement points.

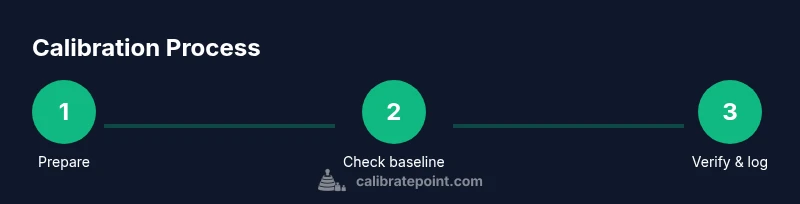

The calibration workflow in practice
A practical calibration workflow combines quick checks with deliberate adjustments. You’ll typically prepare a stable workspace, verify baseline readings, adjust any mechanical or electronic calibration presets, and then re-verify with multiple targets. This section outlines a repeatable method that aligns with industry best practices and DeWalt’s design cues. While some models offer automatic self-leveling, manual fine-tuning is still necessary for extreme angles or after transport. The objective is a stable, repeatable reference that you can trust across tasks like drywall layout, cabinet installation, or tile setting.
Post-calibration checks and maintenance
After calibration, perform a final verification on at least two different surfaces and heights to ensure the reference plane remains consistent. Keep a simple log of the date, model, calibration method, and outcomes for future maintenance and audits. Store the unit in a stable environment away from dust and direct sunlight to minimize drift between uses. Routine calibration—paired with periodic checks—helps you maintain accuracy over time and reduces the likelihood of rework in critical projects.
Tools & Materials
- DeWalt laser level (model with calibration features)(Power off before adjustments; use manufacturer manual for model-specific screws)
- Calibration target or marked wall grid(Flat, smooth surface; mark a known height from floor)
- Screwdriver set (Phillips and flathead)(Include small precision driver for calibration screws)
- Spirit level or precision bubble level(Cross-check reference plane against a known true surface)
- Measuring tape or digital caliper(Verify distances to targets with accuracy to 1–2 mm)
- Stable mounting surface or tripod(Minimize vibrations during calibration)
- Notebook or calibration log(Record readings and adjustments for maintenance records)
Steps
Estimated time: 40-60 minutes
- 1
Prepare your workspace
Clear the area and mount the laser level on a stable tripod or surface. Ensure the device is at the correct working height and away from air drafts or direct sunlight. This reduces measured drift during calibration.
Tip: Use a wall anchor or clamp to prevent movement during the procedure. - 2
Set up calibration targets
Place a flat, well-marked target at a known height (for example, 1.0 m) and at a distance of 2–3 meters. Ensure the wall surface is clean and free of obstructions so laser lines appear clearly.
Tip: Take a quick photo of the setup for reference during re-checks. - 3
Initial self-level check
Turn on the laser level and perform the self-leveling routine if your model supports it. Confirm that the device locks onto a level line within the device’s stated tolerance before proceeding to manual adjustments.
Tip: If the unit won’t self-level, avoid forcing and proceed to manual calibration steps. - 4
Adjust calibration screws or presets
Using the appropriate screwdriver, locate the calibration screws or preset dials. Make small, incremental adjustments to align the emitted line with the reference target at multiple distances. Recheck after each adjustment.
Tip: Make tiny changes (¼ to ½ a turn) and test before making larger adjustments. - 5
Re-check across multiple distances
With adjusted settings, verify the level line on the same and a second target at different distances. The line should stay consistent within the specified tolerance as distance increases.
Tip: If drift persists, revisit the screws and confirm there are no loose components. - 6
Document results and finalize
Record the model, date, results, and any adjustments in your calibration log. Power cycle the unit, re-test, and store in a stable environment. Confirm the tool remains accurate with a spot check on a future project.
Tip: Keep a quarterly calibration schedule for high-use workflows.
Questions & Answers
Do I need to calibrate my DeWalt laser level regularly?
Calibration should be part of routine maintenance, especially after transport, impacts, or noticeable drift. Regular checks help ensure continued accuracy across jobs.
Yes. Include calibration in routine maintenance, especially after transport or a rough job site, to keep accuracy consistent.
What tools are required to calibrate?
You typically need a calibration target, a screwdriver set for adjustment screws, a spirit level for cross-checks, and a measuring tape for precise distances.
You’ll usually need a calibration target, a screwdriver, a level, and a tape measure.
How long does calibration take?
Expect roughly 30–60 minutes depending on model, setup stability, and the number of checks performed.
Calibration usually takes about half an hour to an hour, depending on setup and checks.
What if calibration fails or drifts after adjustment?
If drift persists, re-check mounting, re-tighten hardware, and revisit each adjustment step. If needed, consult the manufacturer service manual.
If drift continues, re-check mounting and rework the adjustments, or seek manufacturer guidance.
Is it safe to calibrate indoors?
Yes, but ensure good ventilation and remove trip hazards. Avoid direct HVAC airflow that could disturb the laser line during measurements.
Indoor calibration is fine; just keep the area clear and avoid airflow that could disturb the laser.
Can I calibrate any DeWalt laser level model the same way?
Most DeWalt laser levels share a similar calibration approach, but always consult the model-specific manual for screws, presets, and tolerance values.
Most models calibrate similarly, but check your manual for model-specific details.
Watch Video
Key Takeaways
- Follow a repeatable calibration workflow.
- Use multiple distance checks for accuracy.
- Maintain a calibration log for future reference.
- Calibrate regularly to reduce drift and extend tool life.
