Calibrate e Steps: A Step-by-Step Guide to Calibration
Master calibrate e steps with a practical, tool-first approach. This Calibrate Point guide walks DIY enthusiasts through prep, stepwise adjustments, verification, and documentation to achieve reliable results.
You will learn to calibrate e steps through a structured, tool-driven workflow that emphasizes clear objectives, traceable references, and careful documentation. The process centers on establishing a baseline, applying incremental adjustments, and verifying results against known standards to keep measurements within tolerance.
Foundations of calibration and the role of e steps
Calibration is the deliberate process of aligning an instrument's output with recognized reference standards so that measurements are accurate and repeatable. In practical terms, e steps represent a structured, incremental approach to correcting systematic error. This method encourages you to break adjustments into discrete actions, each with a defined effect on the instrument's response. According to Calibrate Point, accurate calibration starts with a clear definition of what the e steps are intended to fix and a plan that links measurements to tolerance bands. A well-documented baseline makes subsequent improvements traceable and repeatable, which is essential for DIY projects, workshops, and professional settings alike. The goal is not a single heroic adjustment but a disciplined sequence that reduces guesswork and enhances confidence in the results.
Defining 'e steps' in calibration context
Here, we define e steps as the smallest, deliberate changes you apply to an instrument’s adjustable parameters to reduce bias and drift. Each step has a purpose: to move the reading toward the reference, to stabilize under normal operating conditions, and to stay within the instrument’s stated tolerance. In practice, you design a step ladder that covers the expected error range, then apply steps in a logical order (often from least invasive to more significant) to avoid overshoot. This approach minimizes rework and makes it easier to trace which adjustment produced the desired outcome. The emphasis is on reproducibility and evidence-based decisions rather than intuition alone.
Selecting your calibration targets and reference standards
Choosing the right targets and references is critical for credible calibration. Establish a master reference or traceable standard as the anchor for your measurements. Ensure the reference is appropriate for the instrument type and the measurements you perform, and verify its traceability to a recognized standard. Environmental conditions—temperature, humidity, and vibration—can influence results, so plan for stable conditions or document deviations. The aim is to have a known, stable baseline against which e steps can be applied and evaluated.
Safety and compliance considerations
Safety comes first when doing calibration work, especially with powered equipment or high-precision tools. Use appropriate PPE, follow electrical safety protocols, and secure the workspace to prevent disturbances during sensitive measurements. For professional environments, align your workflow with applicable standards (for example, ISO 17025 principles) and maintain audit-ready records. Calibrate Point recommends documenting safety checks and ensuring all technicians understand the procedure before starting.
Tools and workspace setup
A clean, organized workspace supports precise calibration. Set up a dedicated bench with a stable surface, good lighting, and minimal airflow that could affect measurements. Have a calibrated reference instrument, a stable source for e steps (such as a precision adjustment tool or DAC/voltage source where appropriate), and an appropriate data-collection system. Keep a written logbook or digital tracker ready to capture readings, adjustments, timestamps, and environmental conditions. This foundation keeps the e-step process orderly and repeatable.
Step 1: Prepare the instrument and workspace
Inspect the instrument for visible wear or looseness, and confirm power is stable. Warm up the device according to the manufacturer’s guidelines to reach a stable operating state. Calibrate Point emphasizes documenting the initial readings and noting any anomalies before proceeding. A tidy workspace reduces the chance of accidental bumps that could skew results.
Step 2: Gather references and establish baseline
Bring in the designated reference standard and confirm its certification period. Record the instrument’s baseline readings across the measurement range without making any adjustments. This baseline shows where the instrument currently stands relative to the reference and guides the subsequent e steps. Pro tip: snapshot conditions (temperature, humidity) alongside baselines for later comparison.
Step 3: Zero baseline and connect measurement path
If applicable, zero the instrument to remove any fixed bias and connect all necessary measurement interfaces securely. Verify that cables, adapters, and connectors are in good condition to prevent intermittent readings. Document the baseline after zeroing and ensure that the measurement path fidelity is intact before applying any e steps.
Step 4: Apply e-step adjustments in incremental fashion
Begin applying small, predefined e steps to the adjustment parameter. After each adjustment, re-measure against the reference and record the discrepancy. Avoid large jumps; the goal is to converge toward the reference reading with controlled, traceable changes. A visual diagram of the adjustment ladder can help keep the sequence clear.
Step 5: Re-measure and stabilize readings
Allow readings to stabilize after each adjustment, then capture multiple measurements to assess repeatability. Use statistical checks where possible (e.g., averaging consecutive readings) to reduce random noise. If readings oscillate, pause to reassess the environment and connections before continuing.
Step 6: Verify against reference standards and tolerance
Compare the stabilized readings to the reference standard and evaluate whether the discrepancy lies within the instrument’s specified tolerance. If not, continue applying additional e steps in small increments and re-check until the target is met. Ensure the verification dataset covers the full operating range relevant to your use case.
Step 7: Document results and create a calibration certificate
Record all measurements, adjustments, and environmental conditions in a formal log. Generate a calibration certificate that includes the instrument, reference standard, dates, operator, and traceability information. Clear documentation makes it easy to audit and renew calibration in the future. Calibrate Point recommends attaching a short summary of the methods used for quick reviews.
Step 8: Plan ongoing maintenance and re-calibration scheduling
Set a practical re-calibration interval based on usage, criticality, and environmental exposure. Keep a reminder system for periodic checks and ensure that any operator can initiate a re-check when anomalies appear. Enduring calibration relies on routine application of the same e-step approach and consistent record-keeping.
Step 9: Review, reflect, and improve the process
After completing a calibration cycle, review the steps for any inefficiencies or unexpected results. Update your procedures if necessary to improve accuracy or reduce time without sacrificing quality. A culture of continuous improvement helps ensure longer-term reliability of measurements.
Common pitfalls and how to avoid them
Common pitfalls include skipping baseline checks, over-adjusting in a single step, and neglecting environmental factors. To avoid these, follow a strict sequence, document every move, and verify assumptions with a second measurement path when possible. Regular audits against a standard help catch drift before it affects critical measurements.
Practical example: calibrating a general instrument
In a typical scenario, you would start with a known reference signal, record the baseline, apply a small e step, and re-measure. Continue iterating until the instrument’s outputs align with the reference within tolerance. This practical approach demonstrates that calibration is a disciplined, repeatable process rather than a one-off correction.
Next steps and maintenance
With e steps mastered, translate the workflow into a standard operating procedure that your team can follow. Schedule periodic reviews and keep calibration records organized. The most durable calibrations come from consistent practice, proper documentation, and adherence to traceable standards.
Tools & Materials
- Instrument under test(The device you will calibrate; ensure it is clean and accessible.)
- Certified reference standard(Traceable to a recognized standard; verify certificate validity.)
- Calibration tools (adjustment shims, screws, or DAC/voltage source)(Use appropriate tools for your instrument type.)
- Measurement interface and data logger(Secure connections; ensure data capture is continuous.)
- Calibration logbook or digital record system(Document baselines, steps, and results.)
- Safety gear (glasses, gloves)(As needed for safety depending on equipment.)
- Manufacturer manuals or procedure sheets(Reference for device-specific steps and limits.)
Steps
Estimated time: 60-90 minutes
- 1
Prepare the instrument and workspace
Inspect the device, ensure power stability, and warm up as required by the manufacturer. Set up a clean, stable bench with minimal airflow and good lighting. Record the initial state and any anomalies to establish a reliable baseline.
Tip: Document the exact warm-up period and conditions in your log. - 2
Gather references and establish baseline
Collect the certified reference standard and confirm its traceability. Take baseline readings across the relevant range without making adjustments. Note temperature, humidity, and vibration levels to correlate with later results.
Tip: Take multiple baseline readings to identify any drift before adjustments. - 3
Zero baseline and connect measurement path
Zero the instrument if applicable and secure all measurement interfaces. Verify cables and adapters are in good condition to avoid intermittent data. Log the zeroed state before applying any e steps.
Tip: Use a fresh, known-good connection for each measurement path. - 4
Apply e-step adjustments in incremental fashion
Begin with small, predefined e steps to the adjustment parameter. After each change, re-measure against the reference and record the discrepancy. Avoid large jumps to minimize overshoot and ensure traceability.
Tip: Limit each step to the smallest practical adjustment to maintain control. - 5
Re-measure and stabilize readings
Allow readings to stabilize after adjustments and collect multiple samples. Use averaging to reduce random noise and check for repeatability. If readings vary, reevaluate environmental conditions and recheck connections.
Tip: Pause briefly between measurements to allow stabilization. - 6
Verify against reference standards and tolerance
Compare stabilized results to the reference within the instrument’s tolerance. If outside, continue with additional small e steps and re-check. Ensure the full measurement range is validated as applicable.
Tip: Cross-check with a secondary method if available. - 7
Document results and create a calibration certificate
Record all measurements, adjustments, and environmental factors in a formal report. Generate a calibration certificate with traceability details and signatures. Store the certificate alongside device records for future audits.
Tip: Include a concise method summary for quick reviews. - 8
Plan ongoing maintenance and re-calibration scheduling
Set a re-calibration interval based on use and exposure. Establish reminders and a simple routine to refresh calibration before critical tasks. Continuous scheduling helps maintain measurement integrity over time.
Tip: Link re-calibration reminders to device usage milestones. - 9
Review, reflect, and improve the process
Assess the workflow after each cycle for bottlenecks and opportunities to improve accuracy and efficiency. Update SOPs as needed and train staff on any changes to maintain consistency.
Tip: Hold a brief debrief to capture lessons learned.
Questions & Answers
What does 'e steps' mean in calibration?
E steps refer to incremental adjustments used to reduce systematic error in a calibrated instrument. Each step should have a defined purpose, be traceable, and be verified against a reference after application.
E steps are small, deliberate adjustments to fix systematic error, verified against a reference after each change.
Do I need a traceable reference standard for calibration?
Yes. A traceable reference standard provides the anchor for measurements and ensures results can be compared across time and devices. Without traceability, calibration lacks credibility and auditability.
A traceable reference standard is essential for credible calibration and future audits.
How often should calibration be performed?
Calibration frequency depends on device usage, criticality, and environment. Establish a schedule based on risk assessment, manufacturer guidance, and past drift data, then adjust as necessary.
Set a practical schedule based on how critical the measurements are and how often drift is observed.
What tools are essential for calibrating e steps?
You’ll need the instrument under test, a certified reference standard, appropriate adjustment tools, a data logger or meter, and a calibration log. Safety gear may be required depending on the equipment.
Essential tools include the device, a reference standard, and a way to record data.
What if the readings still don’t align after e steps?
If discrepancies persist, re-check baselines, verify environmental stability, and consider a more extensive adjustment path or expert consultation. Document all attempts for traceability.
If readings don’t align after steps, re-check conditions and baselines, then re-evaluate or seek expert help.
Watch Video
Key Takeaways

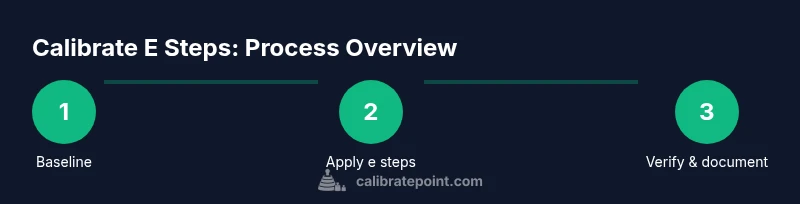

- Establish a solid baseline before adjustments
- Make small, traceable e steps to converge on the reference
- Document every action for auditability
- Verify results under stable conditions and maintain logs
