How to add calibration curve in Excel: a step-by-step guide

Understanding Calibration Curves in Excel

If you’re wondering how to add calibration curve in excel, you’re in the right place. Calibration curves are a practical way to translate instrument responses into concentrations, using a known set of standards. At its core, a good curve uses a scatter plot of known concentrations (x) versus measured responses (y) and a statistical fit to model the relationship. Calibrate Point’s approach emphasizes clarity, reproducibility, and traceability: every value should be sourced, processed, and documented. This guide will walk you through data prep, charting, regression, and validation so you can produce reliable concentration estimates while keeping your workflow transparent and auditable.

In practice, a calibration curve in Excel combines the familiarity of a spreadsheet with the analytical power of regression analysis. The process is accessible to DIY enthusiasts, technicians, and professionals alike, but the quality of your curve depends on clean data, proper plotting, and correct interpretation of the model. Calibrate Point’s guidance focuses on practical steps you can apply in a typical lab or workshop setting, without requiring advanced statistical software.

Data requirements and data integrity for calibration in Excel

A robust calibration curve starts with well-structured data. You should have a column of known concentrations (the standard values) and a corresponding column of instrument responses (absorbance, peak area, voltage, etc.). Ensure units are consistent and that the data are free of transcription errors. It’s crucial to document how each measurement was obtained, including the lot numbers of standards, calibration dates, and any dilution factors. If outliers exist, diagnose them with a rationale and decide whether to remove or adjust them with justification. Good data hygiene establishes confidence in the derived curve and downstream estimates. Finally, consider using a separate worksheet for standards and a parallel one for unknown samples to minimize mix-ups.

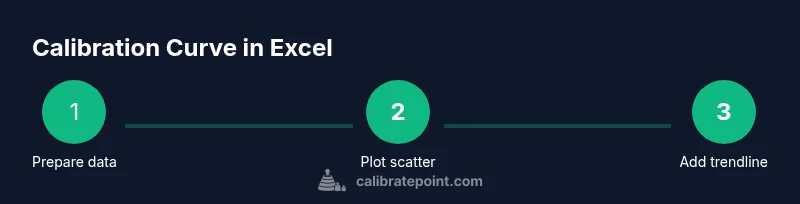

Step 1: Prepare and clean your data

Before you jump into charts, organize your data so Excel can read it reliably. Create two columns: one for known concentrations (x) and one for responses (y). Include a header row and ensure there are no blank rows in the dataset. If your data come from multiple runs, label each row with a run ID and consider normalizing responses if batch effects are observed. Remove obvious outliers only after documenting a justification, such as a known instrument hiccup or improper sample prep. Save a backup copy of the workbook before making edits, and use data validation to prevent future entry mistakes.

Step 2: Create a scatter plot to visualize data

Select both columns (including headers) and insert a scatter plot with only markers. This visual is the starting point for a calibration curve. Label the axes clearly (Concentration on the x-axis, Response on the y-axis) and enable a basic grid for readability. If you have multiple series (e.g., different days or instruments), consider plotting them as separate series with distinct colors to assess repeatability. A well-labeled chart makes it easier to spot nonlinearity or heteroscedasticity, both of which may require different modeling approaches.

Step 3: Add a regression line and display the equation

Excel’s trendline feature lets you fit a linear model to the calibration data. Right-click a data point, choose Add Trendline, and select Linear. Check the options to Display Equation on chart and Display R-squared value. This gives you the slope and intercept of the line, plus a measure of fit quality. If you observe curvature, you may explore quadratic or cubic fits, but ensure the model choice is scientifically justified and documented. Record the equation for later back-calculation of sample concentrations.

Step 4: Use the regression to estimate concentrations

With the equation in hand, you can estimate unknown concentrations from measured responses. For a linear model y = mx + b, solve x = (y - b) / m to obtain the concentration corresponding to each measured response. You can implement this in Excel by adding a new column labeled “Estimated Concentration” and entering the formula. Copy the formula down for all unknown samples, and round or format results consistently. When reporting, include the unit and any dilution factor used during measurement.

Step 5: Validate the calibration curve with R-squared and residuals

A good calibration curve should demonstrate a strong linear relationship. Review the R-squared value to gauge goodness-of-fit and examine residuals (the differences between observed responses and those predicted by the regression). Plot residuals vs. concentration to look for systematic patterns. If residuals exhibit a pattern or if R-squared is unexpectedly low, reassess data quality, potential heteroscedasticity, or nonlinearity. Document any decisions to omit data points or adjust the model. Validation is essential for credible concentration estimates.

Step 6: Practical tips for robust calibration curves and repeatability

Consistency drives credibility in calibration work. Keep the same instrument settings for all standards, use fresh standards when possible, and record environmental conditions that might affect measurements. Use at least 6–8 standards spanning the expected range, avoid extrapolation beyond the standards, and include independent validation samples. When reporting results, provide the regression equation, R-squared, and a brief note on data handling. Repeatability can be verified by re-running a subset of standards on a separate day and comparing parameter estimates.

Step 7: Automating and sharing your calibration workflow in Excel

To promote reproducibility, convert your workflow into a template with named ranges and pre-filled formulas. Create named ranges for concentrations, responses, and estimated concentrations, then use dynamic references to simplify updates when new data arrive. Protect sheets to prevent accidental edits, and provide a readme with the data provenance, calculation steps, and interpretation rules. Sharing a well-documented workbook helps teammates reproduce results and accelerates QC review.

Step 8: Authority sources and further reading

For rigorous calibration practices beyond Excel, consult established resources and standards. See official Excel support documentation for charting and regression features, and consult government or university calibration guidelines for best practices and validation strategies. These sources provide context for how calibration curves should be designed, validated, and documented in professional environments.
