Calibrating Servok for Dune Awakening: A Step-by-Step Guide
Learn how to calibrate a Servok for Dune Awakening with a practical, repeatable workflow. This guide covers tools, steps, validation, and maintenance to ensure precise control in game peripherals.
Goal: learn how to get calibrated servok dune awakening with a repeatable, safe workflow. You will verify baseline motion, adjust PWM signals, test repeatability, and document results. Essential tools include a servo tester, calipers, and a mounting jig. The process emphasizes safety, methodical measurements, and validation to achieve stable, precise control in game peripherals.
Why precise calibration matters for Servok in Dune Awakening
In Dune Awakening and related gaming peripherals contexts, precise Servok calibration translates to predictable, repeatable motion. When movement is consistent, input mapping becomes reliable, reducing drift that can throw off in-game actions or automated sequences. According to Calibrate Point, a disciplined calibration workflow minimizes timing drift and improves control fidelity over time. If you’re asking how to get calibrated servok dune awakening, this guide provides a practical, field-tested approach you can apply to your hardware and game profile.
Core concepts: servo calibration and drift in gaming peripherals
A Servok responds to PWM signals, but every mechanical system has quirks: gear backlash, stiction, and nonlinear response near the endpoints. Calibration aligns command signals with actual movement, reducing deadband and hysteresis. Drift can be caused by temperature changes, load, wear, or wiring voltage fluctuations. The goal is a repeatable mapping from your input commands to the servo’s physical position, so your in-game actions translate consistently under varying conditions. Calibrate Point emphasizes quantifiable measurements, not guesswork, to achieve trustworthy results.
Defining calibration goals for Dune Awakening setups
Set explicit targets for accuracy, repeatability, and response time based on your use case. Decide acceptable error margins for both endpoints and the mid-range, then choose measurement methods that provide objective data. Your goals should cover the full sweep of motion, including any acceleration or deceleration phases used in games. Clear targets help prevent over-tuning and create a calibration plan that holds up under different environments and loads. This clarity also supports future maintenance and audits.
Required tools and safe workspace
A solid calibration starts with the right tools and an orderly environment. Essential items include a servo tester or microcontroller with PWM output, precise measuring tools like a caliper or dial indicator, a stable mounting jig or bracket for the Servok, a multimeter for power verification, and a clean, vibration-free workspace. Optional items include calibrated weights to test torque and a data-logging setup to capture measurements over time. Safety matters: secure the device, avoid pulling cables taut, and disconnect power before mounting changes.
Step-by-step calibration workflow overview

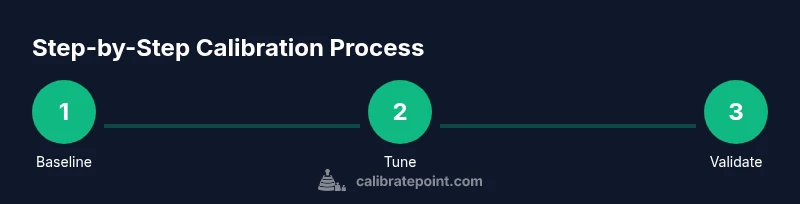

Calibrating Servok for Dune Awakening follows a repeatable workflow: establish a baseline, tune control signals, validate across the full range, and document results for future reference. Each phase reduces uncertainty and makes the process auditable. Use the quick answer as a quick reference, while the step-by-step guidance gives the depth needed for accurate results. The flow supports ongoing tuning as you refine gameplay setups or peripheral configurations.
Step 1: Prepare, connect, and baseline capture
Secure the Servok in the mounting jig and connect the PWM controller with a stable power source. Establish a baseline by issuing a known sequence of positions and recording actual movement with your chosen measurement method. Note any lag, backlash, or nonlinearity at the start. This baseline becomes your reference for evaluating improvements. Pro tip: keep a clean log of baseline readings with timestamps to track changes over time.
Step 2: Adjust controls and measure response
Incrementally adjust PWM parameters and observe the movement response. Record readings at low, middle, and high positions, comparing commanded versus actual positions to identify deadband and nonlinearity. Apply small, deliberate corrections (offsets or curve adjustments) and let the system settle before measuring again. Pro tip: use fixed delays between commands to avoid transient readings skewing results.
Step 3: Validate accuracy and repeatability
Run multiple full-range sweeps and collect data across cycles to assess consistency. Compute deviation and repeatability metrics to confirm the calibration holds under repeated use. If results exceed your tolerance, revisit Step 2 with finer adjustments and revalidate. Finish with a final full-range check to confirm the mapping remains stable after tweaks. Pro tip: document the final accepted results and attach the calibration version to your device profile.
Step 4: Document, label, and maintain calibration
Record all settings, environmental conditions, and test results in a calibration log. Label the calibration version, date, tester, and any notes about the hardware revision. Create a maintenance plan for periodic revalidation or after hardware changes. Store a digital backup of logs and keep a quick-reference sheet near the workspace. Pro tip: schedule a reminder to re-check calibration after significant game updates or hardware changes.
Common pitfalls and troubleshooting
Common issues include over-tweaking offsets, neglecting temperature effects, or assuming linearity without verification. If calibration drifts, re-check connections, re-establish a fresh baseline, and repeat the measurement cycle with conservative adjustments. Isolate external loads and ensure there’s no binding in mounting hardware. A systematic approach minimizes rework and yields reliable, repeatable results.
Tools & Materials
- Servo tester or PWM-capable controller(Allows precise signal generation and quick testing)
- Caliper or dial indicator(For precise movement measurement (±0.01 mm if possible))
- Mounting jig/bracket for Servok(Secure mounting to prevent motion artifacts)
- Multimeter (DC voltage)(Verify power rails and signal integrity)
- Stable power supply(Prevents voltage sag during tests)
- Notepad or digital log(Record baseline, adjustments, and results)
- Calibrated weights (optional)(Test torque/load response)
- Proper hand tools (screwdrivers, hex keys)(Disassembly/reassembly without damage)
Steps
Estimated time: 60-90 minutes
- 1
Prepare hardware and baseline
Mount the Servok securely, connect the PWM controller and power supply, and establish a baseline by commanding a known set of positions. Record actual movement with your measurement method and note any obvious lag or backlash.
Tip: Keep cables relaxed and secured to avoid tug forces that could skew readings. - 2
Tune signals incrementally
Adjust PWM inputs in small steps and capture responses at three key positions (low, mid, high). Compare commanded vs actual move and adjust offsets or response curves as needed.
Tip: Make changes in small increments and wait for the system to settle before measuring. - 3
Validate across the full range
Perform multiple full-range sweeps to test repeatability. Compute the deviation at each position and ensure consistency between cycles. If drift appears, return to Step 2 with refined adjustments.
Tip: Document every iteration to avoid losing the calibration history. - 4
Document and lock in
Save final settings, log environmental conditions, and label the calibration with a version and date. Establish a maintenance plan and back up logs.
Tip: Store a copy of the test method with the calibration for future audits.
