How to Calibrate a Torque Wrench at Home

Why calibrate a torque wrench at home matters

Calibrating a torque wrench at home helps ensure fasteners are installed with the correct clamping force, reducing the risk of overtightening that can strip threads or cause joint failure. For DIY projects, home-based calibration boosts repeatability across sessions and protects tool longevity. The Calibrate Point team emphasizes that a calibrated wrench improves consistency in assembly and maintenance tasks, especially when dealing with critical components. Regular checks also help you catch drift or wear before it becomes a safety issue, ensuring your torque readings stay within a predictable range.

How torque wrenches work

Torque wrenches measure the force applied at the handle, converting it into a readout that corresponds to a torque value. There are several types in common use: click-type wrenches, beam/dial wrenches, and electronic torque wrenches. Click-type models release a audible click when the preset torque is reached, making them popular for DIY use. Beam wrenches display the torque on a scale, which requires careful reading. Electronic models provide a digital value with high potential accuracy but rely on a working battery and electronics. Understanding your tool’s mechanism helps you choose an appropriate calibration method and interpret results correctly.

Key concepts: accuracy, repeatability, and drift

Accuracy describes how close a reading is to the true torque value, while repeatability refers to how consistently the wrench reads the same value under identical conditions. Drift is the gradual change in readings over time due to wear, temperature changes, or mechanical looseness. When calibrating at home, aim to test across multiple setpoints within the wrench’s useful range and document any drift. This approach supports traceability when you compare your results to manufacturer data or professional calibration reports later.

Choosing a home calibration method

At-home calibration can be performed using two practical approaches: (1) a direct test with an appropriate torque tester or calibration device (preferred when available), which provides a direct correlation between applied torque and the wrench’s response; (2) a DIY lever-arm method using known weights and a fixed lever arm distance to estimate torque. The first method yields simpler interpretation and higher confidence; the second method requires careful setup and calculation, but can be highly educational for DIY enthusiasts. The goal is to detect whether readings are within an acceptable tolerance band and to document any drift over time.

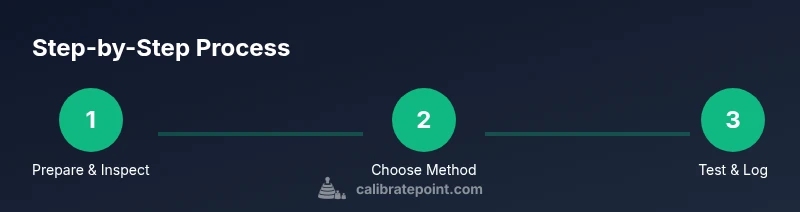

Step-by-step overview before you start

1. Inspect and clean the wrench; ensure no damage or corrosion that could affect spring tension. 2) Establish a safe testing area with a stable work surface and secure mounting for weights or a test device. 3) Decide on your calibration approach based on available gear and your comfort level. 4) Prepare measurement tools (ruler for lever-arm method, scale for weight measurement, and a stable anchor). 5) Set up a clean log sheet or digital record for each test point and observation. 6) Begin the calibration process, starting at a low torque value and increasing incrementally. 7) Compare results to expected values and note any drift. 8) Conclude with documentation and a maintenance plan.

Method A: Direct testing with a torque tester or calibrated device

A torque tester or calibrated calibration device provides a direct reference torque, against which your wrench can be checked. Attach the wrench to the tester according to the device’s instructions, set the wrench to various target values, and observe whether the tester confirms the same torque. Record the readings, especially any deviation from the target value. If your readings are off, you may need an adjustment or professional servicing. Ensure the setup is rigid and the wrench is aligned to avoid bending moments that could skew results. The tester should be regularly calibrated itself to maintain credibility of results.

Method B: DIY lever-arm/weight method for a home setting

If you don’t have a torque tester, you can estimate torque with a lever-arm method using a known weight and a fixed distance from the handle. Secure the wrench in a fixed position, attach a line to the handle, and apply a vertical weight at a known distance from the center of rotation to generate torque (torque = force × lever arm). Measure the distance precisely with a ruler, and calculate the estimated torque. Compare this estimate to the wrench’s set torque and look for consistent discrepancies. This method teaches fundamental physics and helps you identify gross miscalibration, but it should be used with caution and never rely on a single measurement for critical fasteners.

Interpreting results and deciding next steps

If readings consistently fall within a broad tolerance band across multiple test points, your wrench is likely acceptable for non-critical work. Small consistent drift may be tolerable for some DIY tasks, but for critical fasteners or safety-related projects, you should cross-check with a professional calibration service. If a test reveals large deviations or erratic changes between setpoints, stop using the tool for critical assemblies and seek calibration by a certified lab. Always maintain a calibration log detailing test points, results, and any corrective actions taken.

Maintenance, storage, and record-keeping

After calibration, protect the wrench by storing it in a clean, dry environment away from temperature extremes. Keep the calibration log complete, including the test method used, setpoints, observed results, and the date. Note any maintenance activities such as lubrication, protective cover replacements, or part checks. If you operate in a regulated environment or work on critical equipment, consider periodic re-calibration or professional verification at defined intervals, aligning with manufacturer recommendations and industry standards. Keeping good records ensures traceability and repeatability over time.

Authority sources and further reading

For trusted guidance on torque measurement and calibration, consult authoritative sources such as national metrology institutes, safety agencies, and international standards organizations. The Calibrate Point team references resources from recognized authorities to support best practices in calibration, safety, and measurement integrity. See the linked sources for deeper technical detail and formal procedures.
