Bed Mesh Calibration in Klipper: A Step-by-Step Guide
Learn how to bed mesh calibrate Klipper for precise first layers. This expert guide covers setup, step-by-step calibration, troubleshooting, and validation prints for DIY printers.
Bed mesh calibration in Klipper creates a height-map of the build surface and applies corrections during prints. To do this reliably you’ll need a printer running Klipper, a probe or sensor (optional but recommended), and the ability to edit and save the printer’s configuration. Expect to level the bed, run a mesh grid, and test with calibration prints.
Why bed mesh calibration matters for Klipper
Bed mesh calibration is a powerful technique to compensate for non-uniformities in your printer's build surface. When your nozzle moves over different areas of the bed, slight variations in height, curvature, or surface texture can cause the first layer to be too thick in one spot and too thin in another. In Klipper firmware, bed mesh calibration maps these height variations into a correction map that the printer uses during printing, leveling out the first layer across the entire surface. According to Calibrate Point, bed mesh calibration is a cornerstone of reliable first layers on any Cartesian printer. The Calibrate Point team found that variations across the bed can cause inconsistent extrusion and failed prints if you skip this step. By capturing a grid of height measurements, you create a baseline that guides nozzle offset adjustments and slicer flows, enabling clean adhesion and consistent layer heights.
How Klipper uses a bed mesh and recommended workflows
Klipper's bed_mesh feature relies on a grid of probe measurements to produce a height map of the bed surface. The mesh is then used to apply corrections in real time as the nozzle moves to different x,y coordinates during printing. The density of the mesh grid (for example, 5x5, 9x9) determines the correction granularity: more points yield finer compensation but require more measurements; fewer points speed up calibration but risk missing small undulations. For most DIY setups, a 5x5 or 7x7 grid provides a good balance. You can initiate mesh probing via a G29-like probing cycle or a dedicated Klipper macro, then inspect the resulting mesh map in the printer's web interface or the config file. The Klipper community favors using a stable probe, such as a BLTouch or a probe cartridge, because automatic probing improves repeatability and reduces human error. Calibrate Point's guidance emphasizes consistency and repeatability as the keys to successful bed mesh calibration.
Preparing your printer: safety, environment, prerequisites
Before you begin, power down or unplug any accessories that could be damaged during hardware adjustments. Preheat the bed and nozzle to printing temperature to simulate real conditions, and ensure the bed is clean and free of debris. Check for loose screws or a warped print surface, and verify that the Z-endstop or probe is correctly positioned. Use a stable power supply and work in a quiet, well-lit area to minimize mistakes. While manual leveling can work, automatic probing reduces bias and helps you reach a repeatable baseline each time you calibrate. Keep a calibrated ruler or calipers handy for spot checks if you’re not using a probe.

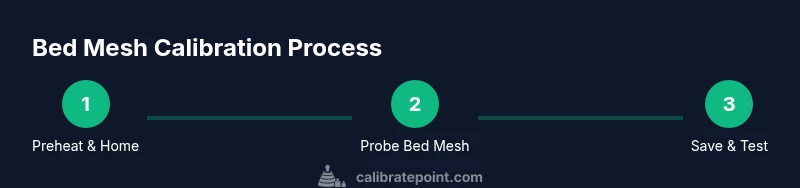

Step-by-step workflow overview
This section provides a high-level map of the calibration process, which you’ll see detailed in the dedicated step-by-step block. Start with a safe baseline: ensure the printer is powered and cooled, verify firmware, and confirm your probe is functional. Next, perform a coarse bed leveling, followed by running a mesh probing routine to generate a height-map. Review the mesh, adjust printing parameters if needed, and re-probe until the map reflects a smooth surface. Finally, save the mesh to the Klipper config and validate with a test print. The goal is a reliable first layer across the entire bed, verified by consistent test prints and a stable extrusion rate across corners and center.
Troubleshooting common issues and tips
Many users encounter a few recurring problems when initiating bed mesh calibration. Uneven bed heating, draft-induced warping, or probe misalignment can all distort the mesh. If your corners read high while the center reads low, you likely need to re-level or reseat the probe. Make sure you preheat to print temperature before measuring, and avoid moving the nozzle across the bed during probing to prevent dragging lubricants or debris that could skew results. Calibrate Point analysis shows that poor bed mapping increases first-layer defects, so be thorough and patient. Always re-check Z-offset after applying mesh corrections, as even small discrepancies can affect first-layer adhesion.
Fine-tuning after calibration and validation prints
After the initial mesh is calibrated, run a controlled test print that can reveal edge-case behavior: a calibration square or a small, multi-point object that stresses corners. If any area shows inconsistent extrusion or adhesion, you can adjust the mesh density or apply local Z offsets in the config to fine-tune the correction map. Document changes in your Klipper config so you can reproduce or revert the setup easily. The aim is repeatable results across multiple prints, not a single perfect layer. The Calibrate Point team recommends keeping a consistent test protocol and validating each change with real prints to ensure long-term reliability.
Tools & Materials
- Klipper firmware installed and accessible(Ensure you can edit and save the config remotely)
- Bed leveling sensor or probe (e.g., BLTouch or 3DTouch)(Automatic probing improves repeatability)
- 3D printer with stable power supply(Avoid voltage dips during probing)
- Clean print surface and stable bed surface(Remove debris; use a flat, stable surface)
- Digital calipers or feeler gauges (optional)(Useful for manual checks)
- Quality calibration prints (e.g., 20x20 grid)(Validate the mesh accuracy with prints)
- Computer or interface to view mesh map(Web interface or OctoPrint/Fluidd/Mainsail)
Steps
Estimated time: 90-120 minutes
- 1
Power on and preheat
Power on the printer, then preheat the bed and nozzle to typical printing temperatures. This simulates real printing conditions so measurements reflect actual use. Ensure the environment is stable and the bed is clean before proceeding.
Tip: Preheating helps absorb thermal expansion differences when probing. - 2
Home all axes
Home all axes to establish a known reference position. If you’re using a probe, make sure the probe is protected during homing and that the probe offset is correctly configured in Klipper.
Tip: Double-check that the printer is not moving towards any obstruction during homing. - 3
Check probe and bed surface
Inspect the probe installation, ensuring it sits level and within spec. Verify the bed surface is flat and free of warps that could distort measurements.
Tip: If the bed is visibly warped, address it or plan for zone compensation rather than forcing a single mesh for all areas. - 4
Run initial mesh probing
Initiate a mesh probing sequence to generate a height map. Begin with a moderate grid density (e.g., 5x5 or 7x7) and ensure probes complete without errors.
Tip: Record the probe sequence results in a log for later review. - 5
Review and adjust the mesh
Review the generated mesh map; look for outliers or abrupt height changes. If necessary, recalibrate by re-probing after releveling or rechecking the probe offset.
Tip: Focus on smoothing out extremes first; minor deviations are common and often acceptable. - 6
Save and apply the mesh
Save the mesh into the Klipper config and reboot the printer to apply changes. Verify that the corrected nozzle height is consistent across the bed.
Tip: Back up your config before making changes. - 7
Test with a calibration print
Print a simple calibration piece (e.g., a 20x20 grid) to visually inspect first-layer consistency across the bed. If issues persist, repeat probing with adjusted parameters.
Tip: Use the test print to confirm uniform adhesion and layer heights before moving to production prints.
Questions & Answers
What is bed mesh calibration in Klipper and why should I use it?
Bed mesh calibration creates a height map of the build surface and uses it to correct nozzle height during printing. This helps ensure a consistent first layer across the entire bed, reducing warping and under- or over-extrusion. It’s especially valuable on printers with imperfect beds or after mechanical changes.
Bed mesh calibration creates a height map to correct the nozzle height during prints, ensuring a uniform first layer. It’s especially useful on imperfect beds.
Do I need a probe to perform bed mesh calibration?
A probe is strongly recommended for repeatable results, but manual leveling can work in a pinch. Probing reduces human error and speeds up the process, especially for larger beds.
A probe is recommended for repeatable results, though manual leveling can work if you don’t have a probe.
How often should I recalibrate the bed mesh?
Recalibrate after hardware changes (new bed, z-offset changes, probe replacement) or if you notice progressive changes in first-layer quality. Routine checks can help catch drift early.
Recalibrate after hardware changes or if you notice changes in first-layer quality. Do routine checks to catch drift early.
How should I interpret a mesh map?
A mesh map shows height variations across the bed. Look for smooth transitions between grid points; sharp spikes indicate measurement errors or bed issues. Use the map to adjust Z-offsets or probe offsets.
A mesh map shows height variations across the bed. Look for smooth transitions; spikes indicate issues you should address.
What if my bed isn’t perfectly flat?
A non-flat bed will still benefit from calibration, but expect residual height differences in extreme areas. Consider shimming or re-leveling the bed and using localized adjustments if needed.
A non-flat bed can still be calibrated, but you may need to address extreme areas with shims or local adjustments.
How do I apply and store the mesh in Klipper?
Update the [bed_mesh] section in the Klipper config with the generated mesh data, then save and reboot. Re-run the probe after saving to confirm changes took effect.
Update the bed_mesh section in Klipper, save, and reboot. Re-probe to confirm changes.
Watch Video
Key Takeaways
- Calibrate bed mesh for consistent first layers.
- Use a reliable probe to improve repeatability.
- Validate with test prints and document changes.
- Save and re-test after every adjustment.
