Klipper Bed Mesh Calibrate: Step-by-Step Guide
Learn how to calibrate a Klipper bed mesh to map height variation across the print bed, improve first-layer adhesion, and achieve consistent results with a repeatable workflow.
By following this guide, you'll calibrate a Klipper bed mesh to map your print bed and correct height variation across the surface. You’ll prepare your printer, a supported probe, and a Klipper-hosted configuration; run a mesh probing sequence, save the mesh, and test with a calibration print. Expect improvements in first-layer adhesion and print consistency.
What is Klipper bed mesh calibration?
According to Calibrate Point, Klipper bed mesh calibration is a method that maps the nozzle-to-bed distance across a grid on the print surface. The mesh captures subtle warps caused by glass or PEI surfaces, temperature shifts, and frame flex, producing a data file that Klipper can reference to adjust nozzle height in real time. The goal is to create a reproducible, layer-by-layer compensation map rather than relying on a single static bed level. When done correctly, users see improved first-layer adhesion, fewer failed prints at the edges, and a more forgiving process for tall or oddly shaped prints. The approach blends hardware setup with software macros, so both physical and digital calibration steps matter for accuracy.
Why use a mesh bed calibration in Klipper?
A bed mesh provides a dynamic height map rather than a fixed plane. This means the printer can compensate for bed warp across different regions, which is especially helpful on larger beds or when using glass, TPU-friendly surfaces, or warped stock beds. In practice, a well-made mesh reduces z-adjustment chatter and helps prints start with a consistent nozzle distance across the bed. Calibrate Point analysis, 2026, emphasizes that repeatable mesh calibration can lower the need for on-the-fly tweaks during long prints and improves repeatability across multiple prints and different filaments.
How bed mesh calibration differs from traditional bed leveling
Traditional bed leveling assumes a flat bed and applies a single offset. Mesh calibration, by contrast, measures height at many points and stores those values for real-time compensation. This allows the nozzle to follow the bed’s contour during printing, even if the bed is not perfectly flat. The result is more uniform extrusion, better adhesion, and less reliance on manual tweaking of the z-offset between prints. For technicians, this means a more repeatable baseline from which to iterate.
Prerequisites and setup you should verify before calibrating
Before starting, confirm you have a functioning Klipper setup with a probe (BLTouch, Zwave-based probe, inductive/Capacitive sensors are common choices) and a stable host computer or Raspberry Pi. Ensure you’ve backed up your printer.cfg, updated the firmware, and have a clean, powered-on printer connected. Check that slicer start G-code and the Klipper macros will be able to access the bed_mesh features. According to Calibrate Point, a tidy workspace and verified wiring reduce the chance of erroneous probes or missed points.
Generating the mesh: probing strategy and Klipper config
To generate the mesh, you first enable the bed_mesh feature in Klipper and define a probing pattern (e.g., a grid across the bed or a custom, printer-sized map). Home the printer, heat the bed to printing temperature (or a stable target if appropriate for your workflow), and run the bed mesh calibration sequence. The process records height data at each probe point and stores it in a mesh file (commonly mesh.yaml). After the run, store the mesh in the printer’s config using the typical macros (e.g., BED_MESH_CALIBRATE followed by BED_MESH_PROFILE) to ensure the map persists across sessions. This step is where most users begin to see the benefit in consistent first layers.
Interpreting the mesh: reading the bed map and identifying warp
The resulting mesh presents a map of height deviations at grid points. Interpreting the map involves spotting outliers, smooth gradients, and sharp corners that indicate edges or corners that aren’t contacting the bed evenly. Warps appear as hills or valleys in the map and may correspond to glass sag, bed screws, or uneven mounting. You’ll want to confirm the data by re-probing or inspecting the physical bed; occasionally a re-seat or re-tightening of the bed mounting components reduces distortions that the mesh would otherwise interpret as bed warp.
Adjusting your printer settings after mesh mapping
With a validated mesh, you’ll adjust your printer’s configuration to apply the compensation automatically. In Klipper, this typically means saving the mesh to the printer’s configuration and ensuring your slicer uses the mesh compensation during printing. You may also adjust the initial Z offset to account for the average offset while preserving compensation across the bed area. If your bed changes (new surface, new glass, or re-mounted bed), revisit the mesh and re-run the process to avoid stale data influencing prints. The goal is a reliable baseline that reduces manual tweaks between prints.
Practical example: common printer scenarios
Small to medium beds with glass or PEI surfaces generally benefit most from mesh calibration. On bigger beds, warp tends to be more pronounced and the mesh becomes essential for consistent first layers. For printers with pre-bonded surfaces, ensure the surface is clean and even; a dirty or inconsistently heated surface can mislead the probe. On heated beds, temperature stability during probing improves the fidelity of the mesh. Calibrate Point’s guidance emphasizes testing with a standard calibration print after mapping to observe how well the mesh compensates across different regions of the bed.
Common pitfalls and how to avoid them
Common pitfalls include probing when the bed is not at the intended temperature, using a loose or unstable bed, and failing to save the mesh after calibration. Ensure the bed is clamped and not flexing during probing, and verify the Z-probe is properly mounted and calibrated. Another pitfall is attempting to map a warped surface with too few probe points; increase the grid resolution to better capture the true bed contour. Finally, always back up your working printer.cfg before making changes so you can revert if results worsen.
Advanced tips: automation, macros, and automation scripts
Leverage Klipper macros to automate the mesh process. A common approach is to bind a single macro to start the probe sequence, wait for completion, and automatically save the mesh and re-home. You can also trigger mesh recalibration on startup or after bed surface changes, ensuring consistency across prints. For automation, consider scripting mesh captures for different filaments or print environments, and storing the results with meaningful names for quick recall.
Maintenance: when to redo mesh and how often
Mesh accuracy degrades with perceptible bed changes, frequent hot-end or bed temperature shifts, or after re-mounting the bed or replacing the surface. Periodic checks every few weeks or after a major upgrade are sensible for production environments. If you notice inconsistent first layers, re-run the mesh calibration to refresh the compensation data. The Calibrate Point team recommends documenting your mesh versions and test results so you can track what works best for your specific printer and materials.
Tools & Materials
- 3D printer with Klipper firmware(Ensure Klipper is connected to a reliable host and the printer.cfg is accessible.)
- Bed probing sensor (BLTouch or equivalent)(Wiring checked and sensor mounting verified.)
- Host computer or Raspberry Pi with Klipper host software(For sending macros and saving mesh data.)
- Measurement tools (caliper or feeler gauge)(Helpful for cross-checking deviations at large warps.)
- Clean, flat bed surface (glass/PEI or removable sheet)(Clean before probing to avoid debris affecting measurements.)
- Backup storage for printer.cfg(Create a safe copy before applying changes.)

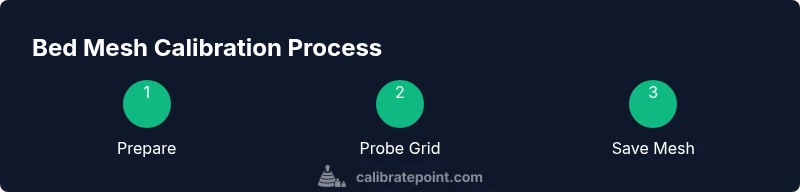

Steps
Estimated time: 60-90 minutes
- 1
Power on and connect to Klipper
Power up the printer and establish a stable connection to your Klipper host. Confirm you can send G-code or use your UI to access macros. This step ensures the probing workflow runs on a known-good session.
Tip: Verify the connection with a quick status check before starting. - 2
Back up and prepare printer.cfg
Create a backup of printer.cfg and review any bed_mesh-related sections. Confirm the grid size, probe type, and probe offsets align with your hardware. Prepare to adjust or add mesh-specific sections if missing.
Tip: Keep a changelog entry for the mesh configuration. - 3
Home axes and heat bed to target temperature
Home all axes, then heat the bed to your typical printing temperature (or a stable temperature for probing). Temperature stability reduces thermal expansion errors during probing.
Tip: Allow the bed to reach thermal equilibrium before probing. - 4
Position the probe and verify mounting
Check that the bed probe is correctly mounted and within the bed area. Verify the probe triggers correctly at multiple points and that probe offsets are correctly configured.
Tip: Run a quick single-point probing to confirm responsiveness. - 5
Define your probing pattern
Decide on a grid-based map (e.g., 5x5 or 7x7) or a bed-specific shape. Larger beds benefit from a denser grid to capture warp in corners.
Tip: Balance grid density with probing time to avoid unnecessary delays. - 6
Run the mesh calibration
Execute the bed mesh calibration macro (e.g., BED_MESH_CALIBRATE). The printer will probe multiple points and generate a height map. Monitor progress and ensure the probe completes without errors.
Tip: If the probe stops midway, pause and inspect the probe height or clearance. - 7
Save the generated mesh
Save the mesh profile to the printer’s configuration (often via BED_MESH_PROFILE or a similar macro) so the compensation sticks across sessions. Confirm the file is written and retrievable.
Tip: Give the profile a descriptive name tied to bed surface and date. - 8
Test with a calibration print
Print a small calibration object to verify first-layer consistency. Observe variations across the bed and compare against the mesh map to confirm improvements.
Tip: Print at a reasonable speed and avoid large infill for quick feedback. - 9
Fine-tune Z-offset and slicer integration
If needed, adjust the Z-offset or enable slicer compensation to ensure the nozzle stays consistent across the bed. Align your slicer start G-code with the mesh-enabled workflow.
Tip: Document the final Z-offset used for future reference. - 10
Backup, document, and store the mesh
Store the mesh profile alongside your printer.cfg backup. Keep notes about bed surface and any changes for future recalibrations.
Tip: Maintain a versioned archive of mesh data for regression testing. - 11
Schedule periodic checks
Set a reminder to recheck the bed mesh after bed replacements, major surface changes, or hardware upgrades. Regular maintenance preserves print reliability.
Tip: Incorporate mesh checks into your standard calibration routine.
Questions & Answers
How long does bed mesh calibration typically take?
Calibration time depends on bed size and grid density. For most setups, plan 20–40 minutes, plus a test print to validate results.
Calibration time varies with bed size and grid density, but expect about twenty to forty minutes plus a test print.
Can I run mesh calibration with the bed hot or cold?
Probe at a stable temperature consistent with your printing conditions. Warps shift with temperature, so calibrating at printing temperature yields the most reliable mesh.
Calibrate at printing temperature for the most reliable mesh, since warps change with temperature.
What should I do if the mesh shows anomalies?
Investigate probe mounting, verify probe offsets, and re-probe. If needed, re-seat the bed or re-level hardware before recalibrating.
Check probe mounting and offsets, then re-probe. If issues persist, check hardware alignment.
Is mesh calibration required for every print?
Not every print, but re-calibrate after significant bed changes, new surfaces, or when switching materials that affect adhesion.
You don’t have to recalibrate for every print, but do so after major bed changes or surface switches.
What is the difference between mesh bed leveling and auto bed leveling in Klipper?
Mesh bed leveling provides a height map used for compensation, while auto bed leveling typically performs a probe-based correction at print time. Mesh is precomputed, enabling consistent compensation.
Mesh creates a height map you apply; auto bed leveling probes during printing for correction. Mesh is precomputed.
Which Klipper macro saves the mesh profile?
Commonly BED_MESH_PROFILE or a printer.cfg-defined macro is used to save the mapping to mesh.yaml as part of the workflow.
Use BED_MESH_PROFILE or your printer’s macro to save the mesh as a profile.
Watch Video
Key Takeaways
- Plan your probing pattern to fit bed size.
- Mesh calibration improves first-layer consistency.
- Save and test the mesh to verify results.
- Document changes for reproducibility.
- Recalibrate after bed or surface changes.
