How to Calibrate Jetson Hoverboard: A Practical Guide
Learn how to calibrate jetson hoverboard with Calibrate Point's expert, step-by-step guidance. This practical walkthrough covers sensor alignment, gyro/accelerometer offsets, motor mapping, and safe testing to improve stability, accuracy, and ride quality.
To calibrate Jetson hoverboard, you will align sensors, set zero offsets, and map motor responses using the official calibration workflow. Start with a powered-off board on a level surface, connect the calibration app if required, and follow each step precisely. This process reduces drift, improves turning accuracy, and enhances ride stability.
Why calibration matters for the Jetson hoverboard
Calibrating a Jetson hoverboard is not a one-and-done task; it’s a maintenance practice that keeps drifting, wobble, and turning inaccuracies from creeping into your rides. According to Calibrate Point, regular calibration helps maintain sensor fusion quality, which translates to smoother accelerations and stable hover height. The Calibrate Point team notes that as components wear or battery voltage changes, sensor offsets can drift, altering the hoverboard’s response. To get predictable behavior, you need a repeatable calibration routine that you perform on a flat, level surface and after any major impact or firmware update. For DIY enthusiasts, this is where a methodical approach pays dividends: the board becomes more predictable, easier to balance, and safer to ride, especially at higher speeds. In many models, the calibration targets include wheel alignment, gyroscope bias, magnetometer calibration, and motor mapping. If you neglect any one of these, you may compensate in software or rely on trial-and-error, which often leads to inconsistent results. This article focuses on the practical, step-by-step method for calibrating a Jetson hoverboard using widely available tools and official guidance, while highlighting common pitfalls and safe testing practices. Calibrate jetson hoverboard routines are designed to be repeatable and auditable, not ad hoc hacks.
Understanding calibration targets
A hoverboard uses multiple sensors; calibration aims to align these sensors with physical reality. The gyroscope measures angular velocity; the accelerometer measures linear acceleration; the magnetometer helps with heading reference. When offsets drift, the system’s sensor fusion output can drift too. Calibration targets include zero-offsets for the gyros, scale factors for accelerometers, and sensor biases for magnetometers. In Jetson models, you may also map motor controllers to ensure each wheel responds equally to a given command. The result is a predictable hover height, consistent coasting behavior, and balanced turning. Calibration is most effective when done after mechanical work, wheel replacement, or firmware updates. For this reason, keep a log of offsets and mapping results to track how your board behaves over time.
Environmental factors influence calibration
Calibration is sensitive to the environment. Temperature fluctuations can affect sensor drift, while floor texture and moisture can alter wheel resistance during testing. Magnetic interference from metal objects, appliances, or electronics can skew magnetometer readings, leading to inaccurate heading data. Humidity and dust can also affect connector contacts and sensor housings over time. To minimize these variables, perform calibration in a quiet, dry area on a flat floor, away from large metal surfaces and strong magnets. If you must calibrate in a space with slight variability, document conditions so you can compare sessions later. Regular checks after changes in temperature or humidity help maintain consistency across rides.
Sensor alignment and motor mapping explained
Sensor alignment involves zero-offsets and scale factors for gyroscopes, accelerometers, and magnetometers. Proper alignment ensures the fusion algorithm produces stable roll, pitch, and yaw readings, which translate into predictable balance and tilt compensation. Motor mapping assigns consistent responses to left and right wheels, ensuring symmetrical acceleration and braking. When you adjust these parameters, small changes can have a big impact on ride quality. Always verify both the input commands and the actual wheel response during calibration to ensure the mapping is correct. This reduces the need for post-calibration tweaking and speeds up future maintenance sessions.
The role of firmware and wheel wear in calibration
Firmware versions can add or modify calibration routines, offsets, and limits. It’s important to note whether a recent firmware update changes recommended offsets or tolerances. Wheel wear and tire surface changes can also affect contact dynamics and traction, which in turn impact sensor feedback during calibration. If you notice drifting after a ride or after a firmware update, plan a recalibration session and re-check wheel tightness and balance. Keeping the board’s firmware up to date in a controlled manner helps ensure calibration data remains valid across sessions. Regular inspection of wheel hubs, bolts, and bearings is part of ongoing maintenance that supports accurate calibration results.
Step-by-step overview (high-level)

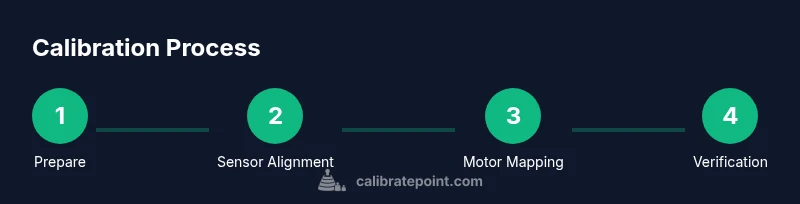

For a clear plan before you dive into the formal STEP-BY-STEP sequence, consider a quick overview: prepare your workspace, confirm level ground, verify hardware integrity, connect to any required calibration tool, perform zero-offsets and sensor alignment, map motor outputs, run a verification pass, and log results for future reference. This overview helps align expectations and reduces the chance of skipping critical checks. Use a clean surface and document any observed discrepancies for later review.
Safety, testing, and maintenance after calibration
Calibration can improve safety when done correctly, but it also introduces new variables that warrant careful testing. Always perform a slow, controlled test ride in a clear area with protective gear. If the hoverboard behaves oddly (unexpected acceleration, jams, or abrupt de-levelling), power down and re-check all connections, offsets, and mappings. Establish a routine maintenance schedule that includes recalibration after major impacts, new wheels, or firmware updates. Keeping an equipment log enables you to track how offsets change over time and plan proactive maintenance.
Tools & Materials
- Jetson hoverboard owner's manual(Refer to official procedures and specifications)
- Flat, level testing surface(Level floor or large table surface; avoid slopes)
- Phillips-head screwdriver(Size #2 or as specified in the manual)
- Torx screwdriver set(Only if service panels require Torx screws)
- Digital level or smartphone leveling app(For verifying surface level during setup)
- Safety gear (gloves and eye protection)(Wear during disassembly and adjustments)
Steps
Estimated time: 60-90 minutes
- 1
Power down and prepare workspace
Power off the hoverboard completely and disconnect from any charger. Move the board to a clean, level surface and clear nearby obstacles. Perform a quick visual check for loose screws or damaged components before starting.
Tip: Have the user manual within reach and keep a stable, well-lit area for accuracy. - 2
Level the testing surface
Place the board on a flat area and verify levelness with a bubble level or the leveling app. A sloped surface introduces measurement errors that skew offsets and wheel alignment.
Tip: If the surface isn’t level, reposition the board and recheck until the bubble is centered. - 3
Inspect hardware before calibration
Check wheel nuts, motor housings, and chassis screws for tightness. Look for signs of wear or damage that could affect alignment or magnetic readings.
Tip: Tighten fasteners to the manufacturer’s torque specification if available. - 4
Connect to calibration tool or app
If your Jetson hoverboard uses an official calibration app or wired tool, connect as instructed in the manual. Ensure Bluetooth or USB connections are stable before proceeding.
Tip: Close other apps that might interfere with calibration data collection. - 5
Zero gyroscope offsets
Reset gyroscope zero offsets to establish a baseline orientation. This step minimizes drift and aligns angular velocity readings with actual motion.
Tip: Record the offset value shown after zeroing for future comparison. - 6
Calibrate accelerometer and magnetometer
Run accelerometer calibration to align linear acceleration readings and magnetometer calibration to correct heading references. These offsets stabilize tilt and direction information used by the fusion algorithm.
Tip: Keep the board stationary during each calibration pass to avoid introducing motion artifacts. - 7
Map motor responses and wheel parity
Calibrate motor outputs to ensure left and right wheels respond equally to the same command. Check for asymmetrical torque or wheel drag and adjust as needed.
Tip: Test with a gentle forward and reverse motion to confirm symmetrical behavior. - 8
Verify results and document
Perform a controlled test ride in a safe area to validate the calibration. Record offsets, mapping results, and any anomalies for future reference and maintenance.
Tip: Keep a ride log with date, conditions, and outcomes to monitor drift over time.
Questions & Answers
Why should I calibrate the Jetson hoverboard?
Calibration aligns sensors and motor responses, reducing drift and improving stability. It ensures predictable handling and safer rides.
Calibration helps sensors behave consistently, so rides feel smoother and safer.
Can I calibrate on any surface?
Calibrate on a flat, level surface free of debris. Uneven surfaces introduce offsets that can lead to inaccurate readings.
Only use a flat surface to ensure accurate calibration results.
Is firmware required for calibration?
Some calibration procedures are firmware-dependent; always check the Jetson hoverboard's manual for any required updates or app versions.
Check the manual for firmware requirements before starting calibration.
What if calibration values drift after a ride?
Revisit the calibration steps, inspect hardware, and verify wheel tightness. Persistent drift may indicate wear or a fault requiring service.
If drift returns, re-check hardware and repeat calibration if needed.
Do I need special tools beyond a level and screwdriver?
Basic tools and a level are usually sufficient; optional torque wrench or magnetometer calibration accessories may help with precision.
Usually, a level and some common screwdrivers are enough.
How often should I calibrate?
Calibrate after major impacts, firmware updates, wheel changes, or if your hoverboard starts behaving oddly. Regular checks improve long-term stability.
Calibrate as part of routine maintenance or after major changes.
Watch Video
Key Takeaways
- Follow a documented calibration plan for repeatability
- Calibrate on level ground with proper testing conditions
- Document offsets and mapping for future reference
- Verify results with a controlled test ride
- Recalibrate after major events or firmware updates
