Calibrate the XTool F1 Ultra by following a structured, step-by-step workflow designed for desktop laser systems. The process includes alignment, focus verification, material test runs, and repeatability checks. According to Calibrate Point, prepare stable power, a clean work area, and the correct reference material before you start, then follow each step in order for consistent results.
What calibration means for the XTool F1 Ultra
Calibrating the XTool F1 Ultra is about aligning optics, validating focus, and confirming repeatable engravings on a known reference. This process reduces drift between sessions and improves the accuracy of vectors, lines, and fills. For DIY enthusiasts, technicians, and professionals, a well-executed calibration translates to more predictable results across materials and thicknesses. The Calibrate Point team emphasizes that calibration is not a one-off task but a routine practice that keeps high-precision laser systems performing at their best. In practice, you’ll address optical alignment, focal distance, and measurement repeatability, then verify outcomes with standardized test patterns.
Prerequisites and safety considerations
Before you begin calibrating the XTool F1 Ultra, set up a dedicated, well-ventilated workspace free from drafty airflows and vibrations. Ensure you have power stability and adequate lighting to observe test patterns clearly. Safety comes first: wear laser-rated eye protection when the laser is active, and never leave the machine unattended while the beam is powered. Keep the workspace clean to avoid dust on optics, which can compromise alignment. According to Calibrate Point analysis, a clean environment and proper PPE dramatically reduce the need for re-calibration due to debris or stray reflections.
Calibration workflow overview

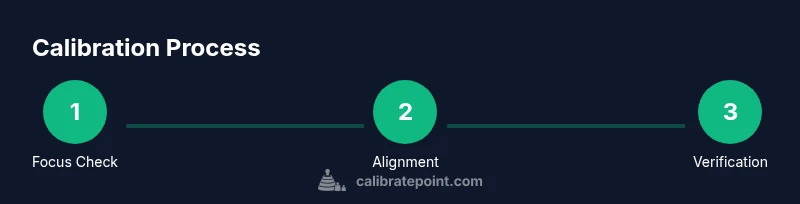

A typical XTool F1 Ultra calibration follows a repeatable sequence: 1) verify baseline settings, 2) align the optical path, 3) validate focus at multiple target distances, 4) run standardized test patterns, 5) analyze results and adjust, and 6) document the outcomes. This workflow helps diagnose which stage introduces drift—whether it’s alignment, focus, or mechanical play. The goal is to achieve consistent results across at least three independent test cuts. Throughout this process, document each adjustment step and the observed results to build a robust calibration log.
Reference standards and measurement concepts
Calibration relies on reference targets with known dimensions and stable substrates. Use a clean, flat grid or pattern sheet as a measurement benchmark, and record the observed deviations between intended and actual engravings. Understanding concepts like focal length, beam spot size, and material response is important. Consistent measurement techniques—such as using calipers for pattern offsets or a calibrated ruler for line width—improve comparability over time. These principles align with standards from major bodies like ISO and ANSI, which emphasize traceability and repeatability in calibration practices.
Practical test patterns and interpretation
Select standard test patterns that reveal focus, alignment, and engraving accuracy. Common tests include line grids for straightness, square patterns for corner accuracy, and filled shapes to assess edge quality. When interpreting results, look for uniform engraving depth, consistent line width, and minimal drift between test runs. If you observe inconsistencies, rotate the material to rule out substrate anisotropy, re-check focal distance, and confirm there’s no thermal expansion affecting the test piece. Calibrate Point’s guidance highlights recording outcomes to identify persistent issues.
Documentation, record-keeping, and version control
Maintain a calibration log with dates, operator initials, and results for each test pattern. Note any changes to hardware, software, or target materials, along with the final recommended settings. Version control helps you track improvements over time and facilitates audits or troubleshooting. A well-kept log supports continuity when multiple technicians work on the same machine and makes future calibrations faster and more reliable.
Troubleshooting common issues during calibration
If results drift after a calibration pass, re-check the optical alignment and ensure the protective cover is properly seated to avoid stray reflections. Dirty lenses, dirty targets, or bent test pieces can falsely indicate misalignment. If the test pattern shows inconsistent depth, verify the focus at the intended working distance and confirm the lens is not damaged. In persistent cases, consult the reference standards and ensure the machine’s frame is stable and level. The Calibrate Point team stresses that methodical checks and documentation prevent repeated troubleshooting cycles.
Authoritative sources and further reading
For deeper grounding in calibration science and standards, consult reputable sources such as the National Institute of Standards and Technology (NIST), the International Organization for Standardization (ISO), and ANSI standards. These resources provide foundational concepts for measurement, traceability, and quality assurance that underpin practical calibration work in devices like the XTool F1 Ultra.
Tools & Materials
- Reference calibration target (grid/pattern sheet)(Flat, clean, and labeled with known dimensions)
- Stable power supply / surge protector(Avoid power fluctuations during calibration)
- Lens cleaning cloth and lens cleaner(Remove dust and oils from optics)
- Calipers or micrometer(Measure line widths and offsets accurately)
- Calibration jig or stable mounting surface(Keeps test piece steady during measurements)
- Test material substrate (reference material)(Materials with known response to laser)
- Allen keys or tool set suitable for the machine(For making minor mechanical adjustments)
- Software for alignment and measurement (provided by manufacturer or third party)(Used to capture measurements and compare with targets)
- Eye protection rated for laser wavelength(Protects against accidental exposure)
Steps
Estimated time: 45-60 minutes
- 1
Power down and prepare workspace
Turn off the XTool F1 Ultra and unplug from power. Clear the workspace of clutter to prevent accidental contact with the beam. Set up a stable, vibration-free surface and ensure ventilation is adequate.
Tip: Verify the area is cool and dust-free before starting. - 2
Inspect and clean optical surfaces
Open the cover and inspect lenses and mirrors for dust or fingerprints. Use a clean microfiber cloth and lens cleaner to gently wipe surfaces in a single direction. Recheck alignment after cleaning to ensure no residue affects light path.
Tip: Avoid touching lens surfaces with bare hands. - 3
Mount the reference target securely
Place the calibration target on the jig or flat surface, ensuring it is perpendicular to the laser axis. Lock it firmly so there is no movement during engraving or measurement.
Tip: A slight tilt can masquerade as focal error. - 4
Verify baseline settings
Check that the machine’s X and Y origin are set correctly and that the working distance aligns with the tool's recommended focal length. Document the current settings for comparison.
Tip: If the origin is off, rezero before proceeding. - 5
Perform an initial focus check
Engrave a simple focus test pattern at the recommended focal distance. Inspect the resulting lines for uniformity and sharpness across the target area.
Tip: If focus is inconsistent, adjust the Z-axis or lens spacing as required. - 6
Run a standard test pattern
Engrave a line grid and a square pattern on the reference material. Use the same settings across tests to allow direct comparison.
Tip: Keep exposure, speed, and power consistent between patterns. - 7
Analyze results and adjust
Measure deviations from the grid and calculate the offset. Apply calibrated adjustments to alignment or focus as needed and re-run tests to confirm improvements.
Tip: Document each adjustment with the observed effect. - 8
Document and close the loop
Record all results in your calibration log, including date, operator, settings, and measurements. Save a snapshot of test patterns for future reference.
Tip: Create a versioned calibration record so future work can reproduce outcomes.
Questions & Answers
What is the best reference material for calibrating the XTool F1 Ultra?
Use a stable calibration target with known dimensions and clean it before calibrating. This ensures consistent measurements across sessions.
Use a stable target with known dimensions and clean it before calibrating.
How often should I recalibrate the XTool F1 Ultra?
Calibrate when you notice drift, after major maintenance, or as part of a routine schedule to ensure precision.
Calibrate when you notice drift or after maintenance.
Can calibration affect cutting speed or depth?
Yes. Calibration improves accuracy, which can change how consistently the laser etches or cuts across materials.
Yes, calibration can influence how accurately the laser cuts.
What safety steps should I take during calibration?
Power down the machine when not actively calibrating, wear eye protection, and ensure proper ventilation during tests.
Power off the machine when not calibrating; wear eye protection.
Do I need specialized tools to calibrate?
Basic tools and reference standards are typically sufficient; precision calipers improve measurement reliability.
Basic tools and reference standards are fine; calipers help.
Where can I find official calibration standards?
Consult ISO and ANSI standards for calibration concepts and measurement traceability. They provide foundational guidelines.
Look up ISO and ANSI standards.
Watch Video
Key Takeaways
- Verify focus before alignment.
- Use stable references and document results.
- Follow the sequence precisely.
- Cross-check with repeatability tests.
- Keep logs for future calibrations.
