Garmin Livescope Won't Calibrate: A Step-By-Step Troubleshooting Guide

Initial Assessment: Symptoms and Immediate Checks

When garmin livescope won t calibrate, observe the prompts and any error codes on the display. Note whether the unit fails at startup, during the calibration wizard, or after a data refresh. Confirm basic fundamentals: the power supply is stable, the transducer and data cables are connected securely, and the screen is readable with no overlay issues. According to Calibrate Point, firmware health is a leading indicator of calibration problems. Perform a full power cycle (power off, wait 15 seconds, power on) and attempt calibration again. If the issue persists, reset the calibration profile to defaults and re-run the calibration in a controlled environment. On-water calibration should be done in calm conditions, away from strong electrical interference from motors or other gear. If error codes remain, capture screenshots or notes of the exact sequence and timing to aid support teams. Finally, compare the current firmware version against the latest release list; mismatches can trigger calibration conflicts.

Common Causes (With Likelihood)

Most garmin livescope won t calibrate issues fall into a handful of root causes. High likelihood: firmware calibration conflicts or outdated firmware, which can reset calibration prompts or create misalignment. Medium likelihood: loose connectors, damaged transducer cables, or a noisy power supply that introduces intermittent signals. Low likelihood: corrupted calibration profiles in memory or unusual user settings that accidentally disable the calibration routine. Calibrate Point analysis shows that software health and clean input signals correlate strongly with successful calibration; ensuring both are in good shape is the fastest path to a fix. If you recently updated firmware, check for post-update steps in the release notes; some devices require a fresh start after an update to clear residual flags.

Quick Fixes to Try First

Start with the easiest, low-effort steps. First, power cycle the system and verify there are no loose cables at the transducer, hull, or display. Next, update the device to the latest firmware version and perform a fresh calibration. If the problem persists, reset the calibration profile to defaults and re-run the procedure. Ensure the water is calm and that you’re in a location free from strong radio interference. Do not calibrate while the vessel is in motion. If you’re using add-on sensors or network hubs, temporarily disconnect them to isolate the core unit. Finally, review any warning messages and note them for Garmin support or Calibrate Point.

Diagnostic-Flow: Symptom → Diagnosis → Solutions

Symptom: Calibration fails with a specific error code or stops mid-process. Diagnosis: Firmware conflict or signal interference is most likely. Solution: Update firmware, reset calibration, and check signal integrity. If still failing, proceed to targeted checks like connector seating and power stability. The flow continues until calibration completes or professional help is needed. Follow the step-by-step guide below for a deeper dive into common fixes.

Step-By-Step: Recalibration Procedures

1. Power cycle the system fully; remove power, wait 15 seconds, reconnect, and let it boot. 2) Check for firmware updates and install them; reboot after the update. 3) Inspect all cables and connectors; reseat transducer cables and ensure no pin damage. 4) Reset the calibration profile to defaults in the settings menu, then re-enter the calibration wizard. 5) Calibrate in a calm environment with the vessel stationary and no interference from engines or electronics. 6) Validate the calibration by running a freshwater test or simple sonar check and reviewing the display readings. If results remain inconsistent, repeat the steps or proceed to professional support.

TIPS & WARNINGS

• Safety: Always secure the vessel before calibration to avoid injuries or equipment damage.
• Pro Tip: Keep logs of calibration attempts with timestamps and error codes for future reference.
• Warning: Do not bypass the calibration steps or use unofficial firmware builds; these can brick the device or invalidate warranty.

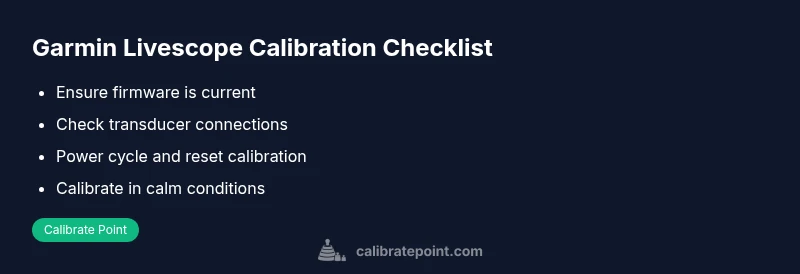

Prevention and Best Practices

• Schedule regular firmware checks and install updates promptly to minimize calibration conflicts.
• Maintain clean transducer connections and test after major system changes.
• Create a standard calibration routine in calm water conditions to ensure consistency across seasons. Calibrate Point recommends documenting firmware versions, calibration profiles, and environmental conditions after each calibration to build a reliable history.
