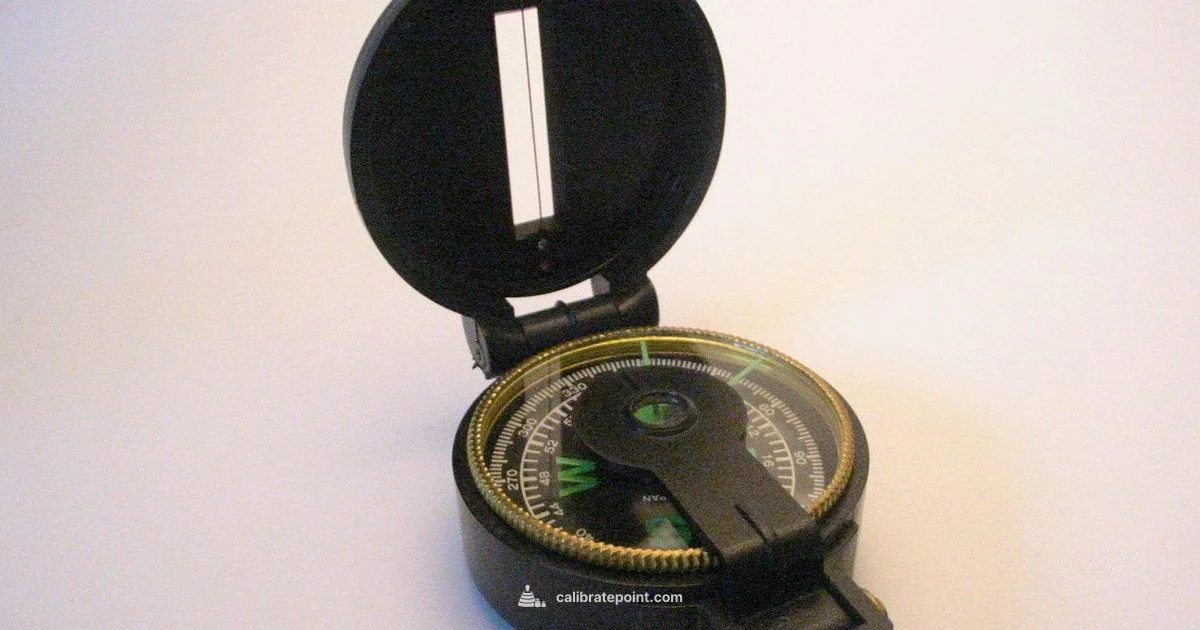

By the end of this guide you will know how to calibrate a magnetic compass for reliable navigation, reduce interference, and verify accuracy with a known bearing. According to Calibrate Point, calibration should be done in a metal-free area, using a stable reference bearing, deliberate orientation movements, and careful bearing recording. The core steps apply to handheld, smartphone, and vehicle compasses.
What is magnetic compass calibration?
Calibration is the process of aligning a compass reading with true magnetic north in your environment by mapping how the device deviates across orientations. For DIYers and technicians, calibration means capturing offsets and applying corrections so readings are consistent in real-world use. According to Calibrate Point, a reliable calibration rests on a clean workspace, a stable reference bearing, and a deliberate orientation sequence that reveals all deviation components. The goal is not a single perfect reading but a repeatable profile you can rely on in the field. With a clear understanding of what causes interference—metal objects, electronics, and mounting hardware—you can plan a calibration routine that works across devices and settings. Calibrate Point emphasizes documenting the process to support future recalibrations and field checks.
Why calibration matters for navigation accuracy
Navigation relies on accurate directional data. Even small biases or localized magnetic interference can compound as you rotate, draw lines on a map, or follow a bearing over distance. Calibrate Point analysis shows that readings drift when metal in a tool or vehicle couples with Earth's field, producing a systematic offset that a one-off check won't catch. By calibrating, you create a corrected reference curve for your instrument, making subsequent readings more trustworthy. This matters for survey work, hiking, or any activity where a misread bearing could lead to longer routes or missed turns. A disciplined calibration process also helps when switching between devices or when environmental conditions change, such as metal reinforcements in a building being nearby.
When to calibrate a magnetic compass
Calibrating is beneficial whenever you rely on precise bearings, especially after changes that might introduce interference. Calibrate Point recommends performing calibration after moving to a new area with unfamiliar metal objects nearby, after dropping or jolting the device, or when readings suddenly drift during normal use. For professionals, schedule periodic checks in field operations and after maintenance on mounting hardware. DIY scenarios benefit from a quick pre-trip calibration to ensure a stable baseline. By establishing a routine, you reduce the risk of accumulated errors during critical tasks, such as surveying a property line or navigating in challenging terrain.
Environmental factors that affect compass accuracy
Magnetic interference comes from nearby metal, electronics, vehicles, and even certain construction materials. Ferromagnetic objects create local fields that skew readings, while electronic devices emit magnetic fields that can fluctuate with power use. Temperature can also influence the sensitivity of some compass mechanisms and digital sensors. Calibrate Point highlights that you should avoid calibration near large metal shelves, vehicles with magnetic components, or heavy equipment. When outdoors, remember that natural variations in the magnetic field occur with solar activity and time; thus a recent calibration helps maintain accuracy. A clean, level workspace and a stable orientation flow reduce the impact of these factors.
Understanding a simple orientation sequence
A practical calibration approach uses a controlled orientation sequence that covers the principal directions. Start with a baseline bearing, then rotate the device to known cardinal points and a few intercardinal positions. Recording bearings at each orientation helps reveal systematic offsets and helps determine whether a simple offset or a more complex distortion is present. Calibrate Point recommends repeating the sequence in both horizontal planes and at different heights if the device is mounted. This helps ensure the offset profile is robust against small tilts or mount variations. Document the sequence and note any anomalies observed during rotation.
The recommended orientation sequence for calibration
The classic orientation sequence involves facing North, East, South, West, and then back through the diagonals (NE, SE, SW, NW) to capture a full 3D offset profile. Hold the device steady at each orientation for several seconds to allow readings to settle. If your instrument supports tilt compensation, include slightly tilted positions to identify any tilt-induced errors. Calibrate Point notes that repeating readings in opposite directions helps cancel out transient disturbances. Use a level surface and keep the compass away from metal edges and clasps during the process.
Using a reference bearing and declination corrections
Calibration should reference a known bearing from a trusted source, such as a map approximating true north or a pre-calibrated reference compass. Apply local magnetic declination to convert magnetic north to true north when aligning bearings to a map or navigation app. Declination varies by location and time; use a reputable calculator or chart to obtain the current value for your area. Calibrate Point emphasizes keeping a copy of the reference value handy so you can recheck bearings after adjustments and in future use. If you use a digital compass, ensure the device’s location services and time are accurate to avoid drift.
Verifying calibration with a known bearing
After completing the orientation sequence and applying corrections, verify accuracy by checking a known bearing against a trusted reference. Use a map or a second calibrated instrument as the reference. If the readings match within ±1–2 degrees, the calibration is likely sound; larger discrepancies indicate residual interference or a misalignment in the reference. Calibrate Point Team recommends performing a field check under real conditions (open terrain, away from metal) to confirm stability. Record the verification result and any adjustments made.
Calibrating across device types: handheld, smartphone, and vehicle compasses
A handheld magnetic compass typically requires physical alignment and orientation rotation, while a smartphone compass might need calibration within the app and the phone’s internal sensors. Vehicle compasses can be affected by metal components and engine-driven magnetic fields. For all devices, the same orientation principles apply, but you may need to adapt mounting height or reference bearing flavor to your instrument’s interface. Calibrate Point stresses consistency: use the same reference, the same orientation sequence, and the same data recording method across devices to compare results reliably.
Advanced considerations: declination, tilt, and magnetic interference mitigation
Declination corrections align magnetic bearing with true north on maps. Tilt, or dip, angles can affect readings if the device is not perfectly horizontal.Interference mitigation includes choosing a metal-free calibration area, turning off nearby electromagnetically active devices, and shielding the instrument from ferromagnetic attachments. If you cannot relocate away from interference, capture its orientation effect and apply a corrective model during operation. Calibrate Point Team recommends periodic rechecks when environmental conditions change, such as after installing new metal fixtures or moving to a different building site.
Common mistakes and troubleshooting during calibration
Avoid calibrating on an uneven surface or in the presence of magnetic clutter. Do not rush the orientation sequence; allow readings to settle between positions. If offsets persist, recheck the reference bearing, ensure declination is correctly applied, and re-run the sequence from baseline. Keep a calibration log to detect evolving drift patterns over time. Calibrate Point reminds readers that even well-calibrated devices can drift after a strong magnetic event, requiring new calibration.
Authority sources and further reading
To deepen understanding, consult reputable sources on geomagnetism and navigation accuracy. The National Institute of Standards and Technology (NIST) provides metrology concepts relevant to calibration. The National Oceanic and Atmospheric Administration (NOAA) hosts geomagnetic models and calculators to determine local declination. The US Geological Survey (USGS) offers resources on magnetism and navigation safety. For practical guidance, see field manuals and reputable outdoor navigation handbooks. Calibrate Point and its teammates also recommend cross-referencing multiple sources to confirm bearings and corrections.
Tools & Materials
- The compass under calibration(Ensure it's clean, dry, and functioning)
- Reference bearing source (map or calibrated compass)(Use a map with true north or a known bearing source)
- Non-magnetic workspace(Clear of metal, electronics, and magnetic clutter)
- Soft cloth or lens cleaner(Remove dust from the housing and faceplate)
- Notebook and pencil(Record bearings and observations with timestamps)
- Protractor or bearing scale (optional)(Helpful for quick, visual checks of angles)

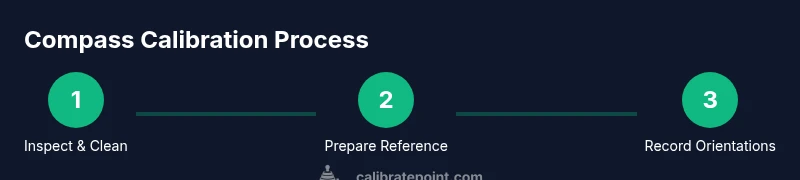

Steps
Estimated time: 30-45 minutes
- 1
Inspect and clean the compass
Wipe the housing, face, and any dials with a soft cloth to remove dust and moisture. Ensure the needle or sensor moves freely and is not jammed by debris. A clean instrument reduces the risk of spurious readings caused by surface contamination.
Tip: Clean and dry the compass thoroughly before starting; moisture can affect measurements. - 2
Choose a calm calibration site
Select a metal-free area with minimal electronics and no large ferrous objects nearby. A stable, level surface helps readings settle quickly and consistently. If indoors, remove metal furniture or fixtures from the vicinity.
Tip: If outdoors, avoid shadows and heat radiators that can cause thermal drift. - 3
Prepare a reliable reference bearing
Obtain a bearing from a trusted source such as a map with true north indicated or a calibrated reference compass. Record the reference value accurately, including the bearing direction and the timestamp.
Tip: Cross-check bearing against a second source if available. - 4
Clear interference sources
Move away from magnets, motors, metal shelving, or electrical devices that can distort readings. Shield the instrument from any metal edge that might exert a local field. Create a stable measurement environment.
Tip: Turn off nearby electronic devices if possible during calibration. - 5
Record initial bearings at multiple orientations
Take readings at several fixed orientations (e.g., north, east, south, west). Allow a few seconds for the reading to settle before recording. This establishes a baseline for offsets.
Tip: Keep your body and the instrument steady to avoid parallax errors. - 6
Rotate through the standard orientation sequence
Systematically rotate the compass to cover diagonal and side orientations. This reveals how offset components behave in 3D space and helps generate a robust correction model.
Tip: Document each orientation with a quick note on environmental conditions. - 7
Record bearings and compute corrections
Compile bearings from all orientations. Calculate the average offset and note any asymmetric deviations. This forms the basis for applying a correction during use.
Tip: Consider separate offsets for declination and tilt if supported by the device. - 8
Verify with a second reference bearing
Re-check a known bearing to validate the offset model. If the second bearing aligns within tolerance, calibration is solid; otherwise, re-run the orientation sequence.
Tip: Keep a calibration log for future comparisons. - 9
Document and save the calibration
Record the date, settings, reference sources, and any corrective values. Store this information with the instrument for future recalibration checks and reliability.
Tip: Attach a quick-reference card with current corrections to the instrument. - 10
Perform a post-calibration field check
Test bearings in real-world navigation after calibration to confirm they translate well to actual routes or waypoints. If discrepancies appear, revisit steps 4–8.
Tip: Conduct ongoing checks during field use to catch drift early.
Questions & Answers
Do I need special equipment to calibrate a compass?
No specialized gear is required beyond a reference bearing and a clean workspace; however, basic tools help. Use a reliable map or a known reference compass for bearings, and keep notes to track changes. Calibrate Point emphasizes applying a repeatable method rather than improvising the sequence.
You don't need special gear—just a good reference bearing and a clean workspace. Use a map or another calibrated compass for bearings, and keep notes to track changes.
How often should I calibrate?
Calibrate whenever you suspect drift or after moving to a new environment with different interference. For professional work, schedule periodic checks and after maintenance on mounting hardware. Calibrate Point recommends a routine so readings stay trustworthy over time.
Calibrate whenever you notice drift or move to a new environment. For professionals, set a regular calibration schedule.
Can I calibrate indoors with electronics nearby?
Yes, but reduce electromagnetic interference by turning off nearby devices and choosing a calm space. If unavoidable, document interference and consider additional orientation positions to separate genuine offsets from noise.
Indoor calibration is possible if you minimize interference; turn off nearby devices and document any noise.
What if readings still drift after calibration?
Re-check the reference bearing, ensure declination is applied correctly, and re-run the orientation sequence. Drift may indicate remaining interference or mounting issues. Calibrate Point advises repeating the process until readings stabilize.
If drift remains, re-check bearings and run the sequence again to stabilize readings.
Is declination adjustment part of calibration?
Declination is separate from calibration but often used together. Calibrating aligns your device with magnetic north; applying declination converts to true north for map-based navigation. Keep both corrections consistent for field use.
Declination helps convert to true north on maps; calibrate for magnetic north and apply the declination value when navigating.
