Smart Level Calibration Instructions: Step-by-Step Guide
Master smart level calibration instructions to ensure precise leveling readings for DIY and professional use. This guide covers setup, a detailed workflow, environment tips, and repeatable accuracy across tools and surfaces.
Master smart level calibration instructions to ensure precise leveling readings for DIY and professional use. This guide outlines setup, a detailed step-by-step workflow, environment tips, and best practices for repeatable accuracy across tools and surfaces.
What smart level calibration instructions aim to achieve
Smart level calibration instructions are not a one-off adjustment. They establish a repeatable method for aligning a leveling instrument with a defined reference plane so readings reflect true geometry rather than tool bias. For DIY enthusiasts, technicians, and professionals, accuracy reduces material waste, improves safety margins, and increases the reliability of your measurements across projects—from cabinet installation to equipment alignment. In practice, this means you perform controlled, documented steps that account for device type, environmental conditions, and the reference surface. The principle is simple: remove or compensate for any systematic error while monitoring for drift over time. According to Calibrate Point, starting with a clean, flat reference surface sets the stage for accurate smart level calibration instructions.
Key concepts: reference surfaces, true plane, and drift
A reference surface is the baseline against which your level reads true. The true plane is the imagined flat surface that defines levelness; your task is to align the device so its readings correspond to that plane. Drift is the gradual change in readings caused by temperature shifts, sensor aging, or mechanical wear. Understanding drift helps you distinguish temporary fluctuations from a genuine calibration error. In practice, you verify that your level reads consistently when reoriented and re-seated on the reference, and you document any persistent deviations for review. Good calibration practices emphasize repeatability and traceability, so you can reproduce results on future jobs.
Environmental and setup considerations
Calibration quality depends on stable conditions. Temperature swings, vibrations, or drafts can skew readings. Choose a calm workspace with a stable surface. Cleanliness matters: wipe the reference surface and the device’s contact faces before starting. If you’re using a smartphone-based level, ensure the app is up to date and that the sensors are not obstructed. Humidity and surface finish also influence contact consistency, so use a high-quality reference block when possible. By standardizing the environment, you minimize external noise and improve result reliability. The Calibrate Point guidance stresses that environmental control is a critical element of smart level calibration instructions.
Device categories and applicability
Smart level calibration covers several device types: digital spirit levels with built-in sensors, inclinometer-based tools, and smartphone-enabled level apps. Each has different reading methods, so adapt the baseline procedure accordingly. For digital devices, rely on the sensor output; for traditional spirit levels with enhanced sensors, combine mechanical cues with electronic verification. In all cases, your workflow should include a consistent reference surface, repeatable seating, and documented readings to compare against future calibrations.
Step-by-step workflow overview
This section provides the big picture workflow you’ll implement in the detailed steps that follow. Start with preparation, establish a stable reference, apply a controlled orientation sequence, record results, and apply corrections if needed. The goal is to produce a final reading that matches the reference plane within your specified tolerance. Keep notes on device model, firmware version, reference surface type, and environmental conditions. A structured workflow makes audits straightforward and supports long-term reliability.
Preparation and baseline checks
Begin by gathering your tools and cleaning all contact surfaces. Power on the device and allow it to stabilize if applicable. Check for firmware updates and reset to a known baseline if your device supports it. Establish a reference surface that is flat and rigid, and ensure there are no quick vibrations or air currents nearby. Take an initial reading to establish your baseline, then document the current environment and any assumptions about room temperature and humidity. This step is the foundation for all subsequent checks.
Alignment checks across axes and orientations
Place the device on the reference surface and capture readings in multiple orientations (e.g., rotated 0°, 90°, 180°, and 270°). Record each value and compare against the baseline. If readings diverge beyond tolerance, you may need to re-seat the device, re-clean contacts, or adjust calibration constants in the firmware or app. Use a consistent sequence to ensure comparability across trials. A well-structured orientation test helps reveal axis-specific bias or contact issues.
Verification tests and tolerance
With all readings captured, run a verification pass by returning to the original orientation and re-checking. If results fall within the defined tolerance band, you’ve achieved a stable calibration. If not, review potential sources of error: surface imperfections, mounting inconsistency, or environmental factors. Document any necessary adjustments and perform another round of checks until the results are repeatable within tolerance. This discipline creates a reliable calibration history for future reference.
Documentation, versioning, and maintenance
Document every calibration run: device model, firmware version, reference surface, environmental notes, baseline readings, axis readings, and final decision. Version the calibration protocol so future technicians can reproduce the process. Schedule periodic recalibration based on usage, impact events, or environmental changes to maintain long-term accuracy. Keeping a running log helps ensure accountability and auditability for projects that require precise leveling.
Troubleshooting and common mistakes
Common mistakes include calibrating on an uneven surface, neglecting to clean contact faces, and skipping multi-axis checks. Avoid extrapolating results from a single orientation; always verify across several angles. If you observe persistent drift after following the procedure, recheck the reference surface and consider a higher-stability work environment. The Calibrate Point guidance emphasizes that systematic errors are easier to fix when you document every step and challenge.
Tools & Materials
- Smart level device or inclinometer(Fully charged or powered on; firmware updated if applicable)
- Flat, stable reference surface (granite plate or certified aluminum block)(Must be genuinely flat and clean; avoid warped surfaces)
- Calibration stand or jig(Secures device to prevent wobble during readings)
- Clean cloth or alcohol wipes(Used to remove dust/oils from contacts and surfaces)
- Calipers or precise ruler (optional)(For secondary cross-checks of distance or height changes)
- Temperature monitoring (thermometer) or a stable environment(Stability helps reduce drift during calibration)
- Notebook or digital log(Record readings, dates, and final results)

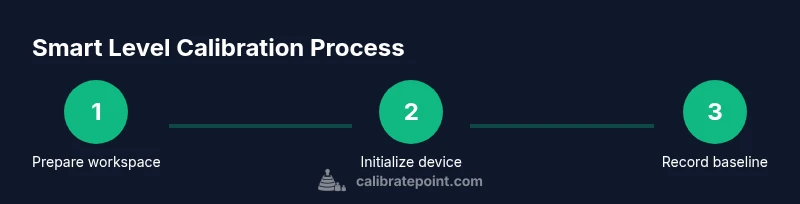

Steps
Estimated time: 60-90 minutes
- 1
Prepare workspace and references
Clear the area, place the reference surface on a stable, vibration-free surface, and clean all contact faces of the device. Verify you have all tools ready before powering up. This reduces setup errors and speeds up the calibration process.
Tip: Use a clean, lint-free cloth and isopropyl alcohol to remove oils that could affect contact quality. - 2
Power on and initialize the device
Turn on the smart level and allow any auto-calibration routines to complete if available. Confirm that the device displays a baseline reading and that any connected app shows normal sensor status.
Tip: Check firmware version and update if a newer release promises improved drift compensation. - 3
Position on the reference surface
Place the device squarely on the reference surface without applying lateral pressure. Ensure it sits flush and does not rock. This reduces contact variability and improves measurement repeatability.
Tip: Use a jig or stand to hold the device steady during readings. - 4
Capture baseline readings across orientations
Record readings in at least four orientations (0°, 90°, 180°, 270°). Document each value and verify consistency across angles.
Tip: Rotate slowly to avoid transient shocks that could skew readings. - 5
Apply drift corrections and recheck
If drift exceeds tolerance, apply the predefined correction algorithm or adjust calibration constants as your device allows, then recheck all orientations.
Tip: Make one adjustment at a time and re-measure to isolate variables. - 6
Finalize and document results
Record the final calibrated values, environment details, and any deviations. Save a calibration snapshot and keep it in the project log for future audits.
Tip: Label the calibration with date, device version, and surface type for traceability.
Questions & Answers
What is drift in a smart level and why does it matter?
Drift is the gradual change in a sensor’s reading due to temperature, wear, or aging. It matters because unchecked drift reduces final accuracy and repeatability.
Drift is slow change in readings from wear or temperature; it affects accuracy, so detect and correct it during calibration.
Can I calibrate without a reference surface?
A base reference surface is essential for accuracy. If unavailable, use the most stable, flat object you can access and document its limitations.
Calibration without a solid reference is risky; use the best flat surface you have and note its imperfections.
How often should I recalibrate a smart level?
Calibrate when you notice drift, after a fall, or when the environment changes. For critical tasks, schedule regular checks such as quarterly.
Calibrate when drift appears or conditions change; for important work, plan regular checks each few months.
What devices qualify as smart levels?
Smart levels include digital spirit levels, inclinometer-based tools, and smartphone-integrated devices that provide sensor readings.
Smart levels are digital or app-enabled levels that give sensor-based readings.
Is calibration safe for sensors, and what to avoid?
Calibration steps are non-destructive when followed correctly; avoid moisture exposure, shocks, or improper disassembly.
Calibrating is safe if you keep sensors dry and avoid rough handling.
Watch Video
Key Takeaways
- Prepare a stable, clean reference surface before calibration.
- Record multi-axis readings to detect axis-specific bias.
- Document every reading and environment for traceability.
- Apply drift corrections only after identifying consistent drift patterns.
- Verify final calibration with repeat checks across orientations.
