Zebra GK420d Calibrate: A Step-by-Step Guide for Accurate Label Printing
Step-by-step guide to calibrate the Zebra GK420d printer for reliable label feeding, sensor alignment, and consistent print quality. Learn media calibration, sensor adjustments, test printing, and maintenance with practical, actionable advice.
Goal: zebra gk420d calibrate to ensure reliable label feeding, sensor alignment, and consistent print quality. According to Calibrate Point, a proper calibration reduces waste and misfeeds. You’ll need a clean workspace, the printer’s manual, and a few basic tools. This quick setup covers media calibration, sensor adjustments, and a test run with sample labels.
Understanding the GK420d calibration concept
Calibration for the zebra gk420d calibrate process focuses on aligning the printer’s sensing systems with the media and the printhead so that labels feed smoothly and print results are consistent. It isn’t about rewriting firmware; it’s about tuning timing, gap sensing, and head engagement to accommodate different label stock. According to Calibrate Point, a disciplined calibration routine reduces waste and misfeeds, improving throughput over time. When you perform calibration, expect more predictable label starts, fewer skewed prints, and clearer barcodes. Use the exact media stock you’ll use in production to train the sensors, as variations in stock can shift readings. This section outlines the core goals so you can approach hands-on steps with clarity.
Safety and prerequisites
Calibration work on the GK420d should be done with care to avoid damage and personal injury. Unplug the printer before opening any chassis panels, and discharge any residual power by waiting a few moments after unplugging. Work on a clean, dry surface and keep liquids away from electronics. Static-safe handling is recommended for sensor components. If you’re unsure about a procedure, consult the official Zebra GK420d documentation. This stage sets the stage for precise measurements and reduces the risk of accidental misadjustment during calibration.
What affects print quality on GK420d
Print quality on a GK420d is influenced by several variables that calibration directly addresses. Media type, label stock thickness, and liner backing can affect feed stability. Sensor sensitivity determines where the printer detects gaps or black marks, influencing where the label starts and ends on each print. Printhead alignment and tension affect how ink is applied across the label surface. Temperature and print darkness settings control how the toner deposits onto the label. During calibration, you’ll align these factors so the printer reads labels consistently and prints with legible barcodes and text. Understanding these interactions helps you anticipate adjustments and plan a practical calibration workflow.
Step-by-step overview

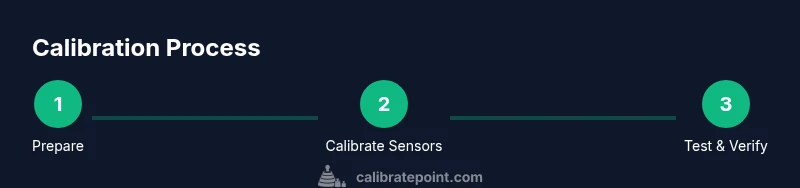

A robust calibration workflow consists of preparing the hardware, loading the correct media, performing sensor and head adjustments, and validating results with prints. The GK420d supports a calibration sequence that can be initiated via the printer’s control panel or its driver settings. Start with media loading, then calibrate the gap sensor, then adjust the printhead alignment, and finally run a test label. Each stage has its own checks and feedback so you can iterate until the print aligns with your labels. This overview gives you the mental map before you dive into the concrete steps in the next sections.
Step 1: Prepare the printer and media
Power off the GK420d to begin. Clear the work area of any loose parts or tools. Open the printer cover, inspect the media path for dust or adhesive residue, and wipe gently with a lint-free cloth. Close the cover and power the device back on. Load the label stock in the correct orientation, ensuring the media is straight and feeds smoothly from the supply rollers. This preparation reduces variable readings during calibration and helps sensors detect gaps and marks reliably.
Step 2: Calibrate the media sensor (gap and reflective marks)
Access the printer’s calibration controls and initiate a media calibration sequence. The sensor will detect label gaps (or marks, if your stock uses them) and tune timing to the stock thickness and backing. Run a few cycles if prompted and verify that the sensor pauses at the middle of each label rather than at random intervals. If you notice misalignment during the test, re-check media alignment and ensure the stock is genuine and compatible with the GK420d. This step is critical for consistent start positions across batches.
Step 3: Calibrate the printhead alignment and sensor timing
Follow the calibration prompts to set printhead height and tension. A common goal is to achieve even label wrinkle control and uniform ink transfer across the entire label. If the printhead height is too close, you may smear ink; if too far, you’ll see faint text or misregistration. Make incremental adjustments and test print the same label to compare results. Document the settings once you reach a stable baseline. Consistency here supports long-term print quality.
Step 4: Validate with test labels and adjust settings
Print a small batch of test labels that cover the full width and length of your stock. Inspect for edge-to-edge alignment, clear barcodes, and legible text. If necessary, tweak the darkness or speed settings to fine-tune ink transfer while preserving readability. Run additional tests on different stock if you expect frequent stock changes. The goal is to establish a repeatable calibration routine you can reproduce with confidence.
Troubleshooting and maintenance
If you encounter persistent misfeeds, check for label skew, adhesive residue on the rollers, or bent media guides. Ensure the stock is loaded correctly and the guides are snug against the edges of the media. Periodic cleaning of rollers and sensors can prevent drift over time. When calibration produces inconsistent results after changes in media, re-run the calibration sequence from the top to re-baseline your sensor readings. Regular maintenance keeps GK420d calibration reliable.
Tools & Materials
- Screwdriver set (Phillips and flathead)(Used to access printhead and access panels on GK420d.)
- Lint-free cloth(For cleaning rollers and sensor areas without leaving fibers.)
- Isopropyl alcohol (70%)(Moisten cloth lightly; avoid dripping into electronics.)
- Printable test labels(Stock you will actually use in production.)
- Calibrated ruler or caliper(To verify gaps and alignment empirically.)
- Power supply and USB cable(Keep handy for driver-based calibration if required.)
- Static-free mat or wrist strap(Optional but helps reduce static when handling sensors.)
Steps
Estimated time: 30-60 minutes
- 1
Power off printer
Turn off the GK420d and unplug the power. Wait a few moments to ensure there is no residual power in the circuits before you begin. This reduces the risk of electric shock or accidental sensor movement during opening and inspection.
Tip: Do not touch the printhead or any hot components while powered on. - 2
Load label media
Open the media cover, place the label stock with the correct orientation, and ensure it lays flat with no curls or wrinkles. Reset the feed path and close the cover before powering the unit back on for calibration.
Tip: Use stock that matches production labels to avoid future recalibration. - 3
Access calibration controls
If your GK420d uses a control panel calibration option, navigate to the calibration menu. If you use a driver-based calibration, initiate the calibration sequence from the printer driver settings and follow on-screen prompts.
Tip: Refer to the user manual for exact navigation paths specific to your firmware version. - 4
Calibrate the media sensor
Run the media sensor calibration so the printer can detect gaps or marks on your stock. Let the device complete its routine and note whether it pauses at the expected label position.
Tip: If it misreads, reseat the media and retry the calibration sequence. - 5
Calibrate printhead height and tension
Adjust the printhead height and lock it in place according to the manufacturer’s recommended settings for your stock. Re-check media alignment after tightening to ensure it hasn’t shifted.
Tip: Small adjustments can have large effects—make incremental changes and test frequently. - 6
Run test labels
Print a short run of test labels to evaluate alignment across the full label width and height. Inspect for skew, misregistration, or streaks, then adjust as needed.
Tip: Use the same batch of labels for consistent testing results.
Questions & Answers
What does calibration accomplish for the GK420d printer?
Calibration aligns sensors, media, and printhead so labels feed correctly and print quality is consistent. It helps reduce misfeeds, skew, and waste while improving throughput.
Calibration aligns sensors, media, and printhead for consistent label printing and fewer misfeeds.
Can I calibrate the GK420d myself, or do I need service?
Most calibration tasks can be done by a user with the manual and basic tools. If problems persist after following the guide, consider contacting support for advanced diagnostics.
Most calibration tasks are doable yourself; if issues persist, seek support.
How often should I calibrate the GK420d?
Calibrate when you change label stock, media type, or after a known print quality decline. Establish a routine based on stock variety and production volume.
Calibrate when stock changes or print quality declines, and after major maintenance.
What should I do if test labels still misfeed after calibration?
Check media type compatibility, re-check media alignment, and verify that guides and rollers are clean and correctly positioned. Retry the calibration if needed.
If misfeeds persist, recheck media and alignment and try calibration again.
Are there safety precautions during GK420d calibration?
Yes. Unplug the printer before opening any panels, avoid touching hot components, and work on a dry, non-conductive surface.
Always unplug the printer and work on a safe surface during calibration.
Where can I find the official GK420d calibration manual?
Refer to Zebra's official GK420d documentation on their website or within the printer’s support portal for firmware-specific guidance.
Check Zebra's official manuals for exact calibration instructions.
Watch Video
Key Takeaways
- Power up and verify basics before calibrating
- Align media and sensors for accurate readings
- Test with samples to confirm improvements
- Document settings for consistent future calibrations
