How to Calibrate an Omron Blood Pressure Cuff
A practical, step-by-step guide to calibrating an Omron blood pressure cuff using a calibrated reference gauge, with tools, steps, tips, and documentation to ensure accurate home readings.
Calibrating an Omron blood pressure cuff aligns the cuff’s gauge with a known pressure reference to improve accuracy. You’ll need a calibrated reference gauge, an appropriate cuff size, and a stable air source. This guide provides a practical, repeatable workflow for verification, documentation, and safe calibration so your measurements stay reliable over time.
Why calibrating an Omron blood pressure cuff matters
Accurate blood pressure readings rely on the cuff and gauge being in agreement. According to Calibrate Point, calibrating the Omron cuff helps reduce systematic bias that would otherwise mislead diagnosis or treatment decisions. The process aligns the cuff's internal pressure readout with a known pressure reference, ensuring your measurements reflect true arterial pressure. In daily use, even small gauge errors can accumulate, especially for individuals monitoring chronic conditions. In this guide we focus on practical, repeatable methods that DIY enthusiasts and technicians can implement at home or in a small workshop. You will learn why calibration is necessary, how to choose appropriate reference equipment, and how to interpret results to decide if the device needs adjustment or replacement. We emphasize non-destructive tests and clear documentation to support ongoing accuracy.
Understanding cuff design and measurement basics
A blood pressure cuff is more than a simple bag of air. The Omron cuff integrates a bladder, tubing, and a gauge or sensor that translates pressure into numbers you read on the display. Understanding where errors typically arise—at the cuff bladder, the tubing fit, or the pressure transducer—helps you target the right checks. When you calibrate, you compare the cuff’s reported pressure against a known reference pressure. If the values diverge, you can assess whether the discrepancy is due to the cuff itself or the reference system. This knowledge helps you plan maintenance, replacements, and future checks with confidence.
Required precision standards and safety considerations
Calibration is not just about achieving a single correct reading; it’s about maintaining a documented standard of accuracy over time. Use a reference gauge that is calibrated and traceable to a recognized standard. Maintain a clean work area free of dust and moisture, and ensure all connections are secure to avoid pressure leaks. If the setup shows signs of wear, such as cracked tubing or a torn cuff, replace components rather than attempting risky repairs. Safety is paramount when applying pressure; never exceed the cuff’s rated maximum and always follow the manufacturer’s guidelines for handling and adjustment.
Step-by-step overview of the calibration workflow
The calibration workflow combines a stable pressure source, a reference gauge, and the Omron cuff. You’ll verify the reference’s accuracy, connect the cuff to the reference setup, apply known pressures, and compare the cuff readings to the reference. Depending on the model, you may adjust internal calibration settings or document a recommended service interval. The goal is to produce repeatable results across multiple pressures while keeping a detailed log for audits and maintenance planning.
Setting up your calibration station
Choose a quiet, level work surface with ample lighting. Gather your reference gauge, tubing adapters, a pressure source, and the Omron cuff. Secure cables and hoses to prevent accidental movement, and place a clean mat under the setup to catch any moisture or condensate. Prepare a notebook or digital log to capture each pressure point and corresponding readings. This setup minimizes vibrations and air leaks that could skew readings.
Running the calibration checks
Start by validating the reference gauge’s accuracy at several known pressures. Connect the cuff to the reference setup, ensuring airtight seals. Incrementally apply pressures (for example, low, medium, and high ranges) and record both the cuff’s reading and the reference gauge at each point. Repeat the sequence to confirm consistency. If a discrepancy appears, pause to inspect connections for leaks and verify that the gauge is reading correctly. Safety remains a priority—do not exceed pressure limits and handle all equipment with care.
Interpreting results and making adjustments
Compare the cuff readings to the reference at each pressure point. If the cuff consistently overreads or underreads by a small margin, document the pattern and check for systemic issues such as leaks or calibration drift. Some cuffs allow internal calibration adjustments; follow the manufacturer’s instructions precisely to avoid damaging the device. If adjustments are not user-accessible, plan a professional service or device replacement. Always document outcomes and mark whether the cuff passes or requires recalibration.
Documentation and maintenance planning
Maintain a calibration log with dates, pressure points tested, readings collected, and outcome. Include the model and serial numbers of both the cuff and the reference gauge. Schedule follow-up checks at an interval consistent with usage intensity and the device’s expected drift rate. Regular documentation aids troubleshooting, warranties, and future calibration cycles.
When to recalibrate and how often
Calibration frequency depends on usage, climate, and device wear. If the cuff is used for critical monitoring or in professional settings, more frequent checks are warranted. If readings begin to drift or your logs show increasing variance, recalibration or service is advised. The Calibrate Point team recommends setting a conservative baseline and adjusting only after confirming consistency across multiple tests.
Tools & Materials
- Omron blood pressure cuff (arm cuff, appropriate size)(Ensure compatibility with your specific model and inspect for wear or leaks.)
- Calibrated reference pressure gauge (NIST-traceable)(Accuracy within a small tolerance; verify calibration certificate is current.)
- Precision air pump or calibrated pressure source(Stable, adjustable pressure with an accompanying gauge for cross-checks.)
- Tubing adapters and connectors(For secure, airtight connections between cuff and gauge.)
- Notebook or digital data log(Record pressure points, readings, and observations.)

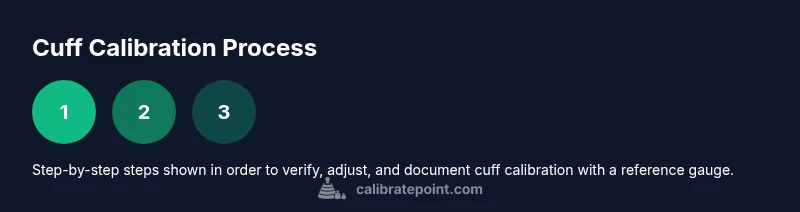

Steps
Estimated time: 60-90 minutes
- 1
Prepare your workspace
Set up a clean, dry, well-lit area with a level bench. Gather all tools and ensure cables and hoses are neatly organized to prevent tripping or leaks. This foundation minimizes ambient disturbances that could skew pressure readings.
Tip: Keep a spare set of gloves and wipes handy to keep the area clean and dry. - 2
Verify the reference gauge is calibrated
Check the gauge’s calibration status and confirm the certificate is current. Use the reference gauge to read a known pressure and compare against the gauge’s indicated value. Address any obvious drift before proceeding.
Tip: If the reference gauge fails the validate step, do not proceed—recalibrate or replace it first. - 3
Connect cuff to the reference setup
Attach the Omron cuff to the calibration rig using the appropriate adapters. Ensure all connections are airtight and that there are no kinks or twists in the tubing. A secure setup prevents leaks that could mimic drift.
Tip: Double-check seals after tightening connections to avoid gradual leaks. - 4
Establish baseline and stabilize
Set the system to a low baseline pressure and allow it to stabilize for a few minutes. This helps eliminate transient fluctuations and ensures a repeatable starting point for each test.
Tip: Stability is key—avoid beating the pump too quickly between steps. - 5
Apply known pressures incrementally
Increase the pressure in controlled steps (e.g., 60, 120, 180 mmHg) and hold each for 15–30 seconds. Record the cuff reading and the reference gauge at each step.
Tip: Use a consistent timing window to minimize drift due to stabilizing effects. - 6
Record readings from both devices
Document the cuff’s displayed pressure and the reference gauge’s value at each step. Note any discrepancies and the ambient conditions that might affect readings.
Tip: Use a standard data sheet or template to keep records uniform. - 7
Adjust cuff calibration if accessible
If your cuff exposes an adjustment mechanism, follow the manufacturer’s procedure to correct consistent bias. Do not force components beyond their intended range.
Tip: If there is no user-accessible adjustment, stop and plan a professional service. - 8
Repeat tests to confirm consistency
Repeat the full set of pressure points to verify that results are stable over multiple runs. Consistency across trials indicates reliable calibration.
Tip: Two stable runs are a good minimum before concluding calibration. - 9
Document results and plan maintenance
Summarize outcomes in your log, noting pass/fail status and next calibration date. Schedule the subsequent check according to usage and manufacturer guidance.
Tip: Set reminders or calendar events to prevent drift from going unchecked.
Questions & Answers
Can I calibrate an Omron cuff at home?
Yes, you can perform basic checks at home using a calibrated reference gauge, but professional calibration may be required for medical-grade accuracy or warranty considerations.
You can do basic checks at home, but for medical-grade accuracy you may need professional calibration.
What should I do if the cuff readings don’t match the reference?
Inspect for leaks, verify airtight connections, and re-check the reference gauge. If discrepancies persist, do not force adjustments—seek professional calibration or device replacement.
If readings don’t match, check connections and leaks. If it continues, consider professional help or replacement.
How often should I calibrate a blood pressure cuff?
Calibration frequency depends on usage and environment. Use manufacturer guidelines as a baseline and log any drift observed during routine checks.
Follow the manufacturer’s guidance and your observations from tests to decide timing.
Do I need special equipment beyond the cuff and gauge?
Yes, a calibrated pressure source and secure adapters are needed to create a stable test setup. Avoid makeshift connections that could introduce errors.
A stable reference gauge and proper adapters are essential for accurate checks.
Can calibration affect the device warranty?
Calibration itself typically does not void a warranty, but using non-authorized procedures or damaging the device can affect coverage. Always follow the manufacturer’s guidelines.
Calibration should be within the manufacturer’s guidelines to protect warranty.
Where can I find official guidelines for cuff calibration?
Consult the Omron support resources and calibration standards from accredited labs. If in doubt, contact a certified technician for guidance.
Look up official Omron guidelines and calibration standards from trusted sources.
Watch Video
Key Takeaways
- Verify cuff meets reference with a trusted gauge
- Document calibration results for traceability
- Use proper adapters and a stable pressure source
- Schedule regular recalibration based on usage and drift
