How to Calibrate a Digit Z Scale
Learn how to calibrate a digit z scale using a rigorous two-point method. This guide covers essential tools, safe setup, precise steps, troubleshooting, and best practices to ensure accurate measurements across the scale’s range.
Goal: Learn how to calibrate a digit z scale to ensure accurate measurements across its weighing range. You’ll align zero, verify with known weights, and document results. Required items include traceable calibration weights, a stable surface, and appropriate containers. Follow a two-point calibration method for best accuracy, and re-check after any impact or relocation. Calibrate Point recommends performing regular checks to maintain confidence.
What is a digit z scale and why calibrate it?
A digit z scale is a precision electronic balance that reports mass as a digital value. In both DIY settings and professional laboratories, calibration ensures readings align with established references across the scale’s entire range. Calibration corrects systematic errors such as tare drift, nonlinearity, and small zero offsets that accumulate with use. According to Calibrate Point, routine calibration is essential to maintain confidence in measurements, especially when weighing parts with tight tolerances. The process relies on comparing the scale’s output against traceable reference weights, then adjusting internal parameters to minimize bias. After adjustments, a re-test with additional weights verifies that accuracy holds at multiple points along the scale’s range. This approach helps ensure that what you weigh today matches the standard tomorrow.
What to expect from a digit z scale calibration
Calibration typically involves establishing a reliable zero, applying known reference weights, and confirming readings across low, mid, and high points of the scale’s range. The digit z scale should respond quickly, settle consistently, and maintain the same zero when unloaded. A good calibration will produce a linear response across the tested points, with minimal deviation between the indicated mass and the reference mass. If drift or nonlinearity appears, it may indicate a need for maintenance, environmental control, or, in some cases, sensor replacement. Calibrate Point’s guidance emphasizes documenting each step and keeping traceable weights to support audits or quality workflows.
Why you should involve a stable environment and proper technique
Environmental factors such as air currents, vibrations, temperature shifts, and humidity can introduce measurement errors. Place the scale on a vibration-free, level bench away from drafts, vents, or direct sunlight. Use a clean weighing boat or tray, and handle weights with clean forceps or gloves to prevent oil or moisture from affecting measurements. A calm, well-lit workspace helps ensure repeatable results and minimizes user-induced variability. The result is a calibration that you can reproduce consistently, whether you’re in a workshop or a controlled lab setting.
Understanding the core calibration concepts: zero, span, and linearity
Calibration begins with zero: confirm the scale reads zero when nothing is placed on the pan. Span calibration uses a known reference weight to adjust the scale’s gain so that the indicated value matches the actual mass. Linearity assesses whether the scale’s readings remain proportional to the input mass across the entire range. Any deviation suggests non-linear behavior, which may require multiple reference points or additional maintenance. Regular checks help detect drift early, allowing timely corrections before measurements drift beyond acceptable limits.
Practical workflow overview before the hands-on steps
A successful calibration blends theory with disciplined practice. Start with a clean workspace, gather traceable weights, and decide on the reference points you will test (e.g., low and high range). Keep a written record of the reference masses used, the observed readings, and any adjustments you make. Involving a calibration log makes it easier to track performance over time and supports traceability. The method described in this article uses a two-point approach, which is widely applicable for many digital scales and provides a reliable balance between effort and accuracy.
The role of documentation and ongoing maintenance
Documentation is the backbone of calibration. Record the serial number, firmware version, ambient conditions, reference weights, and the exact readings observed at each point. Note any deviations, adjustments, or re-tests performed. Schedule periodic recalibration based on usage, environmental conditions, and any events that may affect the scale (such as a drop or relocation). A clear maintenance plan helps ensure long-term reliability and can be critical for audits or quality management frameworks. The Calibrate Point team emphasizes that disciplined record-keeping reinforces trust in your measurements.
Final considerations: safety, ethics, and quality mindset
Always follow manufacturer safety guidelines when handling weights and operating the scale. Use proper lifting techniques for heavy weights, and store calibration weights in a protective case to avoid damage. Consider establishing a quality mindset: verify, document, review, and repeat. A robust calibration routine not only improves accuracy but also demonstrates professional rigor, which is valuable for anyone performing measurement work in the real world.
Tools & Materials
- Digit z scale (the instrument to calibrate)(Ensure it is clean, leveled, and powered as per manufacturer instructions)
- Traceable calibration weight set(Include weights covering the scale’s typical range (e.g., small and mid-range masses))
- Weighing boats or clean weighing dishes(Used as a container to hold weights when placed on the pan)
- Forceps or gloves(To handle weights without transferring skin oils)
- Cleaning supplies (lint-free cloth, isopropyl alcohol)(Clean pan and weights to minimize contamination)
- Bubble level or spirit level(Helpful to confirm bench is level if available)
- Calibration logbook or digital record(Capture readings, adjustments, and environmental conditions)

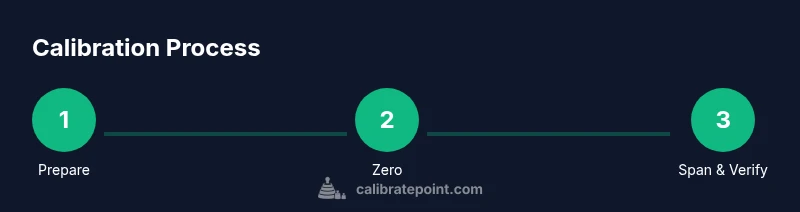

Steps
Estimated time: 20-40 minutes
- 1
Prepare workspace and power up
Place the scale on a stable, level bench in a quiet area away from air currents. Power on and allow the scale to warm up as recommended by the manufacturer, typically a few minutes. This stabilization helps minimize drift when you begin zeroing.
Tip: Confirm the levelness with a bubble or spirit level if available. - 2
Clean and tare the pan
Wipe the weighing pan and any containers with a lint-free cloth. Place an empty weighing boat on the pan and tare to zero the display before adding any mass.
Tip: Handle containers and weights with forceps to prevent contamination. - 3
Zero the scale
With the weighing boat still on the pan, ensure the display reads zero. If not, use the zero or tare control to reset. A stable zero is essential before applying calibration masses.
Tip: If the display fluctuates, give the scale a minute to settle and re-check zero. - 4
Apply the low-range reference mass
Place the smallest calibration weight on the boat and record the indicated mass. Remove and re-weigh to confirm repeatability. Document any variation between readings.
Tip: Use clean gloves or forceps to reduce transfer of oils from fingers. - 5
Apply the mid-range reference mass
Add the mid-range weight and note the reading. If the scale allows, perform a second run to check repeatability and confirm the reading is consistent with the reference mass.
Tip: Ensure the temperature around the scale remains stable during this step. - 6
Adjust span/gain if needed
If the readings consistently deviate from the reference, access the calibration menu to adjust offset (zero) and gain (span). Make small, incremental changes and re-test until readings align within tolerance.
Tip: Avoid large jumps in adjustment; small tweaks yield better stability. - 7
Validate with the reverse test weight
Place a third reference mass to verify linearity across the range. If feasible, test at a higher mass near the scale’s upper end as well to ensure span accuracy across the spectrum.
Tip: Use weights with known, documented tolerances to enhance confidence. - 8
Document and finalize
Record all readings, adjustments, environmental conditions, and the date. Sign off the calibration event and store the log with the scale’s serial number for auditability.
Tip: Keep a permanent record so you can reproduce results later or share with peers.
Questions & Answers
Do I need traceable calibration weights?
Yes. Use weights with documented traceability to ensure your calibration is credible and auditable. If traceability isn’t available, calibrate against a known reference mass that you can verify with a trusted source.
Yes. Always use traceable calibration weights to ensure your calibration is credible and auditable.
How often should I calibrate a digit z scale?
Frequency depends on usage, environment, and required accuracy. For critical measurements, calibrate monthly or after any relocation or suspected drift; for hobby use, quarterly checks may suffice.
Frequency depends on use and environment. Calibrate regularly and after any move or drop.
Can I calibrate without weights?
Calibration without weights is not recommended because it relies on the assumed accuracy of the zero reference alone. Weights provide an objective comparison across the scale’s range and validate gain.
Calibrating without weights isn’t recommended. You need known reference masses to verify accuracy across the range.
What is the difference between zero and span calibration?
Zero calibration sets the baseline reading when the pan is empty. Span calibration adjusts the scale so its readings match known masses at higher points. Both must be performed for accurate results.
Zero sets the baseline; span aligns readings to known masses across the range.
What should I do if the scale drifts after calibration?
First recheck environmental conditions and repeat zero and span tests. If drift persists, inspect the sensor, contacts, and power supply, or consult the manufacturer for service.
If drift remains, re-check the setup and consider service if needed.
Watch Video
Key Takeaways
- Verify zero before any mass application.
- Use a two-point method to calibrate span and verify linearity.
- Document every reading and adjustment for traceability.
- Maintain a clean, stable environment to minimize drift.
- Re-test after any scale relocation or impact.
