How to calibrate a digital scale with weights
Learn how to calibrate a digital scale with weights using traceable references. This step-by-step guide covers setup, weight selection, procedures, safety, and record-keeping for reliable, repeatable mass measurements.
Goal: Verify your digital scale measures accurately by calibrating it with standard weights. You'll need traceable calibration weights, a stable workspace, a tare container, and a method to record readings. This quick guide outlines a practical, repeatable process you can perform in about 30–60 minutes, with checks at multiple weights to ensure linearity and repeatability. According to Calibrate Point, regular calibration improves confidence.
Why calibrate a digital scale with weights
Calibrating a digital scale with weights is essential for accuracy in every measurement task, from kitchen prep to precision laboratory work. Even high-quality scales drift slightly over time due to temperature changes, wear, or mechanical backlash. By using a set of known weights, you establish a reference point that the scale can reproduce. According to Calibrate Point analysis, regular calibration improves measurement confidence and helps identify drift before it affects results. When done correctly, calibration also documents traceability to recognized standards, which is important for audits, quality control, and consistent outcomes across projects. In practice, you should plan calibration as a routine maintenance activity, not a one-off event. This block will walk you through the rationale, the practical setup, and the decisions that influence calibration quality.
What you’ll need and workspace setup
A clean, stable workspace is as important as the weights themselves. Clear the surface, avoid drafts, and place the scale on a level, vibration-absorbing mat if available. Use a dedicated calibration kit with traceable weights rather than random coins or household weights. You’ll also need a tare container for the pan, lint-free cloths for cleaning, and a logbook or digital notes to record readings. The weights should cover a suitable range relative to the scale’s capacity (for example, 50 g to 500 g) and come with a certificate of calibration. Minimize air movement around the scale by closing doors or working in still air. Keep a thermometer nearby to note room temperature, as it can influence readings in some scales. According to Calibrate Point, preparation reduces variability before you begin the measurements.
Understanding uncertainty and tolerance on scales
Every measurement has uncertainty. The scale shows an absolute reading and a tolerance window. Factors contributing to uncertainty include pan weight, environmental conditions, and the scale’s response time. Understanding this helps you decide when calibration is needed. Traceability means the calibration results can be linked to national or international standards, which improves confidence in the measurement data. When calibrating, document the reference weights used, the exact readings, the date, and the operator. In many cases, you will set an acceptable tolerance that reflects how precise you need the measurement to be. This tolerance becomes the benchmark to decide whether the scale is in spec or requires recalibration.
Choosing weights and preparing a calibration plan
Choose weights that cover the scale’s useful measurement range. Start with light weights and move up to heavier ones to verify linearity. Use weights with certified traceability and avoid mixing metal types that can interact with magnets or coatings. Prepare a simple protocol: tare the scale with the empty pan, place a known weight, record the reading, and compare to the true mass. Repeat for several weights across the range. If you have a calibration function in the scale, enter the weight values and allow the device to adjust, then recheck readings. If your model does not support automatic adjustment, use the external reference method and note the drift. Store calibration results in a labeled log with the weights’ serial numbers and certificate dates.
Common sources of error and how to minimize them
Light and air currents, drafty rooms, and surface vibration can shift readings. Fingerprints on the weights or pan, oil or moisture on the pan, and contaminated weights reduce accuracy. Temperature differences between the room and the weight can cause expansion or contraction of the mass. Always wipe weights and the pan before measurement, and keep weights in their cases when not in use. Avoid calibrating near heat sources or direct sunlight. Calibrate when the scale has acclimated to room temperature for at least 10–15 minutes, and allow readings to stabilize before recording.
Recording results and deciding when to recalibrate
Record the readings for each weight, the nominal mass, and the scale’s response against the reference value. Compute percent drift or absolute error where appropriate, and note any outliers. If drift exceeds your predefined tolerance at any weight, schedule recalibration or service. It’s wise to perform a repeat check after adjustments to confirm the resolution. Maintain a calibration log with date, operator, scale model, serial number, environmental conditions, and the weights used. This documentation supports traceability and makes audits straightforward.
Documentation, maintenance, and best practices
Keep calibration certificates, weight certificates, and service notes in a dedicated folder. Review your calibration plan at regular intervals, such as quarterly or after relocation, major temperature shift, or maintenance work. Train operators to handle weights with gloves or tweezers to avoid adding oils or fingerprints. Use a vapor-tight storage case for weights to minimize corrosion. Finally, consider periodic checks against a secondary reference scale to confirm ongoing accuracy. Consistent practice, careful record-keeping, and adherence to a formal procedure are the keys to reliable measurements. The Calibrate Point team recommends integrating calibration into standard operating procedures for facilities that rely on precise mass measurements.
Tools & Materials
- Digital scale with tare function(Must be able to tare and hold stable zero when empty)
- Traceable calibration weights set (50 g, 100 g, 200 g, 500 g)(Certified, with certificate and serial numbers)
- Weight boat or clean small container(Non-reactive material; used to hold individual weights)
- Calibration weight tweezers or lint-free gloves(Avoid fingerprints on weights)
- Lint-free cloth and isopropyl alcohol(Clean pan and weights before measurement)
- Flat, vibration-free work surface(Use a dampening mat if possible)
- Calibration log or digital notebook(Record dates, readings, and operators)
- Thermometer or environmental monitor (optional)(Record room temperature and humidity)
- Storage case for weights(Keep weights organized and protected)

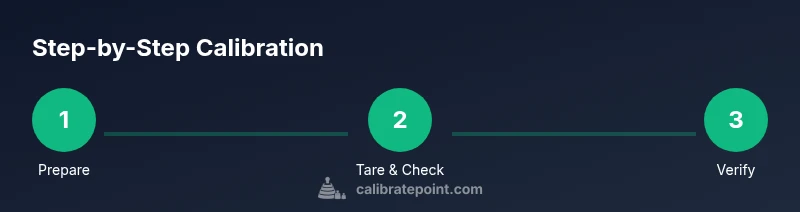

Steps
Estimated time: 30–60 minutes
- 1
Prepare the scale and workspace
Set the scale on a stable, level surface away from vents. Clean the pan and surrounding area to remove dust or residues. Ensure the environment is free from drafts and vibrations that could affect readings.
Tip: Wipe the pan and weights with a lint-free cloth to minimize contaminants. - 2
Warm up and stabilize the scale
Turn on the scale and allow it to warm up for several minutes. Avoid touching the scale during this period, and wait until the display shows a stable zero after taring with an empty pan.
Tip: If the scale has an auto-zero feature, enable it and confirm it can hold a steady zero. - 3
Tare the scale with an empty pan
Place the empty pan on the weighing surface and tare to set the display to zero. Verify stability over 5–10 seconds before proceeding to the first calibration weight.
Tip: Use tweezers to place weights gently to prevent jarring the scale. - 4
Apply the first calibration weight
Place the smallest weight, such as 50 g, on the pan and record the reading. Compare it to the known mass to determine drift. Reset to zero after removing the weight and inspect for repeatability.
Tip: Repeat the measurement twice to confirm consistency before moving on. - 5
Repeat with additional weights across the range
Proceed with 100 g, 200 g, and 500 g, recording readings each time. Check for linearity by plotting measured vs true mass and look for consistent offsets or slope changes.
Tip: If the scale shows nonlinearity, recalibration or service may be required. - 6
Review results and finalize calibration
Assess whether readings stay within the predefined tolerance at all weights. If drift exceeds tolerance at any point, perform recalibration or seek service. Document the results and preserve the traceability certificate.
Tip: Close the calibration loop by updating the calibration log with dates and operator initials.
Questions & Answers
How often should I calibrate a digital scale?
Calibration frequency depends on usage, environment, and required accuracy. In active environments, check the scale monthly or after any relocation or service. For light use, quarterly calibration with a drift check is often sufficient.
Calibration should be done regularly based on use and environment. If the scale is moved or shows drift, recalibrate promptly.
What tolerance is acceptable for calibration?
Tolerance depends on how precise you need the measurement to be and the scale’s specification. Define a practical tolerance based on your application and verify readings stay within that range across the test weights.
Tolerance depends on your application; set a practical target and verify against it.
Can I calibrate without weights?
You can perform a linearity check using known reference masses, but standard calibration usually requires weights to set an absolute reference. Absence of weights limits the ability to adjust for true mass values.
Linearity checks help, but weights establish the true mass references.
What causes drift after relocating the scale?
Drift after relocation is often caused by surface instability, drafts, or temperature changes. Allow the scale to acclimate to the new environment and recheck its zero and readings with known weights.
Drift after moving is usually due to environment changes; let the scale stabilize and recheck.
How should calibration weights be stored?
Store weights in their protective case when not in use to prevent corrosion and contamination. Keep them in a controlled environment away from moisture and chemicals.
Keep weights in their case in a dry, stable place.
How can I maintain a calibration log effectively?
Record the date, scale model, serial number, weights used, readings, tolerance checks, and operator. Regularly review the log for drift trends and schedule recalibration when needed.
Log every reading with date and details, and review for drift trends.
Watch Video
Key Takeaways
- Record baseline measurements and maintain a log.
- Use traceable calibration weights for accuracy.
- Check readings across multiple weights for linearity.
- Recalibrate when drift exceeds tolerance and document results.
