How to Calibrate a Speedometer for Larger Tires
Learn how to recalibrate your speedometer when upgrading to larger tires with practical steps, verification tips, and safe, DIY-friendly methods.
By the end, you’ll align your speedometer with the larger tires. You’ll calculate the change in tire diameter, pick a calibration method (ECU reflash, gear-ratio adjustment, or a digital speedometer calibrator), and verify accuracy with GPS speed readings or a road test. You’ll need the stock and new tire sizes, access to calibration tools, and your vehicle’s service manual.
Why Calibrating Your Speedometer Matters When You Change Tire Size
If you swap to larger tires, your speedometer will likely read too fast or too slow compared with your actual speed. This happens because the speedometer relies on the rotation of the driveshaft and wheel diameter to estimate speed. Even a small change in overall tire diameter can translate into noticeable errors—impacting fuel economy estimates, safety systems like ABS and traction control, and your awareness while driving. The Calibrate Point team emphasizes that accurate readings aren’t just about getting the numbers right; they’re about staying within legal limits and avoiding risky driving decisions. In this section, we outline why accuracy matters, how it affects everyday driving, and how professionals approach the problem with a methodical calibration workflow.
How Tire Size Affects Speedometer Readings
Tire size changes alter the distance a wheel covers with each rotation. A larger diameter increases the distance per rotation, causing the speedometer to under-report the actual road speed if not recalibrated. Conversely, smaller tires reduce the distance per rotation and can cause over-reading. The relationship is predictable: speedometer error roughly scales with the ratio of new diameter to stock diameter. The Calibrate Point approach is to quantify this ratio precisely using the stock and new tire specs, then select a calibration path that corrects the indicator in a safe, durable way. This ensures the odometer also remains consistent, which matters for maintenance schedules and warranty records.
Methods to Calibrate: Overview
There are several legitimate methods to correct speedometer readings after changing tire size. The most common are ECU reflash/cluster reprogramming by a qualified technician, adjusting the axle or transmission gear ratio where supported, and using an external speedometer calibrator module that intercepts the sensor signal before it reaches the gauge. Each method has trade-offs in cost, permanence, and potential impact on other vehicle systems. The choice depends on your vehicle’s year, model, and the calibration options offered by the manufacturer or a trusted tuner. Calibrate Point recommends starting with the least invasive method that meets accuracy and legal requirements.
Choose a Calibration Path: ECU Reflash, Gear Ratio, or External Calibrator
ECU reflash or instrument cluster recalibration is often the most integrated solution for modern vehicles. Gear ratio adjustments are more common on older manuals or specialized rigs where the transmission or differential allows a recalibration; this path can affect towing ratings and warranty. External calibrators, sometimes called speedometer simulators, communicate with the CAN bus or ABS sensors to adjust readings without altering the ECU. Each path requires careful setup, a solid understanding of your vehicle’s drivetrain, and a method to verify accuracy after installation. Calibrate Point’s guidance: document the original tire size, the target size, and the exact calibration method chosen before starting.
Step-by-Step Practical Workflow (Narrative)
Begin by collecting exact tire specs for both stock and new sizes, including the tire width, aspect ratio, and wheel diameter in inches. Calculate the overall diameter for each setup using the standard formula: Diameter ≈ (Section Width × Aspect Ratio × 2)/100 + Wheel Diameter. Compare the ratios to determine the expected speedometer error. Choose a calibration path that aligns with your vehicle’s capabilities and your comfort with electronics. If you opt for ECU or cluster calibration, obtain the service manual and confirm the service procedure with a qualified technician. Always validate the result with at least one GPS-based speed reading and a controlled road test in a safe environment.
Verification and Safe Driving
After completing calibration, verify accuracy using a GPS speed app or a known distance/time test on a quiet road. Expect some variance due to GPS inaccuracies, weather, and road conditions, but the reading should closely match the GPS data and your measured road speed within acceptable tolerances. Record the new tire size and the calibration method in your vehicle’s maintenance log. If you notice persisting drift, recheck all connections, sensor wiring, and calculator settings. Finally, ensure that vehicle safety systems (ABS, stability control) operate normally in typical driving scenarios.
Tools & Materials
- Stock tire size specification (tire size and wheel diameter)(Found on door placard or owner's manual)
- New tire size specification(Obtain exact width, aspect ratio, and wheel diameter)
- Tire size calculator or online calculator(For accurate diameter and ratio calculations)
- Manufacturer service manual or OEM calibration guidelines(Needed for ECU/cluster calibration steps)
- OBD-II diagnostic scanner or a professional tuner tool(Used to access calibration settings or read error codes)
- External speedometer calibrator module (if chosen)(Optional; interfaces with CAN/ABS signals)
- Digital caliper or measuring tape(For precise diameter measurements when needed)
- Safety gear (gloves, eye protection)(Always wear PPE when working on a vehicle)
- Owner’s manual(Contains torque specs and wiring diagrams)
Steps
Estimated time: 1-2 hours

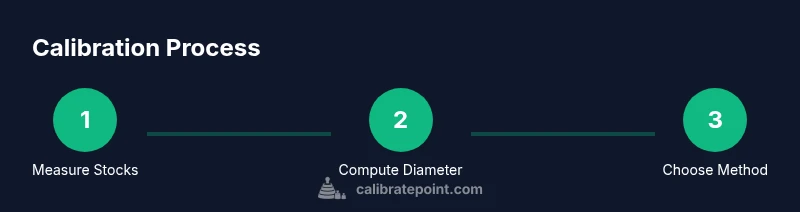

- 1
Collect stock and new tire specifications
Record exact stock tire size and the new tire size. Confirm wheel diameter and the overall tire diameter using a calculator or formula. Ensure you have all values before proceeding to adjustment.
Tip: Double-check decimals in the aspect ratio to prevent calculation errors. - 2
Calculate diameter change
Compute the stock and new overall diameter using the standard formula. Compute the ratio of new diameter to stock diameter to estimate expected speedometer error.
Tip: Use a consistent measurement for wheel diameter (inches) and always convert to the same units. - 3
Choose calibration method
Decide between ECU/cluster recalibration, gear-ratio adjustment, or an external calibrator based on vehicle type and availability of tools.
Tip: Prefer the least invasive method that achieves required accuracy and preserves warranty if possible. - 4
Prepare the vehicle and tools
Gather manuals, diagnostic tools, and calibration devices. Ensure the vehicle is on a level surface and the parking brake is engaged.
Tip: Disconnect the battery only if specified by the service manual for ECU work. - 5
Perform calibration (method chosen)
Follow the exact steps from the service manual or tuner guide to adjust the speedometer reading. Avoid improvisation that could affect safety systems.
Tip: If using an external calibrator, verify signal integrity before finalizing the setup. - 6
Initial verification
Use a GPS speed reading and the clock-distance method to estimate whether the indicator aligns with real speed.
Tip: Test at multiple speeds (low, medium, high) to ensure consistency. - 7
Document changes
Record tire sizes, calibration method, tool IDs, and any software revisions in the vehicle’s maintenance log.
Tip: This documentation helps with warranties and future recalibration needs. - 8
Final safety check
Ensure ABS, ESC, and other driver-assistance systems operate normally in typical driving tests.
Tip: If any warning lights appear, re-check wiring and calibration settings.
Questions & Answers
Will changing to larger tires always cause a speedometer error?
Yes, larger tires typically cause the speedometer to read too low or high depending on the diameter change. The magnitude depends on the diameter ratio between new and stock tires. Calibration is recommended to restore accuracy for safe driving and accurate odometer readings.
Larger tires usually introduce speedometer error, and calibration is usually necessary to restore accuracy for safe driving.
Can I calibrate my speedometer myself, or do I need a professional?
It depends on your vehicle. Many modern vehicles require dealer-level reprogramming or a qualified tuner. External calibrators are available for some models, but incorrect installation can affect safety systems. Always consult your service manual and consider professional help if unsure.
It depends on your vehicle; many require a professional, but some setups allow safe DIY calibration with proper guides.
Is calibration legal and required for road use?
In most places, calibration is not illegal, but you must ensure the speedometer accurately reflects speed to meet safety and warranty requirements. Some jurisdictions expect accurate odometer readings for maintenance reminders and legal speed enforcement.
Calibration is generally allowed and wise, but you should ensure accuracy for safety and legal compliance.
How long does calibration take on average?
Time varies by method and vehicle. A typical ECU reflash or cluster calibration can take 30 minutes to a few hours, depending on access to tooling and whether a road test is included.
Average calibration takes from a half hour to a few hours, depending on the method and tools.
What’s the best method for a daily driver?
For most daily drivers, a software-based ECU or cluster recalibration is the least intrusive and maintains original vehicle behavior beyond the speed reading. External calibrators are a good fallback if official recalibration isn’t available.
For daily drivers, ECU recalibration is usually best, with external calibrators as a backup.
Should I recheck calibration after changing tire brands?
Yes. If you switch to a different tire model or brand with varying tread and construction, revalidate the calibration to ensure continued accuracy.
Yes—recheck calibration after any brand or model change.
Watch Video
Key Takeaways
- Define stock vs. new tire specifications clearly.
- Compute diameter ratio to estimate speedometer error.
- Choose a calibration path aligned with your vehicle and tools.
- Verify readings with GPS and controlled road tests.
