How Is a Torque Wrench Calibrated? A Practical Guide
Learn how is a torque wrench calibrated, including methods, tools, steps, and documentation to ensure accuracy, safety, and traceability for DIYers and professionals.
Quick answer: You calibrate a torque wrench by comparing its output to a traceable standard at a set torque, adjusting the mechanism, and validating across the range. This requires a calibrated torque standard, a stable test setup, and proper documentation. Follow manufacturer specs and use a calibrated torque transducer for best accuracy.
What calibration is and why it matters
Calibration is the process of aligning a torque wrench’s readings with a recognized standard so that the indicated torque matches the true applied torque within defined tolerances. In practice, a properly calibrated wrench ensures consistent fastener preload, reduces the risk of over-tightening or under-tightening, and supports safety-critical assembly in automotive, aerospace, and industrial settings. Regular calibration also helps maintain device health by identifying drift caused by wear, shock loads, or environmental changes before a failure occurs. According to Calibrate Point, understanding torque wrench calibration improves accuracy and safety in mechanical work. The Calibrate Point team found that drift can arise from wear, shock, or improper use, making periodic verification essential for any workshop. A calibration program creates auditable records, supports quality systems, and provides stakeholders with confidence that torque control remains within stated tolerances. In short, calibration is a lifecycle activity: verify, adjust if needed, re-verify, and document. Knowing the exact procedure for your wrench type, whether adjustable or electronic, is crucial; different technologies require adjusted reference methods. Always consult manufacturer guidance and respect warranty terms.
How torque wrench calibration methods work
There are two broad pathways to calibration that professionals commonly use. The first relies on a reference torque standard and a calibration device that can apply known torque to the wrench’s drive. The second uses live torque testing against a traceable standard, often through an electronic or hydraulic test rig. Each method seeks to measure the wrench’s output against a traceable reference and quantify any offset or nonlinearity. Pros and cons vary with the tool type, required accuracy, and facility capabilities. For many shops, a combination approach offers the best balance of speed and reliability. If you operate in regulated industries, ensure your method aligns with the relevant standard and keeps detailed records for audits.
Reference standards and traceability
Traceability ensures that every torque reading can be linked back to an accepted standard, typically via a chain of calibration certificates. The standard used for calibration should cover the wrench’s range and torque mode. Labs maintain a calibration certificate: it documents the reference device, environmental conditions, date, and the permitted tolerance. Maintaining traceability means keeping records that can be reviewed by auditors or customers. In practice, you’ll verify the torque wrench against a certified reference device and record any deviations, along with the steps taken to adjust. The emphasis is not on a single number but on the integrity of the measurement chain and the legitimacy of the test setup.
In-house versus lab calibration: pros and cons
In-house calibration saves time and can be convenient for frequent checks, but it demands proper facilities, trained personnel, and validated references. Lab-based calibration usually offers higher confidence and formal documentation, and it may be required for strict quality programs or regulatory compliance. When choosing where to calibrate, consider tool criticality, the required tolerances, and the ability to maintain environmental controls. The decision often hinges on whether your workflow benefits from faster turnarounds or formal accreditation.
Implementing your calibration workflow (in-house)
If you decide to perform calibration on-site, design a repeatable workflow that minimizes variables. Establish a dedicated, stable calibration station, ensure the reference standard is within its calibration window, and set environmental conditions to a consistent level. Before testing, inspect the wrench for damage, ensure the grip is clean, and check that the adjustment mechanism operates smoothly. Apply torque at the defined setpoints, record readings, and compare them to the reference values. If adjustments are required, perform them according to manufacturer guidance and re-test to confirm corrected readings. Document all setup details, results, and any changes to the wrench’s status.
Verification, traceability, and record-keeping
Verification means confirming that the wrench reads within tolerance at the tested points. Each calibration event should generate a certificate or log entry that includes the wrench’s serial number, range, test points, environmental conditions, and the calibration device’s identity. Maintain an auditable trail so that stakeholders can reproduce results if needed. Digital records are preferred for easier searchability and long-term retention, but printed certificates are still common in many labs. The key is consistency: archive results in a centralized system and schedule rechecks according to risk and usage.
Quality control and ongoing maintenance
To sustain accuracy, implement routine checks between formal calibrations. Use a quick reference method to detect drift and unusual readings, and schedule a full calibration if drift is observed beyond defined limits or after a known impact, like a drop or heavy impact. Regular cleaning, careful handling, and correct storage help extend instrument life. When a wrench is returned from calibration, compare it with the previous results to assess improvement and ensure continuity. Finally, establish a re-calibration cadence based on tool criticality and environmental exposure.
Tools & Materials
- Traceable torque calibration standard(Must be NIST-traceable or equivalent; cover the wrench's range)
- Torque wrench under test(Include model and serial; ensure it's not damaged)
- Calibration device or torque transducer(Provides the reference torque for comparison)
- Calibration adapter or coupling(Connectors must be aligned and secure)
- Stable calibration bench or fixture(A vibration-free surface with mounting options)
- Calibration logbook or digital records system(Record test results, environmental data, and certificates)
- Dead-weight weights (if using dead-weight method)(Only if you use dead-weight calibration; ensure weights are clean)
- Environmental controls (temperature/humidity)(Maintain stable room conditions during calibration)

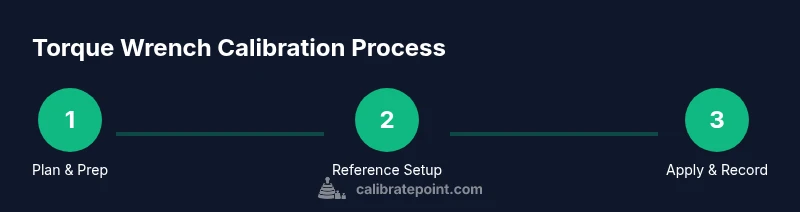

Steps
Estimated time: 2-3 hours
- 1
Prepare the wrench and reference setup
Inspect the tool for damage, clean the handle, and verify the wrench is within calibration range. Set up the calibration rig with the reference transducer aligned to the wrench drive. Confirm the environment is stable before starting.
Tip: Document the wrench's initial condition and any alignment notes. - 2
Check safety and environmental conditions
Ensure the area is free of vibration, heat sources, and moisture. Check that PPE is worn if required and that any electrical equipment is grounded.
Tip: Temperature stability reduces drift during measurements. - 3
Connect wrench to reference and secure
Attach the wrench to the torque transducer or calibration adapter firmly. Tighten all connections to prevent slip during torque application.
Tip: Use alignment aids to avoid bending the drive shaft. - 4
Apply the first torque setpoint
Set the wrench to the lowest test torque and apply torque gradually to the test rig. Record the reading from the reference device and the wrench scale.
Tip: Apply torque smoothly to avoid dynamic overshoot. - 5
Repeat across multiple points
Test at several points across the wrench’s range, including mid-range and high end. Note any systematic offset or nonlinearity.
Tip: Use at least three non-collinear points for basic checks. - 6
Adjust and re-test if needed
If the wrench deviates beyond tolerance, perform manufacturer-guided adjustments and re-test. Confirm corrections by repeating the same setpoints.
Tip: Avoid over-tightening the adjustment screw; small increments are safer. - 7
Document results and generate a certificate
Record all test points, environmental conditions, device IDs, and results. Prepare a calibration certificate or digital record.
Tip: Include traceability data and deviation notes in the certificate. - 8
Schedule follow-up checks
Set a re-calibration interval based on use, environment, and risk. Plan the next calibration event and update logs accordingly.
Tip: Keep a calendar reminder for timely rechecks.
Questions & Answers
What is torque wrench calibration?
Calibration aligns a torque wrench’s readings with a recognized standard, ensuring accuracy within specified tolerances. It also confirms the tool’s operational condition and documents traceability.
Calibration makes sure a torque wrench reads accurately by comparing it to a known standard and keeping a clear record.
How often should you calibrate a torque wrench?
Calibration frequency depends on usage, environment, and standards you follow. Manufacturer recommendations or accreditation guidelines typically determine intervals; in busy shops, periodic checks are common.
How often you calibrate depends on how you use it and the standards you follow; check manufacturer guidance or your quality system.
Can torque wrenches be calibrated at home?
Yes, with appropriate equipment and proper procedures, you can perform basic checks at home. For critical work or high-precision requirements, use a professional lab to ensure traceability and accuracy.
You can do some checks at home with the right tools; for critical work, a lab calibration ensures traceability.
What equipment is essential for calibration?
A traceable calibration standard, a reference torque device, a compatible adapter, and a stable test fixture are essential. Documentation tools are also needed to record results and certificates.
You need a traceable reference, a torque device, adapters, and a stable setup, plus a way to record results.
What does traceability mean in torque calibration?
Traceability links measurements to a recognized standard through an unbroken chain of calibrations and certificates. It ensures results can be reproduced and verified by auditors.
Traceability means every measurement can be traced back to a known standard through documented calibrations.
How should calibration results be documented?
Record the wrench details, reference device, test points, results, environmental conditions, and the person performing the calibration. Generate a certificate or digital log for future audits.
Document all details, include test results and environmental data, and keep a certificate or digital record.
Watch Video
Key Takeaways
- Start with a traceable standard for accuracy.
- Follow a defined testing sequence and record results.
- Maintain traceability and proper documentation.
- Validate across the entire range of the tool.
- Set a realistic calibration cadence based on use.
