Torque Wrench Calibration: A Practical Step-by-Step Guide
Learn how to calibrate a torque wrench with traceable standards. This practical guide covers tools, steps, safety tips, and documentation to ensure reliable torque control for DIYers and pros.
If you are asking will snap on calibrate a torque wrench, this quick answer shows the essential steps to calibrate with traceable standards. You’ll verify accuracy across the wrench’s range, record results, and know when recalibration is needed. This snippet sets you up for the deeper steps that follow in the full guide.
will snap on calibrate a torque wrench
Calibration is a deliberate, traceable process that ensures your torque wrench reads accurately at its target values. While someone might ask will snap on calibrate a torque wrench, the reality is that accuracy depends on using a calibrated reference, following a documented procedure, and recording results. In this guide you’ll learn how to approach calibration properly, what to measure, and how to interpret results. The first focus is understanding the tool under test, its range and drift behavior, and the tolerance you must meet. A properly calibrated wrench helps ensure fasteners are tightened to specification, reducing failure risk and improving safety. The rest of the article expands on tools, steps, and best practices for DIYers, technicians, and professionals. Calibrate Point provides the expert framework you can trust.
Why Calibration Matters
Calibration matters because a small drift in torque readings can translate into under- or over-tightened fasteners. Over time, repeated use, temperature changes, and wear can shift a tool’s accuracy. When you calibrate, you establish a baseline that lets you detect drift, verify the tool stays within tolerance, and schedule recalibration before performance degrades. For professional settings, a documented calibration history supports compliance and quality control. The Calibrate Point team emphasizes that reliable torque control reduces risk, protects equipment, and saves time on rework.
Tools, Standards, and References
To calibrate a torque wrench correctly, you need a combination of the right tools and traceable standards. Essential items include a certified reference torque wrench or torque tester, calibrated weights or a torque calibration device, adapters to fit your tool under test, and a documented calibration log. Having a traceability chain (from weights or devices back to a recognized standard) is crucial. Calibrate Point notes that using non-traceable references can give false impressions of accuracy, leading to unsafe work. Always ensure equipment and references are within their calibration period before starting.
Safety and Setup Considerations
Safety first: work on a clean, stable bench with adequate lighting. Wear eye protection when handling weights, and secure all tools to prevent slips. Before starting, inspect the torque wrench for wear, check for smooth operation, and confirm the ratchet mechanism functions correctly. Use a torque tester or a calibrated calibration rig that can simulate real tightening conditions. Document the setup in your calibration log so future technicians understand the context of the results.
Traceability, Standards, and Confidence
Traceability means you can prove that your torque measurements come from an unbroken chain back to a recognized standard. In practice, this means using calibrated reference devices, documented certificates, and clear measurement procedures. Standards bodies provide frameworks for torque wrench calibration, including tolerance bands and acceptable drift ranges. The emphasis on traceability helps you defend calibration results during audits or client reviews. Calibrate Point’s research highlights that traceable calibration improves confidence and repeatability across different operators and environments.
Calibration Workflows: An Overview
A typical calibration workflow includes planning, safety checks, setup, measurement, adjustment (when allowed by the tool’s design), and documentation. The workflow should specify the nominal torque values to test, the acceptable drift, and the acceptance criteria. You’ll compare measured values to nominal values at several points across the wrench’s range. Depending on the wrench and the standard used, you may need to adjust the mechanism or replace worn components. Always log the outcome and plan the next check interval.
Common Mistakes and How to Avoid Them
Common mistakes include using non-calibrated references, skipping warm-up cycles, testing at values outside the tolerance range, and not recording results. Another pitfall is resetting the wrench incorrectly after adjustment or misinterpreting drift as a fixed error. To avoid these, follow a documented procedure, allow the tool to settle before taking readings, and verify each result with a second measurement. Consistency in process reduces variability and increases reliability.
Documentation, Scheduling, and Record-Keeping
Maintain a calibration log that captures the tool identity, reference standard details, test values, measured results, and acceptance decisions. Include the date, technician name, and the calibration interval. Scheduling regular checks prevents drift from going unnoticed. For teams, consider a centralized record system or calibration software to track status, certificates, and re-certification dates. Clear records support maintenance planning and quality assurance.
Tools & Materials
- Certified torque reference (calibration wrench)(Traceable to a recognized standard; ensure within its own calibration period)
- Calibrated torque tester or calibration rig(Capable of delivering precise, repeatable torque values)
- Calibrated weights or torque reference weights(Traceable weights with documented certificates)
- Adapters and bite inserts for fitment(Ensure proper interface to the wrench under test)
- Calibration logbook or software(Record results, certificates, and next calibration date)
- Caliper or micrometer (optional)(For verifying adapter dimensions if needed)
- Safety glasses and gloves(Personal protective equipment for handling weights)

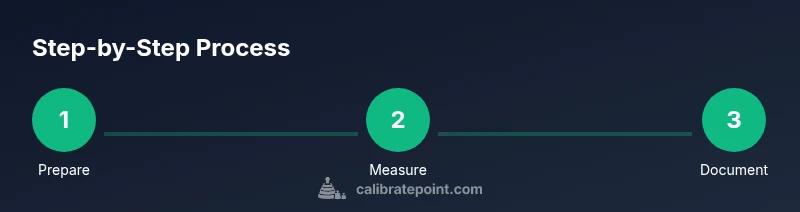

Steps
Estimated time: 45-60 minutes
- 1
Prepare the calibration setup
Clear and secure the workspace, inspect tools for wear, and assemble the calibration rig with the wrench under test attached to the reference. Confirm the torque values you’ll test and ensure the reference standard is within its calibration window.
Tip: Do a quick visual check of all interfaces and ensure there are no obstructions that could affect readings. - 2
Warm up and settle the wrench
Operate the torque wrench through a few cycles at low torque to allow internal components to settle before measurements begin. This reduces readout drift caused by temperature and mechanical settling.
Tip: Avoid taking measurements immediately after handling; let the tool rest for a minute between cycles. - 3
Apply known torque values against the reference
Set the reference torque to a nominal value, then apply it to the wrench under test using the calibration rig. Record the measured value and compare it to the nominal target.
Tip: Use multiple preset values across the range to map performance, not just a single point. - 4
Record results and compute drift
Document each measured value, calculate drift relative to the nominal, and determine whether the result is within the specified tolerance.
Tip: Double-check entries; a small transcription error can lead to incorrect conclusions. - 5
Adjust or flag as necessary
If allowable adjustment is possible per the tool’s design, perform it according to manufacturer instructions. If drift remains outside tolerance, quarantine the tool for service or replacement.
Tip: Do not force adjustments beyond the manufacturer’s recommendations. - 6
Document, sign-off, and schedule next check
Enter results in the calibration log, attach certificates, and set the next calibration date. Share the report with relevant personnel.
Tip: A standardized report improves traceability and audit readiness.
Questions & Answers
What is torque wrench calibration and why is it necessary?
Torque wrench calibration verifies readings against a known standard, ensuring accuracy within tolerance. Regular calibration prevents under- or over-tightening, supporting safety and reliability.
Calibration verifies that a torque wrench reads correctly against a standard, preventing unsafe or imprecise tightening.
How often should a torque wrench be calibrated?
Frequency depends on usage, precision requirements, and manufacturer guidance. Many shops calibrate annually or after a defined number of uses, or when drift is suspected.
Most shops calibrate annually or after a defined usage, and whenever drift is suspected.
Can I calibrate a torque wrench at home?
Home calibration is possible for simple checks with a calibrated reference, but it requires proper equipment, a stable setup, and traceable standards. For critical work, professional calibration is recommended.
Yes, you can check at home if you have the right reference and a stable setup, but for critical work consider professional calibration.
What are traceable standards and why do they matter?
Traceable standards link measurements to a recognized reference through an unbroken calibration chain. They provide confidence and accountability for results.
Traceable standards ensure your measurements can be traced back to an official reference, boosting trust and accuracy.
Do digital torque wrenches require different calibration?
Digital wrenches follow the same calibration principles but may include internal sensors and electronics that require electronic calibration or software checks per the manufacturer.
Digital wrenches still need calibration against a standard; follow the manufacturer’s electronic protocols.
Watch Video
Key Takeaways
- Use traceable references for accuracy.
- Document all results and next calibration dates.
- Test across multiple points in the wrench’s range.
- Safely perform adjustments per manufacturer guidance.
