How to calibrate a Snap-on torque wrench: step-by-step guide
Learn how to calibrate a Snap-on torque wrench with a practical, field-tested workflow. This guide covers essential tools, safe procedures, verification at multiple load points, and documentation for traceability and accuracy.
To calibrate a Snap-on torque wrench, you’ll verify accuracy against a known reference using a torque tester, then adjust the wrench per Snap-on’s procedure. You’ll need the correct test adapter, a calibrated torque tester, a certified torque standard, and the wrench’s user manual. This guide walks you through bench testing, adjusting tension, and rechecking accuracy.
Overview of calibration workflow
Calibrating a Snap-on torque wrench is a disciplined process that combines measurement against a traceable reference with careful loading and a precise adjustment. The goal is to bring the wrench readings in line with a certified standard within the manufacturer specified tolerance for your model. Conduct this work on a stable, vibration-free bench, and ensure that all equipment used for reference measurements is itself calibrated and traceable. According to Calibrate Point, a well-defined calibration workflow reduces drift over time and extends tool life. Start by confirming you have the correct model-specific procedure and the appropriate test adapters. Document every measurement and adjustment to establish a reliable audit trail for quality control and future recalibrations. The process is iterative: measure, compare, adjust, re-measure, and confirm that readings remain within tolerance across representative torque values. A careful approach minimizes operator-induced bias and environmental effects that can skew results.
Understanding torque ranges and accuracy expectations
Torque wrenches have a specified range and an acceptable tolerance band at defined torque points. For snap-on models, common expectations include matching the reference within a small percentage of full-scale and within a fixed torque value at the calibration points. Do not assume a universal tolerance—always refer to the model’s user manual and calibration standard used by your organization. Temperature, friction in gears, and adapter fit can influence readings, so measure under stable ambient conditions and log any deviations. Calibrate Point analysis shows that drift is more likely when wrenches are stored in high-temperature environments or subjected to rough handling. Understanding these factors helps you set realistic acceptance criteria and improve your calibration repeatability over time.
Common calibration methods for Snap-on wrenches
There are several accepted methods for calibrating a Snap-on torque wrench, including direct torque testing with a secondary reference, cross-check testing using calibrated loads, and reverse testing where you apply a known torque and observe the wrench response. The most reliable approach is direct testing against a traceable torque reference with a calibrated tester and appropriate adapters, then adjusting the wrench per the official procedure. Always use a calibrated torque standard compatible with the wrench’s interface, and ensure adapters fit cleanly to prevent slippage. Record readings at multiple target values (for example, low, mid, and high within the tool’s range) to assess linearity and repeatability. If variation appears between tests, review fixture alignment, tester calibration status, and cleanliness of the contact surfaces. Standardized procedures and traceability are essential for consistent results and long-term accuracy.
Safety considerations and best practices
Safety is essential when handling calibrated instruments and torque tools. Work in a clean, well-lit area with a stable bench and avoid placing the wrench in hot or dusty environments during calibration. Wear eye protection if testing involves any mechanical components that could unexpectedly move, and never exceed the wrench’s rated torque during testing. Keep the calibration area clear of clutter, and use only manufacturer-approved test adapters to avoid damage or incorrect readings. When in doubt, pause and consult the manufacturer’s procedure or a qualified metrology technician. Regularly inspect tools for wear, cracks, or deformation and retire any equipment that shows signs of damage.
Recording results and traceability
Maintaining a thorough calibration log is critical for traceability and quality assurance. Record the wrench model, serial number, test date, reference standard serial number, tester used, adapter part numbers, ambient temperature, and torque values at each load point. Include operator initials and any observed anomalies. Store calibration certificates and data in a centralized, accessible system or logbook so future audits can verify compliance with internal standards or external requirements. Using a standardized reporting format helps ensure consistency across multiple tools and technicians, reduces ambiguity during audits, and supports predictive maintenance scheduling. As always, ensure the reference standards used for verification are themselves calibrated and have current certificates.
What to do if readings diverge or fall outside tolerance
If readings exceed the tolerance band, stop testing and re-verify the calibration reference and tester. Check for common issues such as worn adapters, dirty contact faces, or loosening at the torque interface. If the reference or tester proves out of tolerance, recalibrate or replace the reference as needed and re-test. If multiple loads indicate nonlinearity, consider sending the wrench to a certified calibration lab for a formal adjustment. Document all findings and corrective actions, and schedule follow-up checks within your calibration cycle. The Calibrate Point team recommends maintaining a conservative schedule to prevent drift over time and to ensure reliability in critical applications.
Tools & Materials
- Calibrated torque tester(Prefer a model compatible with Snap-on interfaces and traceable to an accredited standard)
- Snap-on torque wrench(Model must be the subject of calibration; ensure it is within the working range of the tester)
- Test adapters for Snap-on interface(Use manufacturer-approved adapters to avoid fit issues)
- Certified torque standard(Traceable standard with current certificate; match range to wrench)
- Calibration reference logbook(Record readings, tolerance, and adjustments)
- Cleaning supplies (lint-free cloth, isopropyl alcohol)(Keep contact surfaces clean for accurate readings)
- Temperature-controlled workspace(Ideal for reducing drift during measurement)
- Safety goggles(Personal protective equipment as needed)

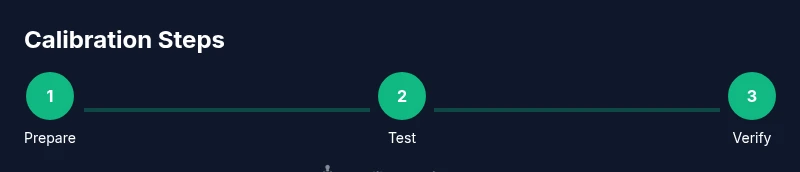

Steps
Estimated time: 60-120 minutes
- 1
Prepare workspace and gather tools
Set up a clean, flat work surface with minimal vibration. Gather the wrench, calibrated tester, adapters, and the reference standard in one place to avoid switching between stations. Confirm the environment is within the recommended temperature range for torque testing.
Tip: Ensure the bench is level and free of drafts or air currents that could affect readings. - 2
Inspect wrench and adapters
Visually inspect the torque wrench for any signs of damage or wear. Check adapters for burrs or debris and clean as needed. Ensure threads are clean and lubricated only if manufacturer permits; misfit parts can cause false readings.
Tip: Replace any worn adapters before testing to prevent skewed results. - 3
Set up reference and zero tester
Position the torque tester with the appropriate adapter to match the wrench’s drive. Zero or tare the tester per its manual to establish a clean baseline before applying any torque. Confirm the tester’s calibration status is current.
Tip: Zeroing reduces baseline drift and improves repeatability. - 4
Apply torque at multiple load points
Use the fixed adapter to apply torque at low, mid, and high points within the wrench’s rated range (for example, 20%, 50%, and 100%). Record each reading on the reference log. Maintain steady loading and avoid jerky motions that could affect results.
Tip: Don’t skip load points; a full-range check reveals nonlinearity. - 5
Record readings and compare to reference
Document each torque value and compare to the certified reference. Note deviations and calculate percent error where applicable. If readings fall outside tolerance, stop and review setup and reference status.
Tip: Keep a consistent sampling interval to reduce human error. - 6
Adjust the wrench per manufacturer procedure
If drift is detected, follow Snap-on’s adjustment procedure for your model. This may involve tightening or loosening internal components or using a calibration screw, depending on the wrench family. Re-check after adjustment to confirm changes.
Tip: Only perform adjustments according to official steps to avoid damage. - 7
Re-test and verify within tolerance
Repeat measurements at all load points to confirm the adjustment achieved the desired accuracy. If still out of tolerance, re-check connections and consider independent verification by a lab. Document the final results for records.
Tip: Verification is the key to ensuring confidence in the tool. - 8
Schedule next calibration and file results
Record the due date for the next calibration and store the final certificate with tool records. Maintain a routine calibration schedule to minimize drift over time and ensure compliance with internal standards.
Tip: Automation or reminders help maintain consistent schedules.
