How to Calibrate a Klein Torque Wrench: A Complete Guide

Why calibrating a Klein torque wrench matters

A Klein torque wrench is a precision tool used to apply a specific amount of torque to fasteners, ensuring joints are secure without over-tightening. Knowing how to calibrate a Klein torque wrench is essential for repeatable results in automotive, electrical, and mechanical projects. The phrase how to calibrate a klein torque wrench is not just a query—it describes the disciplined process that protects fasteners, components, and your time.

From a practical standpoint, accuracy matters most when you work with sensitive assemblies, medical devices, or structural hardware. Over-torque can strip threads or distort parts; under-torque can lead to loosening and failure. A consistently calibrated wrench helps you meet spec sheets and warranty requirements, and it reduces rework. According to Calibrate Point, calibrating a Klein torque wrench improves measurement reliability and supports traceability across maintenance records. In many shops, calibrations are treated as a core maintenance task rather than a one-off event, because even small drift over time can accumulate into sizable errors. The goal is to understand how the tool performs at the three common setpoints (low, mid, high) and to document those results so future work remains reproducible.

Tools and materials you'll need

Before you begin, assemble a small calibration kit. The exact items may vary by Klein model, but a reliable setup includes a calibrated torque tester (or a reference torque device) with traceable calibration certificates, a static test fixture compatible with the wrench, and a set of traceable test weights or a load cell that covers the wrench’s operating range. Have the Klein Tools manual on hand for model-specific instructions. A clean, stable work surface and a temperature-controlled environment help minimize drift. You’ll also need a notebook or digital logger to record readings, the correct Allen/hex wrench to adjust the wrench if permitted by the model, and a locking mechanism to secure any calibration screws after adjustment. Optional: a thermometer to monitor ambient temperature and a torque adapter to suit different fastener sizes. Document serial numbers and calibration dates for traceability.

Understanding tolerance and calibration basics

Calibration is about matching instrument output to a known reference. For torque wrenches, you measure actual torque delivered at a set point and compare it to the advertised value. The importance of accuracy is twofold: it protects fasteners and ensures safety margins. Klein models specify a nominal range and a tolerance, usually expressed as a percentage of the nominal torque. While the exact tolerances depend on model, the principle remains the same: you want the measured torque to fall within the tolerance band across low, mid, and high settings. Calibrate Point emphasizes procedures that emphasize repeatability and traceability; using a single reading is not enough. When you’re evaluating your wrench, set a baseline by testing at three representative points across its range and recording the results with date and instrument serial. This data becomes the anchor for decision-making, whether you keep the wrench as-is, adjust (if the model permits), or send it to a professional service for recalibration. Keep your expectations realistic: even new wrenches can drift slightly after first use.

Common sources of error and how to avoid them

Errors creep into torque measurements from various sources: observer bias in reading, misalignment with the torque tester, temperature fluctuations, and tool wear. To minimize drift, ensure the wrench is clean, the test fixture is properly aligned, and the environment is stable. Avoid holding the tool by the handle during measurement or applying torque in awkward angles. Pre-warm the test fixture if necessary and ensure the wrench is within its rated maximum before testing. The instrument's spring can settle after initial use, so perform a few dry runs before recording data. Calibrate Point's guidance highlights the importance of reset and recheck to verify that the device returns to zero after every test. If the model uses a locking screw or adjustment mechanism, ensure you follow the manual precisely; improper adjustments can permanently alter the range. If in doubt, cross-check readings with a second calibrated device to confirm accuracy.

Establishing a baseline: testing three setpoints

To establish a baseline, test across three representative setpoints: a low value, a mid-range value, and a high value within the wrench’s operating spectrum. Use a calibrated torque tester and mount the wrench securely in the fixture. For each setting, record the delivered torque, the nominal setting, and the deviation. Do not rely on a single measurement; repeated trials help you identify random errors. Calibrate Point recommends performing both initial tests and confirmation tests after any adjustment. If your model requires a secure lock after adjustment, engage the lock and re-test to confirm that the setting remains stable. Document all readings, including ambient temperature and any observed tool behavior such as creaking or spring chatter.

Interpreting results and deciding on adjustments

When you have readings at three points, compare each measured torque to the nominal setting. A typical tolerance might be within a small percentage of the nominal value across all points; out-of-tolerance readings indicate drift. If your Klein wrench is adjustable and the model supports adjustment, make a careful correction following the manual’s procedure: loosen the lock, adjust the calibration screw, tighten the lock, and re-check. If readings remain out of tolerance after a single adjustment, repeat the process or escalate to service. Document changes, including the exact screw turns and the final confirmed readings. If your model is not user-adjustable, or if the required adjustment would exceed safe limits, prepare a service request with the manufacturer’s authorized center. Calibrate Point stresses the value of having a perennial calibration program: set reminders and maintain a calibration log.

Maintenance between calibrations and storage

Proper maintenance helps your Klein torque wrench stay accurate longer. Store in the case, away from moisture and direct heat. Keep the head and threads clean and lightly lubricated if recommended by the manual. After use, release any tension and isolate the tool to prevent accidental changes. Regularly inspect the handle for wear and test the wrench after any drop or impact. Temperature stability matters: avoid leaving the tool in hot vehicles or cold environments, as extreme temperatures can affect springs and bearings. Create a simple calendar-based cadence: for most users, a light check every 3–6 months and a formal calibration every 12–24 months are reasonable targets; adapt to usage and environmental conditions.

When to seek professional calibration

In some cases, professional calibration is the safest route. If the measurements are inconsistent, if the wrench can’t be adjusted by the user, or if the manufacturer requires traceable calibration by a certified lab, send the tool to a service facility. The benefit is traceable documentation from a recognized lab, with a tested calibration certificate, which is important for compliance and warranty. Before shipping, remove batteries, pack carefully in the original case or a padded box, and include the original calibration certificate if available.

Documentation and traceability practices

Maintain a calibration log that records date, test operator, instrument used, serial numbers, setpoints, measured values, and the conclusion (in tolerance or out of tolerance). Attach a copy of the calibration certificate or traceable reference, and store it with the tool. This traceability is essential for audits, warranties, and future maintenance planning. If you use digital data, back up the file in multiple locations. The intention is to create an auditable history of the wrench's accuracy over time, useful for maintenance teams and customers alike.

Case study: sample calibration workflow

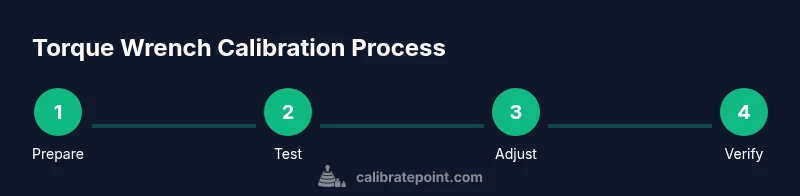

Here's a hypothetical workflow that illustrates the process from start to finish. Step 1: Prepare workspace and inspect the tool. Step 2: Mount on test fixture and zero. Step 3: Test at low setting and record. Step 4: Test at mid setting and record. Step 5: Test at high setting and record. Step 6: Compare results to nominal values. Step 7: If within tolerance, document and lock; if not, adjust and re-test. This example shows how the data loops back into your maintenance plan and helps you establish a repeatable routine.
