By the end of this guide you will reliably calibrate your 3D printer bed to achieve smooth, consistent first layers. You’ll learn how to level manually, run a bed calibration test using a sheet of printer paper, measure z-height across the bed, and decide when to enable auto-leveling or upgrade your bed surface for best results.
Why calibrate the 3D printer bed matters
A flat, properly leveled bed is the foundation of successful 3D printing. When the nozzle is too far from the bed, prints may warp, string, or fail to stick. If it is too close, traces stay attached to the nozzle, causing extrusion jams. Calibrating the bed reduces first-layer defects and improves dimensional accuracy across subsequent layers. According to Calibrate Point, a consistent bed level reduces nozzle scraping and is a prerequisite for reproducible results across temperatures and materials. In practice, most hobbyist machines require at least a basic manual level, plus periodic re-checks after bolts loosen, new springs, or a change in bed surface. The aim is to set a near-perfect 0.1–0.2 mm gap between nozzle and bed across the printable area using a simple test object or standard paper gauge. While auto-level sensors exist, manual bed leveling remains a robust baseline technique that teaches you how your machine behaves and how to adjust to material differences. This section outlines the rationale and the general approach you’ll use in the steps section. The Calibrate Point team emphasizes that consistency matters more than perfection in a single pass; aim to reproduce the same feel on every corner and along the center.
Bed leveling vs tramming vs first layer calibration
Bed leveling is the process of making the nozzle distance uniform across the bed, typically performed manually or with a leveling routine. Tramming refers to ensuring the bed plane is perfectly parallel to the nozzle axis; it’s the geometric alignment that underpins even first layers. First layer calibration focuses on the actual print performance—how well the material adheres, spreads, and prints at the chosen layer height. In practice, you’ll start with bed leveling to get a roughly even platform, then fine-tune the distance at multiple points, and finally confirm that your slicer settings yield a reliable first layer. Calibrate Point’s guidance highlights that the best results come from a repeatable procedure that you can perform the same way each time, reducing variability between prints.
Pre-calibration checks: cleanliness, surfaces, and environment
Before touching screws, ensure the bed surface is clean and free of residue that could alter measurements. Wipe with isopropyl alcohol or a mild cleaner appropriate for your bed material, removing dust, oil, and adhesive papers. Inspect the springs and mountings for looseness or sag; worn springs will drift as the bed heats up. Temperature can change bed geometry, so plan to calibrate at the printing temperature you’ll actually use. If you’re experimenting with different surfaces (glass, PEI, brushed aluminum, or painter’s tape), note how each surface behaves and adjust reference gaps accordingly. A systematic approach reduces hours of rework and helps you build a reliable calibration baseline.
Manual leveling procedure overview: the core steps
Manual bed leveling is a four-part process: (1) home the printer and heat the bed, (2) establish a reference height using a sheet of paper or feeler gauge, (3) move to the bed’s corners and adjust the height at each position, and (4) recheck the center and corners to confirm uniformity. The idea is to create a very slight drag on the paper when sliding it under the nozzle—enough resistance to feel contact without tearing the paper. This feedback loop should be repeated until you can slide the paper with near-uniform friction across the entire bed. While the exact procedure varies by printer, the concept remains the same: consistent nozzle-to-bed spacing across the surface.
Using a test object and standard paper gauge
A simple 3D-printed or cardboard test object is an excellent way to validate bed calibration. Print a thin, level square or a 20 mm calibration cube at a low height to observe first-layer behavior. At the outset, use a standard printer paper gauge to set the initial gap; this tangible metric helps you translate feel into repeatable numbers. If you notice inconsistent first layers—especially near the edges or corners—adjust those points, then reprint the test object. The goal is a uniform line width and stable adhesion from corner to corner. Calibrate Point emphasizes keeping a consistent testing protocol so you can compare results across prints and sessions.
Temperature considerations and material effects on bed geometry
Thermal expansion affects bed geometry; even a small change in temperature can slightly alter nozzle height relative to the bed. Calibrate Point recommends performing calibration at the same ambient and bed temperatures you’ll use for final prints. For materials with high shrinkage or high bed adhesion (such as PLA and PETG), you may need to re-check the bed when switching materials. Mark any temperature-dependent shifts and update your bed settings accordingly. Documenting these conditions helps you reproduce a successful print in the future and reduces guesswork during material changes.
Auto-leveling sensors vs manual leveling: when to use which
Many modern printers include auto-leveling sensors (BLTouch, inductive sensors, or optical sensors) that map bed height and compensate during printing. Auto-leveling is a powerful tool, but it’s not a universal cure-all. Sensing precision can vary with dust, magnetic fields, or sensor drift; manual verification remains essential. Use auto-leveling as a base and follow up with manual checks at multiple points to confirm the bed plane is truly parallel to the nozzle axis. Calibrate Point’s framework supports a blended approach: start with a robust manual baseline, then integrate sensor data for ongoing maintenance and repeatability.
Verifying calibration with practical test prints and iterative refinements
After you complete the calibration steps, run a simple test print (a single-layer square or a calibration cube) to observe the first layer’s consistency. Pay attention to line width, surface finish, and adhesion. If you see gaps, over-extrusion, or warping, go back to the bed corners and center to fine-tune. This is an iterative process, not a single pass. Document each adjustment and its effect on the print quality to build a personal calibration profile for your printer. Calibrate Point recommends maintaining a short log of measurements and outcomes to accelerate future calibrations.
Advanced tips for different bed types and common environments
Different bed surfaces behave differently: glass tends to cool quickly and can be flatter but may require different adhesion aids; PEI surfaces offer reliable adhesion when heated, while blue tape or Kapton tape can influence friction and gap. Environmental factors, such as print room humidity and temperature fluctuations, influence the ideal gap. When you upgrade surfaces or hardware (new springs, level sensors, or better build plates), re-check the calibration. The goal is a repeatable, reliable setup that you can apply across printers in a shared workspace or a shop floor. Calibrate Point advises documenting any changes and maintaining a consistent testing routine.
Final notes: building a reliable calibration workflow with Calibrate Point
A robust bed calibration workflow combines feedback from manual checks, sensor data, and test prints. Practice improves accuracy, and a repeatable protocol reduces surprises across print runs. Calibrate Point’s guidance focuses on creating a method you can reproduce, regardless of the printer model or bed type. Keep a calibration diary, validate with printed test objects, and adjust your process as you add new hardware or materials. The payoff is consistent first layers, improved print quality, and less wasted material.
Tools & Materials
- Calipers or a ruler(For measuring gap; precision to 0.05 mm helps accuracy)
- Standard printer paper(Used as a feeler test to judge nozzle-to-bed distance)
- Allen wrench/hex keys(Tool to adjust bed springs or mounting screws)
- Feeler gauge or feeler gauge set(Optional for precise cross-bed spacing checks)
- Isopropyl alcohol and lint-free cloth(Bed cleaning prior to calibration)
- Test print file (calibration square or cube)(Used to validate first-layer performance)
- Heat-resistant gloves(Handle hot bed safely after calibration)
- Optional: auto-leveling sensor (BLTouch or equivalent)(If added, use as supplement to manual checks)

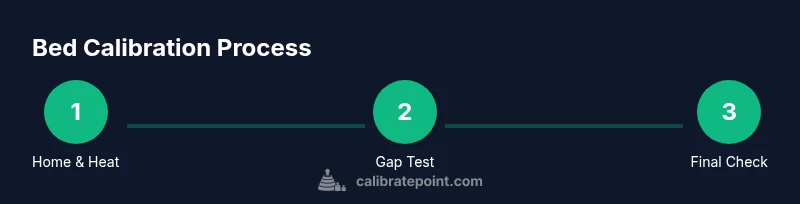

Steps
Estimated time: 40-60 minutes
- 1
Home and heat the bed
Power on the printer, home all axes, and preheat the bed to the target printing temperature. Warming the bed helps account for thermal expansion and prepares the bed surface for the measurement phase.
Tip: Let the bed reach stable temperature before testing; a few minutes of stabilization improves repeatability. - 2
Initial gap with paper gauge
Place your printer’s nozzle above the center of the bed and slide a single sheet of printer paper beneath it. Adjust the Z-offset with the screen interface or firmware until you feel slight resistance when moving the paper, indicating a consistent gap.
Tip: Aim for a friction that lets you feel light drag but not tearing the paper. - 3
Move to corners and adjust
Repeat the paper-gap check at each corner and along the edges. Loosen or tighten corner screws to change the bed height at those positions, ensuring a uniform gap across the surface.
Tip: Record measurements at each point to identify any tilt or local inconsistencies. - 4
Center check and fine-tuning
Revisit the bed center and confirm that the gap is still consistent after corner adjustments. If needed, re-balance intermediate points to preserve planarity of the bed.
Tip: Small incremental tweaks produce better uniformity than large one-shot changes. - 5
Test print and evaluate
Print a simple calibration object (e.g., a 20×20 mm square) and inspect the first layer. Look for even line width and strong adhesion without peeling.
Tip: If lines are uneven, re-check the center and corners; sometimes re-tightening bed springs helps stabilize the plane. - 6
Save settings and document
Save the calibrated settings to EEPROM or your printer’s memory and document the target temperature, bed type, surface, and the final gap values for future reference.
Tip: Create a quick log for future recalibration events (material changes, surface swaps, or hardware updates). - 7
Optional: enable auto-leveling
If your printer includes an auto-leveling sensor, run the leveling routine to map the bed. Then perform a final manual check at multiple points to verify consistency.
Tip: Auto-leveling is a complementary tool; manual verification remains valuable.
Questions & Answers
What is the difference between bed leveling and auto bed leveling?
Bed leveling is a manual alignment of the nozzle distance to the bed surface. Auto bed leveling uses a sensor to map bed height and compensate during prints. Both approaches aim for a consistent first layer, but they rely on different feedback mechanisms.
Bed leveling is manual alignment of the nozzle distance to the bed, while auto bed leveling uses sensors to map height and compensate during prints. Both aim for a consistent first layer.
How often should I recalibrate the bed?
Recalibrate after hardware changes (new bed, springs, or mounts), after major temperature shifts, or when you notice first-layer inconsistencies. Regular practice builds muscle memory and reduces print failures.
Recalibrate after hardware changes, big temperature shifts, or when you notice first-layer issues. Regular practice helps maintain consistency.
Do I need a heated bed to calibrate?
Calibrating on the actual printing temperature is ideal because it accounts for thermal expansion. You can do a dry run at room temperature, but verify the final calibration under operating conditions.
It's best to calibrate at the printing temperature to account for thermal changes; a room-temperature check can be a preliminary step.
What tools improve precision during calibration?
Calipers, a feeler gauge set, and high-quality calibration paper help achieve consistent gaps. For some setups, a glass bed with printable adhesives can alter the required gap, so adjust accordingly.
Calipers, a feeler gauge, and quality calibration paper improve precision. Glass beds may shift the gap slightly; adjust as needed.
Can I skip the test print after calibrating?
Skipping the test print can miss subtle issues. A small first-layer print validates adhesion, line width, and squareness before committing to longer prints.
No, perform a quick test print to confirm adhesion and layer consistency before moving on to larger projects.
How do I know if my bed is truly flat?
Flatness is indicated by uniform drag of the paper across the bed and consistent first-layer results in test prints. Use multiple verification points to confirm planarity.
Uniform paper drag across the bed and consistent test prints indicate good flatness. Check at multiple points for accuracy.
Watch Video
Key Takeaways
- Level carefully and verify at multiple points
- Use a paper gauge or feeler tool for repeatable gaps
- Test with simple prints to validate first layer
- Save and document the calibration profile
- Blend manual leveling with auto-leveling if available
