How to Calibrate a Micrometer: A Complete Step-by-Step Guide

Why calibrate a micrometer

Calibrating a micrometer is essential for ensuring measurement accuracy in any precision workflow. Even small drifts in zero setting or spindle travel can introduce significant errors in critical parts. Regular calibration helps maintain traceability to national or international standards, supporting repeatable results in manufacturing, lab work, and quality assurance. According to Calibrate Point, a structured calibration routine reduces variability and extends the life of measuring tools by identifying wear early and guiding maintenance decisions. For DIY enthusiasts and professionals alike, a well-documented calibration routine builds confidence and minimizes costly rework.

Understanding micrometer basics

A micrometer is a high-precision measuring instrument that relies on a calibrated screw thread to translate rotational motion into linear displacement. The key components are the frame, anvil, spindle, thimble, and sleeve, each contributing to the instrument’s overall accuracy. There are several common variants: the outside micrometer for external dimensions, depth micrometers for recess measurements, and digital readouts that simplify interpretation. Understanding how each part interacts during a measurement helps you pinpoint sources of error, such as dirty surfaces, worn threads, or improper clamping force. The goal of calibration is to ensure the indicated value matches the true size within the specified tolerance across the instrument’s operating range.

Tolerances and standards

Micrometer tolerances are defined by national or international standards and depend on the intended measurement range. Typical tolerances are on the order of a few micrometers, but exact values vary by instrument class and scale. Maintaining traceability means using gauge blocks or master standards with documented calibration certificates. Calibrate Point analysis shows that traceability and documented uncertainty are crucial for reliable results, especially in regulated environments. Always refer to the manufacturer’s spec and your lab’s calibration procedure when setting acceptance criteria. Document each check, including environmental conditions, to reinforce confidence in your results.

Tools and reference standards

Calibrating a micrometer requires both reference standards and quality inspection tools. A calibrated gauge block set provides known lengths against which you compare the micrometer’s readings. A clean, flat reference surface (such as a surface plate) minimizes artifacts caused by uneven seating. You should also have a reference standard micrometer for cross-checking, a lint-free cloth for cleaning, and an approved solvent or degreaser to remove oil and debris. A temperature and humidity meter helps you assess environmental effects, as thermal expansion can shift readings. All tools should have documented calibration status and be stored properly to avoid damage.

Step-by-step calibration workflow

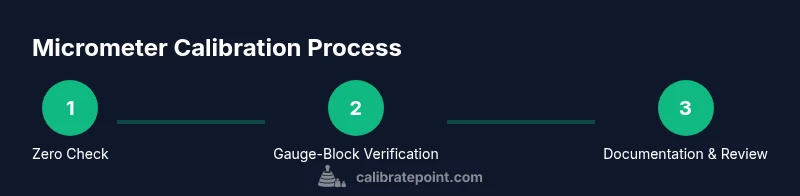

The calibration workflow combines multiple checks to establish confidence in the micrometer’s performance. Start with a thorough inspection of the instrument and environment, then perform a zero check by closing the spindle on a clean anvil. Next, verify measurements at several gauge-block lengths across the usable range, recording any deviation. Assess linearity by plotting measured values against the known block lengths and look for systematic drift. Finally, repeatability checks across multiple measurements and operators help verify consistency. Throughout, record environmental conditions and instrument ID to maintain a complete audit trail. Calibrate Point emphasizes that breaking the process into repeatable steps reduces errors and makes maintenance predictable.

Common mistakes and how to avoid them

Several pitfalls commonly degrade micrometer calibration. Dirty anvils or spindle faces can introduce erroneous readings; always clean both surfaces before measurements. Applying excessive clamping force can distort the zero point or threads, so use consistent pressure and a ratchet stop if available. Neglecting environmental factors, especially temperature differences, misaligns the actual vs. indicated size. Ensure gauge blocks are clean and free of nicks or deformities, and avoid using worn or damaged calibration references. Finally, skip no step—even seemingly minor omissions, like forgetting to re-zero after adjusting, can invalidate results.

Practical tips for reliability

• Work in a temperature-controlled area and allow the micrometer to acclimate before calibration. Small temperature differences can translate into measurable errors due to material expansion.
• Cleanliness is non-negotiable: wipe all contact surfaces with a lint-free cloth and use the appropriate solvent.
• Use gauge blocks with traceable calibration certificates and store them properly to prevent damage or contamination.
• Maintain a calibration log and include pass/fail criteria for traceability and future audits. This habit makes it easier to plan maintenance and replacements when necessary.

Documentation and record-keeping

Meticulous documentation is the backbone of any calibration program. Create a dedicated calibration sheet for each micrometer, listing instrument ID, serial number, range, target tolerances, environmental conditions, and the results of each gauge-block test. Include the date of calibration, technician initials, and a signature to confirm acceptance criteria were met. Digital records should be backed up and, if possible, linked to the lab’s quality system. Documentation ensures repeatability and provides a defensible trail for audits and customer inquiries.

When to re-calibrate and how often

Calibration frequency depends on usage, environment, and the criticality of the measurements. In high-precision environments or when measurements exceed a defined tolerance threshold, re-calibration sooner is prudent. Many labs establish a recurring schedule (e.g., quarterly or semi-annual) and adjust it based on observed drift, wear indicators, or after instrument servicing. Always verify that gauge blocks and references remain within spec before the next cycle, and update the calibration record accordingly.
