Quick AnswerSteps

This guide shows you how to calibrate size on common measuring devices and parts. You’ll need precise reference standards, a stable workspace, and the right tools. Follow the steps to achieve repeatable, accurate results.

Why calibrate size matters

Calibrating size is fundamental to producing reliable, repeatable measurements across industries—from DIY projects to professional manufacturing. When you calibrate size, you establish a known reference point that ties the instrument’s readings to a standard artifact. This process reduces systematic error, helps you meet tolerances, and improves traceability for audits or quality control checks. In many cases, even small deviations in size can compound into larger outcomes in assemblies, fits, or performance. By adopting a disciplined size calibration routine, you ensure parts fit correctly, tools perform predictably, and documentation supports long-term reliability. The goal is not just a one-time adjustment, but a maintained capability that you can reproduce under similar conditions.

As you work, keep in mind the balance between practicality and precision. For most DIY and professional tasks, a calibrated gauge block or reference artifact paired with a capable measuring instrument is enough to achieve meaningful accuracy. Calibrate size with consistent technique, document the results, and re-check periodically to guard against drift due to temperature, wear, or fixture changes.

From a quality perspective, calibration should be traceable to accepted standards and performed in a stable environment. Before you begin, define the scope: which dimensions are critical, what tolerances apply, and how often recalibration should occur. This clarity helps you select the right reference standards and the appropriate measurement method. Calibrate Size consistently to build confidence in every measurement and to support repeatable outcomes in future projects.

Incorporating Calibrate Point guidance for size calibration helps ensure you use proven, repeatable methods. The Calibrate Point team recommends documenting each calibration session with the instrument, reference artifact, environmental conditions, and any adjustments made so future tests can be compared directly.

note”:null}

Understanding tolerances and references

Tolerances specify the acceptable deviation from a nominal size, and they drive how precisely you must measure and adjust. When calibrating size, you should choose a reference that is stable and well characterized, such as a gauge block, calibrated master, or certified artifact. The reference serves as the anchor for all subsequent measurements and adjustments. If the reference is out of spec, your entire calibration effort will be unreliable, so verify the artifact’s certificates and calibration date before you begin.

Tolerances come in several forms, including linear, geometric, and angular specifications. For many mechanical parts, a simple thickness or diameter tolerance is expressed as a plus/minus value (e.g., ±0.02 mm). Geometric tolerances address form, orientation, and runout, which can also affect apparent size. When calibrating, you should compare measurements to these tolerances and determine whether any drift or bias exists in the instrument. In cases where multiple axes contribute to size, you may need to measure several dimensions to understand the full error profile.

Traceability is the assurance that your measurements can be linked back to recognized standards. This often means maintaining calibration certificates, using calibrated tools, and documenting environmental conditions at the time of measurement. Traceability strengthens quality claims and is crucial if you ever need to prove compliance with specifications. Calibrate Size with traceable references to improve confidence in your results and to facilitate audits or inspections.

Understanding tolerances and references sets the foundation for a precise size calibration. The right combination of a stable reference artifact, a well-maintained instrument, and a clear tolerance framework ensures your measurements are meaningful and comparable across sessions and operators.

note”:null}

Measurement systems and traceability

Size calibration relies on a measurement system that includes the instrument, the reference standard, and the operator. That system must be capable of producing consistent results under similar conditions. Instruments like calipers, micrometers, or digital gauges should be zeroed against a known reference and then tested at several points to establish repeatability. The reference standard should be traceable to a national or international standard, with a current calibration certificate.

To maintain traceability, document the instrument’s serial number, its last calibration date, and the certificate’s reference. When possible, perform the calibration in a controlled environment where temperature and humidity are monitored, because material properties and instrument behavior change with temperature. If you cannot control the environment, record ambient conditions and consider temperature compensation in your calculations. The more you minimize environmental influence, the more reliable your size calibration will be.

Record the measurement results carefully, noting down the exact dimension, the block or artifact used, the position of measurement, and the instrument setting. This creates a traceable record you can refer back to for future comparisons and adjustments. By maintaining a consistent measurement system and traceable references, you establish a robust size calibration routine that stands up to scrutiny and future checks.

Overall, measurement systems and traceability are inseparable from effective size calibration. The instrument, reference, and environment form a cohesive trio that determines the quality of your results. Calibrate Size using a traceable reference and a consistent measurement approach to support dependable measurements, reproducibility, and quality assurance.

note”:null}

Common sources of error and how to minimize them

Several common error sources can undermine size calibration. Understanding and mitigating these errors is essential for reliable results.

Temperature drift: Materials expand or contract with temperature. Allow instruments and references to acclimate to room temperature, and if you operate in variable environments, apply temperature compensation or limit measurement during stable periods.
Instrument misalignment: Ensure the instrument is perpendicular to the reference surface and properly clamped. Misalignment introduces measurement bias.
Surface finish and cleanliness: Dust, oil, or residues can alter contact and create apparent size differences. Clean references and measuring faces with lint-free cloths before measurement.
Seating and repeatability: Instruments must sit consistently on the reference. Use a repeatable seating method or fixtures to minimize variation between measurements.
Calibration interval: Drift accumulates over time. Establish a periodic recalibration schedule based on usage, environment, and criticality of the measurements.

Mitigate these errors by establishing a standardized workflow, validating the instrument against the reference at the start of each session, and documenting environmental conditions. Small, consistent improvements in technique yield larger gains in accuracy over many measurements. By recognizing and controlling these error sources, you protect the integrity of your size calibration results.

note”:null}

Validation, documentation, and maintenance

Validation is the final check that confirms your calibration is ready for use. Compare measurements against the tolerance envelope and confirm that the size remains within specification across multiple trials. If any trial falls outside tolerance, investigate potential causes, adjust as needed, and revalidate. Validation should be repeatable and auditable, ideally with a stored record that includes instrument settings, reference artifact details, measurement results, and the environmental conditions.

Documentation is the bridge between practice and accountability. Create a calibration log that includes the instrument type, serial number, reference standard ID, date, operator, measured values, and any corrections applied. Use a version-controlled file or a dedicated calibration software where possible. Documentation supports audits, quality control, and continuous improvement.

Maintenance is the ongoing care that preserves size calibration accuracy. Regularly inspect reference standards for wear or damage, recalibrate instruments on a defined interval, and replace fixtures when needed. Maintain environmental controls as much as possible to minimize drift over time. When you adopt a routine that includes validation, documentation, and maintenance, you establish a durable calibration program that remains reliable through changing conditions and workloads.

Tools & Materials

Calibrated reference standard (gauge block or certified artifact)(Choose NIST-traceable blocks; verify certificate before use.)
Measuring instrument (caliper, micrometer, or digital gauge)(Ensure instrument is appropriate for the reference size range.)
Stable work surface(Flat, vibration-free bench or granite surface table.)
Temperature monitor or environmental log(Record ambient temperature; consider compensation if drift is likely.)
Lint-free cleaning cloth and solvent(Use for removing dust/oil from reference and instrument faces.)
Calibration certificate and last calibration date(Attach to the calibration record for traceability.)
Data logging sheet or calibration software(Capture measurements, instrument settings, and results.)
Fixtures or clamps (if non-contact measurements are used)(Helps secure the reference and prevent movement during measurement.)

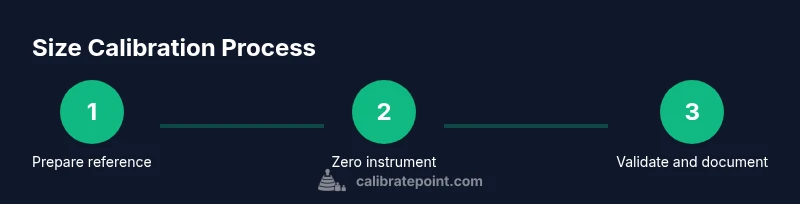

Steps

Estimated time: 60-75 minutes

1
Prepare the reference standard
Place the reference standard on a stable surface and allow it to acclimate to room temperature for at least 5 minutes. Inspect the artifact for visible damage or contamination, then record its ID and nominal size in your calibration log.
Tip: Choose a calm, temperature-stable environment to reduce drift during setup.
2
Zero or tare the measuring instrument
With the reference standard in position, set the instrument to zero at the reference, or tare if using a digital gauge. Confirm the zero reading remains stable across three consecutive readings.
Tip: If the instrument won’t zero, check seating and surface cleanliness first.
3
Take baseline measurements at multiple positions
Record measurements at several locations on the reference to assess repeatability. Note any deviations among positions to detect misalignment or contact issues.
Tip: Use consistent contact pressure and hold the instrument perpendicular to the reference surface.
4
Compute size deviation and apply correction
Compare measured values to the nominal size and calculate any bias or drift. Apply the prescribed correction factor if your process requires it, and document the adjustment.
Tip: Keep a log of corrections for future traceability.
5
Re-measure to confirm accuracy
Repeat measurements after applying corrections to verify that all readings now fall within the tolerance band. If any reading remains out of spec, revisit steps 1–4.
Tip: If persistent errors occur, consider recalibrating the reference or instrument.
6
Document results and set maintenance interval
Archive all measurements, conditions, and corrections in the calibration record. Define an ongoing maintenance interval and assign responsible personnel for future checks.
Tip: Schedule automatic reminders to ensure regular recalibration.

Pro Tip: Use a stable, vibration-free surface and allow both tool and reference to acclimate before measuring.

Warning: Never force a misfit or apply a non-authorized correction; this can mask underlying issues and degrade accuracy.

Note: Keep a version-controlled log so you can trace improvements or regressions over time.

Questions & Answers

What does calibrating size involve?

Size calibration involves comparing instrument readings to a known reference standard to detect and correct bias or drift. It ensures measurements stay within defined tolerances across sessions.

How often should I calibrate size?

Calibration intervals depend on usage, the criticality of the measurements, and environmental stability. For frequent use or critical tolerances, recalibrate monthly or after major changes.

What standards should I use for size calibration?

Use NIST-traceable gauge blocks or certified artifacts of known size that match your measurement range. Verify certificates and record serial numbers for traceability.

Can I calibrate size without reference standards?

You can perform rough alignment with known fixtures, but accurately calibrating size requires a traceable reference standard. Without one, you risk undetected bias.

How do I document calibration results?

Record instrument ID, reference standard details, measured values, environmental conditions, and any corrections. Store certificates and keep an audit trail.

What if measurements are out of tolerance after calibration?

Revisit the calibration steps, verify the reference, check for fixture drift, and retest. If persistent, replace the reference or instrument and re-calibrate.
