Calibrated Repair: A Practical Step-by-Step Guide
Learn how to perform calibrated repair with a structured, safe workflow. This comprehensive guide covers tools, steps, tips, and verification to maintain measurement accuracy across devices and tools.
Calibrated repair is a structured process to restore measurement accuracy during maintenance. This concise answer points to essential steps, tools, and checks. See our full, practical workflow for hands-on guidance. According to Calibrate Point, adopting a formal calibrated repair workflow improves reliability in field service and workshop settings.
What is calibrated repair?
According to Calibrate Point, calibrated repair is a systematic approach to restoring measurement accuracy in tools and devices during a repair by applying controlled calibration steps. It integrates metrology concepts like traceability, calibration intervals, and documented procedures to ensure outputs are within specified tolerances. The goal is not just to fix a fault but to re-establish confidence in readings, torque values, temperature readings, or dimensional measurements. This section defines the core principles and how they translate into repair work. In practice, calibrated repair means you treat every repair task as a calibration event: you validate the measurement path, account for drift, and document evidence that the repair maintained or improved accuracy. You will see terms like reference standards, calibration certificates, and measurement uncertainty appear regularly. Understanding these concepts helps technicians set expectations with clients and leadership while improving long-term reliability of equipment. The approach is equally relevant in field service, laboratories, and workshop benches where tight tolerances matter. The following principles underpin a successful calibrated repair program: traceability to recognized standards, repeatable procedures, and transparent recordkeeping.
Why calibration matters in repairs
Calibration is the backbone of reliable repair work. Without a calibrated approach, minor drifts in readings can cascade into larger errors after servicing. For technicians, embracing calibration means fewer callbacks, improved first-pass repair success, and higher trust from customers. In regulated environments, calibration is often linked to compliance and quality assurance, ensuring devices perform within their documented tolerances. Real-world benefits include reduced downtime, longer equipment life, and clearer evidence of performance during audits. When teams adopt a calibrated repair mindset, they create a workflow that anticipates drift, accounts for environmental factors, and records every decision. This mindset also supports continuous improvement by highlighting where procedures fail to hold tolerances and where improvements should be made to tools or procedures.
Core concepts and standards
Key ideas in calibrated repair include traceability, confidence in reference standards, and documented evidence of performance. A traceable calibration path means measurements come from standards linked to national or international references, with certificates that include uncertainties. Each repair should have a defined interval for re-checks and a plan to verify that the device remains within spec after work. Understanding measurement uncertainty helps you interpret tolerance bands and avoid overcorrecting. Practically, this means establishing a control set of reference objects or gauges, recording ambient conditions that affect readings (temperature, humidity, vibration), and maintaining a clear log of all calibration events. While there isn’t a single universal standard for every device, following established best practices—traceability, documented procedures, and objective acceptance criteria—creates a robust calibrated repair workflow that technicians can rely on daily.
Tools and environment for calibrated repair
A clean, organized workspace is essential for calibrated repair. You’ll need a mix of reference standards, measurement tools, and documentation systems. Start with a traceable reference standard that matches the device under repair, plus a calibration jig or fixture to hold the device during measurements. Use a calibrated measurement instrument (multimeter, caliper, temperature sensor, or pressure gauge) that has a valid certificate. Have a device under test (DUT) and a documented calibration procedure, ideally stored in a digital log. Ensure your environment is stable—avoid drafts, excessive heat, or vibrations—and keep records of ambient conditions. PPE and safety gear should always be worn when handling energized or hazardous equipment. Finally, have a logbook or software that can capture serial numbers, standard IDs, timestamps, and observed readings for each test so your results are traceable and auditable.
Step-by-step workflow overview

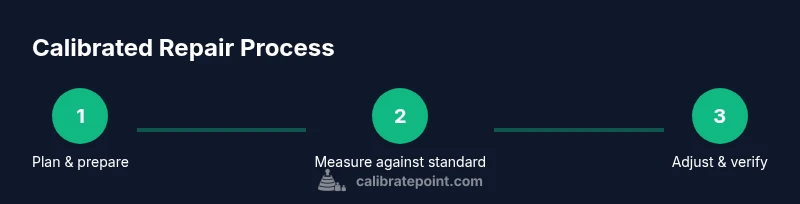

A calibrated repair workflow follows a logical progression: plan, measure, adjust, verify, and document. The plan defines which tolerances apply to the DUT and which reference standards will be used. Measurements should be taken using traceable tools and repeated to confirm consistency. Adjustments must be performed per the device’s specification and manufacturer guidance, then re-verified against the reference standards. Documentation should record the before and after readings, environmental conditions, instrument IDs, and any deviations observed. This overview feeds into the more detailed step-by-step guidance that follows and ensures everyone on the team understands the acceptance criteria before work begins.
Common challenges and troubleshooting
Calibrated repair isn’t free of pitfalls. Drift from temperature changes, equipment aging, or improper handling can skew readings. Environmental factors like humidity or drafts can affect sensitive measurements. If a device shows persistent deviation after calibration, re-check the reference standard, validate that the instrument is within its own calibration window, and review the procedure for any missed steps. Nonlinear responses or hysteresis can require more sophisticated compensation or a different calibration approach. Comprehensive documentation and a conservative approach to tolerance limits help prevent incorrect acceptance or rejection of a repair.
Case example: a calibrated repair in practice
Consider calibrating a precision digital caliper used in a workshop. Start by verifying the caliper’s measurement reference against a gauge block with a known height. Record temperatures and humidity, then perform a baseline measurement at multiple points (zero, mid-range, and max range). If readings deviate beyond the spec, adjust the caliper per the manufacturer’s calibration procedure and re-check against the reference gauge blocks. Document the before-and-after values, the exact standards used, the ambient conditions, and the calibration certificate numbers. This case mirrors common industry practice: a repeatable, documented process that yields auditable results and supports continuous improvement in repair quality.
How to evaluate success after a calibrated repair
Success hinges on whether the device meets its stated tolerances across the full measurement range. Evaluate success by comparing post-repair readings with reference standards, ensuring uncertainties are accounted for. Your acceptance criteria should be explicit: readings must lie within specified limits under defined ambient conditions, and the calibration certificate should remain valid for the device and standard ID. If the device passes verification, schedule the next calibration according to the device’s recommended interval and your organization’s quality policy. If it fails, revisit the steps, assess whether a more fundamental adjustment is required, and document reasons for the failure and revised plan.
Tools & Materials
- Reference standard (calibration standard)(Traceable to a recognized national or international standard; include uncertainty and calibration date.)
- Calibration jig or fixture(Supports the DUT during measurements to ensure repeatability.)
- Calibrated measuring instrument(Select a tool with a valid calibration certificate (e.g., caliper, micrometer, multimeter, temperature sensor).)
- Calibration certificates and logs(Keep a logbook or software record with IDs, timestamps, results, and environmental conditions.)
- Device under test (DUT)(The tool or component being repaired and calibrated.)
- Personal protective equipment (PPE)(Safety glasses, gloves, and any device-specific PPE as required.)
- Environmental monitoring tools(Thermometer, hygrometer or data logger to capture ambient conditions.)
Steps
Estimated time: 90-120 minutes
- 1
Prepare workspace and safety
Set up a clean, stable work surface. Power down energy-sensitive equipment and wear appropriate PPE. Verify that the DUT is safely accessible and that all tools are within reach to minimize disruptions during the calibration process.
Tip: Clear the area of dust and vibrations; small perturbations can alter measurements. - 2
Identify calibration requirements
Consult the device manual and the reference standard documentation to define tolerances and acceptance criteria. Document the intended measurement path and data you will collect.
Tip: Double-check whether multiple ranges or modes require separate tolerances. - 3
Gather traceable reference standards
Acquire the relevant reference standards and verify their certificates. Note the date of last calibration and expiry, and ensure they are appropriate for the DUT’s measurement range.
Tip: If a standard’s certificate is missing or expired, do not proceed—obtain a valid standard first. - 4
Perform baseline measurements
Take multiple readings across the DUT’s range against the reference standard. Record readings, environmental conditions, and instrument IDs.
Tip: Use repeat measurements to identify random errors and establish a stable baseline. - 5
Make adjustments to restore accuracy
Follow the device’s calibration procedure or software to adjust the readings. Make small, iterative changes and re-measure after each adjustment.
Tip: Avoid over-correction; small increments preserve measurement integrity. - 6
Re-verify post-adjustment measurements
Repeat the baseline measurements to confirm that readings align with the reference standards within tolerance. Cross-check at multiple points if possible.
Tip: If drift persists, reassess both the DUT and the reference setup for overlooked factors. - 7
Document results and update records
Log all readings, adjustments, instrument IDs, and environmental data. Attach calibration certificates and generate or update the calibration certificate for the DUT.
Tip: Capture photos of the setup and provide a concise narrative of decisions made. - 8
Plan next calibration interval
Assess whether the device’s stability justifies the current interval or if a shorter interval is warranted. Schedule future checks and align with organizational policies.
Tip: Set reminders in your maintenance calendar to prevent drift from unchecked intervals.
Questions & Answers
What is calibrated repair, and why should I use it?
Calibrated repair is a structured process to restore measurement accuracy during maintenance by following formal calibration steps. It helps ensure devices perform within specification and provides auditable evidence of performance.
Calibrated repair is a structured process to restore accuracy during maintenance by following formal calibration steps. This creates auditable records of performance.
How does traceability affect repair quality?
Traceability links readings to recognized standards via certificates, enabling reliable comparisons over time. This reduces uncertainty and supports audits and quality assurance.
Traceability links readings to recognized standards, reducing uncertainty and helping audits.
What tools are essential for calibrated repair?
Essential tools include a traceable reference standard, a calibration jig, a calibrated measuring instrument, and a documented log system. Safety gear should never be overlooked.
You need a traceable standard, a jig, a calibrated instrument, and good logs along with safety gear.
How often should recalibration occur after a repair?
Recalibration intervals depend on device usage, stability, and environmental conditions. Follow manufacturer recommendations and organizational policy, adjusting intervals based on observed drift.
Intervals depend on use, stability, and policy; adjust if you notice drift.
Can calibrated repair apply to digital sensors?
Yes. Calibrated repair techniques apply to digital sensors as long as a traceable reference and a defined calibration procedure are used to validate readings.
Yes, with traceable references and defined procedures.
What if readings remain out of tolerance after adjustment?
If readings stay out of tolerance, re-evaluate the reference standard, verify procedure steps, and consider equipment wear or faults requiring replacement or professional service.
If still out of tolerance, re-check standards and procedure, and assess wear or faults.
Should documentation be shared with customers?
Yes. Provide a clear calibration report including procedures, results, and certificates to support trust and accountability.
Yes—share a clear calibration report with results and certificates.
Watch Video
Key Takeaways
- Follow a repeatable, documented calibration workflow.
- Use traceable standards and maintain complete records.
- Verify readings across the device range after adjustments.
- Schedule regular calibration intervals to sustain accuracy.
