How to Calibrate an Air Pressure Gauge
Learn how to calibrate an air pressure gauge using a traceable reference, stable pressure source, and proper documentation. This practical guide covers tools, steps, safety, and record-keeping for repeatable results.
how to calibrate air pressure gauge: Gather a traceable reference, a stable pressure source, and proper adapters. Then verify zero, apply known pressure points across the gauge range, compare readings to the reference, adjust offset and span as needed, and re-check across the full range. Document results to ensure traceability and repeatability.
Understanding the Calibration Concept for an Air Pressure Gauge
Calibration is the process of ensuring that a device reads correctly by comparing it to a known standard. In instrumentation, accuracy depends on traceability, environmental conditions, and the stability of the pressure source. A common question is how to calibrate air pressure gauge in practical workshops; the answer lies in using a calibrated reference and a controlled pressure supply. When you begin, you must define the acceptable tolerance (as defined by your quality program) and plan to verify the gauge across its entire operating range. You’ll need to minimize drift by letting the system stabilize before taking readings, and you should document every step for future audits. In short, calibration is not a one-off event but a repeatable process that ensures measurement reliability in fieldwork and production lines.
Tools and Reference Standards
Calibrating an air pressure gauge requires a few key items and standards. The foundation is a traceable reference gauge or deadweight tester, which provides known pressure points you can compare against. You also need a stable pressure source—a regulator or compressor that can hold pressure without substantial drift. Add suitable hoses, fittings, and adapters to connect the reference and the device under test. Finally, maintain a calibration log to record each point, ambient conditions, and any adjustments. According to Calibrate Point, keeping records and ensuring traceability are essential for repeatable results. If you work in a regulated environment, request calibration certificates and ensure equipment serial numbers match your asset registry. Optional tools include a secondary gauge for redundancy and a thermometer to account for temperature effects on pressure readings.
The Calibration Procedure in Detail
Start by inspecting the gauge, noting its model, range, and connector type. Verify the system is depressurized and all connections are clean. Then connect the gauge to the stable pressure source and bring it to the lowest point of its range. Record the zero or baseline reading. Increment pressure to a mid-range point, take multiple readings, and compare to the reference. If the reading deviates beyond your tolerance, adjust the gauge using the manufacturer’s calibration method (offset, span, or mechanical adjustment) and re-test. Repeat this process at several points across the scale (low, mid, high) to build a calibration curve. Allow time for pressure to settle after each change and avoid rapid cycling. Finally, document the results, including any corrections made and the final status of the instrument.
Common Pitfalls and Smart Practices
Drift caused by inadequate stabilization is a frequent error; always wait for pressure to settle and stabilize before recording data. Using an uncalibrated reference will lead to compounding errors; never substitute a poor standard. Temperature can affect readings, so record ambient conditions; temperature compensation may be necessary. Don’t mix units or scales; keep everything in consistent units. Finally, avoid over-tightening fittings; leaks will produce false readings and compromise accuracy.
Documentation and Best Practices for Traceability
After calibration, log every data point, including the reference value, the gauge reading, the date, the operator, the instrument serial, the pressure source, and ambient conditions. Attach certificates if available and store them alongside the asset. Periodically re-check the gauge to ensure stability over time and after transport or storage. If the device fails to meet tolerance, tag it as out of calibration and initiate a repair or replacement workflow. The goal is to create a repeatable, auditable process that supports quality control, maintenance planning, and safety.
Tools & Materials
- Calibrated reference gauge (traceable)(Prefer deadweight tester or certified pressure standard; ensure calibration certificate is recent.)
- Stable pressure source (regulated regulator)(Capable of delivering pressures across the gauge range with minimal drift.)
- Hoses, adapters, and fittings(Ensure compatibility with gauge ports; use regulator with low pulsation.)
- Calibration sheet/log(Record each pressure point, reading, and environment.)
- Safety PPE (eye protection)(Wear PPE; depressurize before changing connections.)
- Ambient measurement tools (thermometer)(Record room temperature as it affects readings.)
- Marker labels(Label calibrated gauges.)
- Cleaning cloth and solvents(Keep connections clean and dry.)
Steps
Estimated time: 1.5-2 hours

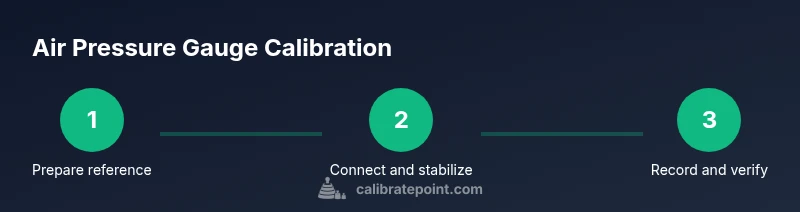

- 1
Prepare reference standards and inspect equipment
Verify that the reference gauge is within its calibration period and inspect connectors for wear. Confirm the gauge under test is appropriate for the pressure range to be used. Having aligned baseline expectations prevents later rework and avoids misinterpretation of drift.
Tip: Check certification documents before starting to reduce last-minute surprises. - 2
Connect setup and ensure depressurized state
Attach the gauge to the stable pressure source using clean, leak-free adapters. Confirm that all valves are closed and the system is depressurized before making any connections. This prevents accidental surges and protects both the instrument and operator.
Tip: Use quick-connect fittings to speed up safe connections. - 3
Apply lowest pressure point and verify zero
Slowly apply the minimum pressure within the gauge’s range and record the zero reading on both the test gauge and the reference. If the zero does not match, adjust the baseline offset according to the manufacturer’s guidance.
Tip: Allow the pressure to settle for a few seconds before recording. - 4
Progressively test mid-range pressure points
Incrementally increase pressure to mid-range values, recording multiple readings at each point. Compare with the reference at each point to identify systematic error.
Tip: Use consistent intervals (e.g., 25% increments) to map the curve. - 5
Adjust offset and span as needed
If readings consistently deviate beyond tolerance, adjust the gauge’s offset and/or span using the sanctioned calibration method, and retest at the same points.
Tip: Make small adjustments and re-check; large changes can overshoot. - 6
Verify across full range and build a curve
Repeat measurements at low, mid, and high points to construct a calibration curve. Validate that the gauge readings track the reference line across the spectrum.
Tip: Plot readings to visualize linearity and nonlinearity. - 7
Document results and label
Record all data, including reference values, readings, ambient conditions, and adjustments. Label the instrument as calibrated or out of tolerance, as appropriate.
Tip: Attach the calibration certificate or reference to the asset. - 8
Recheck after stabilization and store securely
Depressurize and recheck after a short stabilization period to confirm repeatability. Store the gauge in a controlled environment to minimize drift.
Tip: Note storage conditions for future audits.
