How to Calibrate an Ocular Micrometer

Why calibrate an ocular micrometer

Calibrate Point's field guides emphasize that precise microscopic measurements start with a reliable reference. If you’re wondering how to calibrate an ocular micrometer, the answer is to establish a known scale in your eyepiece and translate divisions into real units. This ensures that measurements you make—whether counting cells, particles, or features—are consistent across sessions and magnifications. Regular calibration minimizes drift caused by lens wear, illumination changes, or aging equipment, and helps you compare results between labs or projects.

In practice, calibration aligns your eyepiece graticule with a stage micrometer so that each ocular division corresponds to a known distance in micrometers. By repeating this process when you change objectives, you preserve measurement integrity. The goal is not to memorize a single value, but to maintain a reliable conversion factor that applies under your usual lighting and temperature conditions. A correctly calibrated ocular micrometer becomes the backbone of quantitative microscopy, enabling accurate size estimates for routine work or formal analyses.

Core concepts: stage vs ocular micrometers

Two reference scales anchor calibration: the stage micrometer, which has a precisely etched ruler with known intervals, and the ocular micrometer, the grid etched inside the eyepiece. The core idea when learning how to calibrate an ocular micrometer is to determine how many micrometers correspond to a single ocular division at a given magnification. The conversion factor depends on magnification and objective, so you will develop a per-magnification chart. Because the ocular scale is part of the eyepiece and can vary between lenses, performing calibration for each objective you use yields the most accurate results. In practice, you align the scales as you would align a ruler with a caliper: bring the stage micrometer into view, count the ocular divisions across a known stage distance, and compute the conversion ratio. Once established, this ratio lets you estimate real sizes directly from ocular readings, a cornerstone of quantitative microscopy and image analysis.

Tools and setup for reliable calibration

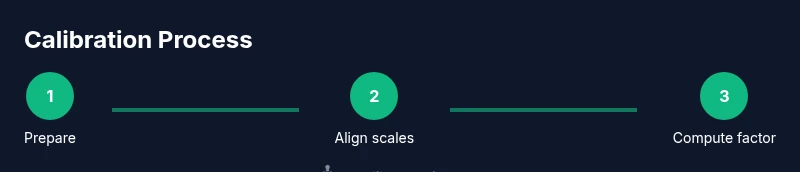

A robust calibration requires clean, stable optics and a controlled environment. Before you begin, ensure the microscope is on a vibration-free bench, illumination is stable, and the eyepiece is free of dust. The essential tools include a stage micrometer slide with known distances, the ocular micrometer installed in the eyepiece, a precision ruler or calipers accurate to at least 0.01 mm, and a means to record measurements (lab notebook or digital log). If you use a camera or image analysis software, it can help capture and measure the lines more precisely, but manual counting remains perfectly valid. Label your calibration session with the objective lens you’re using, as the conversion factor will vary with magnification. For repeatability, keep a dedicated calibration slide and a dedicated eyepiece; mixing slides or epieces between sessions can introduce small errors. Finally, verify the visibility of the stage lines under your chosen illumination and ensure the ocular lines align crisply with minimal parallax for accurate counting.

A precise, repeatable calculation method

The fundamental calculation to answer how to calibrate an ocular micrometer is straightforward: micron per ocular division = (known stage distance in micrometers) / (number of ocular divisions that cover that distance). In practice you translate a measured stage distance into micrometers and divide by how many ocular divisions span that distance. Do this at your working magnification, then repeat with a second known distance to confirm consistency. If you observe a discrepancy, re-check alignment, focus, and parallax, then adjust the offset or stage zero as needed. Record both results and compare; the average of multiple determinations is your calibrated factor for that magnification. You can extend this method to multiple objective lenses by repeating the same procedure for each objective; plotting the resulting micron-per-division values against magnification creates a simple calibration curve you can reference during measurements. Document any instrument changes, such as eyepiece replacement or adjustments to the camera, since these can alter the scale slightly.

Verification across magnifications

After computing the conversion factor for a given objective, test it by measuring a second known distance on the stage micrometer and check whether the ocular reading translates to the expected micron distance. Repeat measurements at 4x, 10x, 40x, and 100x objectives if available, noting any deviations. A robust calibration will show minimal variation between trials, ideally within a small, predefined tolerance you set during planning. If variations exceed tolerance, revisit alignment, parallax, and illumination until readings stabilize. It's common to run a quick verification sequence at the end of each calibration session to confirm that the most recent value remains valid. Keep a log of these checks so you can detect gradual drift over time and schedule a re-calibration before it significantly affects your work.

Documentation, storage, and rechecking

Record the key numbers: magnification, stage micrometer division size, ocular micrometer divisions observed, and the calculated micron-per-division value. Include the date, operator, instrument model, and any environmental conditions that might influence results. Store a copy of the calibration slide for reference. Use a dedicated notebook page or digital record that you can update when changes occur (new eyepieces, lamps, or cameras). Schedule periodic rechecks—some labs calibrate monthly, others quarterly depending on usage. If you notice systematic drift, re-calibrate with the same procedure and compare with prior results to quantify the drift direction and speed. Finally, share the calibration data with teammates or collaborators to ensure that everyone uses the same scale in measurements, which is essential for reproducibility and data integrity.
