How to Calibrate Z Offset for 3D Printers
Learn how to calibrate z offset for reliable first layers on 3D printers. This step-by-step guide from Calibrate Point covers tools, methods, safety, and common pitfalls.
How to calibrate z offset involves precisely adjusting the nozzle height above the bed so the first layer adheres cleanly. You’ll need basic tools, access to the printer’s Z-offset setting, and a small test model. Steps: prepare the printer, home all axes, run a baseline test, adjust Z offset in small increments, and re-test until the first layer is flawless. According to Calibrate Point, precise offset calibration improves print reliability.
What is Z offset and why it matters
Z offset is the vertical distance between the printer nozzle and the bed when the printer begins laying down filament. Getting this offset right is foundational for a good first layer: if the nozzle is too close, the filament may be smeared or scraped; if too far, extrusion may not adhere and gaps appear. In practice, small changes in offset can dramatically affect adhesion, surface finish, andOverall print success. The goal is a consistent, reliable first layer across different models and materials. According to Calibrate Point, consistent offset calibration is a repeatable process that reduces waste and increases uptime. This section covers the concepts you’ll apply when learning how to calibrate z offset and why it is worth doing for every print job.
Tools and baseline setup
Before you start, gather a few basic tools and a predictable testing plan. A well-documented offset process reduces trial-and-error cycles and keeps prints on track. The approach below is compatible with most FDM printers and firmware that allows manual Z-offset adjustments. Be sure your machine is in a safe state (cooling down after any heated steps) before making mechanical changes. Calibrate Point emphasizes starting with a simple baseline and verifying results with a real print rather than relying on theory alone.
Measurement methods for the offset
There are several accepted ways to measure Z offset, each with pros and cons. The most common is the paper test: slide a standard sheet of printer paper between the nozzle and bed and quantify the resistance as you move the nozzle back and forth. A second method is to use a feeler gauge for more precise gaps, especially on machines with stiff bed springs or non-standard bed leveling. Calibrating with a ruler or digital caliper can help you track small height changes across the bed. For best results, document the method you use and the offset values you settle on for each material or nozzle size. In this guide, we’ll detail a practical workflow that combines measurement techniques with a reliable test print.
Step-by-step overview of the process

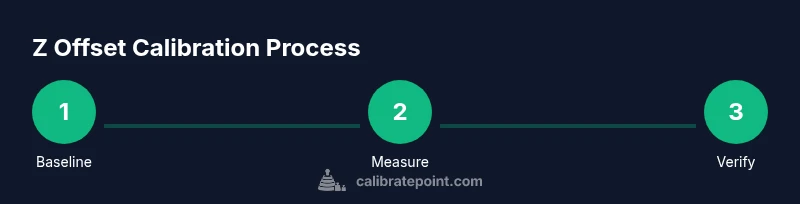

A robust Z offset calibration blends measurement with validation prints. Start with a rough, repeatable baseline, then refine through iterative testing. Document each adjustment and the resulting first-layer quality. The end goal is a reproducible offset value you can re-use whenever you change bed surfaces, nozzles, or materials. This section will provide a structured workflow so you can confidently calibrate z offset on most printers without guesswork.
Common pitfalls and how to avoid them
Many printers drift off their baseline offset after a few days of use due to bed leveling changes, temperature fluctuations, or nozzle wear. Common mistakes include chasing perfect adhesion with aggressive bed leveling, neglecting after-heat conditions, or skipping a proper warm-up phase. Always run a fresh test after any major change and keep a log of offsets and test results. Calibrate Point recommends performing a controlled series of small adjustments rather than large jumps.
Adjusting offset for different printers and materials
Different printers and materials behave distinctly when it comes to first-layer height. A filament with higher shrinkage or a bed surface with different friction will require different offsets. If you switch between PLA and ABS, you may need slightly different values due to thermal expansion and extrusion characteristics. Record offsets for each material, nozzle size, and bed surface so you can quickly revert to a proven setting in future prints.
Verifying the final offset with test prints
Conclude your calibration by printing a small first-layer calibration model, such as a 20 mm square or a 10 mm-wide line test. Inspect for uniform layer height, filament squeeze, and edge consistency. If anything looks off, adjust by small increments and reprint. The goal is a solid, repeatable first layer that matches your printer’s capabilities and your chosen material.
Tools & Materials
- Feeler gauge (0.1mm and 0.2mm)(Precise nozzle clearance check during initial offset checks)
- Digital caliper(Accurate bed-to-nozzle height measurements)
- Standard printer paper(Paper test method for quick, repeatable offset checks)
- Calibration test model (simple cube or line test model)(First-layer reference print to validate offset)
- Allen wrench set(For adjusting bed screws or hardware if needed)
- Spare nozzle and basic replacement tools(Optional in case of wear or clog during calibration)
- Marker or tape(Reference points on bed for alignment checks)
Steps
Estimated time: Estimated total time: 45-60 minutes
- 1
Power up and home all axes
Power the printer and let it reach idle temperature limits. Home all axes to establish a known reference point. This ensures subsequent measurements start from a consistent origin and prevents misalignment due to prior head positions.
Tip: Verify firmware allows precise Z-offset changes via the control panel before starting. - 2
Preheat to printing temperature
Preheat the nozzle to the target printing temperature for your filament and allow the bed to come to operating temperature. Temperature affects material contraction and nozzle geometry, which can influence offset readings.
Tip: Avoid touching hot components; perform this step with the heater stable for a minute after reaching target temperature. - 3
Establish a rough bed/offset baseline
Use the paper test to establish a rough baseline. Place a sheet between nozzle and bed and slide it back and forth with light resistance. Record the approximate gap and set the Z-offset to a near-zero reference to start.
Tip: If the paper drags too strongly or slides freely, note the direction and prepare a small adjustment in the next step. - 4
Refine with precise measurements
Switch to a feeler gauge or digital caliper to measure the actual gap more precisely. Make incremental adjustments to Z-offset in small steps (e.g., 0.05–0.1 mm) and re-test with the paper method or gauge.
Tip: Document each adjustment value and the corresponding test result for traceability. - 5
Run a first-layer test print
Print a simple first-layer calibration model (square or line) to visually inspect layer height across the bed. Look for uniform extrusion height and consistent line width. If there’s over- or under-extrusion, tweak offset slightly and reprint.
Tip: Pause after the first layer to inspect before continuing to avoid wasting material. - 6
Finalize and verify
Once the first-layer results look consistent, run a small, full test print to confirm stability. Capture a quick comparison between expected and actual layer height, and adjust again if needed. Save the offset value in your printer profile for future use.
Tip: Keep a log of offset values for different materials and nozzle sizes to speed future calibrations.
Questions & Answers
What is Z offset?
Z offset is the vertical distance between the nozzle and bed at print start. It determines the initial layer height and adhesion quality. Proper offset helps ensure a clean, consistent first layer.
Z offset is the vertical distance between the nozzle and bed at print start. It sets how high the nozzle starts above the bed and affects the first layer.
How often recalibrate Z offset?
Recalibrate whenever you change the bed surface, nozzle size, or filament type. Also recheck offset after significant printer maintenance or if prints begin failing at the first layer.
Recalibrate whenever you change bed surface, nozzle size, or filament, and after major maintenance.
Why offset drift?
Offset drift can stem from bed leveling changes, temperature shifts, or nozzle wear. Regular checks help keep first layers consistent across prints.
Drift happens due to bed changes, temperature, or nozzle wear. Regular checks help keep layers consistent.
First layer still squishes?
If the first layer looks flattened, back off the offset by small steps and reprint. Ensure bed is clean, and the nozzle isn't clogged.
If the first layer is squished, decrease the offset slightly and print again. Check bed cleanliness and nozzle condition.
Different filaments need offsets?
Yes. Some filaments deform differently upon extrusion; you may need small offsets adjustments for PLA versus PETG or ABS. Test with a tiny model.
Different filaments can require different offsets; test with small models for each material.
Safe Z offset range?
There is no universal safe range. Start with manufacturer guidance and adjust in small increments while checking the first-layer result.
There isn’t a universal safe range; start with guidelines and test with small increments.
Watch Video
Key Takeaways
- Calibrate Z offset with small, repeatable steps.
- Validate using real prints, not only measurements.
- Document offsets for future changes and materials.
- Verify results with a dedicated first-layer test before confident printing.
