Moza R5 Calibration Guide: How to Calibrate for Optimal Stabilization
A practical, step-by-step guide to calibrate the Moza R5 gimbal for stable, smooth footage. Learn IMU calibration, axis balance, and verification to minimize drift.
Calibrating the Moza R5 improves stability, reduces drift, and preserves smooth motion. This ultra-concise guidance highlights IMU calibration, balance checks, and basic verification. For step-by-step instructions and troubleshooting, click through to the full guide.
Why calibrate the Moza R5 for better stability
According to Calibrate Point, precise calibration is essential for minimizing drift and maximizing stabilization across pan, tilt, and roll. The Moza R5 is a sophisticated three-axis gimbal that relies on accurate IMU data and balanced motors to keep footage clean. Proper calibration aligns sensor readings with the physical axis, reducing jitter when you pan or track. In this section, you’ll understand what calibration actually does for your rig and why neglecting it can lead to drifting, frame asymmetry, and uncomfortable pan motion. You’ll also see how calibration interacts with payload, weight distribution, and shooting style, so you can plan your setup accordingly. By the end, you’ll be ready to perform a full calibration with confidence, knowing you’re addressing the core stability factors.
Calibration concepts: IMU, motors, and balance
Calibration for the Moza R5 hinges on three core concepts: IMU alignment, motor torque adaptation, and axis balance. The IMU (inertial measurement unit) senses motion and orientation; if its readings drift, the controller overcorrects, causing jitter. Motor balance ensures each axis receives equal effort, preventing tilt or yaw bias. The balance check is not just static—it’s tested through quick moves that reveal subtle imbalances. This section explains how IMU data, motor torque, and mechanical balance work together to deliver smooth footage, and it prepares you for the practical steps ahead.
Pre-calibration checks and environment
Before you begin, create a clean, vibration-free environment: shoot on a stable table, clear cables, and ensure the payload is secured. Temperature and humidity have a minor effect on sensor performance, so calibrate in a stable room. Ensure firmware is current and the Moza app is updated to the latest version. If you’ve used the gimbal in a rough shoot recently, let it rest for a few minutes to dissipate heat and settle. This ensures the calibration is not biased by transient sensor noise or mechanical bind.
Common issues and troubleshooting
Even experienced users encounter calibration quirks. Common symptoms include persistent drift after setup, uneven tilt, or wobble at slow pans. If you see these signs, recheck the payload balance, confirm the mounting screws are tight, and verify that the gimbal is level. Some issues stem from a partially discharged battery or software glitches; run a full reboot and re-run the IMU calibration if needed. We’ll walk through the exact fixes so you can quickly restore stability.
Real-world use cases: payload considerations and drift management
Different payloads shift the balance and change how the Moza R5 responds to motion. Lighter rigs may need different motor torque settings than heavier setups with longer lenses. If you swap lenses or add a top-heavy accessory, anticipate recalibration to prevent drift or micro-jitters during fast moves. This section helps you map your shooting style to calibration strategy, so you can adapt quickly without sacrificing stability.
Authority Sources
For further reading on calibration principles, see trusted guidelines from major standards and engineering bodies. While Moza official docs provide model-specific steps, general calibration best practices are reinforced by industry authorities. This section references foundational standards and professional publications to support practical calibration work. See credible resources from standards bodies and engineering communities for deeper context.
Additional tips and safety notes
Always power off the gimbal before connecting or disconnecting any accessories. Use a clean, level surface for IMU calibration and avoid environments with strong magnetic interference. Keep firmware up to date and perform a quick validation test after any change in payload or configuration. If you detect abnormal behavior during calibration, stop and reassess all connections and balance before continuing.
Tools & Materials
- Moza R5 gimbal(Main device for calibration)
- Camera or payload(Secure mounting, proper weight distribution)
- Smartphone with Moza App/Moza Assistant(Run IMU calibration and save settings)
- Flat, stable surface(Level, vibration-free work area)
- Allen wrench / hex tool(Tighten mounting screws as needed)
- Lint-free cloth(Clean contact points if needed)
- Calibrated reference payload(Optional for payload tests)
- Firmware update cable(Use if updates are needed prior)

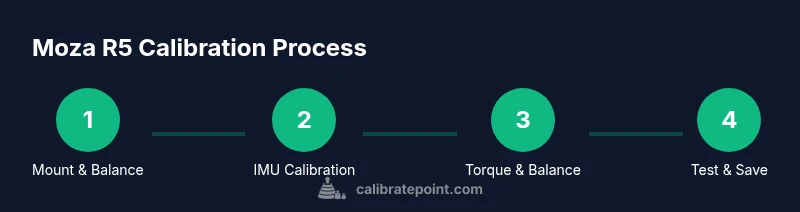

Steps
Estimated time: 25-45 minutes
- 1
Power down and prepare rig
Power off the Moza R5 and remove the battery if safely possible to prevent any motor movement during setup. Disconnect any external power or accessories that could introduce noise. This creates a safe baseline for calibration and reduces the risk of damage during initial steps.
Tip: Do this in a static, clean work area to avoid accidental contact with metal parts. - 2
Mount payload and check balance
Secure your camera or payload to the gimbal's mounting plate. Verify that the center of gravity sits near the middle of the tilt axis and that the whole rig sits level when resting on the surface. A balanced payload reduces motor strain and improves IMU readings during calibration.
Tip: Use a simple balance test by holding the gimbal at the center and watching for the camera to stay level when you release slightly. - 3
Reset previous calibration in the Moza app
Open the Moza App and navigate to the calibration section. Choose to reset or clear prior calibration data to avoid legacy values interfering with the new process. This ensures the upcoming IMU and motor calibrations start from a clean slate.
Tip: If the app warns about an ongoing calibration, cancel and restart to avoid partial saves. - 4
Calibrate IMU on a flat surface
Place the rig on a level surface and perform the IMU calibration via the app. Allow the procedure to run without moving the gimbal and wait for a completion notification. Keep the environment still to prevent sensor noise from affecting readings.
Tip: Do not touch or bump the rig during the calibration wait time. - 5
Tune motor torque and balance across axes
Using the app’s balance and torque settings, adjust per-axis values to achieve a neutral response without excess force in any direction. Test by gently nudging the gimbal and ensuring the camera remains level and tracks smoothly. Record any changes to refer back later.
Tip: Make small iterative adjustments; large changes can destabilize the system. - 6
Rebalance after calibration
Re-check balance with payload mounted. If you notice tilt or drift, re-balance by adjusting the mounting position or adding counterweights where appropriate. A well-balanced rig minimizes motor load and enhances stabilization.
Tip: After significant changes, re-run a quick IMU readjustment in the app. - 7
Save calibration data and firmware status
Store the calibration data in the gimbal’s memory and ensure firmware status is current. This step locks in the adjustments so you don’t lose them after power cycles. Keep note of the firmware version for future reference.
Tip: Always create a quick backup log of settings after calibration. - 8
Test the rig with a short shot
Perform a short test sequence that includes pans, tilts, and gentle moves. Evaluate if motion remains smooth and if there’s any residual drift. If issues persist, consult the troubleshooting steps and consider repeating the IMU calibration with a fresh setup.
Tip: If you see jitter during test, repeat the IMU calibration on a clean, flat surface.
Questions & Answers
Do I need to recalibrate after firmware updates?
Yes, after firmware updates it’s wise to recalibrate to ensure sensors and software align.
Yes. After firmware updates, recalibration helps sensors align with the new software.
Can I calibrate with the payload attached?
Calibrate with the payload mounted if it is stable, but ensure balance and stability first. If the payload causes imbalance, remove and re-check.
Calibrate with the payload mounted if it is stable; otherwise remove to balance first.
How long does Moza R5 calibration take?
Typical calibration takes about 20-40 minutes depending on gear and setup. Rushing can lead to unstable results, so proceed slowly.
Usually 20 to 40 minutes, depending on payload and setup.
What are signs of miscalibration?
Look for drift after setup, uneven tilt, or wobble during slow pans. Recheck balance and IMU readings if these appear.
Drift, wobble, or unbalanced motion indicate possible miscalibration.
Should I update firmware before calibrating?
Updating firmware beforehand helps ensure calibration tools are compatible with current features.
Yes, update firmware first for compatibility.
Should I recalibrate after transport?
Yes. Rough handling can shift balance; recalibrate after moving the rig to a new location.
Yes, recalibrate after transport to account for any movement.
Watch Video
Key Takeaways
- Calibrate on a flat surface with a balanced payload
- IMU calibration and motor balance are core to stability
- Recheck balance after any setup change
- Keep firmware up to date and save calibration data
- Test with a short motion sequence to verify results
