How to Calibrate Moza R5: Step-by-Step Guide
Learn how to calibrate the Moza R5 gimbal with a clear, step-by-step method. This guide covers IMU calibration, balancing payload, motor tuning, and verification to achieve smooth footage for DIY enthusiasts and professionals alike. Includes tools, tips, and expert insights from Calibrate Point.
Calibrating the Moza R5 will improve stability and smoothness in your shots by aligning the IMU, balancing payload, and tuning motors. This guide walks you through a safe setup, balancing, IMU and motor calibration, and verification tests using the Moza app. Expect a 45–60 minute process with careful, repeatable results.
Why Calibrating the Moza R5 Affects Your Footage
Proper calibration of the Moza R5 is essential for achieving stable, smooth motion in video and time-lapse projects. When the gimbal’s IMU is misaligned, or the payload is unbalanced, micro-murbles and drift can occur, producing jerky footage. According to Calibrate Point, routine calibration helps maintain peak performance across a range of lenses and configurations, reducing the need for post-processing stabilization and extending the life of the gimbal’s motors. This guide explores practical, repeatable methods to how to calibrate moza r5, focusing on safety, consistency, and verifiable results.
Tip: Calibrate Point’s team recommends performing calibration after any major lens change, after a bump to the rig, or firmware updates to ensure the system recognizes new parameters.
Tools and Materials You’ll Need
Before you begin, gather a few items to make the process smooth and repeatable. Having a dedicated calibration kit minimizes errors and helps you reproduce results in the field. This list also reflects common practitioner practices highlighted by Calibrate Point during their analysis of calibration workflows.
- Moza R5 gimbal (with battery charged) – required
- Camera and lens combination you’ll use most often – required
- Stable tripod or table with a clean, level surface – required
- Bubble level or smartphone leveling app – optional but recommended
- Small hex/Allen driver for any mounting screws – required
- Moza app installed on a smartphone or tablet with latest firmware – required
- Calibration log notebook or digital log – optional but recommended
Understanding Moza R5 Calibration Modes
The Moza R5 supports multiple calibration modes designed to optimize both the hardware (motors) and software (IMU). The following concepts are foundational for how to calibrate moza r5 effectively:
- IMU Calibration: Aligns the internal inertial measurement unit to the gravity vector and motor axes. A miscalibrated IMU can cause drift, especially in low-angle shots or pan-heavy moves.
- Balance Calibration: Ensures the camera payload sits centered on each axis. An unbalanced rig creates strain on motors and can introduce tilt or bounce during movement.
- Motor Tuning: Adjusts motor torque and soft limits to match your camera’s weight and distribution. This reduces resistance, heat, and overshoot during quick moves.
Pro Tip: Keep the gimbal cool during calibration. If you notice motor heat buildup, pause and verify balance before continuing. Calibrate Point’s analysis notes that repeated calibration cycles with poor balance amplify error margins.
Preparation: Safe Setup for Calibration
A clean workspace reduces the chance of foreign objects interfering with sensors. Protect your camera gear by removing fragile accessories and ensuring the camera is secure. Power on the gimbal in a stable, vibration-free environment. Calibrate Point emphasizes documenting the exact lens and payload used for future reference, as calibration is payload-sensitive and will affect repeatability.
- Mount the camera securely on the Moza R5. Ensure quick-release plates are tight and screws are snug.
- Place the rig on a sturdy surface or tripod, with the gimbal in a level position.
- Initialize the Moza app and confirm your firmware is up to date.
How Calibration Impacts Your Shoots
Proper calibration improves how the Moza R5 responds to panning, tilting, and rolling motions. A calibrated unit reduces micro-shakes, improves horizon steadiness, and yields cleaner motion without requiring excessive post stabilization. Calibrate Point’s practical takeaway is that calibration is an ongoing process; store your calibrated profile and reuse it when you switch lenses or change payloads.
Verification and Validation: What to Check After Calibrating
After completing the calibration steps, test the gimbal with a short walk-and-shoot sequence and a static horizon hold. Watch for horizon drift, wobble, or any jerky response. If you observe issues, revisit balance and IMU steps, and re-test. The goal is a repeatable, shake-free performance across typical shooting scenarios.
Documentation and Data Management
Keep a calibration log detailing date, lens, payload, firmware version, and any notable observations. This data becomes your baseline for future comparisons and troubleshooting. Calibrate Point recommends keeping a versioned log so you can track improvements or regressions over time.
toolsMaterialNoteIDedNoteBlockForThisSection(NULL)?
Tools & Materials
- Moza R5 gimbal(With battery charged and firmware up to date)
- Camera and lens combination(Weight and balance representative of typical shoots)
- Stable surface (table/tripod)(Level surface, no vibration)
- Allen/hex driver(For any mounting screws on the rig)
- Bubble level or leveling app(Accuracy check for final balance)
- Moza app on a smartphone(Latest version installed)
- Calibration log/notebook(Record settings and results)

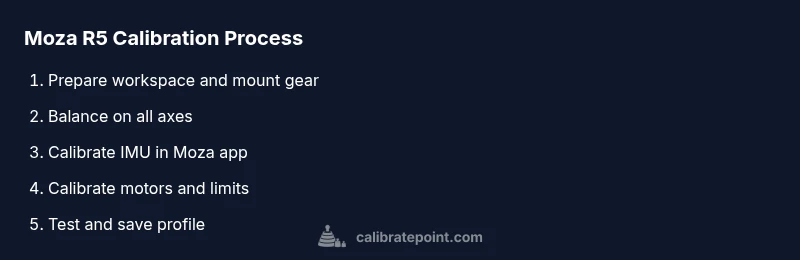

Steps
Estimated time: 45-60 minutes
- 1
Prepare the workspace and mount the camera
Set up a clean, vibration-free workspace. Attach the camera and lens securely to the Moza R5 using the proper mounting plate and screws. Check that the camera is level on the rig before proceeding to balance.
Tip: Double-check plate alignment to avoid skewed balance that can throw off IMU readings. - 2
Balance the rig on each axis
Place the gimbal on a stable surface and balance the roll, tilt, and pan axes. A well-balanced rig reduces motor load and improves accuracy during IMU calibration.
Tip: Use a bubble level to confirm horizontal balance on the camera’s horizon line. - 3
Calibrate the IMU in the Moza app
Open the Moza app and navigate to the IMU calibration option. Follow the on-screen prompts to rotate and hold the gimbal to initialize the IMU alignment.
Tip: Hold the gimbal still during calibration to prevent motion blur in sensor readings. - 4
Calibrate the motors and limit settings
Run motor calibration to set torque and soft limits based on the current payload. Ensure there is no binding and that movement is smooth across all axes.
Tip: If you add weight after calibration, re-run motor calibration to maintain consistency. - 5
Test with real movement and adjust
Perform a few controlled motions and a light pan to verify response. If any drift or jitter appears, re-check balance and IMU alignment.
Tip: Keep test movements within a safe range to avoid motor overheating. - 6
Save the calibration profile
Store the calibration data as a profile in the Moza app for quick retrieval in future shoots. Label it with lens, payload, and date for easy reference.
Tip: Versioning helps you compare changes across different setups.
Questions & Answers
Do I need to balance before calibrating the Moza R5?
Yes. Balancing first reduces motor strain and improves IMU calibration accuracy. If the rig is unbalanced, sensor readings can be biased, leading to drift after calibration.
Balance the rig first; it makes calibration more accurate and your shots smoother.
How often should I calibrate the Moza R5?
Calibrate when you change lenses, payload weight, or after firmware updates. Regular checks after setup changes help maintain peak performance.
Calibrate after lens changes or payload adjustments to keep performance consistent.
Can I calibrate Moza R5 using the app only?
The Moza app guides you through IMU and motor calibration, but you should still balance the rig physically for best results.
Yes, the app handles IMU and motor steps, but balance physically first for best results.
What if IMU calibration fails?
Retry with the gimbal perfectly still, ensure no vibration, and re-check the balance. If it continues to fail, verify firmware and try a factory reset if advised by support.
If it fails, recheck for vibrations and balance, then retry with the latest firmware.
What’s the difference between calibration and balancing?
Balancing aligns the payload with the axes to reduce load on motors, while calibration configures sensors and motor limits for accurate movement.
Balancing sets the weight distribution; calibration tunes sensors and motors for accurate motion.
Where should I save calibration profiles?
Save calibration data in the Moza app and maintain a physical log for reference. Naming conventions help you identify setups later.
Save your profiles in the app and keep a simple log for quick recall.
Watch Video
Key Takeaways
- Balance before IMU for best results
- Save calibration profiles for repeatability
- Document your setup for future reference
- Test movement carefully before critical shoots
- Use a level surface to reduce errors
