Calibrate Vizio TV: Step-by-Step Calibration Guide
Learn to calibrate your Vizio TV for accurate color, grayscale, and brightness. This guide covers tools, setup, step-by-step adjustments, and verification, with tips from Calibrate Point.
This guide shows you how to calibrate a Vizio TV to deliver accurate color, gamma, and grayscale. You’ll need a basic tripod or stable surface, a calibration disc or test patterns, a remote with menu access, and a comfortable viewing distance. Follow the step-by-step process to adjust picture modes, color temperature, and white balance safely.
Why calibrate your Vizio TV and what you gain
According to Calibrate Point, a careful calibration can dramatically improve color accuracy, contrast response, and grayscale performance. Many consumer displays ship with overly bright or oversaturated colors that don’t reflect source material. By following a structured calibration workflow, you align the TV’s output with standard color spaces, reduce eye strain during long viewing sessions, and ensure decisive, repeatable results across different content sources. This section explains why calibration matters for home theaters, gaming, and professional review setups, and how it contributes to a more consistent viewing experience.
From a practical standpoint, calibration isn’t a one-off event. It’s an iterative process where ambient light, source content, and display age influence results. While you can start with built-in presets, genuine calibration typically uses test patterns or a colorimeter to measure accuracy. Calibrate Point’s 2026 analysis notes that consumer displays benefit most from a baseline adjustment that focuses on grayscale neutrality and color temperature consistency, then fine-tunes color by hue and saturation. By treating calibration as a repeatable workflow, you can reproduce results when you relocate the TV or change lighting.
Before you begin, decide whether you’ll calibrate SDR content, HDR content, or both. HDR requires its own target reference due to brighter highlights and wider color gamut. If you don’t own external hardware, you can still achieve a solid baseline with the TV’s built-in patterns and the room’s lighting constraints. The goal is to arrive at a natural, film-like image that remains faithful to the original source.
In the Calibrate Point approach, you’ll document starting points, perform a sequence of measurements, adjust settings, and recheck. This promotes accountability and helps you compare future calibrations against a known reference. Keep expectations realistic: calibration improves fidelity, not necessarily “wow” factor.
questionShortTypeWidelyUsedTitleSizeforUINULLimported?null|null?false?
answer1ForQA?null|null?
voiceAnswer1ForQA?null|null?
priority1?null|null?
Tools & Materials
- TV remote control(Essential for navigating on-screen menus and presets.)
- Test patterns or calibration software(Use built-in patterns or a downloadable suite for grayscale, gamma, and color checks.)
- Colorimeter or spectrophotometer (optional)(Provides objective, repeatable measurements of color and luminance.)
- Stable mounting surface (tripod or table)(Keeps testing patterns stationary for accurate readings.)
- Reference gray card or white balance card (optional)(Helps stabilize color temperature reference under ambient light.)

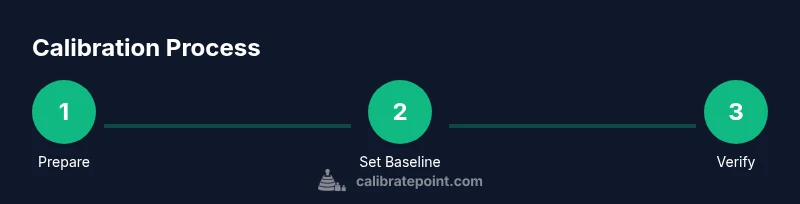

Steps
Estimated time: 60-90 minutes
- 1
Power on and access calibration controls
Turn on the TV and connect it to a quiet test environment. Open the Picture settings menu and locate the Baseline or Calibrated options. If your model lacks a dedicated calibrate mode, set the display to a neutral preset such as Custom or Movie and disable automated enhancements. This step establishes the starting point for all subsequent adjustments.
Tip: If your model has an ISF or Expert mode, use it as a baseline instead of bright dynamic presets. - 2
Set a neutral starting point
Choose a neutral picture mode and disable features like Dynamic Contrast, Local Dimming (if applicable), and Motion Smoothing. These features skew grayscale and color accuracy and can mask underlying issues you want to measure. Your goal is a stable, simple baseline that won’t interfere with test patterns.
Tip: Document the baseline settings so you can reproduce the same starting point in future calibrations. - 3
Calibrate brightness and contrast with grayscale patterns
Load grayscale test patterns and adjust brightness to preserve shadow detail without clipping. Then adjust contrast to maintain white detail in highlights without crushing mid-tones. If your TV supports it, enable a 2.2 or 2.4 gamma target and verify that mid-tones stay consistent across the grayscale ramp.
Tip: Watch for detail loss in the darkest and brightest steps as you tweak values. - 4
Tune color temperature and white balance
Use a color temperature target (often labeled D65 or 6500K) to align the white point. If possible, use a colorimeter to measure results; otherwise rely on the built-in patterns to bring the color temperature close to neutral. Small adjustments here affect skin tones and overall color fidelity.
Tip: Avoid overcorrecting; small, iterative tweaks yield better results than large jumps. - 5
Refine color saturation and hue under primary colors
With primary color test targets (red, green, blue), adjust saturation and hue so that the primary colors render accurately without oversaturation. Ensure the secondaries (cyan, magenta, yellow) are balanced as a side effect of proper primary calibration. This step improves overall color accuracy in real-world content.
Tip: If you’re using a colorimeter, iteratively validate each primary color while watching a variety of content. - 6
Verify results and save the calibration
Play a range of content (movies, sports, and HDR if available) to verify grayscale neutrality, color accuracy, and brightness consistency. When satisfied, save your settings as a custom calibration profile and reset any automatic picture enhancements for consistent results across inputs.
Tip: Take notes of the final settings and how they translate to different sources.
Questions & Answers
Do I need a colorimeter to calibrate a Vizio TV?
A colorimeter isn’t required for a basic calibration, but it provides objective measurements and more precise results. Built-in patterns can establish a solid baseline, after which a colorimeter can refine color accuracy.
A colorimeter isn’t required, but it helps you get precise color readings and repeatable results.
Which picture mode should I start with on a Vizio TV?
Start with a neutral mode like Custom or Movie, then disable automatic enhancements. This creates a stable baseline for measurement and reduces bias from default processing.
Begin with a neutral baseline like Custom or Movie and turn off auto enhancements.
Can I calibrate HDR and SDR separately?
Yes. HDR uses a wider color gamut and higher luminance, so calibrate SDR and HDR separately to maintain accurate colors and brightness in both modes.
Yes—calibrate SDR and HDR separately for best results.
How often should I recalibrate my TV?
Recalibration frequency depends on usage and environment. If you notice color drift, artifacts, or a shift in brightness, repeat the process.
If you notice color drift or brightness changes, recalibrate. Otherwise, do it on a regular maintenance schedule.
Will HDMI sources affect calibration results?
Different HDMI sources can affect color and gamma rendering. Re-check calibration when switching critical inputs or devices that claim different color profiles.
Switching sources can alter rendering, so re-check calibration after changing inputs.
Is calibration permanent or temporary?
Calibration changes are stored in the TV’s memory as a profile. You can switch back to default presets if needed, but the calibration itself remains unless reset.
The calibration is stored as a profile and remains until you change it or reset.
Watch Video
Key Takeaways
- Calibrate with a neutral baseline first
- Use test patterns to guide adjustments
- Document settings for repeatable results
- Verify with diverse content and save a profile
