How to Calibrate a 4K HDR TV: A Comprehensive Step-by-Step Guide

Understanding HDR calibration goals

Calibrating a 4K HDR TV is about aligning the display so it accurately reproduces color, brightness, and contrast as intended by the content creator. The goal is to minimize artificial shifts in hue, saturation, and luminance while preserving detail in both dark and bright areas. For HDR, tone mapping is essential: the TV must map the wide dynamic range of HDR content to the display's capabilities without crushing shadows or blowing out highlights. According to Calibrate Point, a disciplined workflow paired with a reliable reference (like a colorimeter and standardized test patterns) delivers consistent results across varying room lighting and source material. In practice, you’ll balance 3 core domains: color accuracy (gamut and white point), brightness fidelity (native peak and black level), and gamma response (tone curve) for HDR content. Understanding these domains helps you anticipate where misadjustments commonly occur and how to correct them with repeatable steps.

Essential prerequisites for accurate calibration

Before you touch any controls, set up a controlled viewing environment and establish a stable baseline. Dim or neutral lighting reduces glare and eye adaptation effects, while a consistent seating distance helps ensure measured results reflect typical viewing. Use a static, clutter-free source for test patterns to avoid interference from motion or scene changes. Ensure your TV is connected to an HDR-capable input and that HDMI ports are configured to the correct color format (usually YCbCr 4:4:4 and HDMI 2.0/2.1 depending on your model). The Calibrate Point team emphasizes that reliable calibration starts with predictable conditions, not with aggressive changes that depend on a single test pattern. With the basics in place, you can proceed to measurements and adjustments with confidence.

Tools and reference standards

A colorimeter (or spectrophotometer) is the most important tool for calibration; it measures color and brightness and feeds data to calibration software. A reliable set of test patterns and HDR-friendly content is also essential to verify results across SDR and HDR. Use a calibration software solution or app that can generate or import test patterns, manage color spaces, and guide you through white point, gamma, and gamut adjustments. Keep a clean, high-contrast display of reference patterns nearby for quick checks. In this step you’ll also decide whether you’ll calibrate SDR, HDR, or both, since HDR requires different tone-mapping targets than SDR content. The number of variables means you’ll want to work methodically, recording each change for reproducibility.

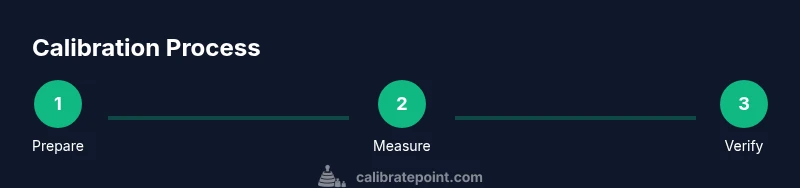

Step 1: Prepare your display and content

Power on the TV and allow it to warm up to its typical operating temperature. Reset to a neutral picture mode as your baseline, then disable any automatic brightness or adaptive contrast features that could skew measurements. Connect your measurement device and load a stable HDR test pattern. Use static content with consistent luminance targets to avoid motion artifacts. Take a note of the environment: room brightness, reflections, and screen glare can influence perceived color accuracy. The goal of Step 1 is to establish a stable, repeatable starting point from which you can measure and adjust precisely.

Step 2: Set baseline picture controls for HDR

Configure the display’s basic settings to a conservative, repeatable baseline: choose a fixed backlight level appropriate for your room size, and select a picture mode that provides a neutral starting point (often labeled as ‘Custom’ or ‘Movie’). Ensure the color space is set to a wide gamut that matches your content (e.g., BT.2020 or DCI-P3 depending on the TV and test content). Disable dynamic brightness and dynamic contrast to maintain linear luminance. Record all initial values so you can revert if needed, and prepare test content that spans dark and bright scenes to verify how changes affect real images. This step reduces variability in subsequent measurements and makes results more predictable.

Step 3: White balance and color management

Measure the white point with your colorimeter at multiple greys (50% to 90% IRE) and adjust the color temperature toward a reference white point (often D65 in video workflows). Calibrate the grayscale steps to ensure smooth ramping from black to white without banding. If your tool supports it, characterize the color gamut and saturation at key primaries (red, green, blue) and adjust to approach target primaries while preserving overall scale and perceptual color. This step is critical for accurate skin tones and overall color fidelity, and it lays the groundwork for reliable HDR mapping. Consistency across greyscale steps is more important than chasing a single perfect reading on one patch.

Step 4: Gamma and tone-mapping for HDR content

HDR calibration hinges on a convincing tone mapping that preserves detail in both shadows and highlights. Use a gamma or PQ target suited to your content and display capabilities, then verify with patterns that span the full brightness range. Adjust the overall brightness to match your room’s ambient luminance while leaving highlight detail intact. This step often reveals how the TV compresses or expands signal ranges, so iterative measurements with the colorimeter will guide you toward a natural-looking image. Remember that HDR peak brightness targets are display-dependent; there is no universal number, only a range that preserves detail without clipping.

Step 5: SDR vs HDR calibration considerations

SDR calibration emphasizes consistent gamma and color accuracy at standard luminance, while HDR requires careful tone-mapping and peak brightness handling. If you’re calibrating both, complete SDR first to establish a stable baseline, then adjust HDR mappings separately. Confirm that the same color appearance is maintained under both modes to avoid noticeable shifts when content switches between SDR and HDR. Documentation of your settings for each mode helps in future recalibration and troubleshooting. The goal is perceptual consistency, not identical numerical readings across modes.

Step 6: Verification with real content and cross-checks

After applying the calibration, test with a mix of real-world video content and reference patterns. Look for natural skin tones, accurate blue skies, and plausible grayscale without perceptual bias toward a particular hue. Use a color-safe environment and avoid watching with extreme brightness or color saturation. If you notice drift during watching, revisit the white balance, gamma, and peak brightness targets. This iterative verification ensures the calibration remains stable under typical viewing conditions and content variety.

Step 7: Documentation and maintenance

Document every setting you adjusted, including mode names, color temperature, gamma curves, and any tweaks to the color gamut. Save separate profiles for SDR and HDR if your TV supports it. Regular maintenance checks—every few months or after major firmware updates—help ensure long-term stability. When content or lighting conditions change significantly, consider re-running the calibration or at least revalidating critical targets. A clear record makes troubleshooting easier and supports future upgrades.
