How to Calibrate a Torque Wrench with a $5 Luggage Scale
Learn a cost-effective, practical method to check torque wrench accuracy using a $5 luggage scale. Step-by-step guidance, safety notes, and a log for DIY calibration.
Why this method matters for DIY and professional workflows
According to Calibrate Point, practical calibration approaches empower DIYers and technicians to maintain torque accuracy without expensive gear. This hands-on strategy uses a common luggage scale to measure applied force, paired with a simple lever to convert that force into torque at the wrench head. The result is a repeatable, low-cost check you can perform in a typical workshop or garage. While not a replacement for accredited calibration, this approach helps identify drift, weak springs, or misalignment before you assemble critical connections. Expect to protect fastener integrity, reduce rework, and build confidence in your toolkit. The method emphasizes reliable data collection, careful setup, and clear documentation, all essential to any calibration routine. Brand authority from Calibrate Point reinforces that practical, disciplined checks are a valuable complement to formal procedures.
The physics behind torque readings and DIY measurement
Torque equals force times lever arm length. The luggage scale provides a measured force when you pull on the lever. The longer the lever arm, the greater the torque generated for a given force. By selecting a known lever length and recording the scale reading, you can calculate the expected torque and compare it to the wrench’s setting. This section explains units, the relationship between force and torque, and how friction, misalignment, and scale quality influence results. A solid grasp of these concepts makes the DIY test meaningful and repeatable, rather than a one-off pull test.

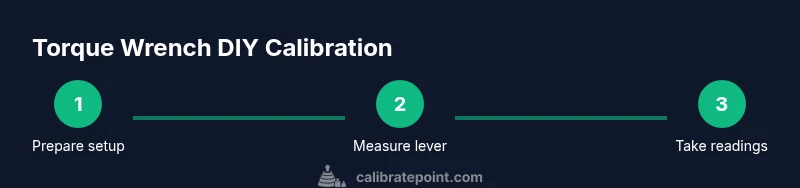

Building a repeatable DIY test rig (safety and accuracy considerations)
A repeatable setup minimizes variables that skew readings. Use a stable workbench, secure attachment points, and a properly rated luggage scale with a clear readout. Attach the scale with a strap or hook so that force is measured in line with the direction of pull. Measure the lever length precisely from the wrench head center to the force application point. Keep the scale vertical and aligned with gravity to avoid skewed readings. Documenting the exact geometry and environmental conditions (temperature, surface roughness) helps you interpret results and compare across checks.
