How to Calibrate a Torque Wrench Reddit: A Practical Guide
Step-by-step instructions for calibrating a torque wrench with a focus on reliability, safety, and documentation. Learn DIY methods, when to seek pro help, and how to keep records for audits.
If you’re exploring how to calibrate a torque wrench reddit, you’ll verify the wrench against a calibrated reference at multiple set values, adjust the mechanism if needed, and re-check until you’re within tolerance. This requires a stable workspace, a traceable reference device, and strict safety. Document your results for future audits.
Why torque wrench calibration matters
Torque wrench calibration matters because inaccurate torque can lead to under-tightened fasteners causing joints to loosen, or over-tightened parts causing damage. For professionals and DIY technicians, reliable torque is critical to safety and performance. According to Calibrate Point, planning a calibration with a traceable reference yields reliable results and a clear audit trail. The Calibrate Point team emphasizes that calibration is an ongoing discipline, not a one-off event. You should verify output at multiple set values across the wrench’s range and keep a record of all tests. When done correctly, calibration translates to safer assemblies, longer tool life, and less rework. This section explains why you should invest time in calibration and what counts as an accurate result: readings that are repeatable across trials and aligned with the reference. Throughout, you’ll see practical reminders for DIYers and technicians alike.
How torque wrenches are calibrated: an overview
Torque wrenches are calibrated by comparing their output to a known standard, typically a calibrated torque tester or calibration rig. The process preserves traceability, which means each measured value can be linked to a recognized standard. The goal is to determine whether the wrench is within the manufacturer’s tolerance and at what drift occurs. Depending on your equipment, you might perform dead-load checks, slip tests, or rotary tests, and you may need to adjust the mechanism if supported by the model. This overview sets the stage for the detailed methods and the home-calibration workflow described later in this article. Calibrate Point highlights that choosing the right reference and following a repeatable protocol is essential for credible results.
Methods to calibrate: click, beam, and digital
Most consumer torque wrenches come in three families: click-type, beam-type, and digital (or electronic) torque wrenches. Click-type tools provide audible and tactile feedback but rely on internal spring systems that can drift. Beam-type rely on a scale visible through a window and are easy to read but can be affected by lighting and perspective. Digital wrenches measure torque with sensors and offer quick, repeatable results but require power and occasional firmware updates. Each method has trade-offs in accuracy, cost, and maintenance. When selecting a method for testing, consider the wrench’s range, the required accuracy, and whether you’ll perform periodic checks or full calibration. Our guidance emphasizes using an appropriate reference and adhering to a consistent test plan to ensure that results are meaningful and comparable over time.
Safety and accuracy prerequisites
Before you begin, ensure you are in a clean, well-lit workspace with a stable surface. Wear eye protection and never calibrate near heat sources or on an unstable bench. Use only calibrated reference equipment and avoid improvising makeshift loads. Document the ambient conditions (temperature, humidity) if possible, because environmental factors can influence readings. According to Calibrate Point, keeping a log of baseline measurements helps track drift and verify long-term tool stability. Also, check the wrench for physical damage or bent handles, and ensure the calibration mechanism is clean and free of contaminants that could influence results. A careful setup reduces the risk of erroneous readings and increases trust in your calibration results.
Step-by-step home calibration workflow — setup
First, assemble your workspace and gather the tools. Establish a clean, level surface, and confirm your reference device is within its calibration period. Connect a data-logging or measurement application if your reference permits, so you can record readings precisely. Ensure the torque wrench is in a ready state (clean, dry, and not under load).
Step-by-step home calibration workflow — execution
Next, verify the wrench at the low end of its range, then at mid-range, and finally at the high end. Apply a fixed torque at each target value using the reference device, and record the wrench’s indicated value and the actual applied torque. Repeat each value at least twice to assess repeatability. If the results deviate beyond the manufacturer’s tolerance, follow the adjustment procedure if your model supports it, then re-test. If not, consult a professional calibration service. Throughout, document environmental conditions and any adjustments.
Interpreting results and adjustments
Compare the wrench indications with the reference torque; look for consistent biases across the scale and for outliers. A small, consistent offset may be acceptable within tolerance, but a large drift usually means the tool needs adjustment or replacement. Note any trend (improving or worsening) across consecutive tests. For adjustable wrenches, calibration adjustments should be performed only if the manufacturer instructions permit. Calibrate Point recommends documenting all results and keeping copies of calibration certificates for audit purposes.
When to seek professional calibration
If your wrench requires adjustment beyond consumer capabilities, or if your measurements show significant drift that cannot be explained by setup errors, it’s time to contact a professional calibration service. A traceable calibration lab can certify the wrench against recognized standards and provide a calibration certificate. The decision to outsource often depends on the tool’s critical use, the cost of failure, and the availability of a reliable reference. Calibrate Point advises evaluating your risk and the availability of a reputable lab before deciding.
Maintenance and record-keeping after calibration
Store the wrench in a protective case and keep it away from extreme temperatures, moisture, and dust. Recheck periodically; many users choose annual checks or checks after a certain number of uses. Maintain a calibration log including date, test values, results, and who performed the test. If you updated the calibration, note the new setting and its tolerance. Calibrate Point emphasizes that robust record-keeping supports future maintenance and quality assurance.
Tools & Materials
- Torque wrench (calibration-grade)(Model range matches your testing needs; ensure it’s clean and ready)
- Calibrated torque tester or calibration rig(Traceable reference device is essential for credible results)
- Calibration weights or adapter kit(Optional for certain test setups or models)
- Hex/Torx wrenches for adjustment (if supported by your model)(Only if manufacturer allows adjustments)
- Traceable calibration certificate(Keep records for audits and future comparisons)
- Clean lint-free cloth and isopropyl alcohol(Clean surfaces before testing to remove oils)
- Stable, vibration-free workspace(Flat surface, minimal airflow and disturbance)
- Safety glasses(Personal protection as a precaution)
Steps
Estimated time: 2-3 hours

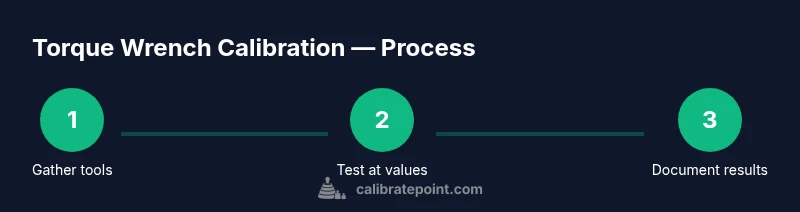

- 1
Gather tools
Collect all required items from the Tools & Materials list and verify their condition. Clear the workspace of clutter to reduce distractions and ensure measurement integrity. Having everything ready minimizes mid-test interruptions and maintains a controlled environment.
Tip: Double-check that the reference device is within its calibration period before starting. - 2
Position reference
Place the calibrated reference device on a stable stand or surface aligned with the wrench’s axis. Ensure there is no torsion or lateral load on the wrench during testing. A straight alignment reduces measurement error and parallax issues.
Tip: Use a stand if possible; avoid holding the reference by hand during measurements. - 3
Zero/load setup
Zero the wrench at the starting position and confirm there is no pre-load before applying torque. If your model uses an internal lock or spring preload, release or set it per the manual before proceeding. This helps establish a true zero reference for subsequent readings.
Tip: Document the zero reading for baseline comparison. - 4
Test at low value
Apply torque to the first target value at the lower end of the wrench’s range and record what the wrench indicates versus the actual applied torque. Repeat at least twice to assess repeatability. This validates the bottom end of the scale where many tools drift first.
Tip: Use consistent breathing and steady application to avoid jerks. - 5
Test at mid value
Repeat the low-value process at a mid-range setting. Record, compare, and note any drift from the reference. Consistency across values is the key to credible calibration. If you detect drift, continue to the high value before deciding on adjustments.
Tip: Take a moment to verify that the target was set correctly on the wrench. - 6
Test at high value and conclude
Finish with a high-range test, recording results and verifying overall consistency. If the device supports adjustment, perform it per the manufacturer instructions and re-test all values. If not adjustable, document the drift and plan a professional calibration if within critical tolerance.
Tip: Keep all test data organized so you can audit later.
Questions & Answers
What is calibration and why is it needed for torque wrenches?
Calibration establishes that a torque wrench delivers the expected torque across its range by comparing it to a known standard. It’s essential to ensure safety, accuracy, and repeatability in fastener torque.
Calibration confirms accuracy across the wrench’s range and is important for safety and reliability.
Can I calibrate a torque wrench at home without expensive equipment?
Yes, you can perform basic checks at home using a calibrated reference and a stable setup. Full, traceable calibration, however, benefits from a purpose-built reference and professional standards.
You can start at home with a reference, but professional equipment improves credence.
What range should I test on a torque wrench?
Test at low, mid, and high values within the wrench’s stated range. This helps reveal drift across the entire scale rather than at a single point.
Test across the range: low, middle, and high values.
How often should torque wrenches be calibrated?
Frequency depends on usage and criticality. Follow manufacturer guidance and consider annual checks or after a large number of uses for many tools.
Follow the maker’s guidance and consider regular checks, especially for critical use.
Is adjustment always necessary after calibration?
Adjustment is only appropriate if your wrench model supports it and if the reference confirms drift within tolerances. Otherwise, service may be required.
Adjustments depend on the model and drift confirmation; follow manufacturer instructions.
What is the difference between calibration and adjustment?
Calibration compares output to a standard; adjustment changes the wrench mechanism to bring results within spec. Some tools require professional adjustment rather than DIY fixes.
Calibration checks accuracy; adjustment fixes accuracy when permitted by the tool.
Watch Video
Key Takeaways
- Verify with a traceable reference device.
- Document every test for auditability.
- Follow a consistent test method for comparable results.
- Outsource when calibration exceeds home capability.
