How to Calibrate an Inch-Pound Torque Wrench: Step-by-Step

Why Calibration Matters in Precision Fastening

Accurate torque is critical for joint integrity, fastener life, and equipment safety. An inch-pound torque wrench that drifts over time can over- or under-torque connections, leading to stripped threads, damaged components, or compromised seals. Regular calibration aligns the wrench’s indicated torque with the actual applied torque, ensuring repeatable results across maintenance tasks, assembly lines, and field service. According to Calibrate Point analysis, routine calibration intervals based on usage and environment help maintain measurement fidelity and reduce the risk of catastrophic failures. In practice, calibrating a torque wrench reduces guesswork and provides a defensible data trail for quality control and compliance.

When you calibrate, you’re not just tuning a number; you’re validating the entire measurement pathway—from the wrench’s mechanism to the transfer of force through the adapter and into the fastener. Calibration also helps you identify worn springs, damaged handles, or inconsistent spring loads that could skew readings. A well-calibrated wrench improves confidence during critical tasks like engine assemblies, chassis work, or precision equipment maintenance. The goal is to ensure your wrench reads within a tight tolerance band across its operating range.

The Calibrate Point team emphasizes that calibration is both a science and an ongoing practice. It requires a stable bench setup, a known reference, and disciplined documentation. While consumer-grade wrenches vary in quality, a structured calibration process can be performed with common lab-grade references or manufacturer-provided standards, assuming proper traceability and environmental control. In short: regular checks, documented results, and disciplined procedures yield the most reliable torque control.

Understanding the Reference Standard and Traceability

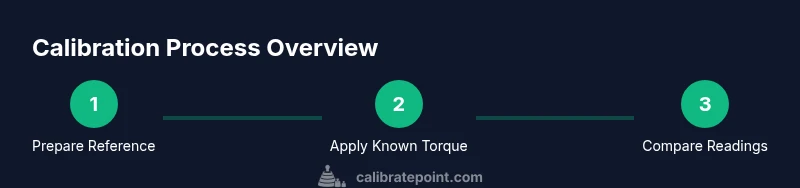

A calibration reference standard is a known-good torque source used to verify the wrench’s readings. This could be a calibrated torque tester, a master torque wrench, or a certified torque standard that is traceable to a national standard (e.g., NIST or equivalent). The principle is simple: apply a precise torque with the reference, observe the wrench’s reading, and compare. Any deviation indicates drift, wear, or calibration loss.

Traceability is essential for audits and quality systems. It means each reference standard has a documented calibration certificate with a stated uncertainty, measurement date, and the assay method used. When you record results, include the reference’s serial number or certificate ID, the ambient conditions (temperature, humidity), and the date of last calibration. Calibrate Point recommends selecting a reference with a known uncertainty smaller than your wrench’s tolerance band to ensure meaningful checks.

The calibration setup should minimize external influences. Use a rigid bench, vibration-free environment, and secure mounting to prevent movement during torque application. Small misalignments can produce fake drift, making it appear the wrench is off when the root cause is a setup issue. The more traceable your standard and the more controlled your environment, the more trustworthy your results will be.

Safety and Environmental Considerations

Calibration involves applying torque, which can cause fasteners to release unexpectedly if not controlled. Wear safety glasses when testing near moving parts or handling heavy components. Keep hands clear of the wrench head during operation, and never place your body under a loaded fastener. If your calibration process requires removing protective guards or working at height, implement appropriate lockout/tagout procedures and ensure tools are secured when not in use.

Environmental factors like temperature can affect torque readings. Extremes in temperature can alter both the wrench and reference standard. If you’re calibrating in a non-laboratory setting, document ambient temperature and allow equipment to acclimate before measurements. Calibrate Point recommends performing calibrations at roughly the same ambient conditions used for the reference standard’s certification whenever possible.

Finally, never improvise safety-critical steps. Use correctly rated adapters and torque transducers, and follow manufacturer specifications for torque ranges, torque adapters, and test setups. A methodical, safety-first mindset protects people and equipment while producing reliable data.

Planning Your Calibration Session: Scope, Range, and Frequency

Before you begin, define the scope: the wrench model, nominal range (the inch-pound range you work in), and your required tolerance. Typical tolerance bands for hand torque wrenches are specified by manufacturers and can range from ±4% to ±6% of indicated torque. Decide whether you will verify only the lower, mid, and upper points of the range or perform a full linearity check across the entire usable span. The frequency of calibration depends on usage, criticality, and environmental exposure. High-use workshop environments may require quarterly checks, while occasional DIY use may be adequate with semi-annual checks.

Document the calibration plan: reference standards to be used, measurement points, acceptance criteria, and data-recording templates. Having a written plan reduces ambiguity and provides an auditable trail. Calibrate Point suggests starting with a baseline test on a known good reference to understand your system’s behavior before moving to the wrench under test. A good plan helps maintain consistency across sessions and technicians.

Data Recording, Acceptance Criteria, and Troubleshooting

Capture readings from the wrench at each calibration point and compare them to the reference values. Record both the indicated and actual torque, along with any observed drift or nonlinearity. Acceptable performance is defined by the tolerance band provided by the wrench’s documentation or your internal quality standards. If readings consistently fall outside the tolerance, review the setup: check the adapter length, ensure alignment, confirm the reference is correctly calibrated, and re-run a verification against a second reference to rule out a faulty standard.

When you detect drift, consider common causes: a worn spring, damaged ratchet mechanism, or misalignment between the wrench and reference. If you cannot identify a mechanical fault, even after re-checks, you may need to place the instrument out of service for professional recalibration or replacement. Maintaining a calibration log supports trend analysis and helps you detect gradual degradation over time.

Lastly, establish a reproducible re-testing protocol. After adjustments or repairs, re-test at multiple points to confirm linearity and stability. Consistency across sessions reinforces confidence in your measurement system and supports informed decisions on maintenance schedules.

Documentation, Records, and How to Use Calibrated Wrench in Practice

Once the wrench passes acceptance criteria, document the results in a calibration log with date, technician ID, reference standard used, ambient conditions, and the measured torque values. Attach any certificates or serial numbers from the reference standard. Use a standardized worksheet to facilitate data review and audit readiness. In practice, a calibrated inch-pound torque wrench should be used to verify critical fasteners in assemblies, ensuring tightness specifications are met without over- or under-torque.

To sustain accuracy, perform periodic re-checks at defined intervals or after specific events such as heavy use, dropping the tool, or exposure to extreme temperatures. Store the wrench in a way that preserves its calibration, such as keeping it with the protective case and avoiding exposure to prolonged mechanical shocks. A well-maintained calibration history supports traceability and helps teams make informed maintenance and safety decisions.

Practical Takeaways and Next Steps

• Establish a clear calibration plan with traceable references and acceptance criteria.
• Use a stable setup and document environmental conditions.
• Record readings meticulously and maintain a calibration log for ongoing quality control.
• Schedule regular re-checks based on usage, environment, and criticality.
• Recalibrate promptly if drift or damage is detected, and retire the instrument if needed for safety-critical tasks.
