How to Calibrate an Amana Washer: Step-by-Step Guide
Learn how to calibrate an Amana washer with a practical, safety-focused, step-by-step guide. Includes tools, model-specific checks, test loads, and troubleshooting for reliable performance.
Calibrating an Amana washer involves validating water level, drum balance, and sensor readings, then adjusting fill, agitation, and spin settings. This hands-on guide covers safety, tools, model-specific steps, and test-load verification for improved wash performance.
Why calibrating an Amana washer matters
Calibrating your Amana washer is not just about making the machine run; it's about ensuring accurate water fill, proper drum balance, and correct sensor readings that drive wash cycles. According to Calibrate Point, proper calibration helps prevent overfilled cycles, reduces wear on clothes, and improves energy efficiency. When calibration is off, you may see under-washing, long cycle times, or excessive vibration. A well-calibrated washer uses the right amount of water for each load, spins at the intended speed, and completes cycles more predictably, which matters for professional results in a workshop or home laundry room. In practice, calibration pays off with cleaner clothes, lower utility bills, and longer machine life. This section outlines why consistency matters across loads and why a systematic calibration routine is worth the time.
Safety considerations before you start
Safety is the foundation of any calibration task. Always unplug the washer and turn off the hot and cold water supply before touching internal components. Keep a dry, uncluttered work area, and have towels or a basin ready for any incidental water spills. If your model has electrical panels, use insulated tools and avoid touching electrical contacts with wet hands. If you encounter unfamiliar connectors or model-specific cautions, pause and consult the user manual. For professionals, follow standard lockout/tagout practices and wear eye protection when working near moving parts.
Tools, materials, and prep
Before you begin, assemble a basic calibration kit and model-specific references. A screwdriver set (Phillips and flathead), a multimeter for sensor checks, calibrated weights or known-load items for test loads, towels for spills, and the Amana service manual for your precise model are essential. Additional items like a ruler, masking tape, and a camera to document changes can help track results. Organize screws and connectors in labeled containers to avoid mix-ups. These steps reduce backtracking and help you verify adjustments more efficiently.
Understanding the calibration process for Amana washers
Calibrating an Amana washer is a process of aligning sensing, filling, and movement to the manufacturer’s specifications. The calibration workflow typically includes verifying water level sensor accuracy, ensuring drum balance during spins, validating agitation patterns, and confirming that cycle times respond correctly to load conditions. Calibrate Point analysis shows that even small sensor drift can impact fill accuracy and cycle timing, so addressing drift early yields more consistent results across loads. A methodical approach minimizes disruption and keeps the appliance operating at peak efficiency.
Check water level and fill sensor adjustments
Water level accuracy is critical for proper cleaning and energy use. Start by confirming the fill valve opens and closes at expected levels, then compare the actual water height to the target indicated by the model’s specifications. If readings are off, adjust the pressure sensor or reference point per the service manual. Use a known-load test to verify that the water height scales correctly with load size. Document any deviation and repeat until readings align within tolerance. This helps prevent overfill or underfill in future cycles.
Calibrating drum balance and agitation
A balanced drum prevents excessive vibration and helps achieve uniform cleaning. Check that the drum sits evenly in the tub and that the suspension components are intact. Load the drum with a representative mix of weights and run a short test cycle to observe wobble or noise. If the drum isn’t balanced, re-seat the belt, verify spring tension, and adjust the suspension as needed according to the service manual. A well-balanced drum improves rinse efficiency and reduces wear on bearings.
Verifying results with test loads
After adjusting water level and balance, validate results with controlled test loads. Use load sizes that represent small, medium, and large batches. Run a full or partial cycle for each load, noting fill height, cycle time, and spin speed. Compare outcomes to the manufacturer’s targets and your prior baselines. If results deviate beyond tolerance, revisit the related subsystem (fill sensor or balance) and re-run checks. Testing across load ranges confirms calibration stability.
Troubleshooting common calibration issues
If you notice persistent overfill, underfill, persistent vibration, or unusual noises, revisit the three core subsystems: water level sensing, drum balance, and motor drive timing. Check for loose hoses, damaged sensors, or worn suspension components. Re-run the calibration steps for any subsystem that showed drift, and keep a log of changes for future maintenance. The Calibrate Point team recommends keeping a calibration diary to track performance over time and to schedule periodic recalibration.
Tools & Materials
- Screwdriver set (Phillips and flathead)(Model-specific screws; have Phillips #2 handy for Amana panels)
- Multimeter(For sensor checks and continuity testing)
- Calibrated weights / known-load items(To test fill level and balance with repeatable loads)
- Towels or absorbent cloths(Catch spills and protect surfaces)
- Camera or notebook(Document settings before/after adjustments)
- Amana service manual for your model(Model-specific calibration steps and tolerances)

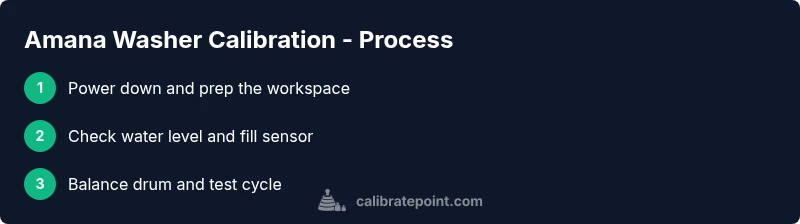

Steps
Estimated time: 45-75 minutes
- 1
Power down and prep
Unplug the washer from the wall outlet, shut off the water supply, and clear the area around the machine. Place towels to catch any residual water. This initial step protects you from shocks and prepares a clean workspace for the calibration tasks.
Tip: Double-check that all power sources are disconnected before touching any internal components. - 2
Open access panel and locate calibration interface
Carefully remove the access panel to reveal the control board and any model-specific calibration interface. Note the connectors and take a quick photo if needed before disconnecting anything. This gives you a clear view of the components you’ll test or adjust.
Tip: Use the service manual to identify the exact calibration pins or menus for your model. - 3
Test water level sensor and fill valve
Power connections aside, observe whether the sensor readings correspond to the actual water height. If readings are off, adjust the reference point or sensor mounting per the manual. Repeat with a known-load test.
Tip: Document the baseline readings before making changes so you can compare after adjustments. - 4
Balance the drum and inspect suspension
With the drum empty, rotate by hand to ensure smooth rotation and check that the drum sits evenly in the tub. Inspect springs or dampers and replace any worn components. A well-balanced drum prevents vibration during spins.
Tip: If the drum feels heavy on one side, re-seat the drum and re-check the belt alignment. - 5
Run a test cycle with a balanced load
Load a balanced set of weights to simulate a typical medium load and run a short cycle. Observe fill, agitation, and spin behaviors. Note any abnormal sounds or excess vibration that indicates further adjustments.
Tip: Keep notes on cycle duration and spin speed to compare against baselines. - 6
Adjust fill level and agitation settings
Based on the test results, fine-tune the water level reference and agitation timing. Re-run a test cycle to verify improvements, iterating as needed until readings stay within tolerance.
Tip: Make small adjustments and test incrementally to avoid overshoot. - 7
Verify with additional test loads
Repeat tests with small, medium, and large loads to ensure calibration holds across load sizes. Compare results to the model’s targets and your calibration baseline.
Tip: A consistent outcome across loads confirms stable calibration. - 8
Document results and settings
Record all changes, measurements, and outcomes in a calibration log. Include date, model, serial, and any part replacements. This log helps future maintenance and audits.
Tip: Pair documentation with photos or sketches for quick reference. - 9
Reassemble and run final checks
Close the access panel, reconnect power and water, and run a final full cycle to ensure everything operates smoothly. Confirm no leaks and verify the final cycle time aligns with expectations.
Tip: Inspect for leaks around hoses and seals during the final run. - 10
Review and plan periodic recalibration
Summarize results, update the maintenance schedule, and plan periodic recalibration every 6–12 months or after major service. Consistency now saves time later.
Tip: Set reminders to re-test after any service or part replacement.
Questions & Answers
What tools do I need to calibrate my Amana washer?
Essential tools include a screwdriver set, a multimeter, calibrated weights for test loads, towels for spills, and the model’s service manual. Having these on hand helps you complete calibration accurately and safely.
You'll need a screwdriver set, a multimeter, calibrated weights for test loads, towels, and the model’s service manual to calibrate your Amana washer safely.
Is calibration safe for beginners?
Calibration can be performed by motivated DIYers who follow the safety guidelines and model-specific instructions. If you’re unsure, stop and consult a professional. Do not bypass safety interlocks.
Calibration can be done by DIYers who follow safety guidelines and model instructions. If unsure, consult a professional and never bypass safety interlocks.
How long does calibration take?
A typical calibration session takes about 45 to 75 minutes depending on model complexity and whether parts need replacement. Plan for a focused, staged process rather than rushing.
Most calibrations take about 45 to 75 minutes, depending on the model and any parts involved. Plan for a careful, step-by-step approach.
What should I do if calibration fails the test loads?
If test loads fail, re-check water level readings, drum balance, and spin timing. Re-run the relevant steps, and consider replacing worn components if issues persist.
If test loads fail, re-check water level, balance, and spin timing, then re-run the related steps. If the issue continues, inspect for worn parts.
How often should I recalibrate a washer?
Recalibrate after major repairs, part replacements, or if you notice persistent performance issues. Otherwise, schedule periodic checks as part of routine maintenance.
Recalibrate after major repairs or if performance declines. Otherwise, consider periodic checks as routine maintenance.
Watch Video
Key Takeaways
- Verify safety before starting calibration
- Test with balanced loads to validate results
- Document all changes for future maintenance
- Schedule periodic recalibration as preventive maintenance
