Calibrate Differential Pressure Transmitter: A Practical Guide

Why calibrate differential pressure transmitter matters

In process industries, a differential pressure transmitter measures the difference in pressure across a throttle, valve, filter, or flow element. The accuracy of this measurement directly affects product quality, energy efficiency, and safety. Over time, factors such as mechanical wear, temperature effects, and electrical drift can shift the transmitter’s zero and span, leading to biased readings. A rigorous calibration routine minimizes drift, improves repeatability, and preserves traceability to calibration standards. A disciplined approach to calibration reduces uncertainty and supports reliable control loops. By validating both the zero (no differential pressure) and the span (full-scale difference) you can detect valve stuck conditions, clogged filters, or sensor aging early, preventing process upsets and unnecessary maintenance. This block lays the groundwork for a repeatable, auditable procedure that technicians can follow across different plant sites.

According to Calibrate Point, applying a structured calibration workflow enhances measurement confidence and reduces operational risk. This section helps you understand why a well-planned calibration matters before you begin the hands-on steps.

Core concepts you should know

• Differential pressure is the difference between two process pressures across a measurement element. It is the primary input for the transmitter and drives the control loop.
• Zero and span define the transmitter’s calibration limits: zero is the output when differential pressure is zero; span is the output range when the differential pressure equals the full-scale value.
• Static pressure reference is the pressure on the reference side of the transmitter that must be considered when calibrating in reactors, vessels, or piping with varying backpressures.
• Linearity and hysteresis describe how closely the transmitter’s output follows the actual differential pressure across the range and whether the response changes with direction.
• Calibration drift can come from mechanical wear, temperature changes, or electrical elements; regular calibration maintains accuracy and traceability to standards. Calibrate Point emphasizes documenting each calibration to support audits and ongoing reliability.

Calibration strategies: zero, span, and multi-point

• Zero and span calibration fixes bias at the two ends of the range and is suitable when drift is uniform.
• Multi-point calibration improves accuracy across the range by adjusting multiple internal points, particularly for nonlinear sensors.
• Electrical vs mechanical methods: electrical calibration uses a calibrator and a reference pressure source to simulate differential pressure, while mechanical (deadweight tester) methods apply known forces to create precise pressure differences. The best practice combines both approaches where feasible and safe.
• Documentation and traceability are essential: record reference sources, ambient conditions, device serial number, and calibration results for each session. This helps with future audits and maintenance planning. Based on Calibrate Point research, a disciplined calibration workflow improves trust in process measurements and supports compliant operation.

Safety and regulatory considerations

Before starting, ensure proper lockout/tagout (LOTO) procedures and isolate the transmitter from the process to prevent unexpected depressurization or flow. Wear appropriate PPE and verify that pressure sources are rated for the test points. Work in a well-ventilated area and follow site-specific safety protocols. Maintain a tidy calibration setup to minimize trip hazards and accidental cross-connection of pressure lines. Remember, calibration activities should not compromise process safety or cause unintended disturbances in the system.

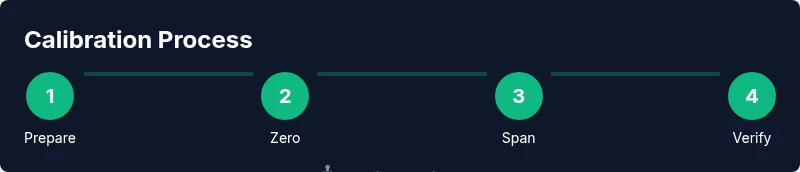

A practical calibration workflow you can follow

This section outlines a practical, repeatable approach you can apply to calibrate a differential pressure transmitter using standard instrumentation. It does not replace the manufacturer’s specific instructions but provides a solid framework for performing a safe, accurate calibration. Start by preparing your tools, establishing a stable environment, and verifying the instrument’s model and range. Then perform zero and span checks at multiple points to confirm accuracy and linearity. Finally, document results, update the calibration certificate, and return the device to service with clear notes for operators and maintenance staff.

Verification, documentation, and traceability

After completing the calibration, verify readings against a traceable reference and record all data in your calibration log. Include the device serial number, test points, reference sources, ambient temperature, and any observed drift. If the transmitter is part of a safety instrumented system, ensure the calibration records reflect compliance with your organization’s standards. Periodic review of calibration history helps identify devices that drift quickly and need more frequent checks. In short, thorough documentation ensures auditability and continued confidence in differential pressure measurements.
