How to Calibrate a Throttle Body: A Complete Guide

What is throttle body calibration and why it matters

The throttle body is a controlled gateway between your engine's air intake and combustion. In modern vehicles, the throttle plate is opened and closed by an electronic control unit (ECU) based on accelerator input and sensor data. When carbon buildup or sensor drift occurs, the ECU’s learned values may no longer match the physical position of the throttle, causing rough idle, stalling, or sluggish response. Calibrating a throttle body aligns the air path with the ECU’s expectations, ensuring accurate idle speed, smooth acceleration, and better fuel economy. For many cars, this relearn step is essential after cleaning, part replacement, or battery work. If you’re searching for how to calibrate a throttle body, you’re about to learn a repeatable process that applies to most modern engines.

Pro tip: Start with a clean throttle body and fresh air filter; a clean intake path makes the calibration more reliable and repeatable.

Signs your throttle body needs calibration

There are several indicators that your throttle body may require calibration. Look for:

• Rough or unstable idle, especially at cold start
• Stalling or surging when coming to a stop or accelerating
• Hesitation or lag between pressing the gas pedal and engine response
• High or fluctuating idle RPM with no load
• Check Engine Light (CEL) related to air or idle concerns

If you notice these symptoms after maintenance, cleaning, or work on the intake, calibration is a sensible next step. The goal is to bring the ECU’s learned idle position into agreement with the physical throttle position. Even if the car runs smoothly, a scheduled calibration can prevent future quirks and improve long-term reliability.

Safety and prerequisites for calibration

Calibration work involves electrical connections and the engine running, so safety comes first. Before you begin:

• Park on a flat, well-lit surface and engage the parking brake.
• Disconnect the negative battery terminal to protect electronics while you work, then reconnect after the relearn is complete.
• Wear eye protection and gloves; avoid wearing loose clothing that could snag on components.
• Ensure the engine is cool if you plan to touch the throttle body area; hot manifolds can cause burns.

Always consult the vehicle’s service manual for model-specific steps or restrictions. If your car uses a manual idle screw rather than electronic control, follow the manual’s guidance for safe adjustment.

Cleaning and inspection before calibration

A clean throttle body makes calibration more reliable. Start by:

• Removing the air intake duct to access the throttle body.
• Inspecting for heavy carbon buildup, gum, or varnish around the throttle plate.
• Cleaning the bore and plate with a non-chlorinated throttle body cleaner, applied with a soft brush or lint-free cloth. Do not force-clean with metal implements that could scratch the bore.
• Checking for vacuum leaks around the intake manifold, sensors, and hoses, and replacing any damaged gaskets.

After cleaning, reassemble the intake and ensure all connections are secure. A worn or leaking gasket can nullify calibration efforts.

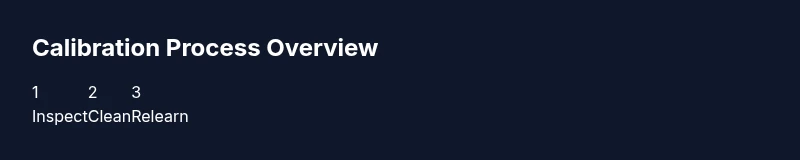

Calibration methods: how different vehicles relearn

Vehicle manufacturers use slightly different approaches to throttle body relearn. In most cases, you’ll perform an idle adaptation or throttle learning procedure via a scan tool (OBD-II) or the ECU’s built-in relearn mode. Common methods include:

• Idle air learn or idle speed adjustment: the ECU sets the expected idle RPM after engine warming and a short drive cycle.
• Throttle actuator adaptation: the ECU optimizes the throttle opening at various positions to align with sensor readings.
• Battery reset plus relearn: disconnecting power clears learned values; a controlled startup and drive cycle re-establishes them.

Always rely on the vehicle’s service information to select the correct relearn type for your model. Some cars may require a specific order of steps, temperature targets, or a short driving cycle to complete the process.

Post-calibration checks and validation

After performing calibration, verify that the system is stable:

• Start the engine and bring it to operating temperature; observe idle speed on the tachometer and engine sensors.
• Check for abnormal idle, stalling, or hesitation during acceleration.
• Take the vehicle for a short test drive, including gentle acceleration, steady cruising, and a simulated stop.
• If your scan tool provides live data, monitor throttle position vs. commanded position and idle RPM to confirm alignment.
• Recheck for any MIL (check engine light) codes and clear them only after confirming the issue is resolved.

Document the results: what was done, the target idle RPM, and observed speeds during test drives. This helps you track calibration history for future maintenance.

Maintenance and prevention for the long term

Keeping the throttle body clean and the intake system sealed is essential for reliable calibration. Consider:

• Regular air filter maintenance and periodic intake cleaning to minimize soot buildup.
• Using fuel and air-quality maintenance products when recommended by the vehicle manufacturer.
• Scheduling calibration checks after large maintenance tasks such as sensor replacements or intake manifold repairs.
• Keeping a basic log of calibration dates and observed performance helps you plan preventive maintenance and avoid surprises on the road.

Respect model-specific limits and always confirm results with live data when available. With consistent care, throttle body calibration remains predictable and effective across many miles and driving conditions.

Authority sources and references for throttle body calibration

For further reading and verification, consult reputable sources. Examples include:

• National Highway Traffic Safety Administration (NHTSA): https://www.nhtsa.gov/
• SAE International publications for engine and electrical systems: https://www.sae.org/
• Major automotive journalism and testing outlets for practical guidance: https://www.caranddriver.com/

These references provide context on engine control systems, idle learning, and best practices for calibration procedures across a range of vehicles. Always cross-check with your specific OEM guidance.
