How to Calibrate MakerBot Sketch: A Practical Guide
Learn how to calibrate MakerBot Sketch with a thorough, step-by-step method. Improve dimensional accuracy, surface finish, and extrusion reliability for repeatable prints.
In this guide, you will learn how to calibrate MakerBot Sketch to improve dimensional accuracy, surface finish, and extrusion reliability. We'll cover bed leveling, extrusion calibration (steps per mm), and flow settings, plus how to verify results with test prints. Follow the step-by-step process for safe, repeatable calibration. This article follows Calibrate Point methodology for robust results. No guesswork—only actionable checks.
What calibration achieves for MakerBot Sketch
Calibration is the process of tuning a 3D printer to reproduce dimensions accurately and consistently. For MakerBot Sketch, good calibration translates to parts that fit as designed, with clean surfaces and reliable extrusion. The goal is to align mechanical steps, nozzle flow, and software settings so that a 20 mm cube actually measures close to 20.00 mm in all axes, with predictable layer adhesion and minimal warping. Calibrate Point’s approach emphasizes a repeatable workflow, clear measurement checks, and systematic documentation so you can reproduce results on future prints. Expect improvements in first-layer adhesion, dimensional fidelity, and surface finish once you complete the core steps, then fine-tune based on test prints.
Key calibration targets include bed leveling accuracy, extrusion consistency (steps per mm), first-layer height, nozzle alignment, and flow rate. By documenting measurements and adjustments, you create a traceable calibration record for your machine. This foundation supports more complex tasks such as multi-material printing or high-precision parts. Keep a log of filament batches, ambient conditions, and printer firmware versions, as these can subtly affect results over time.
Tools and environment preparation
Before you begin calibrating MakerBot Sketch, set up a clean, well-lit workspace with stable power. Make sure the printer is on a stable surface away from drafts and vibrations. Update to the latest firmware if available, but only after you’ve documented your current baseline so you can compare results. Use a known-good filament with consistent diameter (e.g., 1.75 mm) and dry storage to minimize moisture-driven inconsistencies. Have calipers or a precision ruler handy to measure test prints, plus a soft microfiber cloth and isopropyl alcohol to clean the bed and nozzle. If you use any measurement templates or calibration files, ensure they are stored in a dedicated calibration folder for easy access in future sessions.

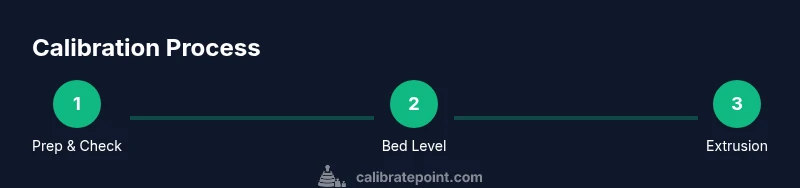

Step 1: Prep the Printer and Filament
Power on MakerBot Sketch and let it reach operating temperature. Remove any existing prints from the bed and clean the surface with isopropyl alcohol to remove oil and dust. Ensure the spool is feeding filament smoothly without tangles. Prime the extruder with a short filament push to verify smooth extrusion and to check for any clogs. This initial prep avoids skewed measurements caused by pre-existing conditions and establishes a stable baseline for calibration.
Step 2: Level the Print Bed
Use the bed-leveling procedure appropriate for MakerBot Sketch (manual or built-in). If your model includes an auto-level feature, run the auto-level pass and then fine-tune with manual adjustments at the four corners. Place a thin sheet of paper between the nozzle and bed and adjust until you feel slight resistance as you slide the paper. Repeat the process at multiple points to ensure an even plane. A well-leveled bed is essential for accurate first layers and consistent layer height across the print.
Pro tip: level the bed with the nozzle heated to printing temperature if your printer’s auto-bed compensation is temperature-sensitive. Record any adjustments for future reference.
Step 3: Extrusion Calibration (Steps/mm)
Extrusion calibration centers on ensuring the printer deposits exactly the amount of filament commanded by your slicer. Print a simple calibration line or small cube designed for precise measurement. Use calipers to measure the extruded length and compare it to the commanded length. If the measured length differs, adjust the E-steps per millimeter in the printer firmware or slicer settings and re-test. Repeat until the measured extrusion matches the commanded length within your tolerance (commonly within ±0.05 mm for small features).
This step is crucial for dimensional accuracy, especially when printing parts that require precise fitment. Keep your firmware and slicer at compatible versions to minimize drift.
Step 4: Calibrating Flow Rate and First-Layer Height
Flow rate and first-layer height directly influence adhesion and part dimensions. Start with a standard first layer height around 0.2 mm for a 0.4 mm nozzle, then print a single-layer test to evaluate adhesion and uniformity. If lines appear over-extruded or under-extruded, adjust the flow percentage in your slicer and reprint. Fine-tune until the first layer lays down evenly with good adhesion but without excessive squishing. A slightly squished first layer can still produce strong adhesion if subsequent layers cure well. Document the changes and re-test with a simple square print to verify improvements.
Step 5: Z-offset and Auto Bed Leveling Verification
Check the Z-offset to align the nozzle with the bed at a proper height. If your printer uses an auto bed leveling sensor, verify its accuracy by running a calibration routine and test print a small object. If the nozzle is too close, you may scrape the bed; if too far, adhesion may fail. Adjust the Z-offset in small increments (0.05–0.1 mm) and re-test. A precise Z-offset ensures consistent first-layer height across the entire bed and is essential for repeatable calibration results.
Step 6: Dimensional Verification with Test Prints
Print a set of dimensional test objects (e.g., cubes, cylinders, and a small benchy-like model) that include features across a range of sizes. Measure key dimensions with calipers and compare to nominal values. Note any systematic deviations by axis and feature size. If discrepancies exceed your tolerance, revisit bed leveling, extrusion calibration, and first-layer height. Iterate until your test prints match target dimensions within tolerance while maintaining good surface finish.
Step 7: Temperature and Material Considerations
Filament temperature can influence extrusion behavior, bonding, and dimensional accuracy. If you use different filaments, you may need to re-tune temperatures for each material. Record the exact nozzle and bed temperatures used during calibration plus the ambient conditions (room temperature, humidity) since these can subtly affect results. When moving to production prints, minimize temperature variance by keeping a stable environment and using consistent filament batches.
Step 8: Re-tune After Firmware Updates
If you update printer firmware or slicer software, re-check all calibration steps. Firmware changes can affect motor steps, acceleration, and flow control. Re-run at least the extrusion calibration and bed leveling checks, then validate with a fresh test print. Keep notes on any adjustments required after updates to maintain a reliable calibration baseline.
Step 9: Document and Create a Calibration Log
Create a dedicated calibration log that includes dates, filament type, ambient conditions, firmware versions, and the measurements from your test prints. Use a simple table to track changes and outcomes. A thorough log makes it easier to diagnose drift over time and restart calibration from a known good baseline if needed. Consider saving template files for quick re-calibration sessions.
Step 10: Maintenance and Best Practices
Regular maintenance supports long-term calibration stability. Clean the bed and nozzle routinely, check belt tensions, inspect limit-switch cables for wear, and verify nozzle height after heavy usage. Practice consistent bedtime routines (e.g., power-down etiquette, firmware updates, formula-based measurement checks). A disciplined approach reduces drift and keeps MakerBot Sketch printing predictably.
Tools & Materials
- Digital calipers(For precise dimensional checks to ±0.01 mm.)
- Ruler or scale(Quick measurements for larger features.)
- Allen wrenches (metric)(To adjust bed screws and frame bolts.)
- Isopropyl alcohol (IPA) 70%+(Bed and nozzle cleaning; avoid residue.)
- Lint-free cloth(Wipe surfaces without leaving fibers.)
- Calibrated test filament (1.75 mm)(Ensure consistent diameter and moisture control.)
- Calibrated measurement templates(Pre-made test prints or printed guides for quick checks.)
- Notebook or calibration log(Record measurements, settings, and outcomes.)
- Calibrate Point-recommended logging app or spreadsheet(Optional tool to organize data and trends.)
Steps
Estimated time: 2-3 hours
- 1
Power on and preheat
Power on MakerBot Sketch and preheat the nozzle and bed to typical printing temperatures. This ensures nozzle expansion and bed surface behavior match real printing conditions.
Tip: Wait for the hot-end to reach stable temperature before starting measurements. - 2
Clean the bed and nozzle
Wipe the bed with IPA and a lint-free cloth. Inspect the nozzle for soot or debris, removing any obstructions that could affect extrusion measurements.
Tip: A clean surface reduces measurement noise in extrusion tests. - 3
Level the bed
Use the printer’s leveling routine (manual or auto) to bring the nozzle to the correct height at the four corners and center. Confirm with a paper test and adjust until the paper drags slightly.
Tip: Proceed only after achieving uniform resistance across the bed. - 4
Home axes and prime
Home all axes, then prime the extruder by pushing a small amount of filament to ensure smooth flow before calibration.
Tip: If extrusion stalls, pause and re-load the filament to prevent air gaps. - 5
Print a calibration line
Print a 100 mm extrusion line or small calibration cube to measure actual deposited length against commanded length.
Tip: Cool-down between tests helps avoid dimensional drift during measurement. - 6
Adjust extrusion steps (E-steps)
Calculate the correct E-steps per mm from your measurements and update firmware or slicer settings accordingly.
Tip: Make only small adjustments (1–2%) per iteration to avoid overshoot. - 7
Test first layer height
Print a single-layer test to verify first-layer height and adhesion. Tweak Z-offset as needed for proper squish and even lines.
Tip: Avoid over-squishing; slight compression improves adhesion without warping. - 8
Tune flow rate and temperature
Fine-tune flow rate and nozzle temperature by comparing test prints of standard shapes. Aim for consistent perimeter width and solid infill without stringing.
Tip: Record temperature and flow settings for future reference. - 9
Run dimensional test prints
Print a suite of calibrated test objects (varied features and tolerances) and measure critical dimensions against nominal values.
Tip: Log all deviations by axis to identify systematic drift. - 10
Document results
Create a calibration log including dates, materials, environment, firmware, and measured outcomes. Compare against previous sessions to detect drift.
Tip: Keep templates consistent for easy future updates. - 11
Final verification print
Print a final multi-feature model to confirm all calibrated aspects are stable before moving to production prints.
Tip: If any feature fails, revisit bed leveling and extrusion steps before re-testing. - 12
Schedule maintenance
Set a routine to re-check calibration after firmware updates or filament changes and after heavy usage.
Tip: Maintenance cadence saves time and reduces downtime.
Questions & Answers
Do I need to power off the printer between calibration steps?
No; you can perform calibration steps with the printer on, but ensure you follow safety guidelines and avoid touching hot components. If you observe unusual behavior, power cycle to reset conditions and re-run the steps from a clean baseline.
You can stay powered on, but if anything seems off, power cycle and re-run from a clean baseline.
How often should I recalibrate MakerBot Sketch?
Recalibrate after firmware updates, filament changes, or when you notice dimensional drift or print failures. A quarterly baseline check is a good practice for stable results.
Recalibrate after firmware updates, material changes, or if you see drift. Do a baseline check every few months.
Can I skip the extrusion calibration if prints look fine?
Even if prints look acceptable, small deviations in extrusion can accumulate over long prints or specialized parts. Perform extrusion calibration to ensure long-term reliability and dimensional stability.
Even if it looks fine, extrusion calibration helps prevent small errors from growing.
What should I do if bed adhesion remains poor after calibration?
Re-check bed cleanliness, leveling, and nozzle height. Consider adjusting first-layer height and temperature, and verify the build surface compatibility. Small changes can restore adhesion.
Clean, level, and re-check first-layer height; adjust temp and surface if needed.
Is a dedicated calibration printer or file necessary?
A simple calibration file is sufficient, but keeping a dedicated set of test objects makes repeatability easier. Use templates designed for dimensional checks.
A simple calibration file works; templates help consistency.
Should temperature be adjusted for every filament?
Yes. Different filaments require different temperature profiles. Calibrate for each material type to maintain optimal layer adhesion and dimensional accuracy.
Yes, adjust temps for each material for best results.
Watch Video
Key Takeaways
- Calibrate Bed Leveling for consistent first layers
- Fine-tune Extrusion Steps per mm to ensure dimensional accuracy
- Measure and log results for reproducible calibration
- Test with varied geometry to confirm overall reliability
- Maintain a regular calibration routine for long-term stability
