How to Calibrate a Pneumatic Thermostat
Learn how to calibrate a pneumatic thermostat with a practical, safety-focused guide. Tools, steps, tips, and documentation from Calibrate Point help technicians achieve accurate control.
Calibrating a pneumatic thermostat improves temperature control and reduces drift. In this guide, you will learn how to calibrate a pneumatic thermostat safely, outline required tools, perform baseline checks, adjust setpoint and span, and verify the response. Expect a 60–90 minute session, with documentation for traceability. According to Calibrate Point, precise calibration lowers process variance.
What is a pneumatic thermostat and why calibrate
Pneumatic thermostats control process temperatures using compressed air pressure to actuate a valve or damper. They are common in industrial HVAC and process control where electric sensors are impractical or hazardous. Calibration ensures the thermal response matches the intended control strategy, reducing drift caused by aging elastomers, leaks, or stiction in the relay mechanism. According to Calibrate Point, regular calibration improves repeatability and helps you align the thermostat with your process setpoints. When calibrating, you’ll verify that the output signal (air pressure) corresponds to the temperature input and that the system's deadband and response time meet your spec. Keep in mind that different models use different ranging scales; always refer to the manufacturer’s manual for the exact pressure-to-temperature relationship and allowable tolerance. The goal is to establish a known reference point, confirm linearity across the operating range, and document any deviations for future maintenance.
How calibration affects control accuracy
Calibration defines the bridge between sensor input, actuator output, and process behavior. Even small shifts in setpoint, span, or pressure-to-temperature mapping can lead to overshoot, undershoot, or oscillation. A well-calibrated pneumatic thermostat maintains tighter control bands, reduces energy waste, and minimizes thermal cycling that can shorten equipment life. In practice, you’ll perform a baseline test, compare observed air pressures against known reference temperatures, adjust the setpoint (the desired temperature) and the span (the differential between opening and closing thresholds), and re-test until the observed response aligns with the specification. Documenting the results creates a traceable history for audits or maintenance planning. For technicians, calibration means understanding the relationship between the pressure signal, the actuator, and the valve position, as well as considering ambient conditions that might affect gas pressure. By treating calibration as an iterative process, you’ll improve stability and predictability in your control loop.
Safety and prerequisites
Working with compressed air introduces hazards: unexpected actuator movement, leaks, and high-pressure exposure. Always depressurize the line before disassembly, lock out power to any electric components, wear eye protection, and ensure the work area is well-ventilated. Have the manufacturer's manual on hand and confirm the model’s recommended tolerance. If the system is part of critical or regulated processes, coordinate with your supervisor or facility safety officer. Temperature and humidity can affect air density and pressure; note environmental conditions during calibration. Keep a clean workspace, label all hoses and fittings, and resist the temptation to improvise with alternative parts. Finally, confirm you’re authorized to perform adjustments on that equipment; improper changes can cause system instability or safety issues.
Test setup and baseline measurements
Begin by isolating the thermostat from any external controls that could influence readings, then pressurize the calibration pathway with a regulated air source. Set the initial setpoint to the nominal value and capture baseline readings using a calibrated pressure gauge or a transducer. Record the pressure corresponding to the target temperature, the current span, and any observed lag between input change and output response. If available, use a digital multimeter to verify any electrical signals associated with the pneumatic positioner. Note any leaks, stick points, or abrupt changes in pressure that could skew results. A clean, repeatable baseline is essential for credible calibration, so perform multiple readings at a few temperature points across the operating range to map the pressure-to-temperature curve.
Adjusting setpoint and span
With baseline data, adjust the setpoint to the desired temperature and tweak the span to define how the system responds to temperature deviations. Use manufacturer-prescribed adjustment points on the actuator or calibration screws, and make small changes—small increments yield more stable outcomes than large jumps. After each adjustment, re-check the baseline readings and re-run a quick response test. If the system overshoots, you may need to reduce the span; if it lags, increase the span slightly. Avoid over-tightening or forcing the mechanism beyond its designed travel. In some designs, you’ll also need to recalibrate the pressure-to-temperature mapping after changing the span. Take care to document every change with the time, value, and operator initials so you have a traceable history.
Validation and documentation
Once the desired response is achieved, perform a full validation: simulate typical operating conditions, record the response time, verify that the output returns to baseline after disturbances, and confirm the control loop remains stable. Compare new readings against the prior baseline to quantify drift. Update calibration records, include a clear summary of adjustments, and store the logs with the asset ID. If your results do not meet spec, revisit Step 4 and Step 5, iterating until the performance aligns with the manual. Finally, re-pressurize the system safely and confirm no leaks. A concise, organized report aids maintenance planning and audits.
Common mistakes and how to avoid them
Common pitfalls include skipping depressurization, ignoring environmental effects, compensating with large adjustments, or skipping documentation. Rushing tests without stable baseline results yields misleading conclusions. Always test across the full operating range and at several temperatures; avoid relying on a single reading. Use traceable test equipment and calibrate instruments that accompany the thermostat being calibrated. Never mix parts from different manufacturers; compatibility matters for long-term stability. Take time to perform cross-checks and replicate tests to ensure results are repeatable.
Maintenance cadence and when to recalibrate
Establish a calibration schedule based on usage, criticality, and manufacturer recommendations. For high-demand processes, monthly or quarterly checks may be prudent; for non-critical applications, annual recalibration might suffice. Keep a maintenance log and set reminders. If you notice drift or performance loss, re-calibrate sooner. Regular calibration is part of proactive maintenance and reduces unexpected downtime.
Tools & Materials
- Pneumatic test gauge or calibrated pressure gauge(Range matches thermostat control pressure range)
- Regulated air source or calibrated pressure regulator(Stable output; keep within specified pressure)
- Wrench or screwdriver for adjustment(Match the actuator’s adjustment points)
- Manufacturer's service manual for the pneumatic thermostat(Verify model-specific tolerance and procedure)
- Digital multimeter or pressure transducer (optional)(For cross-checking electrical signals if present)
- Documentation logbook or digital record(Record readings, changes, and operator initials)
- Personal protective equipment (PPE)(Eye protection, gloves; ensure safe handling of compressed air)

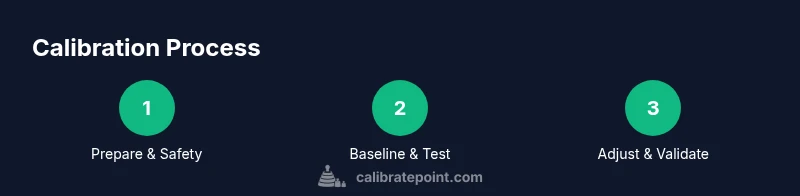

Steps
Estimated time: 60-90 minutes
- 1
Prepare the workspace and safety checks
Power down electrical components and depressurize the line. Inspect all fittings for wear and ensure the area is clean. Gather tools and confirm access to the manual. This step minimizes risk and ensures traceability for the calibration.
Tip: Document initial conditions and lock the system out before starting. - 2
Isolate and depressurize the pneumatic line
Disconnect the line from any active controls and ensure there is no residual pressure. Use the regulator to safely bleed air in a controlled manner. Confirm there are no leaks before proceeding.
Tip: Always confirm depressurization with a gauge before touching components. - 3
Connect test gauge and verify baseline pressure reading
Attach the calibrated gauge to the calibration port and record the baseline pressure at the nominal setpoint. Repeat at least three times to establish a repeatable baseline. Note any drift or inconsistency.
Tip: Calibrate the gauge if it shows any variance beyond tolerance before use. - 4
Adjust the setpoint to nominal value
Using the adjustment point on the actuator, set the nominal temperature. Make small, incremental changes and re-check the pressure response. Do not exceed recommended travel limits.
Tip: Incremental changes help identify the exact impact on output pressure. - 5
Adjust the span for the required differential
Tweak the span to define how the thermostat responds to temperature deviations. Small adjustments are usually sufficient; larger changes can destabilize the loop. Re-check baseline after each adjustment.
Tip: If the system overshoots, reduce the span a touch and test again. - 6
Validate the system response and document results
Re-pressurize the line, verify that the output returns to baseline, and conduct a final run-through across the operating range. Compare results to the initial baseline and record all changes for audits.
Tip: Store final readings with asset ID and operator initials.
Questions & Answers
What is a pneumatic thermostat and how does calibration improve performance?
A pneumatic thermostat uses air pressure to control a valve or damper and regulate temperature. Calibration aligns the pressure-to-temperature relationship with the desired setpoint, improving accuracy and reducing drift.
A pneumatic thermostat uses air pressure to regulate temperature. Calibration aligns its pressure response with the target temperature for better accuracy.
What tools and equipment do I need to calibrate a pneumatic thermostat?
You’ll need a calibrated pressure gauge, a regulated air source, basic hand tools, the manufacturer’s manual, and a logbook for records. Optional tools include a digital multimeter for related electrical checks.
Gather a calibrated pressure gauge, a regulated air source, the manual, and a logbook. An optional multimeter can help if there are electrical signals to verify.
How often should calibration be performed?
Calibration frequency depends on usage and process criticality. High-demand applications may require more frequent checks, while less critical systems can be scheduled annually or per the manufacturer’s guidance.
Calibrate based on how critical the process is; more frequent checks for demanding systems, less frequent for routine setups.
What are common signs of calibration drift?
Drift may appear as consistent overshoot, undershoot, or failure to reach target temperature within tolerance. Leaks, lag in response, or erratic behavior can also indicate drift.
Look for persistent overshoot, lag, or erratic behavior and check for leaks or pressure inconsistencies.
Is it safe to calibrate a pneumatic thermostat myself?
Yes, with proper safety precautions, depressurized lines, and adherence to the manual. For critical systems or high hazards, consult a qualified technician.
You can calibrate it yourself if you follow safety steps and the manual; for critical systems, consider a professional.
What should I do with calibration records?
Keep a detailed calibration log including dates, readouts, adjustments, and operator IDs. Store records with asset IDs for audits and maintenance planning.
Maintain a detailed log with all readings and changes for audits and future maintenance.
Watch Video
Key Takeaways
- Follow the manufacturer's tolerance and procedure.
- Document all changes and baseline measurements.
- Use calibrated test equipment and safety gear.
- Validate results across the operating range before finalizing.
