How to Use Calibration Cube: A Step-by-Step Guide

What is a calibration cube and why it's used

A calibration cube is a small, precisely dimensioned block used to verify measurement accuracy across tools and processes. In the context of calibration, the cube typically has nominal dimensions on each axis (for example, 20 mm per side) and clean, square faces that you can measure with calipers or a micrometer. By comparing the actual measured dimensions to the nominal values, you can detect issues such as printer dimensional drift, instrument bias, or alignment errors in your setup. According to Calibrate Point, a deliberate, repeatable cube-based workflow provides a reliable baseline that you can reference whenever you adjust equipment or introduce new materials. Understanding how to use calibration cube consistently is essential to obtain meaningful results. Using a cube consistently across tasks also supports traceable calibration records for audits or quality control. When you start a cube-based calibration, you’ll follow a tightly defined protocol to minimize variables: use a cube printed to a known spec, measure under stable conditions, and document every result. In practice, this means controlling temperature, avoiding forceful clamping of the cube, and using a flat, stable surface for measurement. With those conditions, the cube becomes a dependable yardstick for precision work.

Choosing the right cube and materials

The reliability of a cube-based calibration starts with selecting the right cube and materials. Prefer cubes manufactured to tight tolerances with nominally square faces and minimal edge runout. Common sizes are 10 mm, 20 mm, or 40 mm per side; choose the size that best matches the range you measure most often. Inspect the cube for nicks, chips, or warping—even small defects can introduce bias in measurements. For materials, opt for stable plastics or ceramic that resist thermal expansion in typical workshop temperatures. Use a non-glare finish to avoid optical misreadings if you’re using vision-based measurement. Finally, confirm that the cube’s nominal dimensions align with your measuring instrument’s precision; a mismatch between tool resolution and cube size can hide small errors.

Prepare your workspace and measurement tools

Before you begin, set up a stable, clean workspace. Use a flat, vibration-free surface such as a granite bench or glass plate. Allow the cube and tools to warm to ambient room temperature to reduce thermal drift. Zero your calipers or micrometer before taking measurements to ensure accuracy. If you’re using digital calipers, enable the data hold or memory function to capture measurement snapshots. Check that the measurement instrument’s resolution matches the cube size; for a 20 mm cube, aim for ±0.01 mm or better resolution. Prepare a simple log sheet or digital template to record the dimensions for each axis, the measurement points (center and corners), and the timestamp. Establish a consistent measurement protocol: measure each face at multiple positions (center, and near each corner) to detect any nonplanarity. Finally, ensure the cube sits flat and square; slight tilting can bias a reading. Now you’re ready to perform the actual measurements.

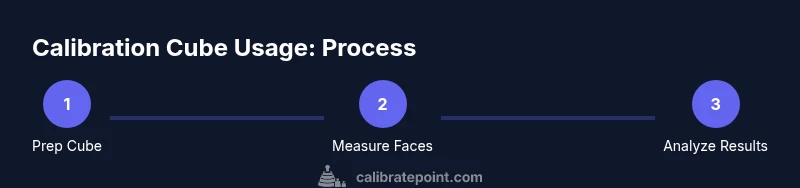

Step-by-step workflow for using the cube

This section presents a clear, practical workflow for how to use calibration cube in real-world tests. First, place the cube on the measurement surface with a light touch so you don’t deform the cube. Then, measure each face along three axes at multiple points: center, near the corners, and mid-edges. Record all six edge lengths with your caliper, noting any deviation from nominal. Next, calculate the mean for each axis and compare it to the nominal dimension; document the absolute and percentage differences. If you’re evaluating a machine tool or printer, run a short test pass at a known setting and re-measure to confirm repeatability. For thermal-sensitive environments, wait a few minutes after moving the cube to the measurement surface before recording measurements. When measurements are consistent within the tolerance you set, you’ve established a reliable baseline. If not, review potential causes such as bed leveling, axis glide, or calibration offsets. Finally, store your results in a calibration log and label the period, cube size, and operator to maintain traceability. This workflow aligns with best practices outlined by Calibrate Point Team.

Interpreting measurements and adjusting your process

Once you have measurements, interpret them by comparing each axis to the cube’s nominal size. A deviation within ±0.02 mm may be acceptable for general workshop tasks; tighter tolerances require stricter controls. If a face is consistently undersized, check for scale factor errors in the printer firmware or measurement method. If a face reads large in one axis but not others, suspect a skew or misalignment in the bed or axis rails. Use a tolerance band to categorize results: pass, borderline, fail. In a 3D printer workflow, adjust layering, extrusion multiplier, and axis calibration; for inspection instruments, recalibrate the measurement scale or verify zeroing procedures. After adjustments, re-run the cube test to confirm improvement and adjust your process accordingly. Document the final results and the changes made, so future calibrations can reproduce the same outcomes. Remember: small adjustments can produce meaningful gains; avoid chasing perfection at the expense of stability.

Case studies and practical tips

Real-world examples of calibration cube usage help illustrate best practices. Case study A: a small desktop 3D printer showing a consistent 0.05 mm undersize on x and y; after minor bed leveling and extrusion calibration, the cube reads within 0.01 mm. Case study B: a coordinate measuring instrument where the cube helps identify a tilt error that standard tools missed; adjusting the fixture corrected the issue. Practical tip: measure at the beginning and end of each session to detect drift; store a baseline record to compare future results. Another tip: avoid touching measurement surfaces with dirty gloves; oils can alter readings. A common pitfall is treating a single reading as representative; always use multiple measurements and compute an average. By adopting a simple, repeatable cube protocol, you improve consistency across tasks and reduce rework. This section highlights how a small cube can have a large impact on overall quality.

Maintenance and documentation

Keep the calibration cube clean and free of scratches; handle with care to avoid corner chips that skew results. Periodically verify cubes against a reference standard if your workflow requires traceability. Keep a running log of cube sizes and revision dates; include operator initials, date, environmental conditions, and measurement results. Back up electronic logs to a central repository. Review the protocol annually or whenever you change measurement tools or calibrate a new device. This discipline supports long-term reliability and makes audits smoother. Finally, replace the cube if you notice deformation or persistent drift in measurements; a worn cube invalidates the baseline and undermines confidence in the entire process. The goal is a stable, repeatable calibration practice that you can rely on across projects and teams.

Final checklist before calibration

• Confirm cube size and integrity; replace if necessary.
• Zero all measuring tools and verify same-day calibration status.
• Stabilize environment (temperature, humidity) and avoid drafty areas.
• Ensure measurement surface is flat and clean.
• Record at least three measurements per axis and compute mean.
• Review results against your acceptance criteria and log the outcome.
• Archive the record with date, operator, equipment, and cube size. By following this checklist, you reduce variability and improve confidence in calibration results.
