How to Calibrate a pH Probe for Accurate Readings
Learn how to calibrate ph probe accurately with buffers, temperature compensation, and proper technique. Practical, safe, and repeatable calibration guide by Calibrate Point for DIY enthusiasts and professionals.
Calibrate ph probe to ensure accurate readings for water testing, hydroponics, and laboratory tasks. This guide covers selecting buffers, preparing the probe, performing a two-point and optional three-point calibration, and verifying results with a quick quality check. You’ll need calibration buffers (roughly pH 4, 7, and 10), deionized water, a clean beaker, temperature compensation, and a well-maintained meter. According to Calibrate Point, proper calibration minimizes drift and improves repeatability.
Why Calibrating Your Ph Probe Is Essential
For any application that relies on pH readings—whether watering plants, testing aquaculture water, or conducting chemical analysis—the accuracy of the probe is paramount. A pH probe can drift over time due to electrode aging, contamination, or improper storage. Calibrate ph probe regularly to lock in the electrode’s response to hydrogen ions, and to keep your results trustworthy. According to Calibrate Point, rigorous calibration practices are foundational for reproducible measurements, reducing drift and improving repeatability across sessions. In practice, a well-calibrated probe means fewer reruns, less wasted reagent, and clearer data trends for decision-making. Expect minor drift if buffers are stale or the electrode is not properly conditioned; addressing these factors promptly preserves data quality over weeks and months. Bear in mind that calibration is a skill that improves with routine, careful handling, and consistent recording of results.
The Basics: Buffers, Probes, and Crosstalk
A pH meter measures hydrogen ion activity in solution via a glass electrode and a reference electrode. The buffers you select set known baselines against which the sensor can be adjusted. If buffers are contaminated or expired, the calibration will be inaccurate, and readings will drift. Temperature affects the electrode response, so temperature compensation is essential for measurements taken away from room temperature. Crosstalk from cleaning agents or residual salts can also skew results, so clean rinses between buffers and avoid introducing irritants that alter the electrode surface. In short, accuracy comes from clean equipment, fresh buffers, and consistent technique. Calibrate ph probe following a repeatable routine to ensure consistency across samples and days.
Selecting Buffers and Freshness Guidelines
Choose buffers that bracket the expected sample pH range and store them properly. Common practice uses buffers near neutral (pH ~7) and at acidic and basic ends (roughly pH ~4 and ~10). Always verify expiration dates and open buffers only when you’re ready to calibrate; seal containers tightly and keep them away from heat or direct sunlight. Use fresh buffers for each calibration session to avoid drift caused by contaminated solutions. Label each buffer clearly with the date opened and the target pH so you can track freshness over time. Calibrate ph probe with fresh buffers, as degraded solutions lead to inaccurate slope and offset values and poor repeatability.
Temperature Effects and Compensation
Temperature directly influences pH readings by altering the activity of hydrogen ions at the electrode surface. If your meter has automatic temperature compensation (ATC), ensure it is enabled and that the probe is in contact with the solution at or near room temperature during calibration. If ATC is not available, manually adjust the temperature reading in the meter’s settings and re-run the calibration. Allow the probe to equilibrate in the calibration buffer temperature before recording any values. Handling temperature correctly reduces systematic errors and improves the fidelity of subsequent measurements. Calibrate ph probe with attention to temperature to ensure consistent results in environments where temperature fluctuates.
Rinse, Soak, and Conditioning: Proper Probe Care
Between buffers, rinse the electrode gently with deionized water to remove residual buffer. Blot dry with lint-free tissue rather than rubbing, which can scruff or damage the glass surface. If you are conditioning a dry or aged electrode, soak it briefly in a stable buffer before the first calibration point to rehydrate the membrane. Avoid scrubbing or using harsh solvents that can erode the reference junction. Conditioning helps the electrode reach a stable baseline more quickly and reduces drift during subsequent readings. A clean, well-maintained electrode is the foundation of a repeatable calibration workflow.
Calibration Procedures at a Glance
A robust calibration typically uses two or three points: a mid-point (pH 7) and one or two end-points (pH ~4 and/or ~10). Begin with a rinse, then immerse the electrode in the mid-point buffer and adjust offset if necessary. Next calibrate at the second point to set the slope, ensuring the electrode response aligns with the buffer’s known value. If you use a third point, verify the slope again and refine as needed. Finally, rinse, dry, and store the probe per the manufacturer’s recommendations. Calibration should be performed with temperature compensation when possible, and data should be logged for trend analysis. For best results, use a well-maintained meter and calibrated buffers.
Quality Control: Verification and Data Logging
After calibration, verify accuracy by measuring a fresh buffer and by checking a sample with a known pH. Record the buffer temperatures, pH readings, and the meter’s slope and offset values. Compare repeated measurements to ensure tight repeatability; if numbers vary beyond your tolerance, repeat the calibration steps or replace the electrode if needed. Maintaining a calibration log helps you detect drift patterns and triggers timely maintenance. Regular verification reinforces confidence in the data and ensures you’re ready for critical measurements.
Common Pitfalls and Troubleshooting
Unexpected drift often stems from contaminated buffers, worn electrodes, or improper storage. Avoid using buffers beyond their shelf life; always rinse between buffers and avoid cross-contamination. If readings do not converge after a few trials, re-check the buffer temperatures, clean the electrode more thoroughly, or try a fresh set of buffers. A slow, inconsistent slope indicates either a degraded sensor or improper conditioning. In such cases, re-check storage, recalibrate with fresh solutions, and consider electrode replacement if accuracy does not improve.
Maintenance, Storage, and Long-Term Care
Store the probe in the recommended storage solution or buffer when not in use, and cap the junction to prevent contamination. Calibrate ph probe regularly, especially after periods of inactivity or when accuracy is critical. Periodic maintenance includes cleaning the electrode tip with a mild, manufacturer-approved cleaner and inspecting the junction for fouling. Keeping a routine calibration and storage plan minimizes drift, extends electrode life, and improves data reliability across projects.
Tools & Materials
- pH meter with temperature compensation(Ensure it has ATC or manual temp adjust)
- Calibration buffers (~pH 4, 7, and 10)(Fresh; unopened when possible; label opening dates)
- Deionized water or distilled water(For rinsing electrodes between buffers)
- Beakers or cups (250–500 mL)(Clear labeling for buffers)
- Lint-free tissue or lab wipes(Gentle blotting, not rubbing)
- Gloves (nitrile or latex)(Protect electrode and hands)
- Thermometer or temperature probe(If ATC not present in meter)
- Marker or tape for labeling buffers(Track opened dates)
- Calibration log sheet or notebook(Record slope, offset, and temperature)
- Soft brush or electrode cleaner (manufacturer-approved)(Optional for stubborn residues)

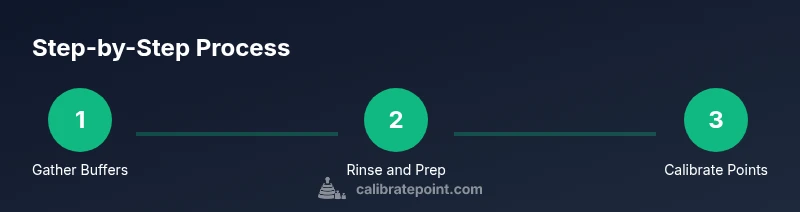

Steps
Estimated time: 25-40 minutes
- 1
Gather and label calibration buffers
Collect buffers at the target pH values (roughly 4, 7, and 10) and inspect their expiry dates. Label each container with the target pH and the date opened. This ensures you calibrate with fresh solutions and can track freshness over time.
Tip: Keep buffers sealed and at stable room temperature to maintain accuracy. - 2
Rinse the electrode and prepare the meter
Rinse the electrode tip with deionized water and gently blot dry with lint-free tissue. Turn on the pH meter and ensure temperature compensation is set or enabled. Prepare the work area to minimize contamination between buffers.
Tip: Avoid touching the glass bulb with fingers; oils can affect readings. - 3
Calibrate at the mid-point (pH 7) first
Immerse the electrode in the pH 7 buffer and allow the reading to stabilize. Adjust the offset or set-point so the meter reads exactly pH 7.0. Documentation of this baseline helps with later slope calculations.
Tip: Take multiple readings and average them if your meter supports it. - 4
Calibrate at the second point (pH 4 or 10)
Rinse, then immerse in either the acidic (pH ~4) or basic (pH ~10) buffer depending on your typical sample range. Adjust the slope so the reading matches the buffer value. This defines how the electrode responds across the range.
Tip: Two-point calibration improves accuracy for typical lab ranges. - 5
Optional third-point calibration and verification
If you use a three-point method, repeat the process with the remaining end-point and re-check the pH 7 reading. Verify the consistency by measuring a fresh buffer and a known sample after calibration.
Tip: A third point helps catch nonlinearity in the electrode response. - 6
Rinse, dry, and store the electrode
Rinse the electrode with DI water, blot dry, and store per manufacturer guidelines in the appropriate storage solution. Ensure the probe is not left dry, which can damage the membrane.
Tip: Label the storage solution with date and electrode model for maintenance tracking. - 7
Record results and plan future calibrations
Log the date, temperatures, buffer lot numbers, and the measured poles (offset and slope). Establish a re-calibration interval based on usage and data trends. Regular logging makes trend analysis easier.
Tip: Review logs quarterly to adjust calibration frequency if needed.
Questions & Answers
Why is calibrating a pH probe essential?
Calibration corrects probe drift and ensures measurements reflect true hydrogen ion activity. Without calibration, readings can drift over time, leading to incorrect conclusions.
Calibration corrects drift in pH readings and keeps measurements accurate.
How often should I calibrate a pH probe?
Calibrate at the start of each session and after maintenance or if readings drift. Use a more frequent schedule for critical analyses and when the electrode is new or recently cleaned.
Calibrate at the start of each session and after any maintenance or drift.
Which buffers should I use for calibration?
Choose buffers near the expected sample range, typically around pH 4, 7, and 10. Fresh buffers reduce contamination and ensure accurate slope and offset.
Use near-range buffers like pH 4, 7, and 10 with fresh solutions.
Why is temperature compensation important?
Temperature affects electrode response; enabling compensation or adjusting temperature settings ensures readings reflect true pH under operating conditions.
Temperature compensation aligns readings with actual pH at the sample’s temperature.
What if readings drift after calibration?
Recheck buffer freshness, rinse thoroughly, and verify electrode cleanliness. If drift persists, consider a replacement electrode or service.
If drift continues, recheck buffers and electrode cleanliness, and replace if needed.
Can I calibrate with distilled water alone?
Water alone cannot calibrate pH accurately. Use buffers with defined pH values to set the meter's offset and slope.
Water alone isn't sufficient for proper calibration; you need buffers.
Watch Video
Key Takeaways
- Calibrate ph probe with fresh buffers at defined pH points.
- Enable temperature compensation for accurate readings.
- Document calibration data to monitor drift over time.
- Verify accuracy with a known standard after calibration.
