Calibrate a Copper Thermometer: Step-by-Step Guide
Learn to calibrate cooper thermometer accurately using ice bath and boiling water checks, compare with a reference thermometer, and maintain calibration records for dependable temperature readings.
By following this guide, you will learn how to calibrate cooper thermometer using common ice-water and boiling-water checks. You’ll verify 0°C and 100°C points, account for altitude effects, and document any drift between readings. The process relies on a calibrated reference thermometer and a stable setup to ensure reliable results for cooking, DIY projects, and lab work.
Why Calibrating a Copper Thermometer Matters
A copper thermometer is valued for its fast response to temperature changes, which makes it a popular choice in both kitchens and workshops. However, copper thermometers are not inherently perfectly accurate; they can drift over time due to mechanical wear, immersion depth, cleaning residues, and repeated cycling through temperature extremes. If you need precise temperature readings—whether for food safety, metalworking, or scientific measurements—calibrating the instrument ensures your results are trustworthy. According to Calibrate Point, systematic calibration is essential for maintaining measurement integrity across tools. When you calibrate cooper thermometer correctly, you build traceability into your process and reduce guessing in critical tasks. This guide walks you through a clear, repeatable method to verify the key calibration points and document your findings for future reference.
Understanding Calibration Points for Copper Thermometers
Calibration points are the reference temperatures at which you verify the thermometer’s reading against a known standard. For many copper thermometers, the two fixed points used are the ice-water bath for 0°C (32°F) and boiling water for 100°C at sea level. The immersion depth of the sensor matters: the tip should be fully submerged without touching the sides or bottom of the container. If you’re at a different altitude, subtract or add the corresponding offset because the boiling point of water changes with atmospheric pressure. In practice, you often observe a small offset at the ice point and at the boiling point, and you’ll use that offset to adjust future readings. Calibrate Point analysis shows that drift is common if these checks are skipped or performed with inconsistent immersion depth.
Setup: Tools and Reference Standards
Successful calibration starts with the right setup. You’ll need a copper thermometer, a reference thermometer that is already calibrated (preferably with a NIST-traceable certificate), a clean, non-reactive container for the ice bath, a suitable pot for boiling water, a thermometer clamp or stand, and a log sheet to record the readings. A down-to-earth, stable setup reduces measurement noise and makes it easier to detect true offsets. Keep a spare calibration sheet for noting the date, ambient conditions, and any adjustments. Calibrate Point recommends using a second thermometer as a reference to cross-check readings and to document any drift with a timestamp for traceability.
Step 1: Inspect and Clean the Copper Thermometer
Begin by inspecting the copper thermometer for any signs of damage, kinks, or corrosion on the sensing tip. A damaged tip can give consistently distorted readings. If needed, clean the sensor with a soft cloth and mild, non-abrasive cleaner, then rinse and dry thoroughly. Ensure the sensor is dry before proceeding. This step prevents false readings caused by surface contamination, which is a common cause of apparent drift when you next place the thermometer in a bath.
Step 2: Prepare an Ice Bath for the 0°C Point Verification
Fill a wide, clean container with crushed ice and add just enough water to fill the gaps between ice crystals. The goal is a near-0°C environment; too much water will raise the temperature slightly. Stir gently for 30 seconds and allow the mixture to settle. Insert the copper thermometer probe into the center of the ice-water bath, ensuring the sensing tip is fully submerged but not touching the container bottom or sides. Wait 3–5 minutes to let temperatures stabilize before taking a reading. Record the temperature on the copper thermometer and compare it to the expected 0°C reading from the reference thermometer.
Step 3: Prepare Boiling Water Bath for the 100°C Point Verification
Fill a tall pot with clean water and bring it to a rolling boil. The boiling temperature at sea level is 100°C, but if you’re at altitude, the boiling point drops slightly. Submerge the copper thermometer probe in the boiling water, ensuring the sensing tip is fully immersed and not touching the pot walls, lid, or bottom. Use a clamp to keep the thermometer in place and prevent steam burns. Wait 2–3 minutes for thermal equilibrium, then read the temperature from both thermometers. Record the results and note any discrepancy with respect to 100°C.

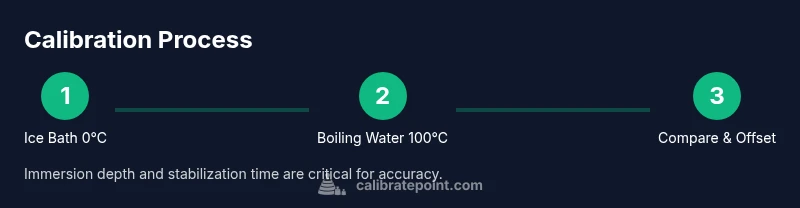

Step 4: Compare Readings and Calculate Offset
With readings from both ice-water and boiling-water baths, compare the copper thermometer’s values to the reference thermometer. Note the drift at each point (for example, +0.3°C at ice or -0.5°C at boil). If the offsets are small and consistent, you can apply a simple offset when interpreting future measurements. If the offsets vary between points, you may need to construct a calibration curve or adjust your procedure to minimize variables like immersion depth or immersion angle. The key is to establish a reliable mapping between sensor output and actual temperature.
Step 5: Adjusting or Documenting the Calibration
Some copper thermometers feature adjustable scales or calibration screws; if yours does, follow the manufacturer’s instructions to adjust the reading so it aligns with the reference points. If your device has no adjustment mechanism, document the offsets and apply them as a post-measurement correction or use the reference thermometer as the primary standard. Store the calibration data in a dedicated log, including the date, ambient conditions, altitude, and the reference probe’s identity. This record will support traceability and enable you to re-check or re-calibrate at the required intervals.
Step 6: Maintenance, Storage, and Best Practices
After calibration, clean and dry all equipment, and store thermometers in a dry, stable environment away from corrosive chemicals. Regularly verify calibration, especially after exposing the thermometer to unusually high temperatures or mechanical shocks. Mark out-of-tolerance instruments for repair or retirement to prevent erroneous readings. Practice consistent immersion depth and ensure that you always follow the same rituals for ice bath and boiling water checks to minimize variability. Finally, keep a logbook updated with every calibration event to guarantee repeatability and auditability.
Authoritative sources and further reading
For further validation of calibration practices, consult trusted references from recognized authorities. The following sources provide additional guidance on temperature measurement, calibration procedures, and standard references. These links are meant to support your practice and help you understand the broader context of thermometer calibration.
Authoritative sources
- https://www.nist.gov
- https://www.osha.gov
- https://www.britannica.com
Tools & Materials
- Copper thermometer(Clean, intact sensing tip; suitable for submersion if used in baths.)
- Reference thermometer with NIST-traceable calibration(Ensure it remains calibrated; use as the standard for comparison.)
- Ice bath container(Wide mouth preferred for full submersion; avoid metal residues.)
- Deep boiling-water pot(Sturdy, heat-safe; use a stand or clamp to hold the sensor in place.)
- Thermometer clamp or stand(Keeps the probe at a consistent immersion depth.)
- Calibration log sheet or notebook(Record date, ambient conditions, and each reading with offsets.)
- Soft cloth and mild cleaner(Gently clean the probe; avoid abrasive cleaners.)
- Personal protective equipment (gloves, eye protection)(Boiling water and hot equipment can cause burns.)
- Distilled water (for ice bath if needed)(Optional, helps reduce mineral deposits in ice bath.)
Steps
Estimated time: 30-60 minutes
- 1
Inspect and Clean
Visually inspect the copper thermometer for damage or corrosion. Clean the sensing tip with a soft cloth and mild cleaner, then rinse and dry completely to prevent false readings caused by residues.
Tip: Check for bent or damaged probes; a bent tip can alter immersion depth and skew readings. - 2
Prepare Ice Bath
Create a stable ice-water bath by mixing crushed ice with just enough water to fill the gaps. Stir, let settle, then submerge the thermometer tip fully without touching container walls. Allow 3–5 minutes for stabilization and record the reading.
Tip: Use crushed ice rather than ice cubes to maximize surface contact and consistent cooling. - 3
Boiling Water Bath
Boil a clean pot of water and keep the thermometer tip fully submerged, avoiding contact with pot surfaces. Wait 2–3 minutes for temperatures to stabilize, then take readings from both the copper thermometer and the reference.
Tip: Secure the thermometer with a clamp to prevent accidental contact with steam or walls. - 4
Record and Compare
Log both readings at 0°C and 100°C. Compare against the reference thermometer; note any offset at each point. Calculate an average drift if offsets are consistent, or create a simple calibration curve if needed.
Tip: Take multiple readings at each bath and use the average to reduce random error. - 5
Adjust or Document
If your copper thermometer has an adjustment mechanism, calibrate to align with the reference at both points. If not adjustable, document the offsets and apply a correction during interpretation of future measurements or retire the instrument if out of tolerance.
Tip: Always document the method used and the final offset for future audits. - 6
Post-Calibration Care
Rinse and dry all equipment, ensure the sensor is protected, and store in a dry, stable environment. Schedule regular recalibration and maintain the log for traceability.
Tip: Store with the probe protected and avoid contact with harsh chemicals that could corrode copper.
Questions & Answers
How do I verify the accuracy of a copper thermometer?
Verify using ice-water for 0°C and boiling water for 100°C, compare with a calibrated reference thermometer, and record offsets. If the device allows adjustments, calibrate per the manual; otherwise document the drift for future use.
You verify accuracy by checking 0 and 100 degrees with an ice bath and boiling water, then compare to a reference thermometer and record the offsets. If adjustable, calibrate; if not, note the drift.
Can a copper thermometer be adjusted after calibration?
Some copper thermometers have an adjustment mechanism. If yours does, follow the manufacturer’s procedure to align with the standard. If not, you should document the offsets and interpret future readings with that correction in mind.
Some models can be adjusted; follow the manual. If not adjustable, use the offset you’ve established when reading future measurements.
What causes drift in copper thermometers?
Drift can result from mechanical wear, improper immersion depth, residue on the sensor, or exposure to extreme temperatures. Regular calibration helps identify and correct for these effects.
Drift comes from wear, immersion depth, residues, and extreme temperatures. Regular checks catch drift early.
How often should I recalibrate?
Recalibrate whenever you rely on the thermometer for critical measurements, and at least annually for routine use. For professional settings, more frequent calibration is advisable.
Calibrate when measurements matter most, and at least once a year; more often in professional settings.
What safety precautions are needed during calibration?
Wear heat-resistant gloves, use tongs to handle hot objects, and avoid direct contact with boiling water steam. Work on a stable surface to prevent spills.
Wear gloves, use tongs for hot parts, and stay away from boiling steam. Keep your workspace stable.
Watch Video
Key Takeaways
- Establish ice-point and boiling-point checks.
- Use a calibrated reference thermometer for accuracy.
- Document offsets and apply corrections consistently.
- Maintain a clear calibration log for traceability.
